Bendpak XPR-12CL 12,000 Lbs Clear-floor 2-Post Lift (5175405)

by Bendpak
Original price $9,095.00 - Original price $9,095.00
Original price
$9,095.00 - $9,095.00
Current price $9,095.00

SKU 5175405
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

Bendpak XPR-12CL 12,000 Lbs Clear-floor 2-Post Lift (5175405)

Every XPR-12CL two-post lift is designed to keep your floor clean—no visible cables or airlines. Our Clearfloor design offers enough space for vehicles up to 12,000 lbs. Pure DirectDrive performance is matched by, cutting-edge technology, top-of-the-line materials and a design that’s ahead of its time. This car lift fits in shops with ceilings higher than 14’ and won’t crowd your floor while you work beneath a vehicle.

XPR-12CL lifts include:

  • Dual direct-drive cylinders that reduce the workload of the entire hydraulic system and save maintenance costs over lift chain and screw drive construction
  • Maintenance-free high-tech UHMW load bearings
  • Clear floor design for unobstructed movement of service technicians and equipment

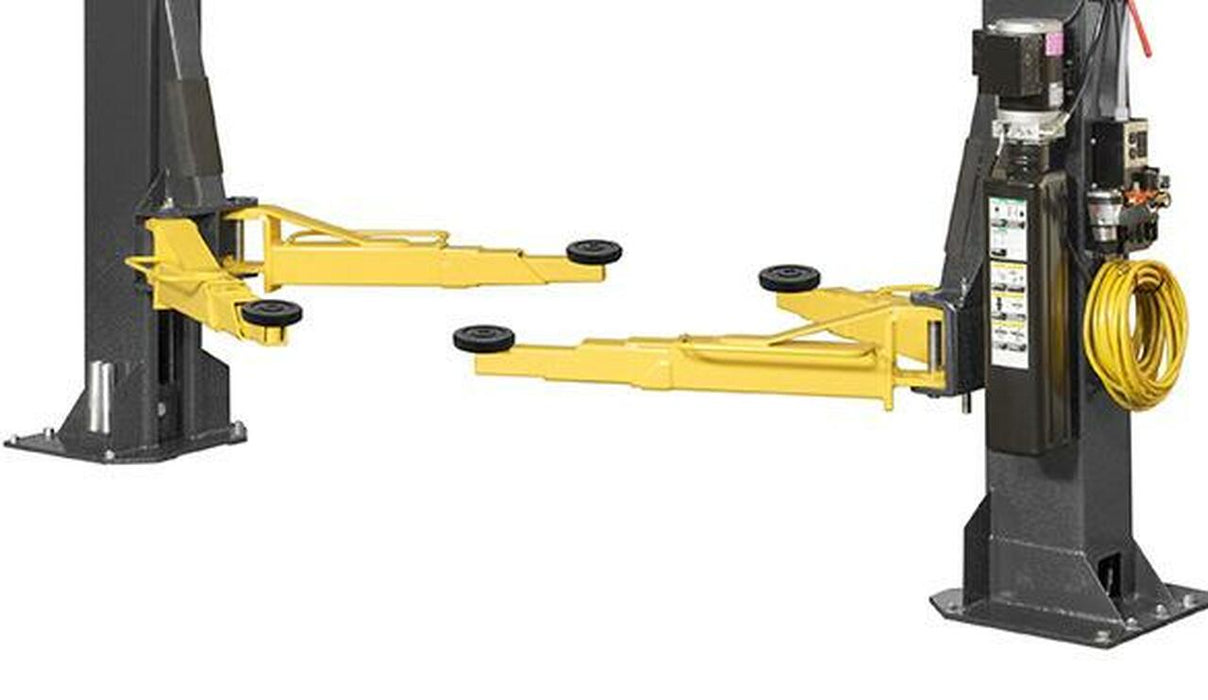

  • Triple-telescoping arm set for maximum reach
  • High-speed hydraulics for faster ascent and descent
  • Lowered arm tube supports for better clearance
  • Wider column spacing to accommodate even trucks with fixed towing mirrors

XPR-12CL Characteristics:

  • Lift Capacity: 12,000 lbs.
  • Height: 170”
  • Width: 155”
  • Lift height: 69”
  • Type: Clear Floor

XPR-12CL Two-Post Lift Offers Heavy-Duty Lifting Capability

  • Our XPR-12CL two-post lift offers a wide selection of durable, safe and reliable systems for virtually every lifting application. This is an incredibly rapid lift with robust menus of features to increase efficiency and productivity. They never overwhelm you with serviceable parts and constant maintenance, and as a result, you get lower operating expenses and higher productivity. If you're looking to make more money in less time than ever before, you'll find that this car lift is the perfect addition to your shop—especially when you work with bulkier, heavier vehicles that require heavy-duty lifting capacities.
  • But just because these super-duty models were designed for the big stuff, it doesn't mean they can't handle light-duty work as well. The XPR-12CL two-post lift can easily raise your largest full-sized pickups and commercial vehicles, yet they still provide specific capability for sport and compact cars, both foreign and domestic. The 12K capacity features full-reach arms that collapse to standard lengths and lower-seating lift pads that clutch standard passenger automobiles. The columns are also placed wider for trucks with fixed towing mirrors, and the overhead equalization beam is up and out of the way for those "high-cube" delivery vehicles. When it comes to ease-of-use, our dual-synchro equalization system and user-friendly controls are legendary.
  • The XPR-12CL is our closed-top model. A closed-top model offers clearfloor convenience, as it runs hydraulic lines up and out of sight, but it may not fit taller vehicles. A closed-top/clearfloor two-post lift allows two technicians to easily move toolboxes, transmission jacks, oil drains and other equipment underneath the elevated vehicle.


  • 12,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Padded overhead safety shutoff bar
  • Extended height top-beam provides greater overhead clearance
  • Single-point safety release
  • Dual direct-drive hydraulic cylinders
  • Dual-synchro equalization system for equal lifting

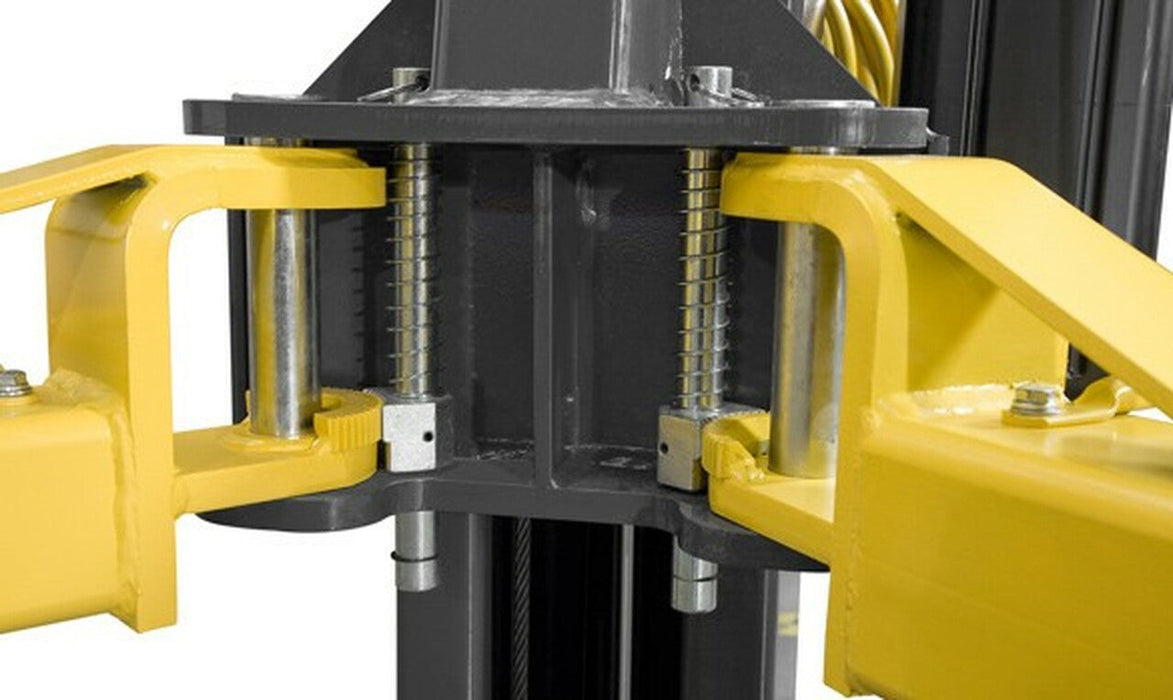

  • Oversized 53" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Oversized A36 steel base plates
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3"
  • Plated arm restraints and arm pins for rust prevention
  • Heavy-duty 1/2" aircraft-quality equalizer cables

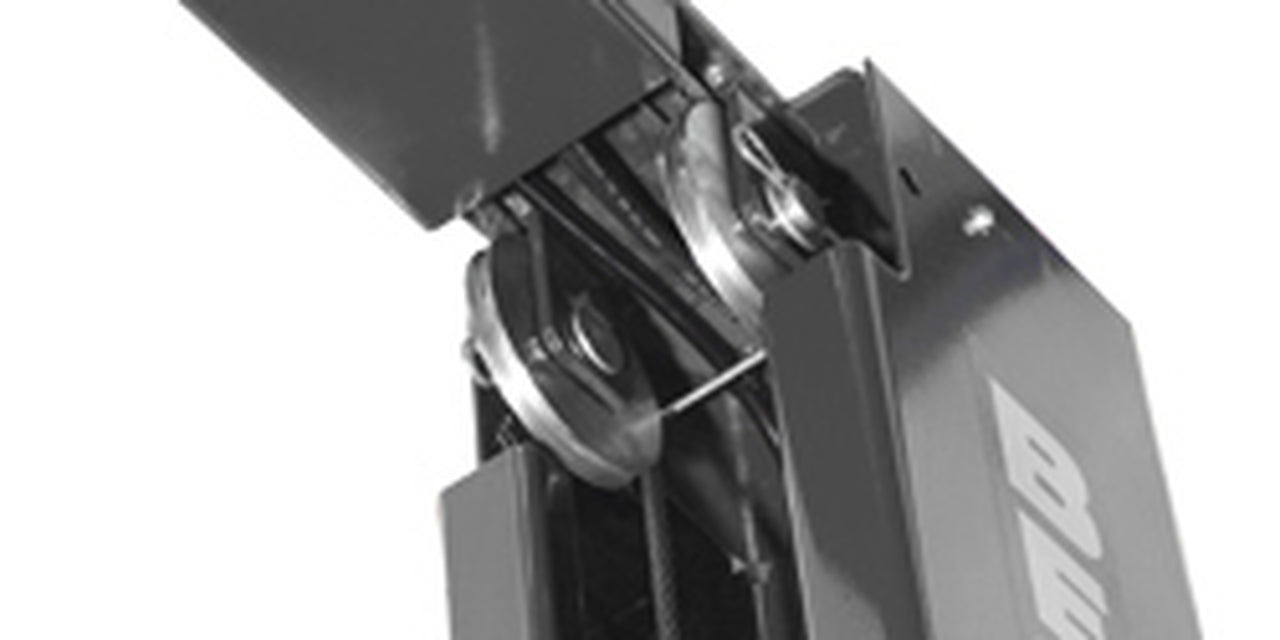

  • Oversized cable sheave diameter reduces cable fatigue
  • Durable, rubber lift pads with stackable adapters

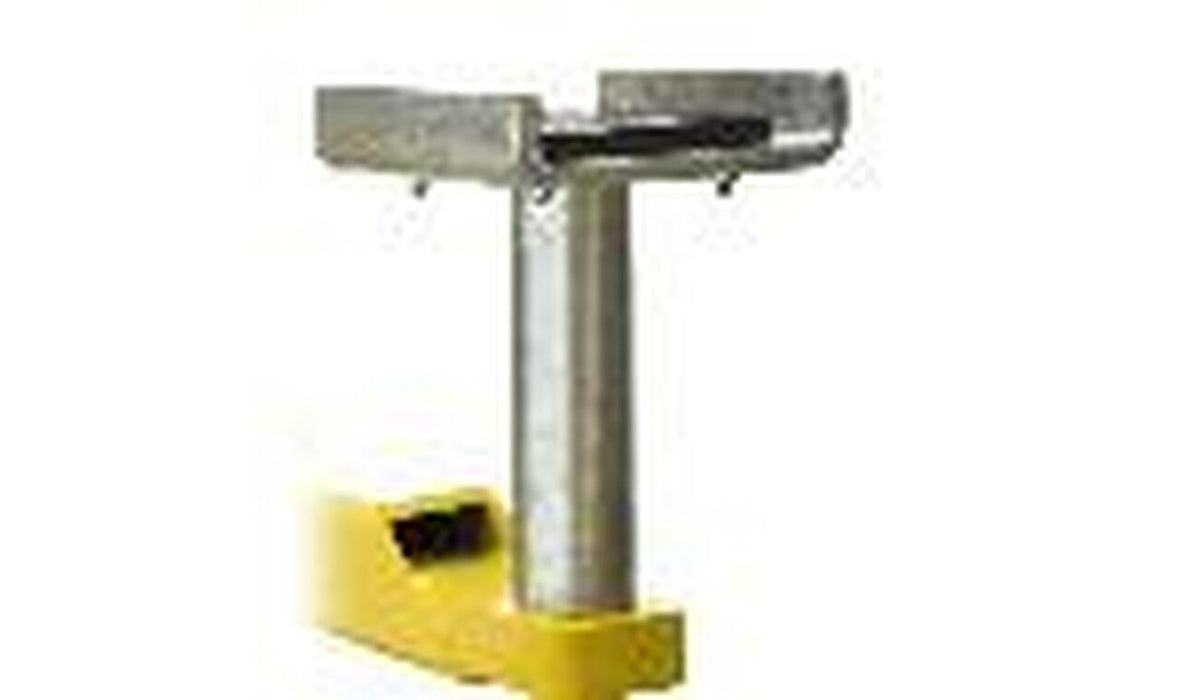

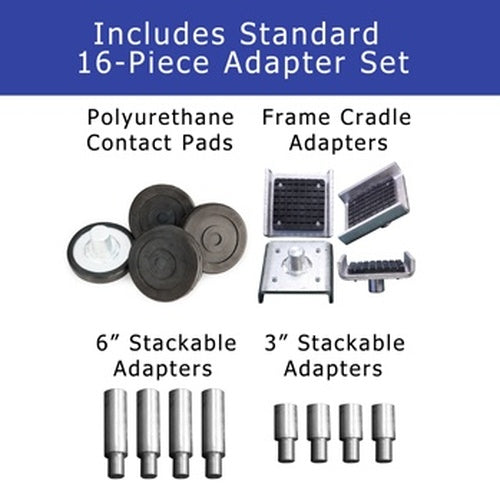

  • 16-piece specialty adapter set includes four 6" stackable adapters, four 3" stackable adapters, four polyurethane contact pads and four frame cradle pads
  • Convenient storage is included for truck and van adapters

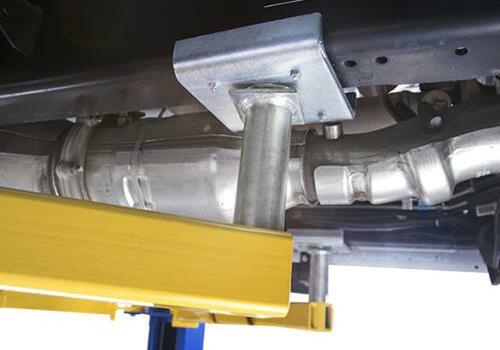

  • Triple-telescoping arms provide increased range for lifting point access



  • Lifting Capacity* 12,000 lbs. (5,443 kg)
  • *Max Capacity / Front Axle 6,000 lbs. (2,722 kg)
  • *Max Capacity / Rear Axle 6,000 lbs. (2,722 kg)


  • A - Rise: 69" (1,753 mm)
  • B - Rise + Pad Only: 74" (1,880 mm)
  • C - Rise + Pad + 63 mm Adapter: 80" (2,032 mm)
  • D - Min. Height + Pad: 5" (127 mm)
  • Time to Full Rise: 45 seconds

Outside Dimensions

  • E - Height Overall: 170" (4,318 mm)
  • F - Width Overall: 155" (3,937 mm)
  • G - Outside Columns: 144" (3,658 mm)

Inside Dimensions

  • H - Inside Columns: 120" (3,048 mm)
  • I - Drive-Thru Clearance: 106" (2,692 mm)
  • J - Floor To Overhead Switch: 165" (4,191 mm)

 Arms & Pads

  • K - Front Arm Reach: (MIN) 32" (813 mm)
  • K - Front Arm Reach: (MAX) 60" (1,524 mm)
  • L - Rear Arm Reach: (MIN) 32" (813 mm)
  • L - Rear Arm Reach: (MAX) 60" (1,524 mm)
  • Max Load Per Arm 3,000 lbs. (1,361 kg)


  • Weight: 220 VAC / 60 Hz / 1 Ph
  • Dimensions: 45 dB

Features & Specs
