Dannmar DJ-4500 4,500-lbs. Capacity Rolling Bridge Jack

by Dannmar
Original price $1,793.00 - Original price $1,793.00
Original price
$1,793.00 - $1,793.00
Current price $1,793.00

SKU 5175327
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

Dannmar is a company of people passionate about the automotive industry and the community that make it all possible. In this business, success is built on performance. Dannmar started out determined to reinvent the automotive service equipment market by providing quality equipment at a great value with superior after-sale service. They understand the purchase of a new car lift, tire changer, or wheel balancer is a big deal and we like to treat every customer as if they’re the only one.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

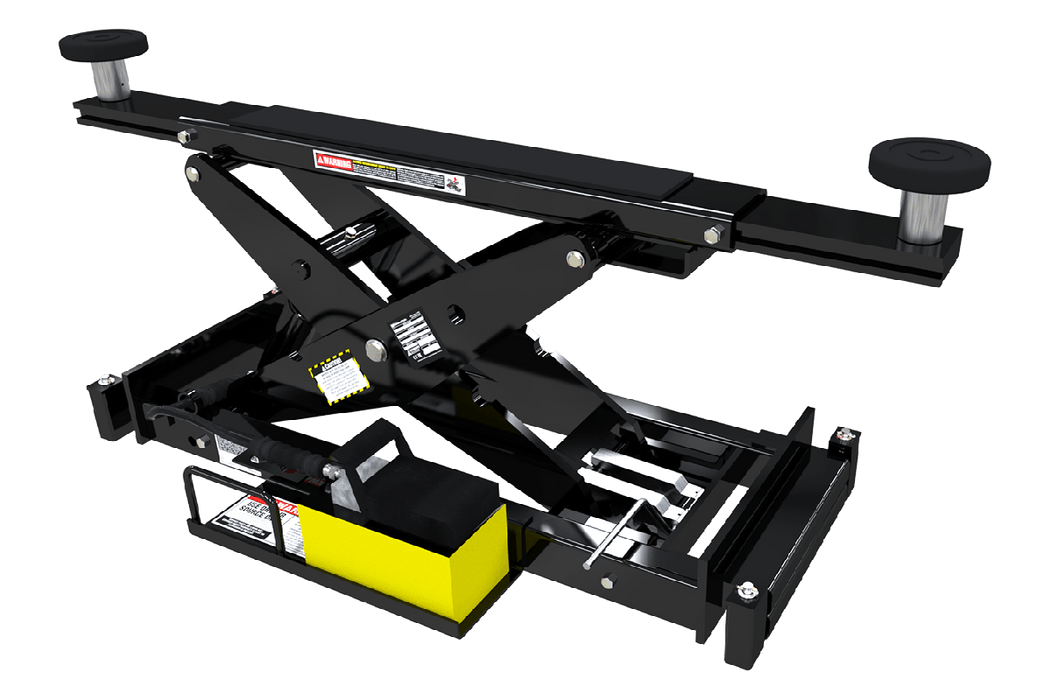

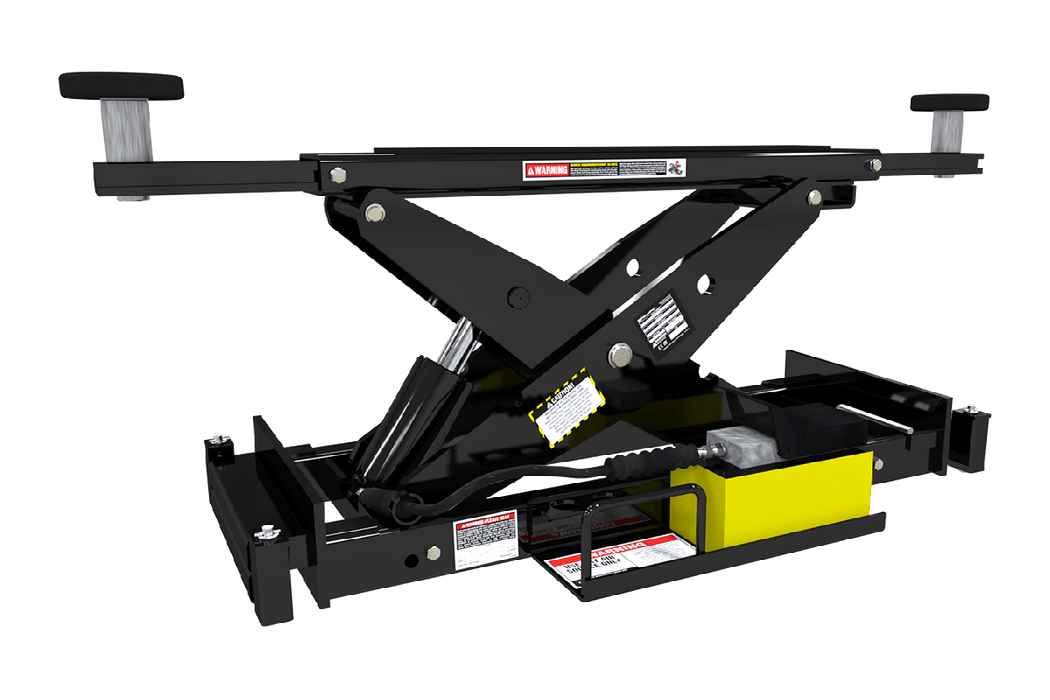

Dannmar DJ-4500 4,500-lbs. Capacity Rolling Bridge Jack


If you will be adding the D4-9 lift in your shop, we’d recommend a pair of DJ-4500 rolling bridge jacks to raise both the front and the rear of vehicles you are repairing. This gives you the versatility to perform your job on a variety of vehicles under many circumstances.

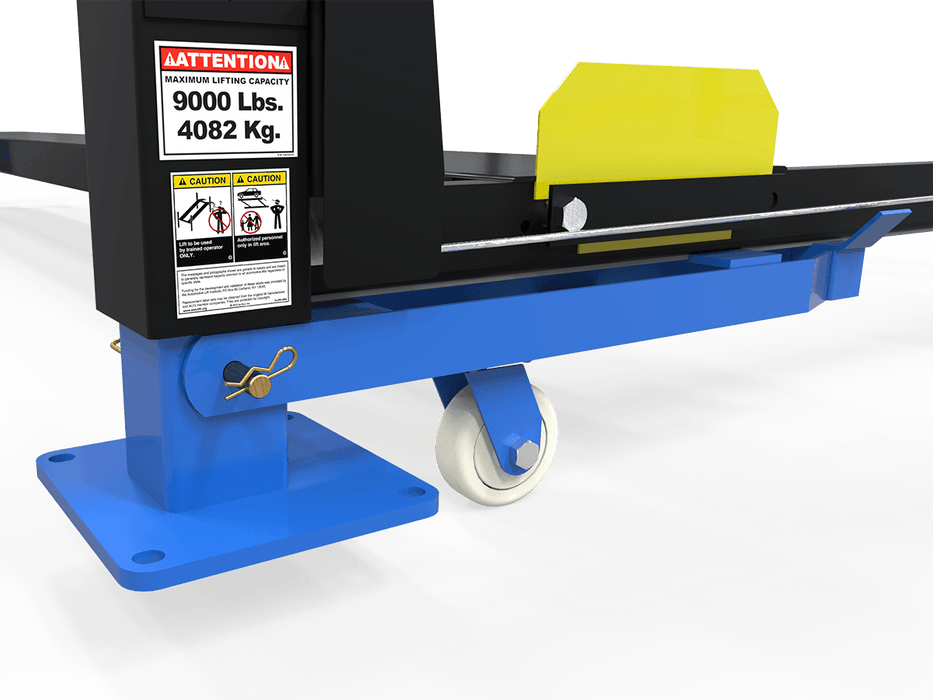

The DJ-4500 rolling-bridge jack teamed with Dannmar’s D4-9, 4-post lift is one of Dannmar’s most popular packages. And the D4-9, 4-post lift with its optional caster kit is the lift that many repair centers prefer. That’s because it allows technicians to easily move it in their shop. These products teamed up will enhance your shop’s versatility and make your job easier by giving you more ability to move.

The Dannmar rolling bridge jack incorporates several features for enhanced use and lifting.

Rubber contact pads

Dannmar’s rolling bridge jack is undercarriage and chassis friendly with non-marring rubber contact pads. The rugged material will hold up for many years of heavy use. Dannmar’s optional frame cradle set is the perfect match for use on trucks and SUVs.

Stackable adapters

To gain more access on some vehicles or to reach the frame lifting areas of various vehicles and especially trucks, stackable adapters will help reach those points.

High-pressure hydraulic power unit

Dannmar’s rolling bridge jack is loaded with useful features including a hydraulic power unit with an air supply line providing 125 psi and 10 – 20 CFM. This is accessibly controlled by a foot pedal attached directly to the jack.

Three lock levels

Dannmar gives you choices. Raise the vehicle to where it best suits the job you are trying to complete. Three lock positions make it possible to get the vehicle to the best height.


  • 4,500-lb. lifting capacity
  • Rubber contact pads
  • Stackable adapters to maximize arm reach
  • High-pressure commercial air-hydraulic power unit; foot operated
  • Optional air-line kit


SKU# 5175327
Lifting Capacity 4,500 lbs. (2,041 kg)
Max. Height + Pad Only 14.5” (368 mm)
Max. Height + Pad + Adapter 18” (457 mm)
Min. Height + Pad Only 4.5” (114 mm)
Min. Height + Pad + Adapter 8” (203 mm)
Support Arm Width 36” (914 mm) - 47” (1,194 mm)
Max. Arm Reach 57” (1,448 mm)
Min. Arm Reach 42” (1,067 mm)
Motor Air-Hydraulic Pump
Noise 45 dB
Lifting Time 45 seconds
Shipping Weight 374 lbs. (169.6 kgs)
Shipping Dimensions 42" x 24" x 14" (1,066 mm x 609 mm x 355 mm)
