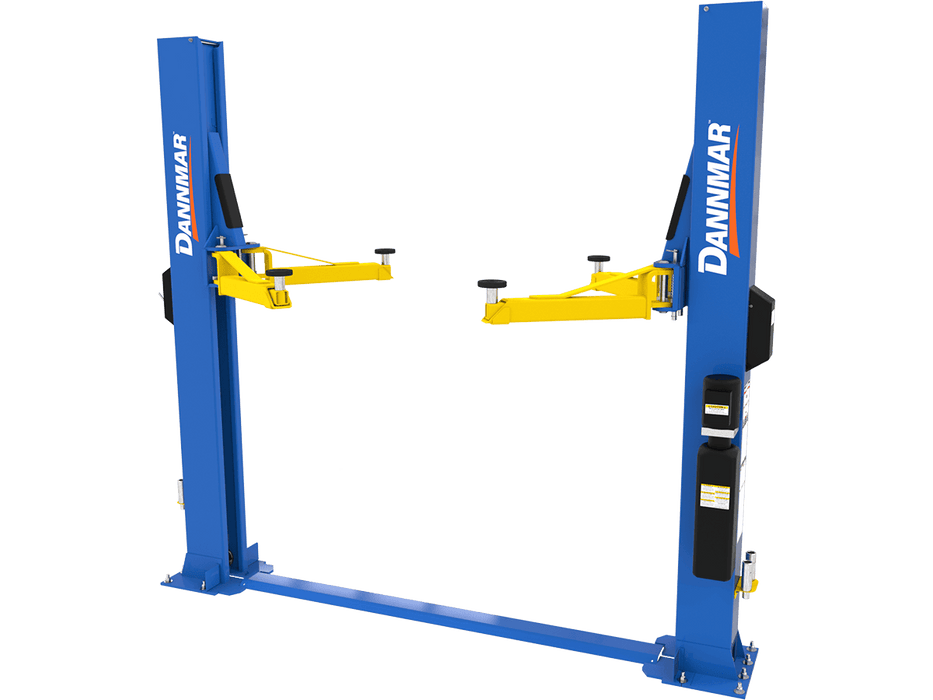

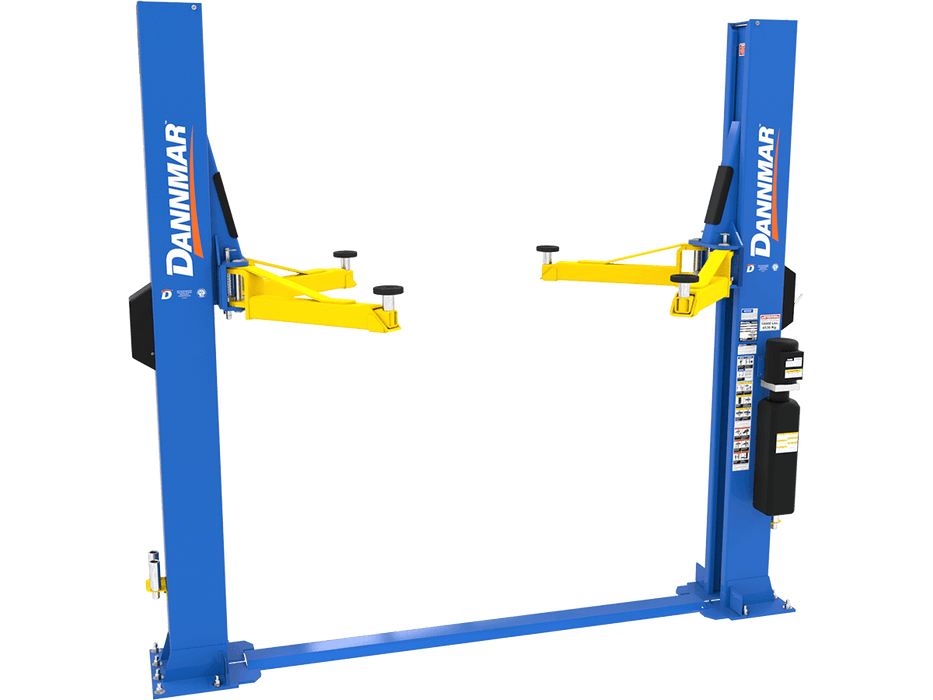

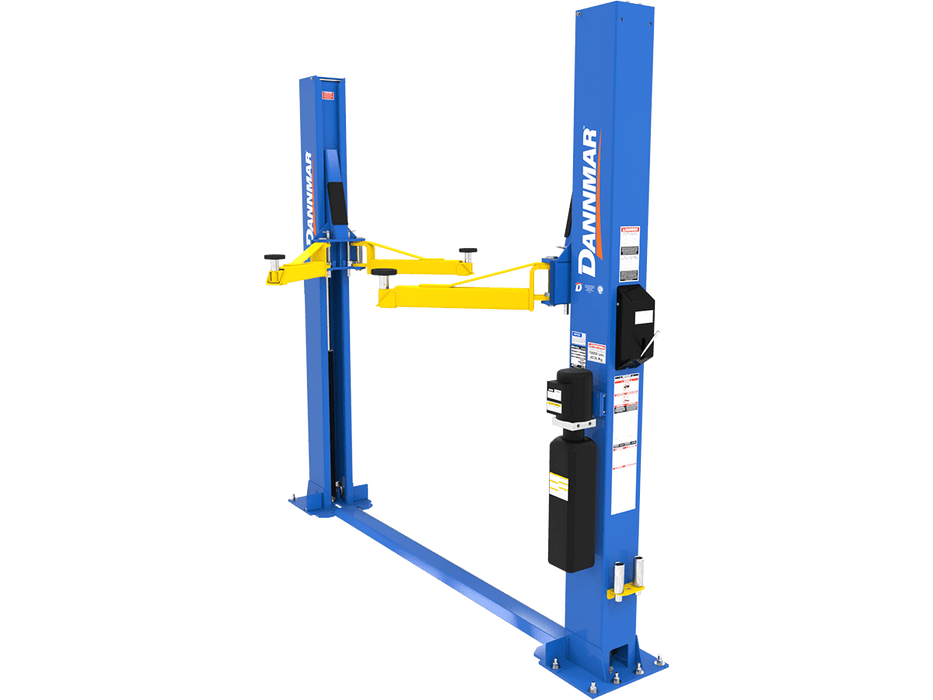

Dannmar D2-8F 8,000-lbs. Capacity Two-Post Lift / Floorplate / Includes Stackable Pads and Adapters

by Dannmar
$5,183.00

SKU 5175316

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

Dannmar is a company of people passionate about the automotive industry and the community that make it all possible. In this business, success is built on performance. Dannmar started out determined to reinvent the automotive service equipment market by providing quality equipment at a great value with superior after-sale service. They understand the purchase of a new car lift, tire changer, or wheel balancer is a big deal and we like to treat every customer as if they’re the only one.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

Dannmar D2-8F 8,000-lbs. Capacity Two-Post Lift / Floorplate / Includes Stackable Pads and Adapters

Overview

Two-Stage Telescoping Screw Pad Assembly Kit

The D2-8F two-post lift utilizes Dannmar’s double-telescoping screw pads. Dannmar’s pads are rugged and resist hard use and gouging. Strong construction ensures safe operation. The 63 mm adapters are stackable and include a standard set to accompany each lift, helping reach the lifting points on most any vehicle.

Triple-telescoping front arms and two-stage rear arms

Multi-stage arms are adaptable enough to work with several vehicle types. The arm sweep and minimum arm reach on this lift are extended, so the arms can lift most unibody vehicles. They typically will reach factory-recommended lift points and work with a range of wheelbases.

Low-profile, dropped-end frame contact pads

From daily drivers to race cars to high-performance import sedans, Dannmar’s car lift has the versatility to slide under your chassis without damaging your vehicle’s undercarriage or frame.

Lowered arm tube supports

Dannmar’s tube arms have been redesigned to make it easier to open doors when vehicle lift points are engaged. This is especially useful if your vehicle has low-opening doors. Dannmar makes every effort to prevent damage to your vehicle’s body with the two-post lift design.

Features

  • Electric / hydraulic power system
  • Large, 17" x 19" A36 steel base plate
  • Self-lubricating dura-glide UHMW polyethylene bearings
  • Safety locks in each column spaced every 3”
  • Automatic arm restraints
  • Heavy-duty 1/2" aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4-piece 63 mm stackable adapter set comes standard
  • Telescoping arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Oversized 53" tall carriage for superior strength
  • Triple-telescoping arm design
  • Versatile drop-in contact pads with stackable adapters.

Specs

Style Floorplate
SKU# 5175316
Lifting Capacity 8,000 lbs. (3,629 kg)
Lowered Height + Pad 4.25” (108 mm)
Max. Lift Height (Top Lock) 80.5” (2,045 mm)
Max. Rise 72” (1,829 mm)
Height Overall 113” (2,870 mm)
Width Overall 132” (3,353 mm) or 145” (3,683 mm)
Width Outside Columns 126.75” (3,219 mm) or 139.75” (3,550 mm)
Width Inside Columns 105” (2,667 mm) or 118” (2,997 mm)
Drive-Thru Clearance 93” (2,362 mm) or 106” (2,692 mm)
Floorplate Width 8.5” (216 mm)
Floorplate Height 1.25" (33 mm)
Arm Reach 32.25" (819 mm) - 52.25” (1,327 mm)
Max. Load per Arm 2,000 lbs. (907 kg)
Time to Full Rise 45 seconds
Noise 45 dB
Motor 220 VAC / 60 Hz / 1 Ph
Shipping Weight 1,733 lbs. (786 kgs)
Shipping Dimensions 117" x 25" x 36" (2,971 mm x 635 mm x 914 mm)
