Dannmar 12,000-lbs. Capacity Four-Post Lift

by Dannmar
$6,558.00

SKU 5175317

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

Dannmar is a company of people passionate about the automotive industry and the community that make it all possible. In this business, success is built on performance. Dannmar started out determined to reinvent the automotive service equipment market by providing quality equipment at a great value with superior after-sale service. They understand the purchase of a new car lift, tire changer, or wheel balancer is a big deal and we like to treat every customer as if they’re the only one.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

Dannmar 12,000-lbs. Capacity Four-Post Lift

Overview

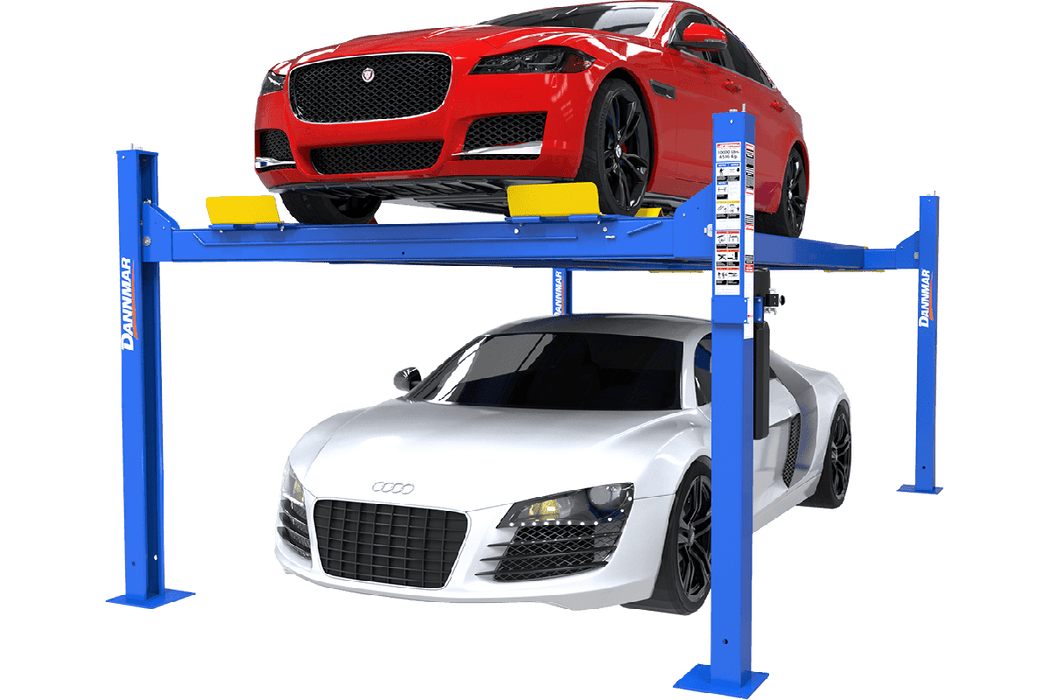

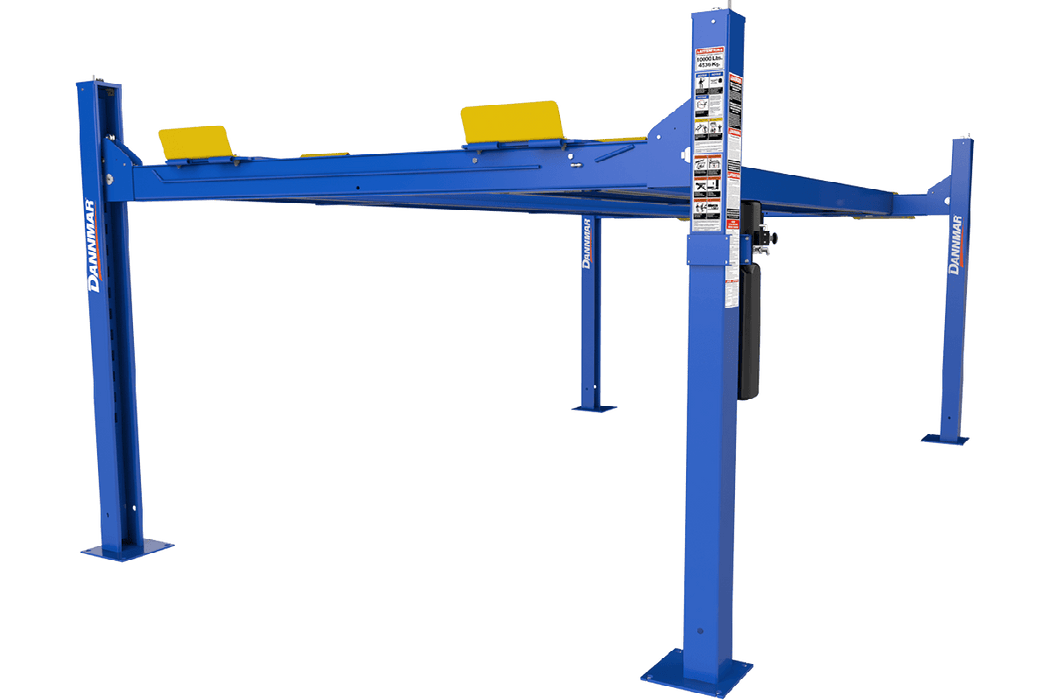

Dannmar’s four-post D4-12 lift is designed to work with most vehicles. With a 12,000 lb. capacity you not only know that it is capable of lifting most anything, but it also has to be built very strong, rugged, and durable. With Dannmar’s extended runways, moving onto the runway is safe and simple for vehicles of all sizes.

The quality built into each Dannmar lift is demonstrated by the Dual-hub cable sheaves that reduce stress, fatigue and wear. Huge 10.5” diameter cable sheaves within the runway and cross tubes combine with massive 2.25” diameter sheave axles. These larger components help to share the load, which dramatically decreases cable wear and increases critical component lifespan.

To help raise and lower the hefty 12,000 lb. load are a series of heavy-duty aircraft cables. The Dannmar D4-12 incorporates four, 1/2” diameter, stainless-steel lifting cables specifically designed for lifting applications. To keep everything moving freely, the Dannmar D4-12 utilizes built-in lubrication points located on each sheave and sheave axle.

Features

  • CE Approved and Certified
  • Meets or exceeds the standards prescribed by European Standard EN-1493
  • Mid to long-style approach ramps for low-ground clearance vehicles
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves

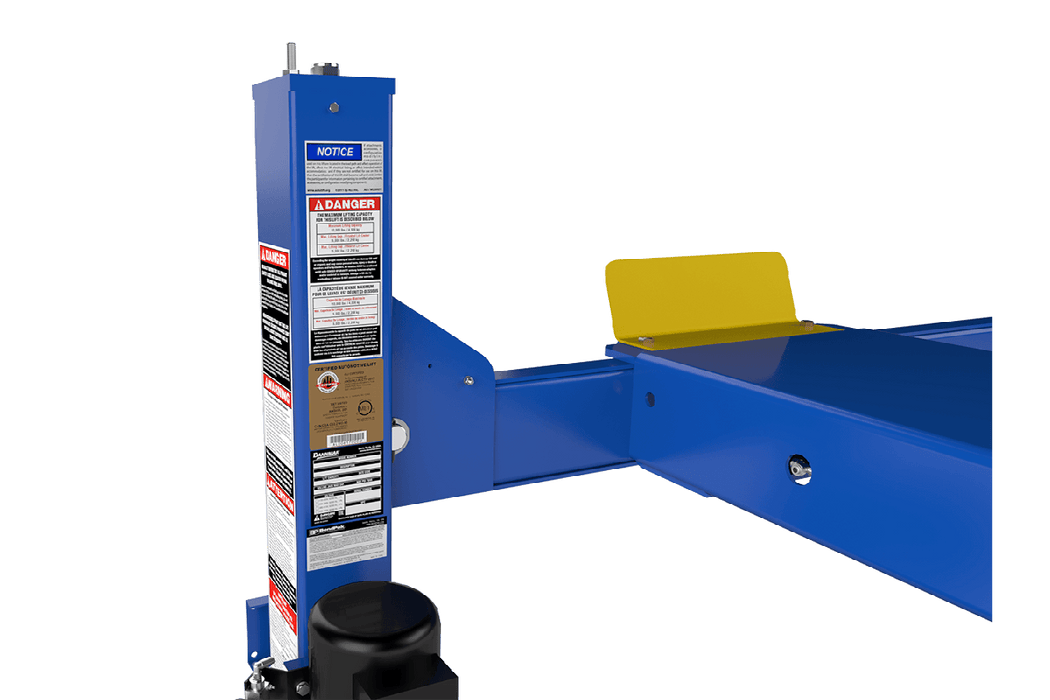

  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Heavy-duty 1/2” aircraft cable and 1.75” roller axles
  • Safety locks enclosed in columns minimize pinch points
  • Oversized sheave diameter reduces cable fatigue
  • Large self-lubricating cable rollers
  • Multi-position safety locks in each column
  • Customizable power unit location
  • Approach ramps incorporate built-in rear-wheel chocks
  • Independent backup slack-cable safety latches
  • Runways feature non-skid surface
  • ETL approved

Specs

SKU# 5175317
Lifting Capacity 12,000 lbs. (5,443 kg)
Min. Runway Height 6.75" (171 mm)
Max. Rise 68.75" (1,746 mm)
Max. Lifting Height 77.5" (1,969 mm)
Ramp Clearance* (Max. Rise) 49" (1,245 mm)
Height of Columns 92" (2,337 mm)
Drive-Thru Clearance 98” (2,482 mm)
Overall Width 127.5" (3,239 mm)
Width Between Columns 115.75" (2,940 mm)
Overall Length 233.5" (2,940 mm)
Outside Length 194.75” (4,947 mm)
Width Between Runways 34.5" (876 mm) or 41.5" (1,054 mm)
Runway Centerline 54.5" (1,384 mm) or 61.5" (1,562 mm)
Outside Edge of Runways 74.5" (1,892 mm) or 81.5" (2,070 mm)
Runway Width 20" (508 mm)
Length of Runways 194.75" (4,947 mm)
Min. Wheelbase @ Rated Capacity 140” (3,556 mm)
Min. Wheelbase @ 75% Capacity 120” (3,048 mm)
Min. Wheelbase @ 50% Capacity 100” (2,540 mm)
Min. Wheelbase @ 25% Capacity 80” (2,032 mm)
Locking Positions 15 (spaced every 4” / 102 mm)
Time to Full Rise 60seconds
Motor 220 VAC / 60 Hz / 1 Ph
Shipping Weight 2,344 lbs. (1,063 kgs)
Shipping Dimensions 201" x 22" x 45" (5,105 mm x 558 mm x 1,143 mm)
