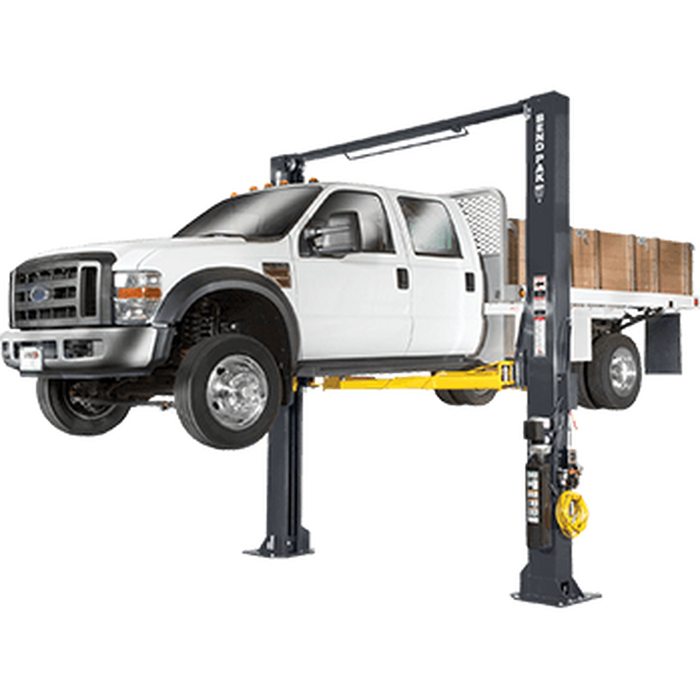

Bendpak XPR-12CL-192 12,000 Lbs Extra-Tall Clear-floor 2-Post Lift (5175407)
XPR-12CL-192 lift model handles an incredible 12,000 lb. load handily with its dual direct-drive construction that improves productivity while reducing maintenance costs. These lifts also have the flexibility to service lighter vehicles efficiently, including lowered sports cars and compact passenger cars.
XPR-12CL-192 lifts include:
- Direct-drive technology for rapid lift and low maintenance
- Optional column extensions for even higher capacity
- Maintenance-free UHMW load bearings for long service life

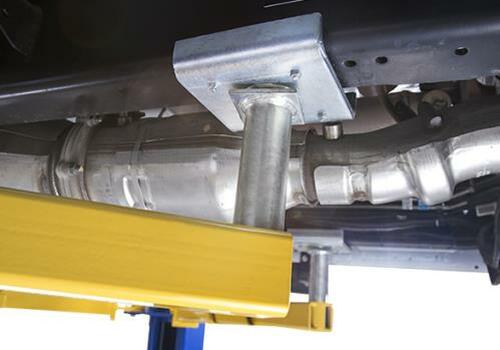

- Triple-telescoping front arms and three-stage rear arms
- Lowered arm tube supports for better clearance
XPR-12CL-192 Characteristics:
- Lift Capacity: 12,000 lbs.
- Height: 193”
- Width: 155”
- Lift height: 69”
- Type: Clear Floor
Features:
- Extended overhead height provides additional clearance for high-profile vehicles
- 12,000?lb lifting capacity
- Padded overhead safety shutoff bar
- Taller column height provides greater overhead clearance
- Single-piece columns / model XPR-12CL

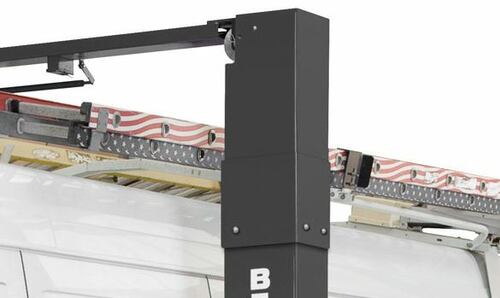

- Bolt-on column extensions / model XPR-12CL-192
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders

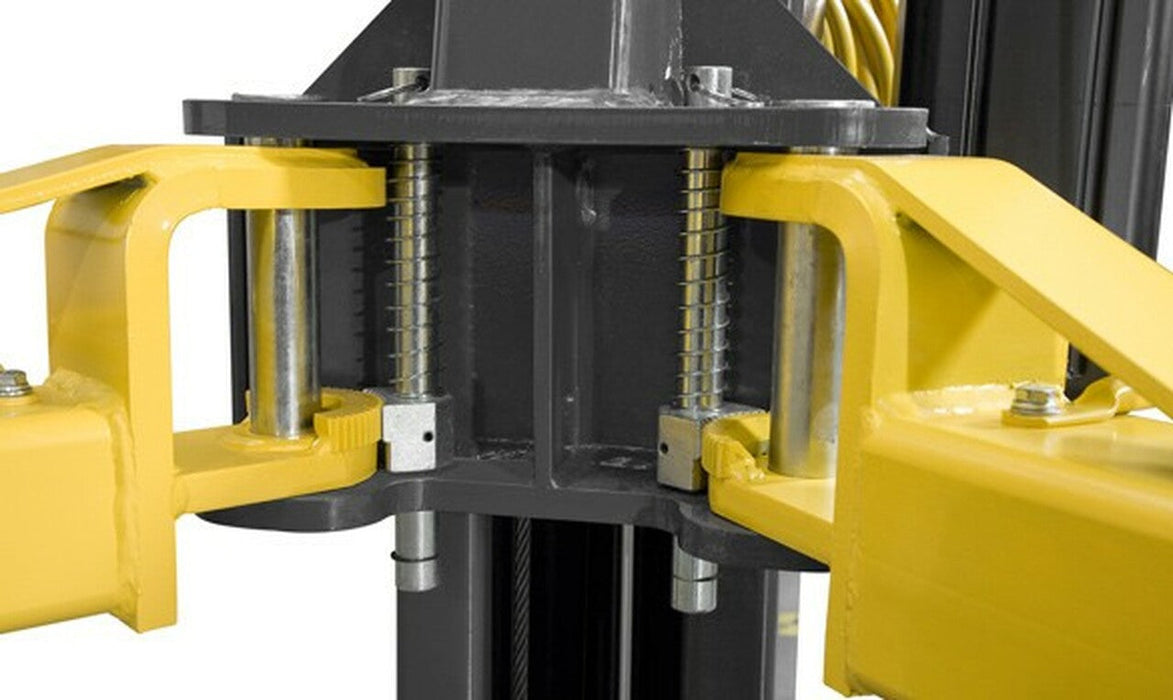

- Oversized 53" tall carriage for superior strength and durability
- Electric / hydraulic power system
- Oversized A36 steel base plate
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 3"
- Triple-telescoping front and rear arms
- Automatic arm restraints
- Heavy-duty 1/2" aircraft-quality equalizer cables

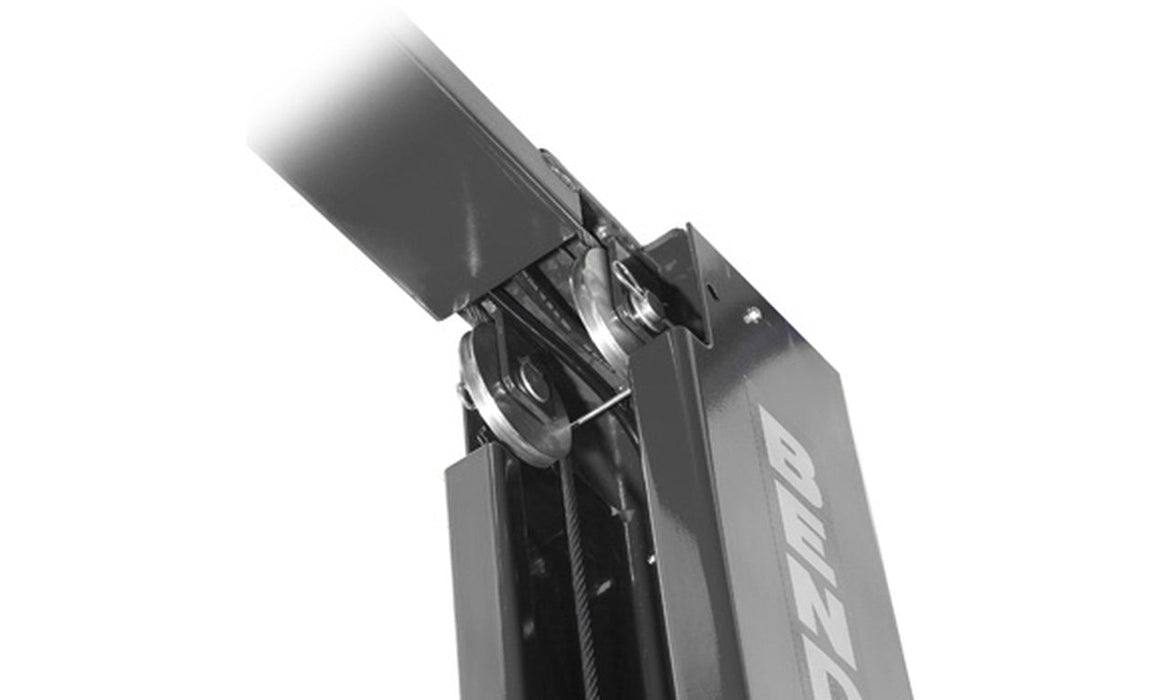

- 6” diameter machined steel cable sheaves reduces cable fatigue
- 8-piece truck and van adapter set STANDARD
- Frame cradle pads STANDARD

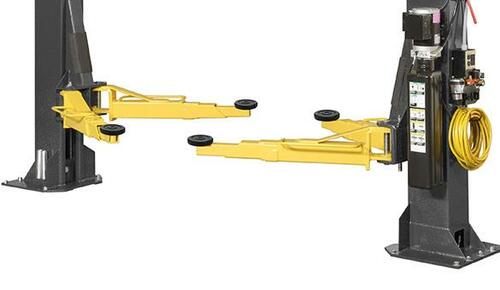

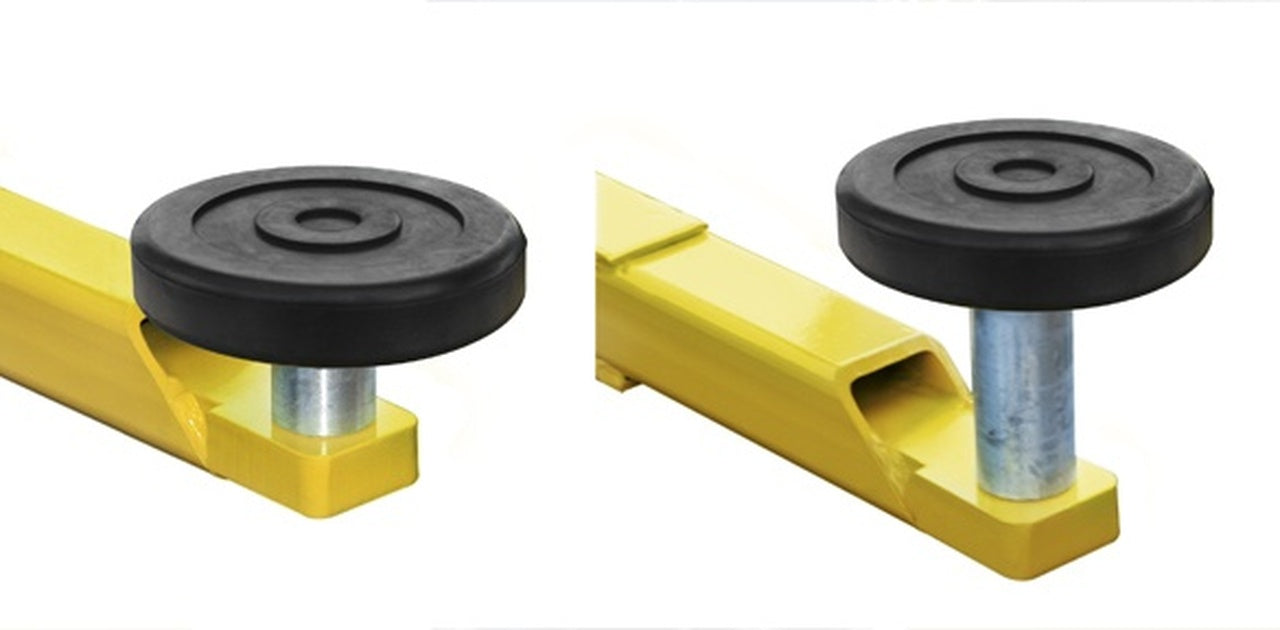

- Round rubber contact pads STANDARD
- ALI certified
Specifications:
| MODEL |
XPR-12CL-1?92 |
| Lifting Capacity* |
12,000 ?lbs. / 5,443 kg. |
| *Max Capacity / Front Axle |
6,000 lbs. / 2,722 kg. |
| *Max Capacity / Rear Axle |
6,000 lbs. / 2,722 kg. |
| A - Height Overall: |
192.7" / 4,895 mm* |
| B - Width Overall (Outside of Base Plate): |
155" / 3,937 mm. |
| C - Width (Outside of Columns): |
144" / 3,658 mm. |
| D - Floor To Overhead Switch: |
187.7" / 4,768 mm.* |
| E - Inside Columns: |
120" / 3,048 mm. |
| F - Reach (Front Arm Min.): |
32" / 813 mm. |
| G - Reach (Front Arm Max.): |
60" / 1,524 mm. |
| H - Reach (Rear Arm Min.): |
32" / 813 mm. |
| I - Reach (Rear Arm Max.): |
60" / 1,524 mm. |
| J - Min. Pad Height: |
5" / 127 mm. |
| K - Rise: |
69" / 1,753 mm. |
| L - Max Lift Height (Pad Only): |
74" / 1,880 mm. |
| M - Max Lift Height (6" Adapter): |
80" / 2,032 mm. |
| N - Drive-Thru Clearance: |
106" / 2,692 mm. |
| Motor (**) |
220 VAC / 60 Hz. 1Ph. |
| Time of full Rise: |
45 Seconds |
|
Max Load Per Arm:
|
3,000? lbs. / 1,361 ?kg. |
