BendPak RBJ25000 4-Post Rolling Bridge Jack 25,000 Lb. Capacity - (5175033)

by BendPak
$5,195.00

SKU 5175033

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

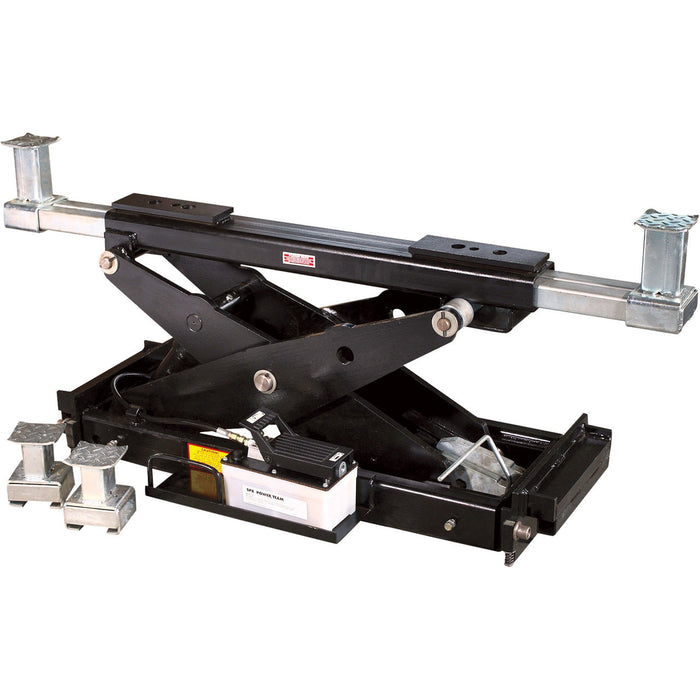

BendPak RBJ25000 4-Post Rolling Bridge Jack 25,000 Lb. Capacity - (5175033)

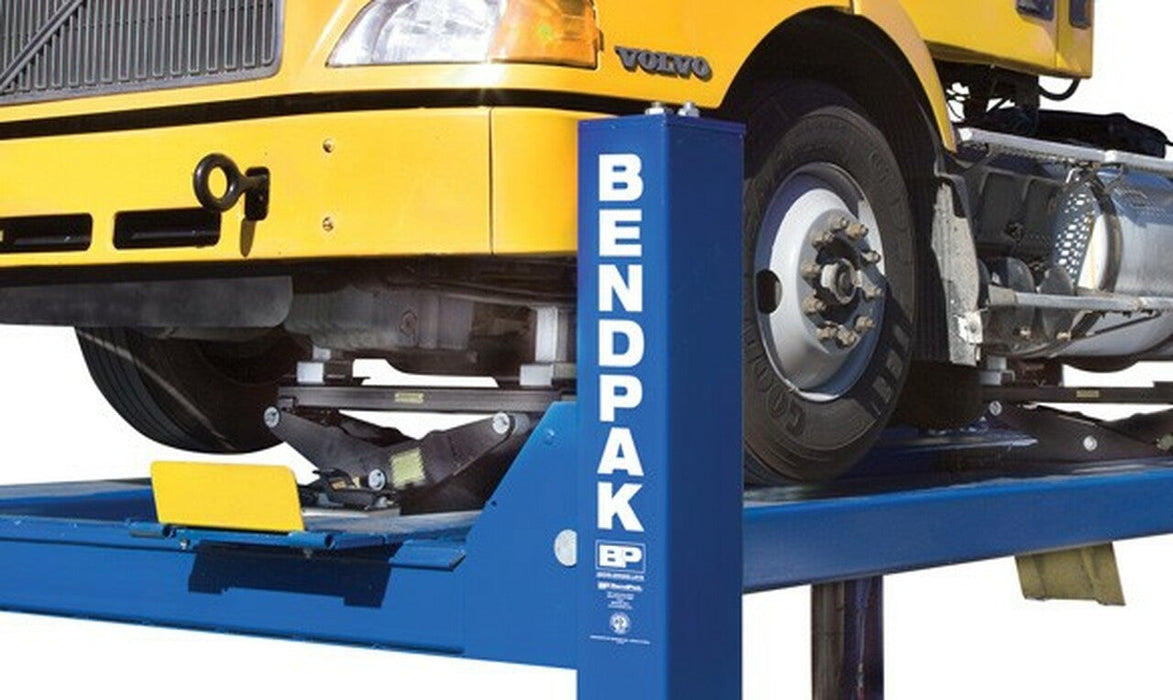

This is it. Our most powerful rolling bridge jack ever. 25,000 lbs. of muscle meant to service some of the biggest commercial fleets on earth. Use this jack on the 40,000-lb. capacity HDS40 truck lift to perform wheel service on almost any heavy-duty vehicle on wheels

Features:

  • 25,000-lb. lifting capacity
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit

Specifications:

 Capacity

  • Lifting Capacity* 25,000 lbs. (11,340 kg)

 Rise

  • A - Max. Height + Pad Only: 23" (584 mm)
  • B - Max. Height + Pad + Adapter: 26" (660 mm)
  • C - Min. Height + Pad Only: 17" (432 mm)
  • D - Min. Height + Pad + Adapter: 18" (457 mm)
  • Time to Full Rise: 45 seconds

 Reach

  • F - Support Arm Width: 44.9" (1,140 mm) -
  • G - Max. Arm Reach: 63.5" (1,613 mm)
  • H - Min. Arm Reach: 39.5" (1,003 mm)

 Power Unit

  • Motor: Air-Hydraulic Pump
  • Noise: 45 dB

 Shipping

  • Weight: 802
  • Dimensions: 36" x 22" x 21" / 914 mm x 559 mm x 533 mm

Manual
