BendPak RBJ18000 4-Post Rolling Bridge Jack 18,000 Lb. Capacity - (5175032)

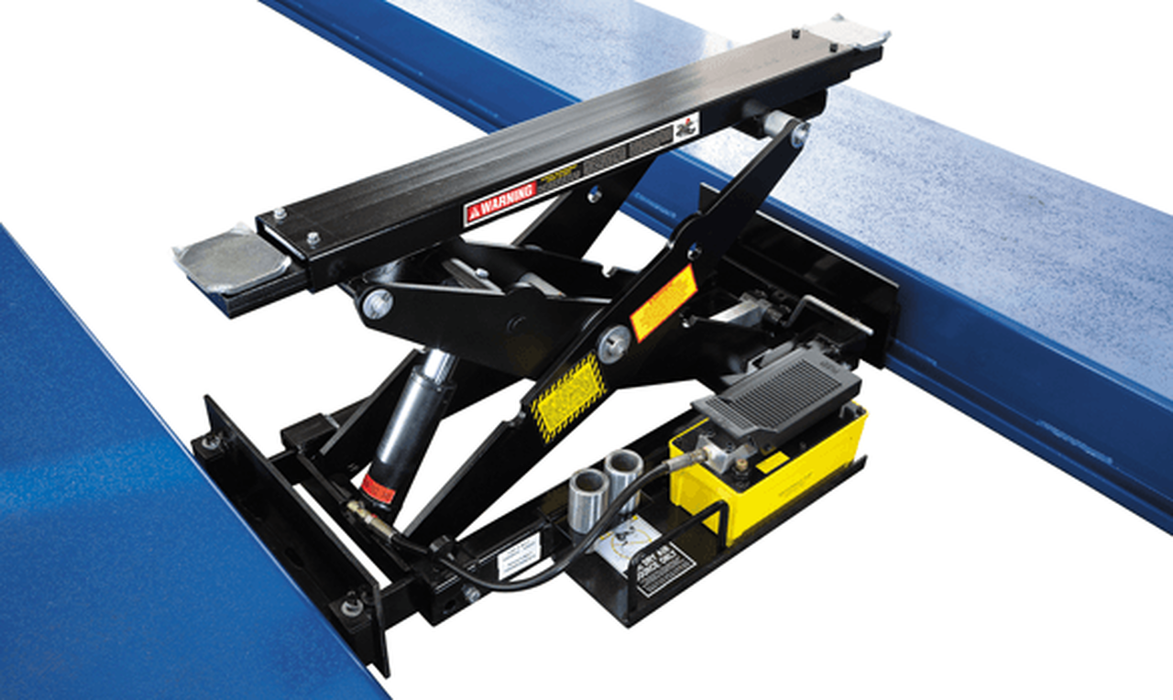

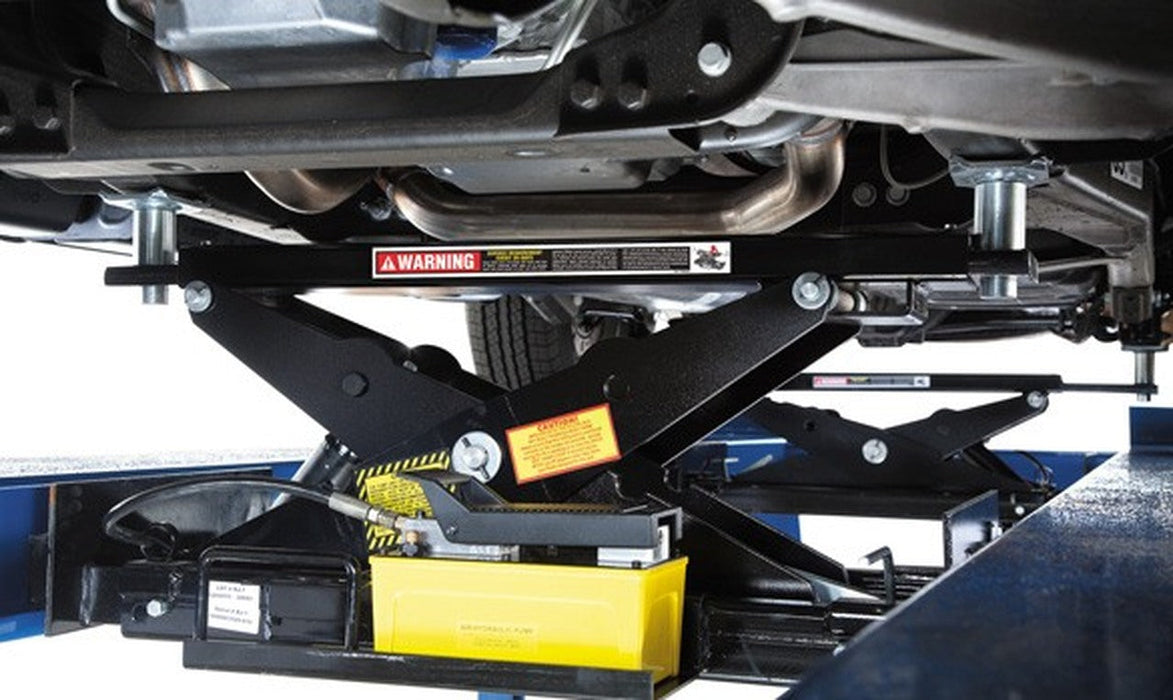

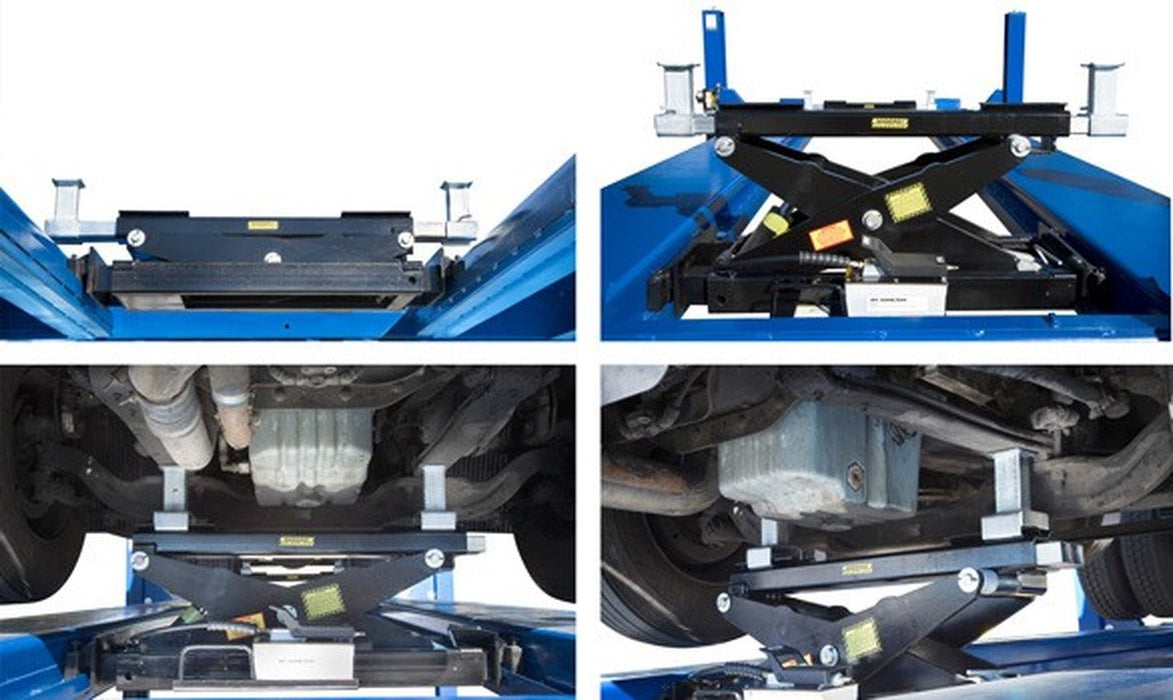

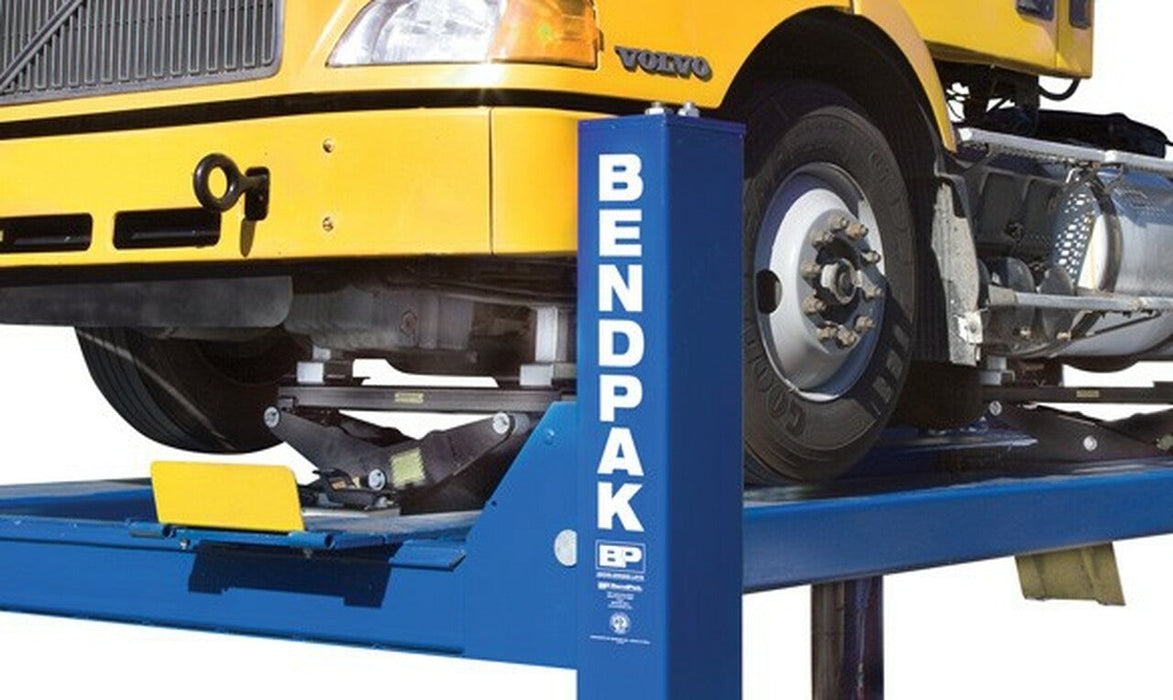

The powerful 18,000-lb. capacity RBJ18000 rolling bridge jack is made for use with your HDS35 or HDS40 4-Post series lift. Sometimes a vehicle’s center of gravity that isn’t in the exact middle of the vehicle.

Features:

  • 18,000-lb. lifting capacity
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit

 Specifications:

 Capacity

  • Lifting Capacity* 18,000 lbs. (8,165 kg)

 Rise

  • A - Max. Height + Pad Only: 23" (584 mm)
  • B - Max. Height + Pad + Adapter: 26" (660 mm)
  • C - Min. Height + Pad Only: 17" (432 mm)
  • D - Min. Height + Pad + Adapter: 18" (457 mm)
  • Time to Full Rise: 45 seconds

 Reach

  • F - Support Arm Width: 44.9" (1,140 mm) -
  • G - Max. Arm Reach: 63.5" (1,613 mm)
  • H - Min. Arm Reach: 39.5" (1,003 mm)

 Power Unit

  • Motor: Air-Hydraulic Pump
  • Noise: 45 dB

 Shipping

  • Weight: 788
  • Dimensions: 36" x 22" x 21" / 914 mm x 559 mm x 533 mm

Manual
