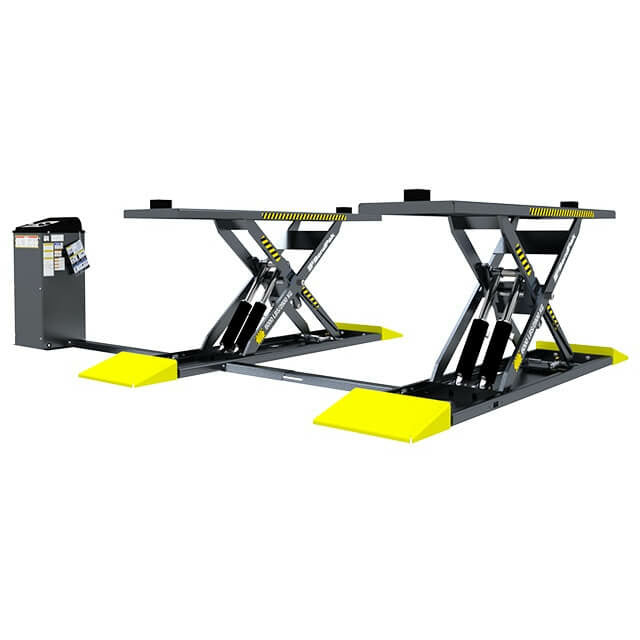

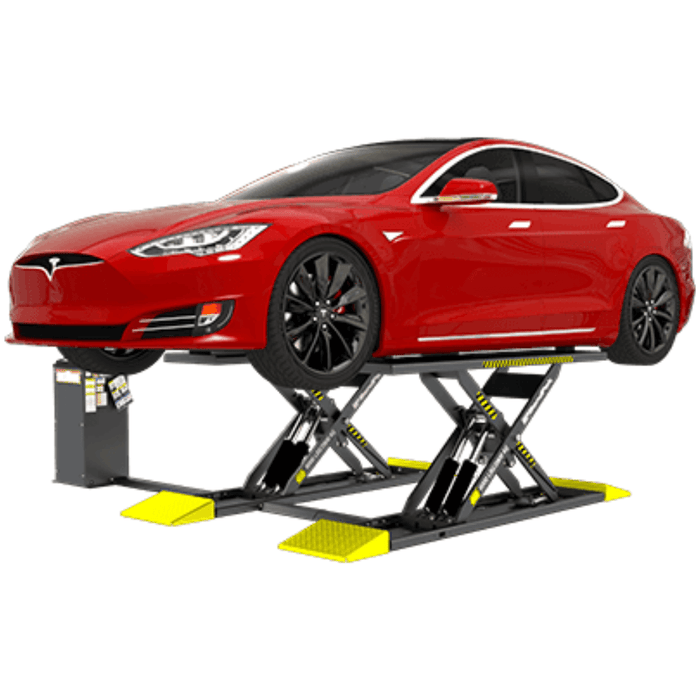

BendPak MDS-6EXT / Open Center / 6,000 Lb. Mid-Rise Scissor Lift (5175192)
You haven’t experienced state-of-the-art lifting convenience until you’ve used a BendPak mid-rise scissor lift. This family of 6,000-lb. capacity mid-rise lifts comes loaded with adjustable arm assemblies, safety lock bars with multiple lock positions.
Using long-wheelbase vehicles as our point of reference, we designed the MDS-6EXT mid-rise lift to accommodate longer lifting points that better reach the extreme edges of the vehicle underbody. Along with the flush-mount MDS-6EXTF, these two extended mid-rise lift models maintain their opencenter design, just like our standard length MDS-6LP and MDS-6LPF models.
- 6,000-lb. lifting capacity
- Open-center design
- Adjustable arm assemblies
- Solid-steel safety lock bars
- Multiple lock positions
- Hinge-point with Zerk grease fittings
- Low-profile design
- Rubber blocks included
- Removable ramps
Lifting Capacity: 6,000 lbs. (2,724 kg)
Lift Height w/o Blocks: 36.75” (934 mm)
Lift Height + Blocks: 38.25” (972 mm)
Lift Platform Dimensions: 19” x 78.7” (484 mm x 2,000 mm)
Width Between Platforms: 40” to 46” (1,018 mm to 1,168 mm)
Overall Width: 19” (484 mm)
Overall Length: 104.3” (2,650 mm)
Lowered Height: 5.25” (133 mm)
Lifting Time: 35 sec
Motor (*): 110–220 VAC / 60 Hz / 1 Ph
