Bendpak HD-9XL 9,000 lbs Capacity Extra Wide, Standard Height, Long Runway Car (5175859)

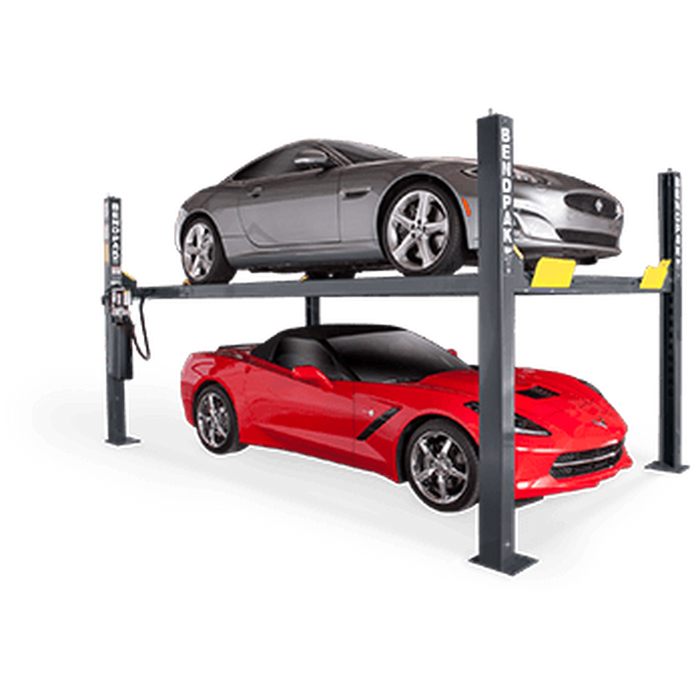

The HD-9XL is the ideal 9,000-lb. capacity four-post car lift for vehicles with longer wheelbases. In fact, the runways are about two feet longer than the runways on the standard HD9. This four-post lift variety is available with optional casters, dip-trays, jack platform and more.

FEATURES

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Wide drive-thru with standard lift height and long runways
  • Electric / hydraulic power system
  • Internal "Anti-Sway" slider blocks in each column
  • Features heavy-duty 3/8" aircraft cable

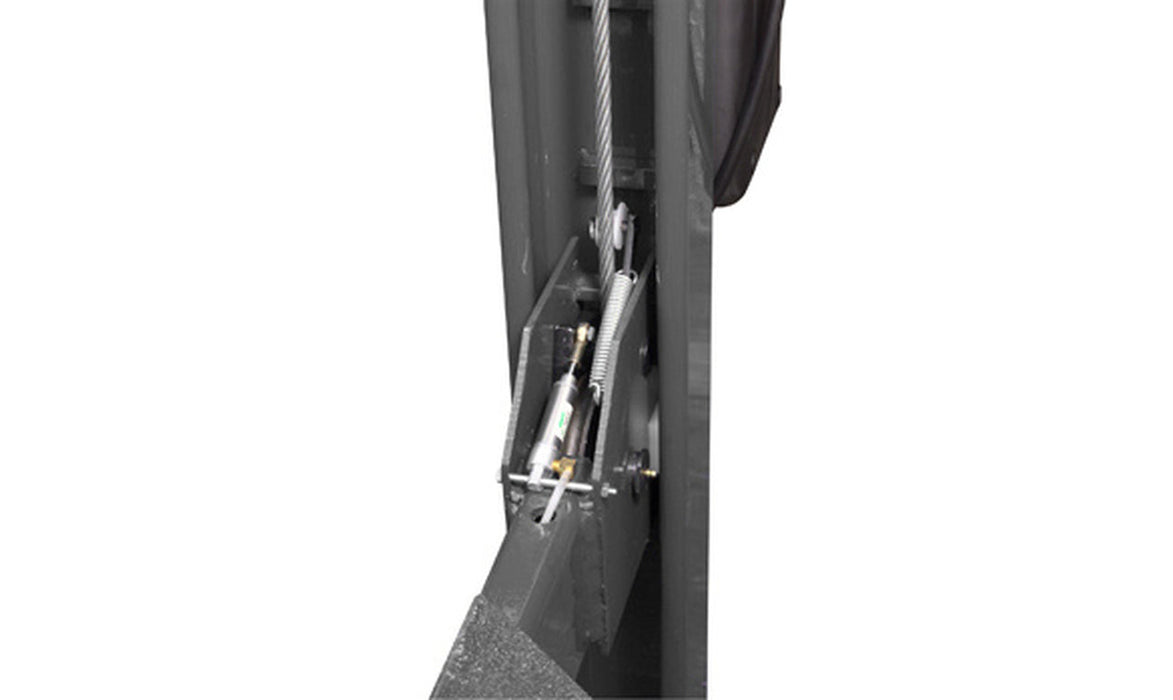

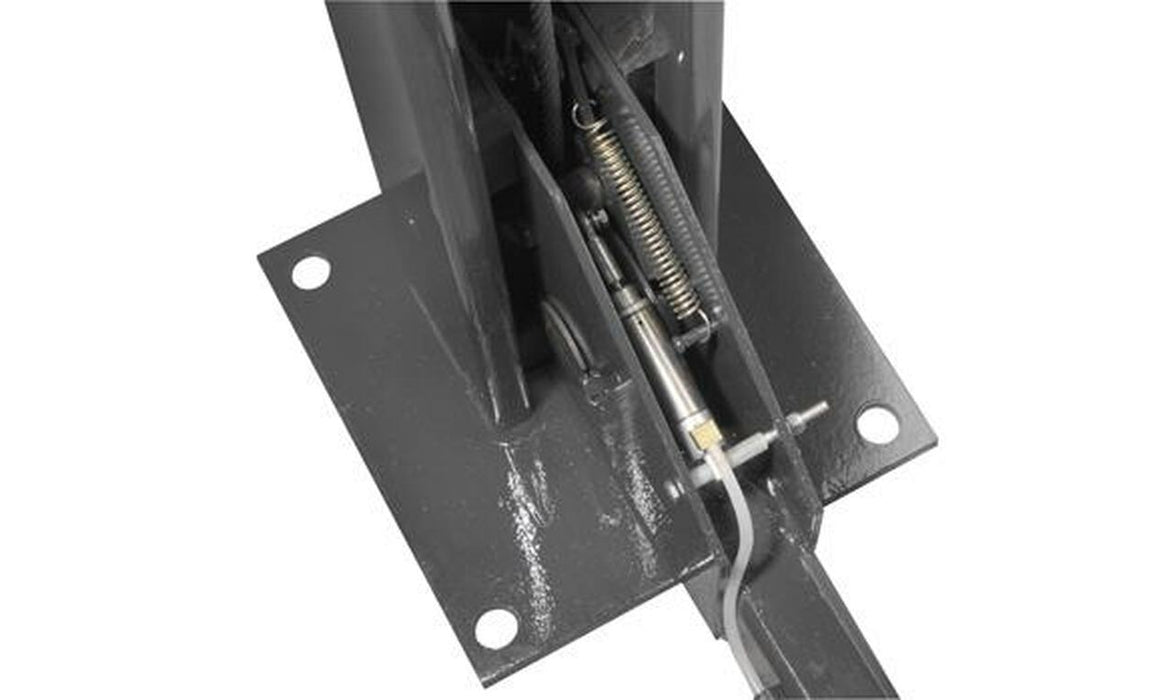

  • Multi-position safety locks in each column

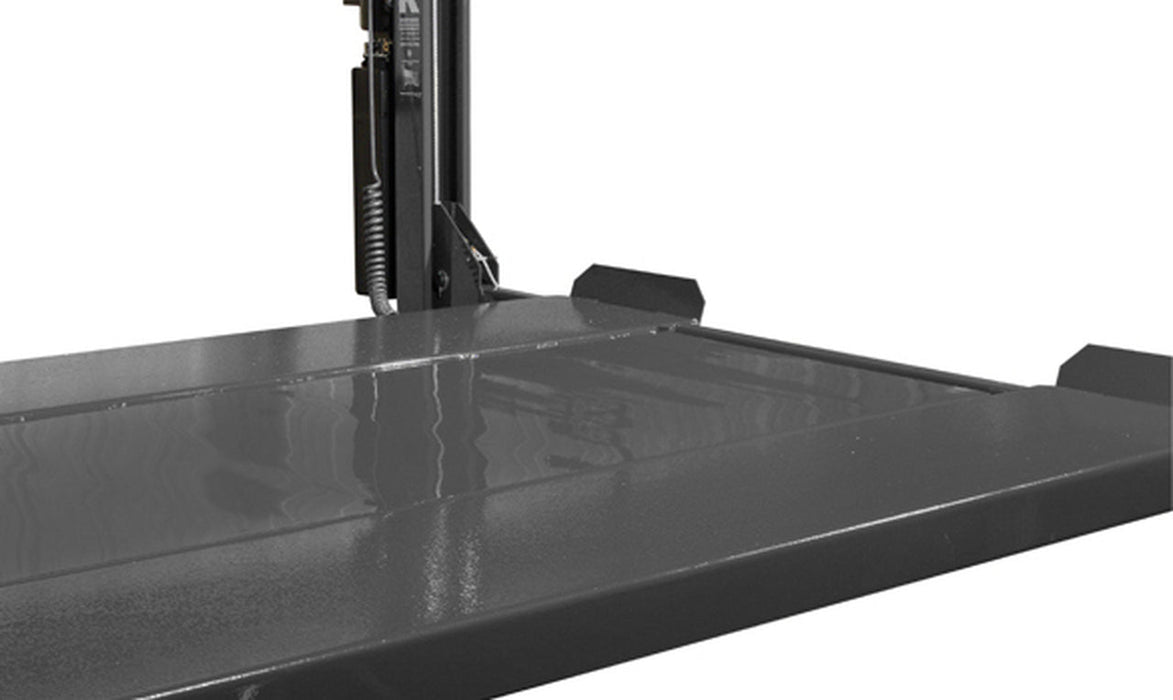

  • Ramps feature non-skid surface
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder underneath runway

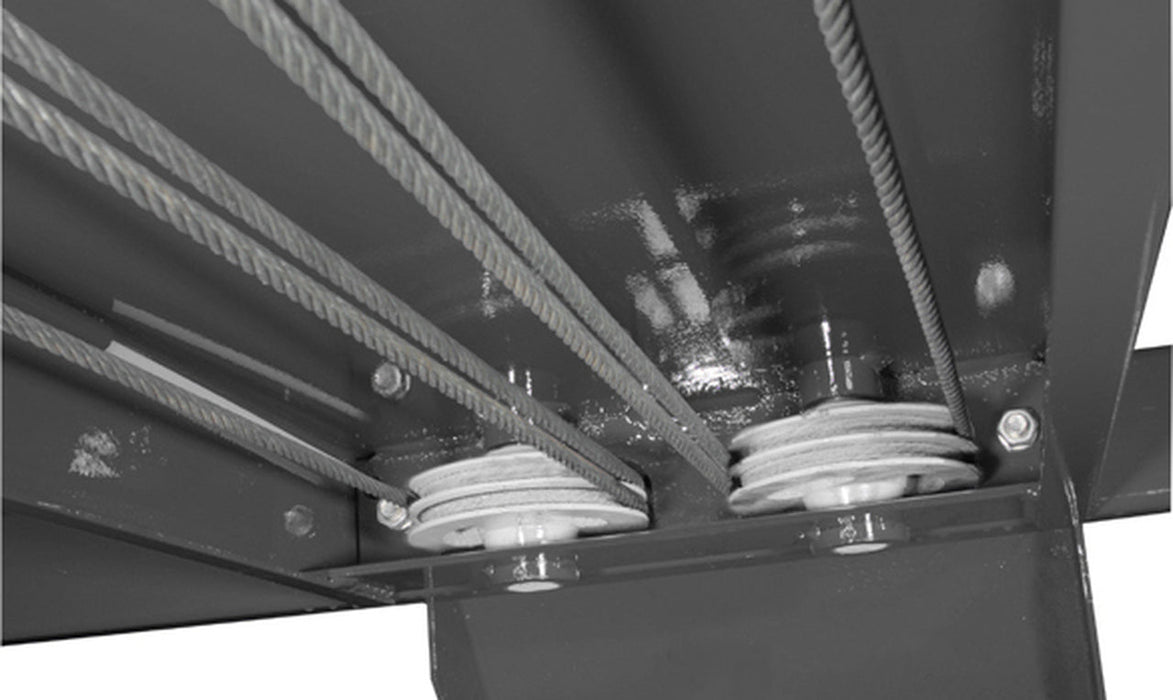

  • Oversized self-lubricating cable rollers
  • Rugged 1.25" roller axles
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Optional 4,500-lb. capacity jack available (Model RJ-45)

 SPECIFICATIONS

Capacity

  • Lifting Capacity*: 9,000 lbs. (4,082 kg)
  • *Max Capacity / Front Axle: 4,500 lbs. (2,041 kg)
  • *Max Capacity / Rear Axle: 4,500 lbs. (2,041 kg)

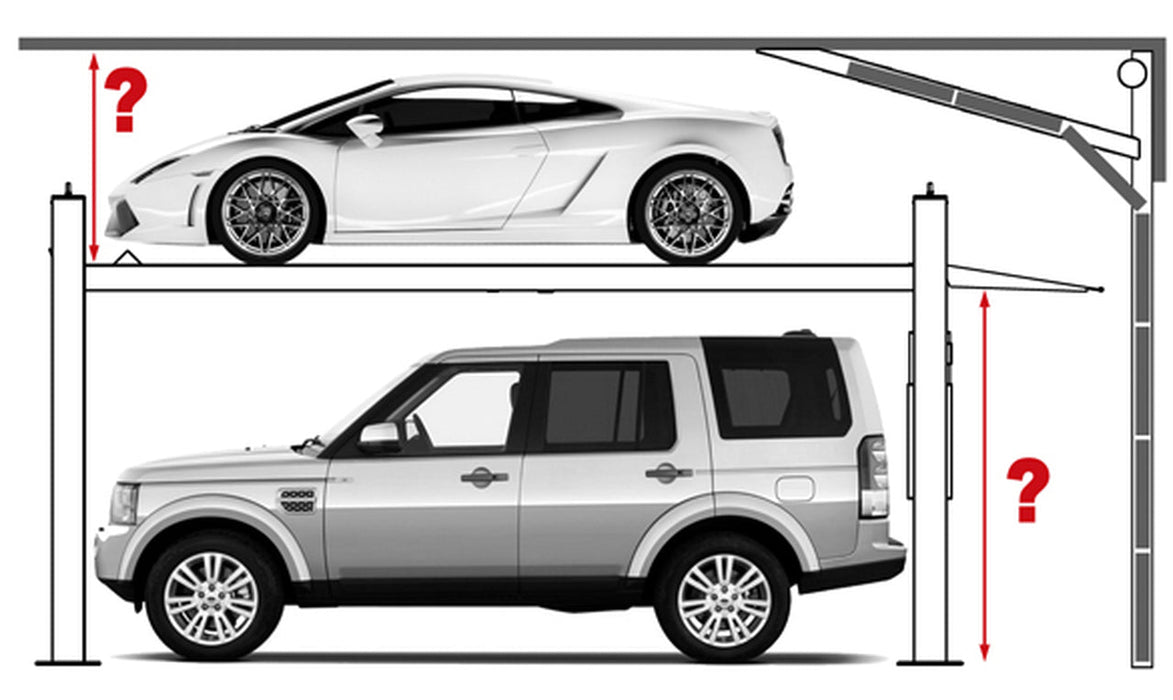

Rise

  • A - Min. Runway Height: 4.5" (114 mm)
  • B - Max. Rise: 70" (1,778 mm)
  • C - Max. Lifting Height: 74.5" (1,892 mm)
  • Time to Full Rise: 50 seconds

Outside Dimensions

  • D - Overall Width: 110.25" (2,800 mm)
  • E - Outside Length: 198" (5,029 mm)
  • F - Overall Length: 224" (5,690 mm)
  • G - Height of Columns: 88" (2,235 mm)

Inside Dimensions

  • H - Width Between Columns: 100.25" (2,546 mm)
  • I - Drive-Thru Clearance: 86.5" (2,197 mm)

Runways

  • J - Runway Width: 19" (483 mm)
  • K - Length of Runways: 188" (4,775 mm)
  • L - Width Between Runways: 37.5" (953 mm) or 44.375" (1,127 mm)
  • M - Runway Centerline: 56.5" (1,435 mm) or 63.375" (1,610 mm)
  • N - Outside Edge of Runways: 75.5" (1,918 mm) or 82.375" (2,092 mm)

Minimum Wheelbase

  • Rated Capacity: 135" (3,429 mm)
  • 75% Capacity: 115" (2,921 mm)
  • 50% Capacity: 95" (2,413 mm)
  • 25% Capacity: 80" (2,032 mm)

Locking

  • Locking Positions: 12
  • Lock Spacing: Every 4" (102 mm)

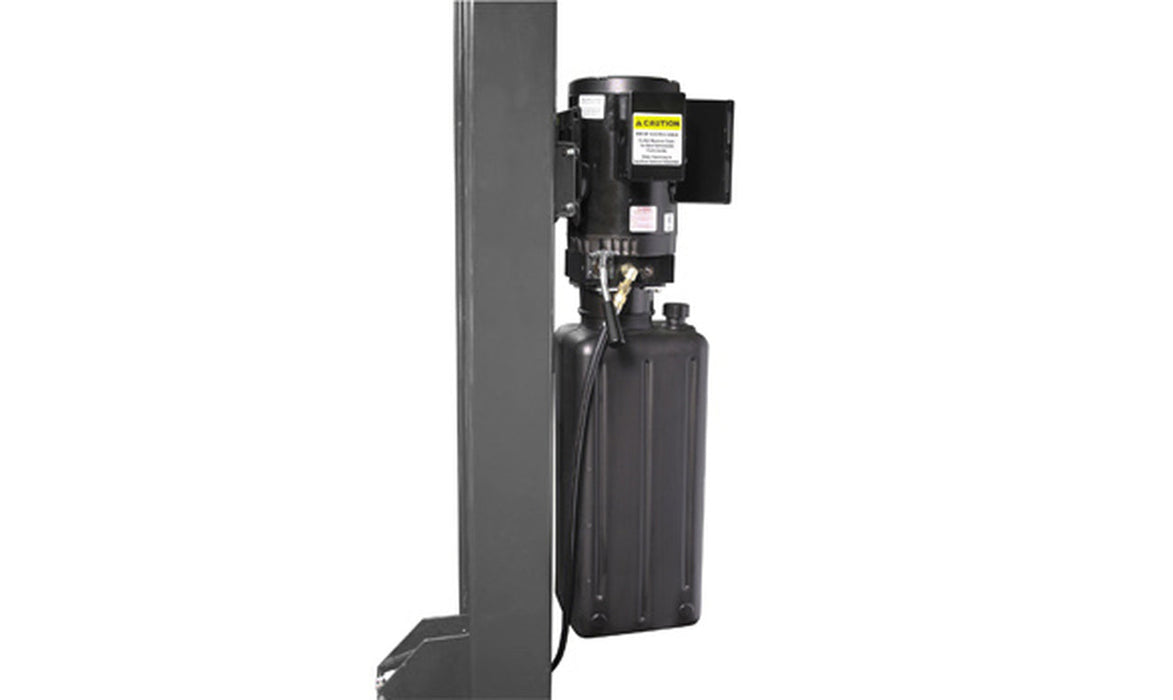

Power Unit

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise: 45 dB
