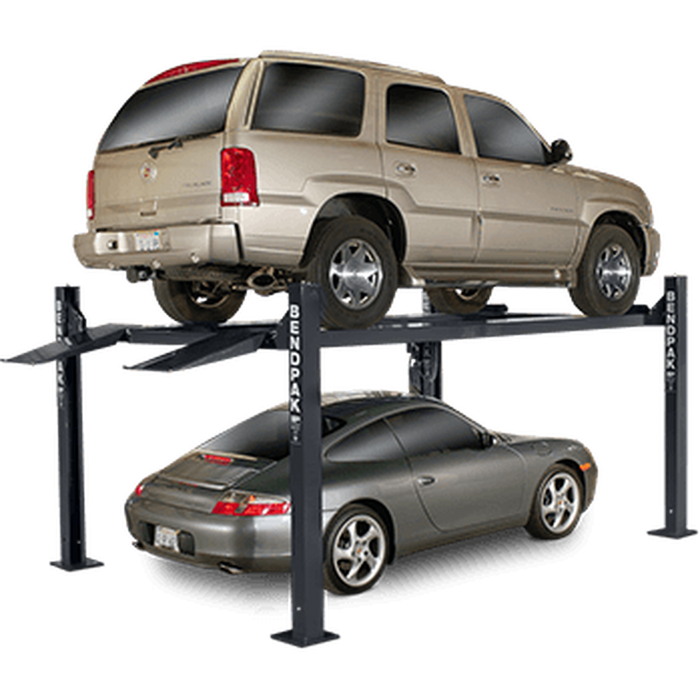

Bendpak HD-7W 7,000 Lbs Extra Wide, Extra Tall 4-Post Lift (5175120)

by Bendpak
Original price $5,215.00 - Original price $5,215.00
Original price
$5,215.00
$5,215.00 - $5,215.00
Current price $5,215.00

SKU 5175120
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

Bendpak HD-7W 7,000 Lbs Extra Wide, Extra Tall 4-Post Lift (5175120)

Get the most out of smaller spaces and compact vehicles with BendPak’s HD-7P four-post lift. This narrow lift shaves 10.5” off the overall width of the lift, as well as the width between the columns. If you want a 7,000-lb. capacity four-post lift but can’t sacrifice the precious inches taken up by the HD-7W, this is the car lift for you. Store classic cars, racers and compact vehicles comfortably and safely

Features:

  • 7,000-lb. maximum lifting capacity
  • High lift with short runways
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway

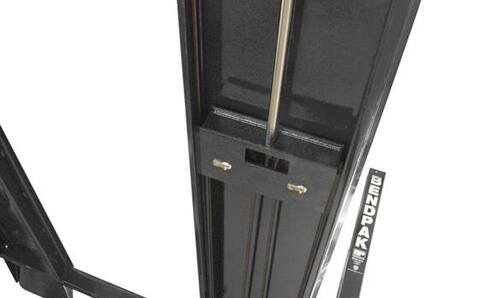

  • Internal anti-sway slider blocks in each column

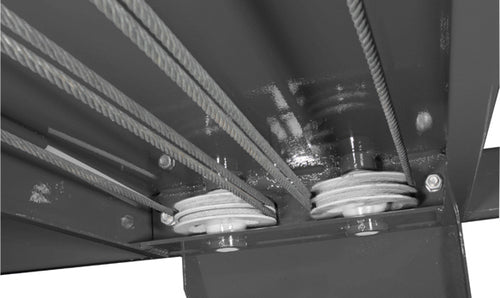

  • Oversized self-lubricating cable rollers
  • High-speed lifting
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles

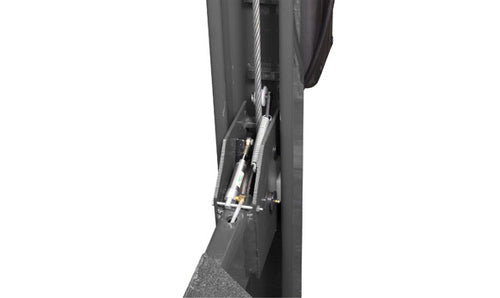

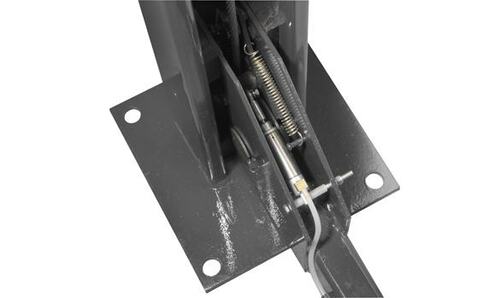

  • Multi-position safety locks in each column
  • Adjustable lock ladders

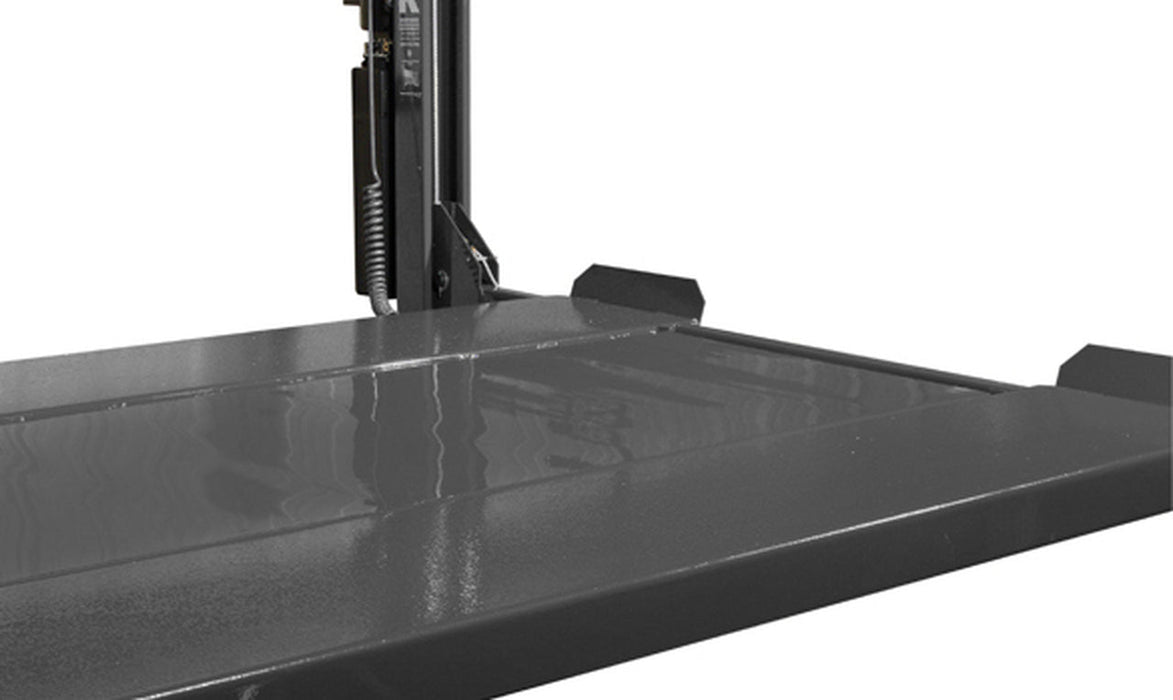

  • Ramps feature non-skid surface
  • Push-button pneumatic safety release
  • Optional 4,500-lb. capacity rolling jack available (Model RJ-45

Specifications:

Capacity

  • Lifting Capacity*:7,000 lbs. (3,175 kg)
  • *Max Capacity / Front Axle: 3,500 lbs. (1,588 kg)
  • *Max Capacity / Rear Axle:3,500 lbs. (1,588 kg)

Rise

  • A - Min. Runway Height: 4.5" (114 mm)
  • B - Max. Rise: 82" (2,083 mm)
  • C - Max. Lifting Height: 86.5" (2,197 mm)
  • Time to Full Rise: 35 sec

Outside Dimensions

  • Overall Width: 110,25" (2.800 mm)
    Outside Length: 174" (4.420 mm)
  • Overall Length: 200" (5.080 mm)
  • Height of Columns: 100" (2.540 mm)

Inside Dimensions

  •  Width Between Columns: 100,25" (2.546 mm
     Drive-Thru Clearance: 86,5" (2.197 mm)

Runways

  • J - Runway Width: 19" (483 mm)
  • K - Length of Runways: 164" (4,166 mm)
  • L - Width Between Runways: 37.5" (953 mm) or
  • M - Runway Centerline: 56.5" (1,435 mm) or
  • N - Outside Edge of Runways: 75.5" (1,918 mm) or

Minimum Wheelbase

  • Rated Capacity: 115" (2,921 mm)
  • 75% Capacity: 100" (2,540 mm)
  • 50% Capacity: 85" (2,159 mm)
  • 25% Capacity: 70" (1,778 mm)

Locking

  • Locking Positions: 15
  • Lock Spacing: Every 4" / 102 mm

Power Unit

  • Motor: 220 VAC / 60 Hz. 1Ph.
  • Noise: 45 db
