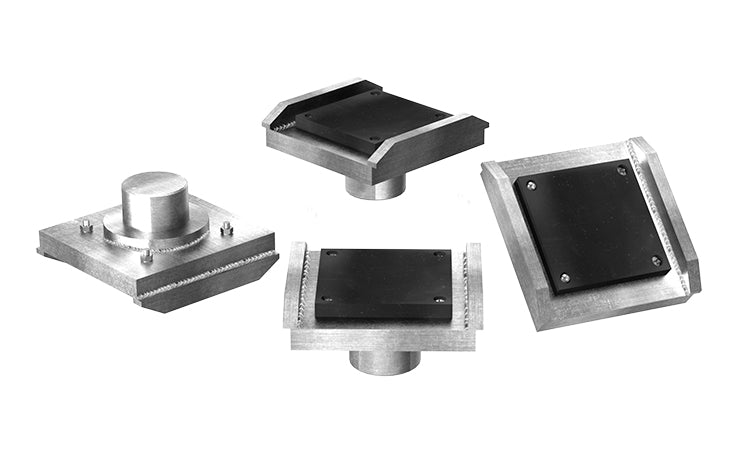

2-Post Frame Cradle Pad / 60 mm Pin / Fits Wide Frames / SET OF 2
If you’re lifting the biggest trucks around, you know you need specialty equipment. That’s why we made these ALI Certified wide frame cradle pad adapters to safely and securely hold commercial heavy-duty truck frames on a two-post lift. BendPak’s wide frame cradle pads secure your truck’s frame, leaving no room for movement.

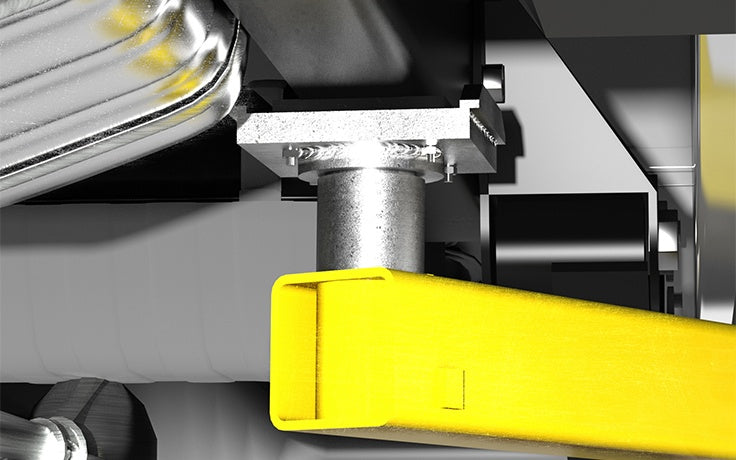

BendPak’s wide frame cradle pads are a necessity for any lifting of heavy-duty commercial-grade trucks on a two-post lift. Since this frame cradle pad is an ALI Certified two-post lift accessory, you’ll feel comfortable knowing it’s been over-designed to handle heavy-duty projects. Attaching easily to the arms of any BendPak two-post lift equipped with 60mm diameter fastener pegs, the frame cradle pads straddle your vehicles chassis frame, holding it firmly in place to prevent movement. These wide frame cradle pads handle chassis frames up to 5.25 inches width, and only a set of two should be necessary in the front where the frame sections converge.
While the frame cradle pads secure your frame, the polyurethane rubber pad protects from any damage to your hardware and further reduces any chance of movement. These pads have a textured surface which provides that extra grip for additional stability, and its thick rubber construction takes on heavy abuse.
This extra-wide frame cradle adapter is perfect for commercial-grade heavy-duty trucks, and its sturdy construction can handle your heaviest of projects with ease. BendPak’s wide frame cradle pads are a must-have for any commercial shop working with heavy-duty vehicles, and since they are ALI certified, you can rest easy knowing that your truck is lifted in safe hands.
Features & Specs
- Installs easily to BendPak two-post lift arms
- Sturdy steel construction
- Tactile rubber pad reduces slippage and protects the finish
- Fits wide frames up to 5.25"
- Made for heavy-duty commercial-grade trucks
- Channel Width:: 5.25” (133 mm)
- Overall Width:: 6.25” (159 mm)
- Overall Length:: 6.125” (156 mm)
- Overall Height:: 3.25” (83 mm)
- Pad Dimensions:: 4.25” x 4.25” (108 mm x 108 mm)
- Pin Diameter:: 60 mm
- Shipping Weight:: 25-lbs (11 kgs)
- Shipping Dimensions:: 7" x 7" x 7" (178 mm x 178 mm x 178 mm)
