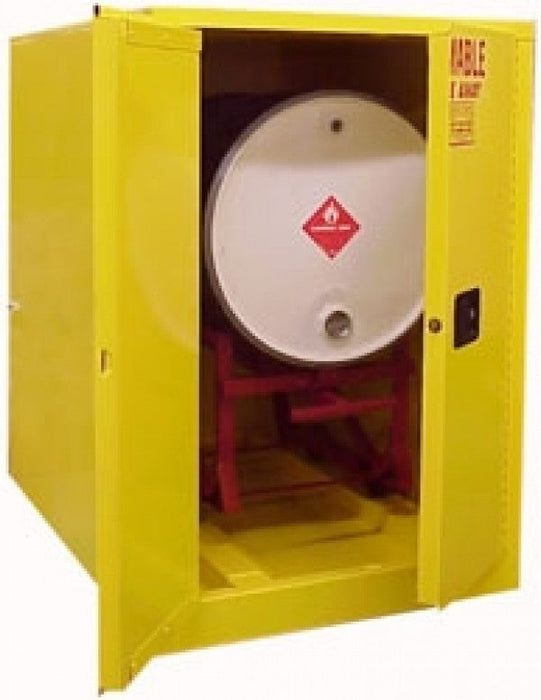

Securall H160 - 60 Gallon Flammable Drum Storage Cabinet
Securall manufactures cabinets for 55-Gallon Drum Storage. Vertical-Drum Storage Cabinets include Ball Bearing Roller Bottoms to ease the placement and removal of drums. Horizontal-Drum Cabinets are provided with Guide-Tracks for Drum Cradles.
- Vertical-Drum Cabinets include storage for up to (12) 5-Gallon Safety Cans depending on model.
- Drum Cradle Available.
- (3) Door Styles Available.
-
18 GAUGE DOUBLE WALL CONSTRUCTION & SEAMED JOINTS
Securall Safety Cabinets have Structurally Reinforced 18-Gauge Double Wall All Welded Construction throughout.
-
DOUBLE WALL CONSTRUCTION WITH 1 ½” AIR SPACE
Securall cabinets have Double Wall Construction with 1 ½" Air Space throughout the cabinet design.
-
2" DEEP LEAK PROOF SILL
Securall cabinets are built with an OSHA compliant leak proof sill 2" Deep to prevent leakage in the event of accidental spills.
-
TWO 2" VENTS WITH FLASH ARRESTORS
Each Securall safety cabinet comes standard with two 2” Vent Openings in interior and exterior walls, with flash arrester and bung plugs for optional venting.
-
NON-SPARKING , 3-POINT, SELF-LATCHING DOORS
Each Securall cabinet is outfitted with FM required Non-Sparking, 3-Point, Self-Latching door(s) for safe and complete closure every time.
-
SELF-CLOSING MECHANISM SEGREGATED FROM HAZARD AREA
Securall Self Closing Cabinet - Self-Closing Mechanism segregated from interior of cabinet and contents stored.
-
FUSIBLE LINK ASSEMBLY ON SELF-CLOSING MODELS
Self-Closing cabinets come with Fusible Link Assembly. Link melts at 165 F for automatic closure in case of fire. Self closing mechanism segregated from hazard area..
-
STATIC GROUNDING CONNECTION
All Securall cabinets come ready with an FM defined static ground connection, comprised of a NFPA compliant 5/16 - 18 x ½” Zinc Plated Grounding Bolt.
-
LARGE WARNING LABEL
Securall cabinets have a Large Warning Label to identify the type of material stored within the unit. Also available in French and Spanish.
-
ADJUSTABLE LEVELING LEGS
Securall cabinets are equipped with four adjustable Zinc Plated Leveling Legs for placement on uneven surface areas.
-
FLUSH MOUNTED LOCKING HANDLE
All Securall safety cabinets come standard with a Flush Mounted Locking Handle for smooth finger-tip operation.
-
FULL LENGTH, HEAVY-DUTY PIANO HINGES
Securall double-wall doors are secured to unit on full length, Heavy-Duty Piano Hinges for maximum security and limited vapor release.
Specifications
- Item #:H160
- Capacity:60 Gal.
- Dimensions (H x W x D) (in):50"H x 34"W x 50"D
- No. of Doors:
- Door Style:Self-Latch Standard 2 Door
- No. of Shelves: 0
- Additional Shelf:
- Shipping Weight (lbs):384 Lbs.
- Approval:Complies with current OSHA regulations, FM-Factory Mutual Approved, NFPA - Designed in accordance with specifications set forth by the National Fire Protection Association
- Warranty:15 Year Limited Structural Warranty
Warranty
One year limited warranty on all parts and accessories installed by the manufacturer at time of purchase. 15 year structural warranty from the date of delivery to the initial purchaser.
Manufacturer Warranty applies to purchases of any product at Ambient Home
