Ranger Tilt Back Tire Changer / Single-Tower / 208-240V, 1-Ph., 50/60hz / GRAY-YELLOW

Ranger Tilt Back Tire Changer / Single-Tower / 208-240V, 1-Ph., 50/60hz / GRAY-YELLOW

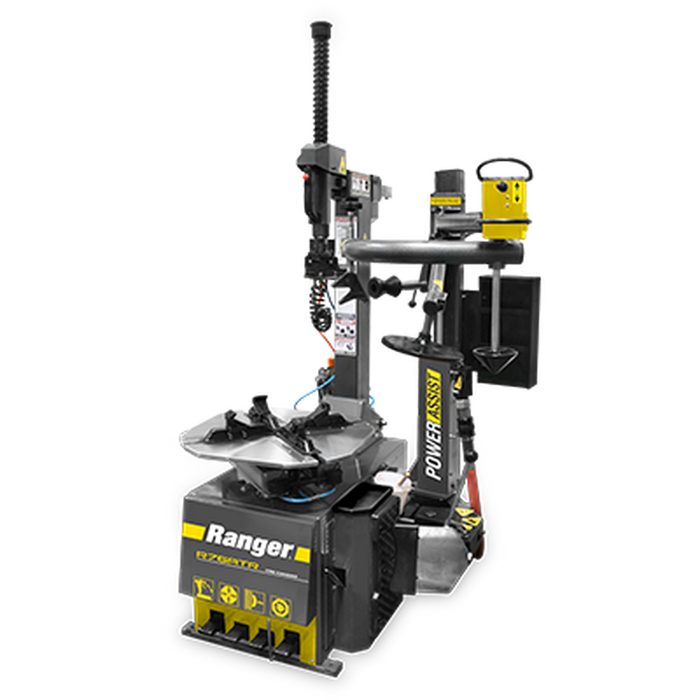

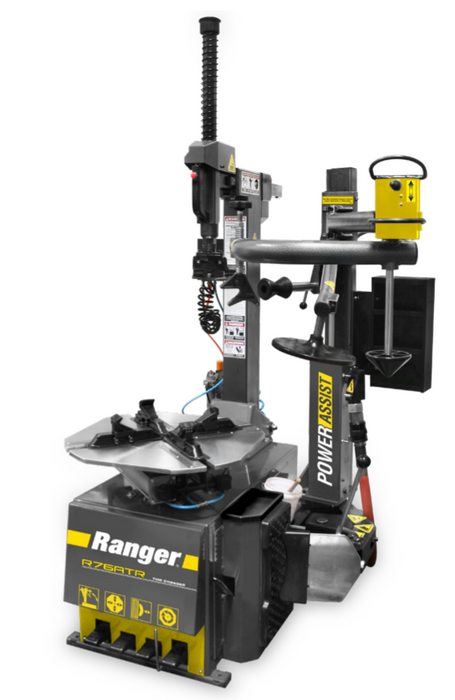

The Ranger R76ATR tire changer is easy to operate, rugged enough to stand up to demanding workloads and comes equipped with power assist tower tools to help when mounting low-profile performance tires. A large 30” capacity turntable features adjustable, hardened-steel RimGuard™ wheel clamps. These provide an internal clamping capacity of 9”- 28” and external clamping capacity of 10”- 30”.

Standard Features

• Traveling Drop-Center Hold Down Device
• Inflation System
• Inflation Gauge & Air Dump Valve
• Inflation Pressure Regulator/Limiter
• Oiler / Lubricator
• Air Regulator
• Bead Tool/Tire Iron
• Alloy-Steel MountDemount Head
• Nylon MountDemount Head
• Large Soap Bucket
• Soap Brush

Specifications

• Motor 3 HP (220 VAC 50-60 HZ)
• Drive System Type Electric / Hydraulic
• Air Requirement 110-175 PSI (8-12 BAR)
• Wheel Clamping Method 4 Clamps - Internal / External
• Table Clamping System Dual Pneumatic Cylinders
• Bead Breaking System Adjustable Pneumatic Blade
• Tower Design Tilt-Back
• Power Assist Tower(s) Single / Right-Side
• Bead Lifting Roller(s) Single / Right-Side
• Upper Bead Assist Roller Single / Right-Side
• Vertical Shaft / Tool Head Pneumatic / Locking
• Powerful Bead Seating System TurboBlast™
• Internal Rim Clamping Capacity 10” – 30” (254 mm - 762 mm)
• External Rim Clamping Capacity 9” – 28” (229 mm - 711 mm)
• Turntable Tire Width Capacity (Mounting) 4” – 18” (102 mm – 457 mm)
• Bead Breaker Tire Width Capacity (Demounting) 1.5” – 16” (38 mm – 406 mm) Maximum Tire Diameter 43” (1,092 mm)
• Shipping Weight 970 lbs. (440 kg)
