QuickJack 7000TL Vehicle Lifts Package Deal - Lift, Package Deal: (1) 7000TL-110V / 220V + (1) Wall Hangers Set + (1) SUV Adapter Set
Product Overview:
7000TL now lifts to an impressive 24.5" lifting height. Reinforced upper frame rails give this lift enough strength to effortlessly raise passenger cars, light-duty trucks, and SUVs. For higher ground-clearance vehicles, don't forget to pick up our truck adapter set. The extra spacers will offer additional lifting height!

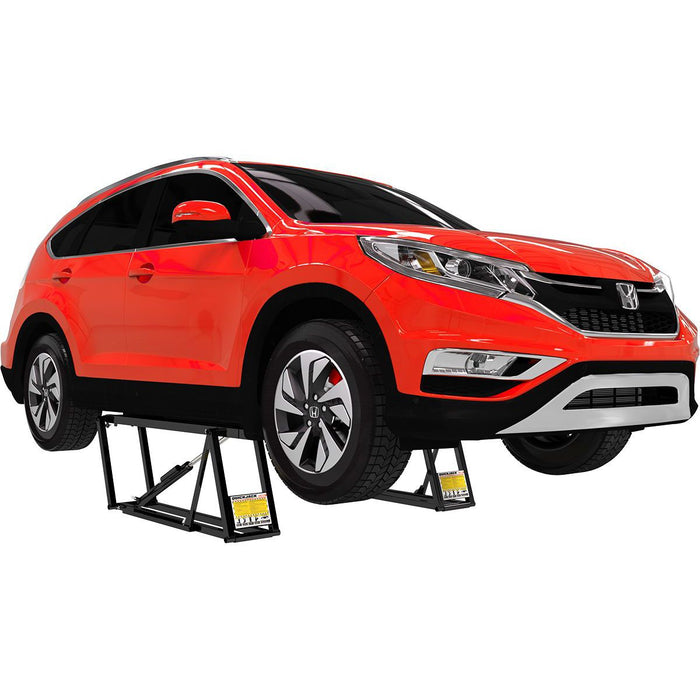

7000TL Portable Light Duty Truck and Passenger Car Lift System
QuickJack 7000TL is the only portable truck lift capable of getting trucks and SUV tires completely off the ground. With the addition of the optional Light Truck & SUV Adapters, the 7000TL has an incredible 27" lifting height. 7000TL is the highly-anticipated sequel to the most popular automotive tool to ever hit the home garage or auto repair shop. With the ability to lift an extra 3-inches, 7000TL portable car lift provides more room to tackle every repair and maintenance task on vehicles, trucks, and SUVs weighing up to 7,000-lbs.
Through superior engineering and design, we've been able to produce an extra 3-inches of lifting height without sacrificing the overall dimensions that has made QuickJack a must-have in your garage. 7000TL still has an impressive 3.5" lowered height, 70.75" overall length, and 12.5" overall width.
Features:
Automatic safety locks
QuickJack 7000TL features automatic safety locks on each TL frame that engage at two positions. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your truck lift is ready for a smooth descent.
Increased lifting height
All QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.
One-handed operation
Simple one-handed controls are really as easy as a push of a button to lift and lower your QuickJack 7000TL. No cranking or bending during lifting.
Specifications:
|
Lifting Capacity:
|
7,000 lbs. |
| Lowered Height (Frame Only): |
3.5" |
| Lowered Height (W/ 2" Block): |
3.75" |
| Frame Only: |
18.2" |
| Lifting Height (W/ 2" Block): |
21.5" |
| Lifting Height (W/ 3" Block): |
22.5" |
| Max. Height: |
24.5" |
| Lifting Height (W/ Adapters): |
24.25" |
| Lifting Height (W/ Adapters +Pin): |
27" |
| Lift Point Spread (Max): |
60" |
| Lift Point Spread (Min): |
37" |
| Frame Width: |
12.5" |
| Frame Length: |
70.75" |
| Frame Weight: |
98 lbs. |
| Time To Full Rise: |
30 seconds |
| Power Unit Weight: |
15 lbs. |
| Shipping Dimensions (ea. frame): |
73.75" (L) x 16.75" (W) x 6.25" (H) |
| Total Shipping Weight: |
280 lbs. |
| Package Includes: |
Lift, Wall Hangers Set and SUV Truck Adapters Set |
In the Box
- 7000TL Left Frame Assembly
- 7000TL Right Frame Assembly
- 1x Hydraulic power unit with control
- 4x Medium rubber lift blocks (2")
- 4x Tall rubber lift blocks (3")
- 2x Short hydraulic hoses
- 2x Long hydraulic hoses
- 2x Frame-positioning handles

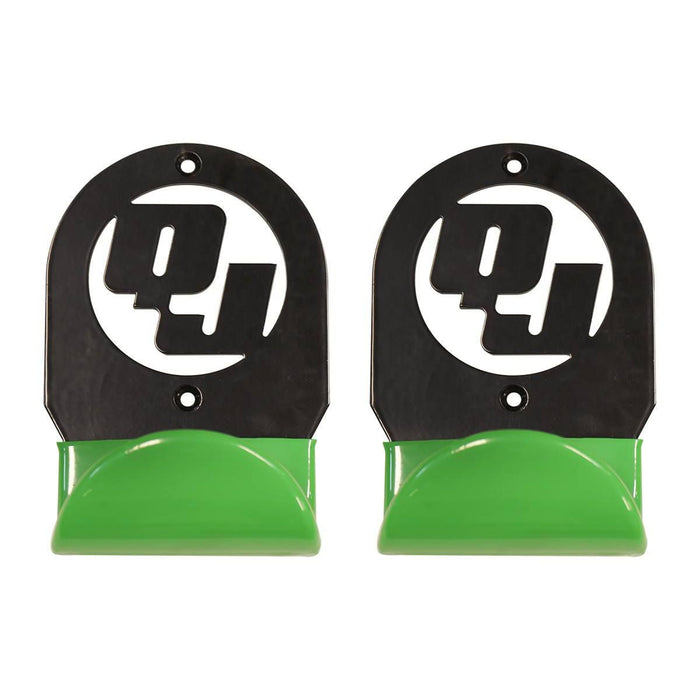

- Wall Hangers Set

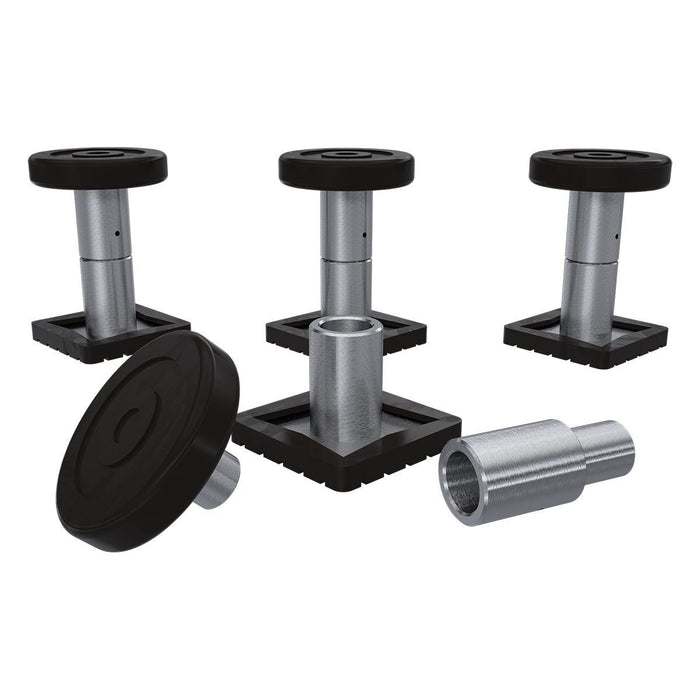

- SUV Truck Adapters Set
- Fittings and thread tape for setup
- Instruction manual
Instructions
