QuickJack 5000TL Portable Car Lift System
5000TL portable car lift adds an extra 3" bringing the lifting height to an impressive 24 inches. This enhancement increases access to the undercarriage of the vehicle and provides an overall increase to your comfort and capability.
QuickJack is constantly improving and evolving to fit your automotive needs in the garage or on the track. 5000TL is the highly-anticipated sequel to the most popular automotive tool to ever hit the home garage or auto repair shop. With the ability to lift an extra 3-inches, 5000TL portable car lift provides more room to tackle every repair and maintenance task on vehicles weighing up to 5,000-lbs.

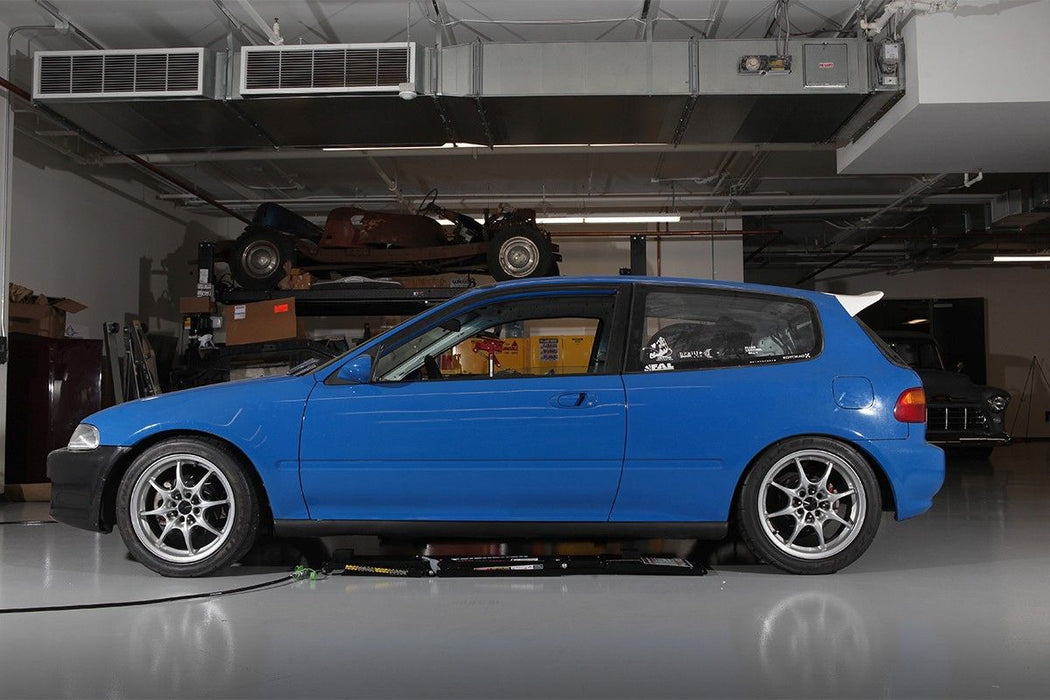

Through superior engineering and design, we've been able to produce an extra 3-inches of lifting height without sacrificing the overall dimensions that has made QuickJack a must-have in your garage. 5000TL still has an impressive 3" lowered height, 70" overall length, and 11" overall width.
What's the difference between the NEW TL Models vs. SLX Models?
The biggest difference between the 5000TL and BL-5000SLX is the lifting height, which has increased 3 inches. This provides ample room to perform all the common vehicle maintenance tasks and allows you the capability to perform even the most complicated repairs.
Overall dimensions have remained the same, so you'll continue to benefit from what made QuickJack so popular in the automotive community and that is it's super-low 3" lowered height. The minimum lifting point spread did change from 31.5" to 37", but this will not make a difference to the vast majority of 5000TL users.
I already own a QuickJack, can I purchase the frames individually?
Yes! You can purchase the left frame and right frame individually without a power unit. Just make sure to follow the bleeding procedures on the new frames before operating. Keep in mind that purchasing frames individually will only include the frames themselves and no support equipment.
If I purchase this TL model today, when will it arrive?
These units are usually in stock and available to ship within 2-3 business days of purchase.
What is the warranty period on the TL models?
All TL models include a 1-year warranty on equipment structure and operating components comes standard. You can also purchase an optional 2-year extended warranty. Learn more about QuickJack warranty.

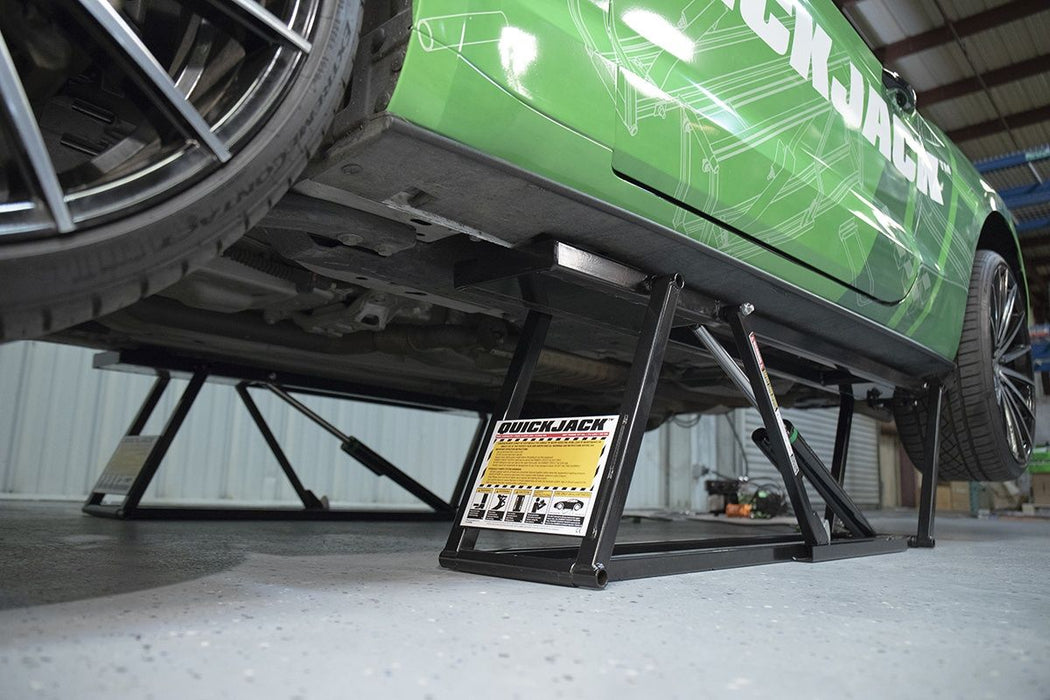

Automatic safety locks: Features dual-position automatic safety locks on each TL frame. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your car lift is ready for a smooth descent.

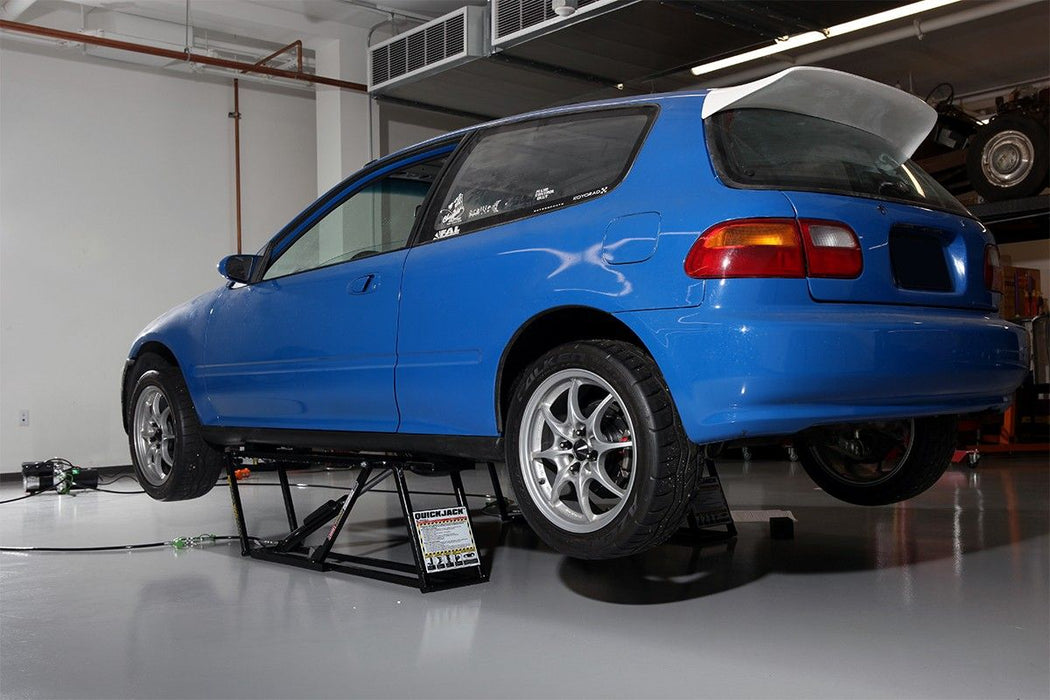

Increased lifting height: QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.

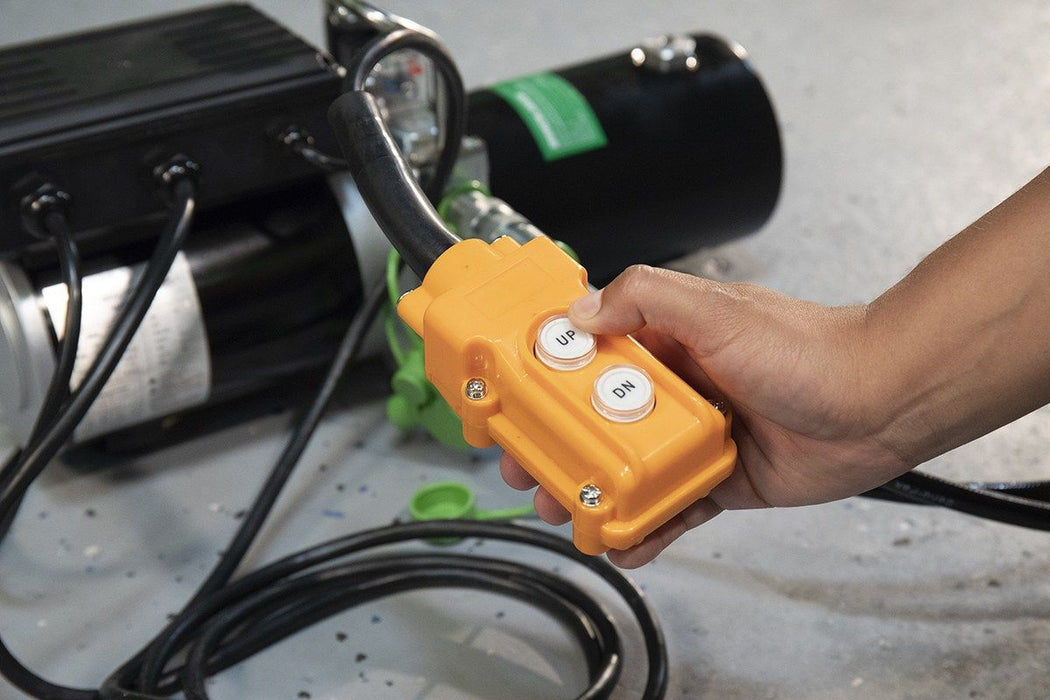

One-handed operation: By holding the pendant control in one hand, your other hand is totally free. No cranking or bending during lifting.
Accessories to increase versatility: Most QuickJack accessories were developed from customer suggestions and need. We offer many different lifting options and configurations to customize your QuickJack experience to fit your needs and specifications.
- 5,000 lbs. (2,268 kg)
- Lowered height
- Frame only: 3" (76 mm)
- With 2" block: 3.5" (89 mm)
- With 2" block: 21" (521 mm)
- With 3" block: 22" (546 mm)
- Max. height: 24" (616 mm)
- With adapters: 24" (597 mm)
- With adapters + pin: 26.75" (673 mm)
Lift point spread
- Maximum: 60" (1,524 mm)
- Minimum: 37" (940 mm)
- Width: 11" (278 mm)
- Length: 70" (1,778 mm)
- Height (lowered): 3" (76 mm)
- Weight: 78 lbs. (35 kg)
- Time to full rise: 30 seconds
- Power unit weight: 15 lbs. (7 kg)
- Shipping dimensions (ea. frame):
- 73.5" (L) x 15.25" (W) x 5" (H)
- (1,869 mm x 385 mm x 129 mm)
- Shipping weight: 240 lbs. (109 kg)

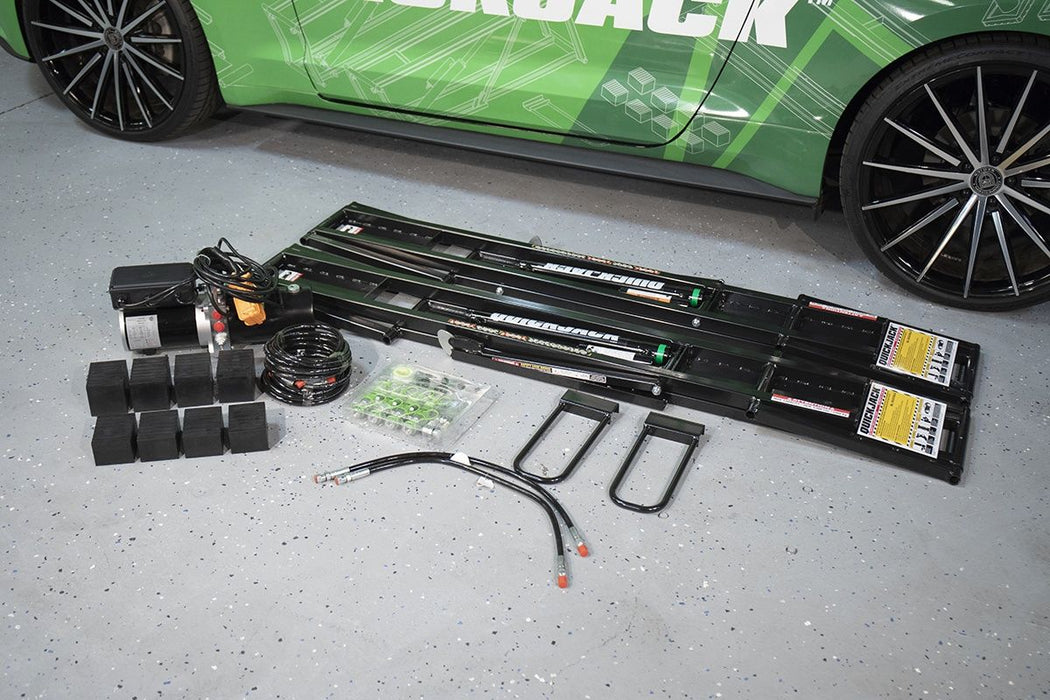

- 5000TL Left Frame Assembly
- 5000TL Right Frame Assembly
- 1x Hydraulic power unit with control
- 4x Medium rubber lift blocks (2")
- 4x Tall rubber lift blocks (3")
- 2x Short hydraulic hoses
- 2x Long hydraulic hoses
- 2x Frame-positioning handles
- Fittings and thread tape for setup
- Instruction manual
- Up to 3 liters of Automatic Transmission Fluid
- Air source to inflate air cylinders up to 50 PSI
- Assembly tools
*** Note: QuickJack is shipped in three boxes
