Mesa BT-150150 Two Person Whirlpool & Air Jet Tub 60" x 60" x 31"

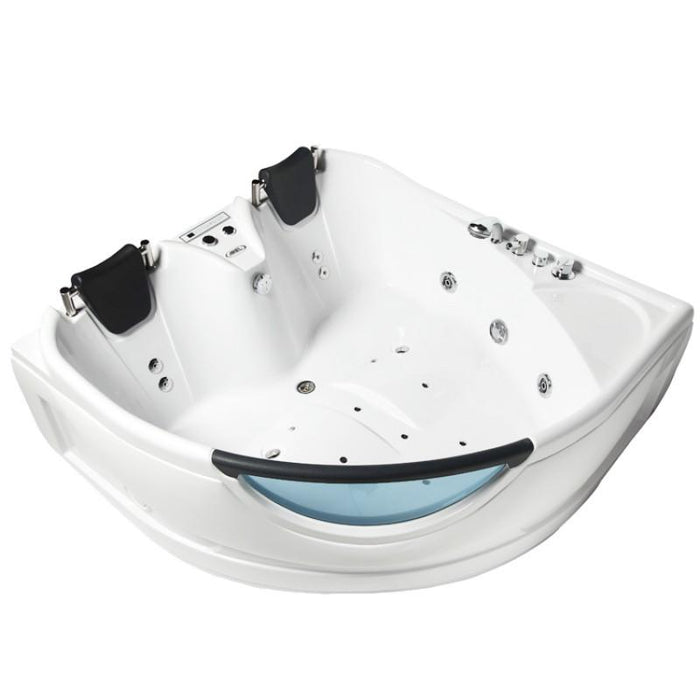

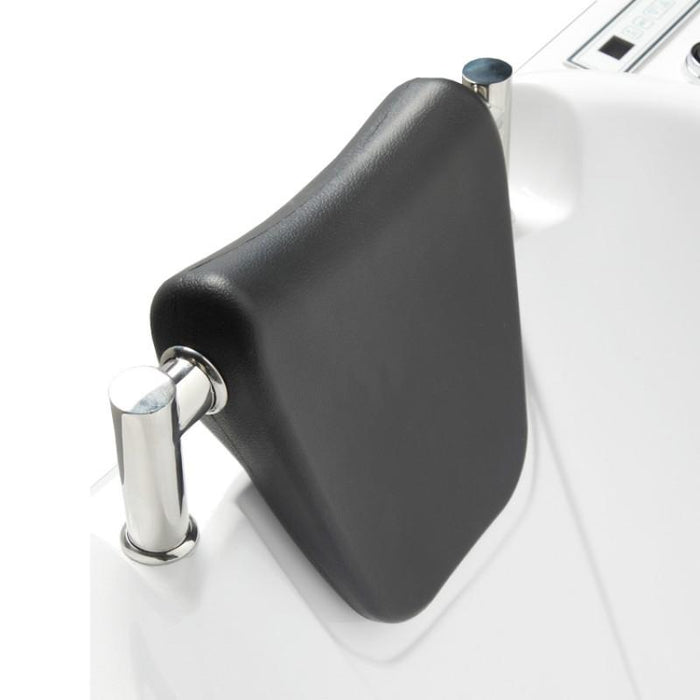

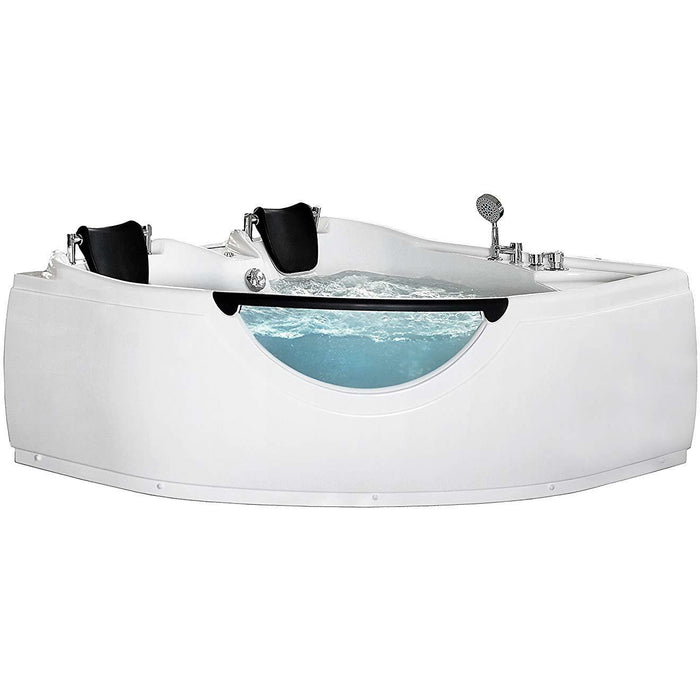

The BT-150150 is a 60" x 60" x 31" combination tub with side-by-side seating. This corner jetted tub features both a whirlpool jet system and an air system for combined therapy and relaxation. One of our most popular models, the BT-150150 also features a see-through glass panel, ergonomic handles, adjustable headrests, and contoured seating. The stylish design and see-through panel add a distinctive upgrade to any bathroom.
- This means putting your drain anywhere you want!!
- 60" W x 60" L x 31" H
- Side by Side Contoured Seating

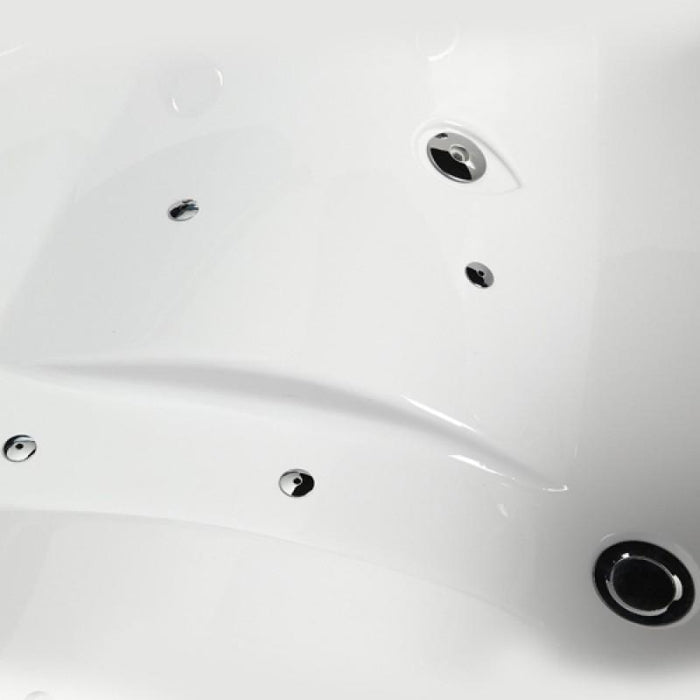

- 9 Whirlpool Jets
- Air System Included ($550 Value)
- 1 HP Whisper Quiet Water Pump
- Complete Back Massage
- Heat Pump Included
- 5 Year Limited Warranty
- Heat Pump Included
12v LED Lighting
1.2 HP Water Pump
220V - 20 AMP Dual Pole Breaker (110V/30A Optional Upon Request)
110v Heat Pump (Optional) Plumbing Specification

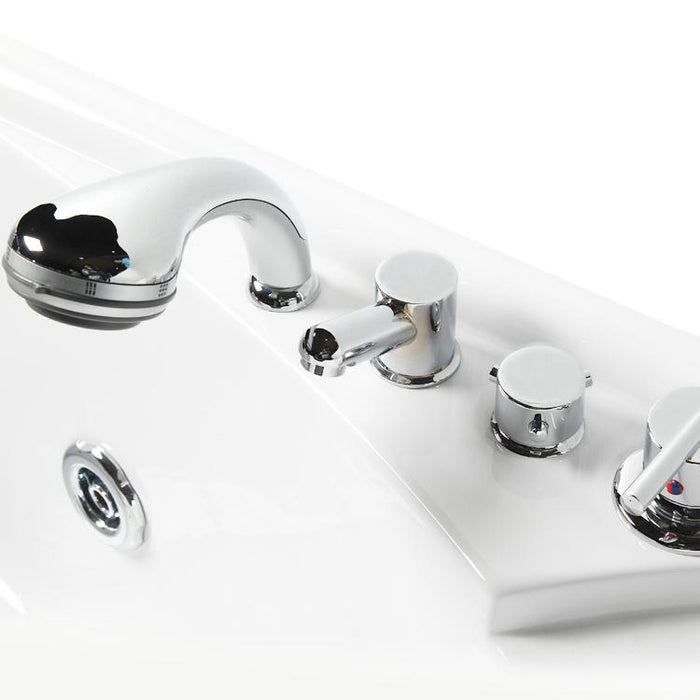

½” Faucet Lines
1 ½” Drain Intake 1 ½” Flexible Drain
DATA SHEET AND INSTALLATION/USER GUIDE
Each item we sell comes with the original Manufacturer's Warranty.
All jetted tubs and air tubs carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the tub from peeling, fading, delaminating, or cracking. All jetted tub and air tub parts carry a (5) five-year guarantee against defects.
Find Your Bath carries most replacement parts in stock and will arrange for a spare part to be delivered to you.
Frequently Asked Questions
Does the unit come in one piece or in panels?
All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What type of Electrical Connection and Breaker will I need?
One 30 AMP GFCI Breaker.
I would like to place on the second floor, will there be a weight problem?
The unit is about 500 lbs.+water and your weight, and that is definitely a case by case type question. Please consult your contractor based off of these weights we have provided.
What does the inline heat pump do?
The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
How many HOT/COLD Connections are required?
Regardless of the number of showerheads, all units have one hot/cold connection.
Where is the HOT/COLD Connection located?
The connection is located behind the shower hot/cold controls which differs per unit. Normally the hot/cold is about 30" from the the floor on the back of the unit. Flex hoses are included for easy hook ups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.
Where is the steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up an room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.
Do I need an access panel?
The steam showers are designed to be free standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
