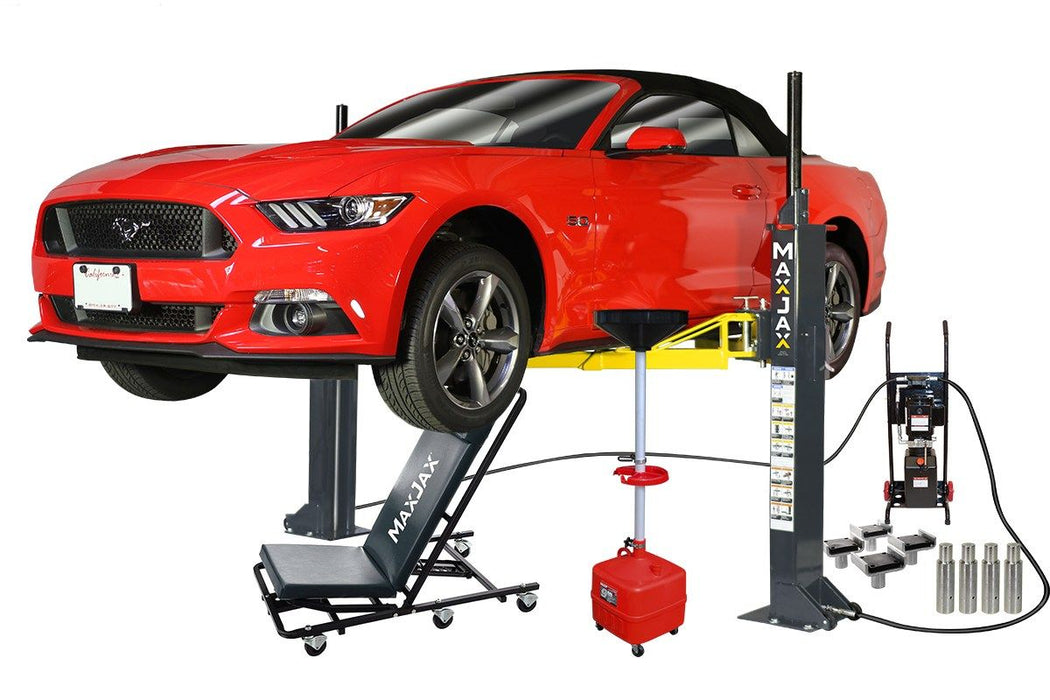

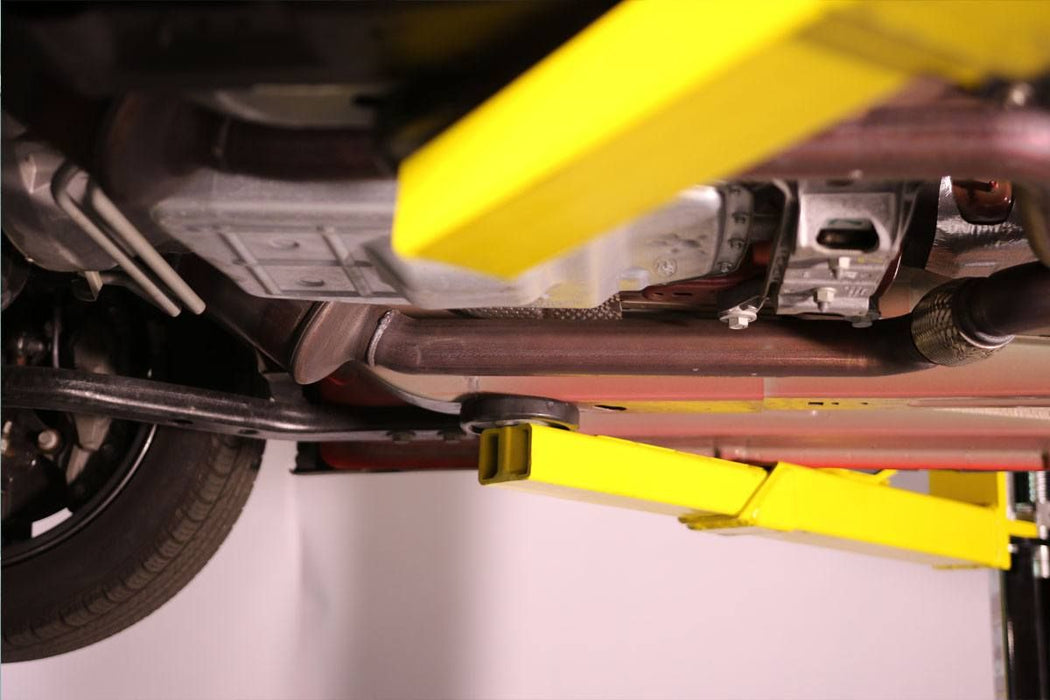

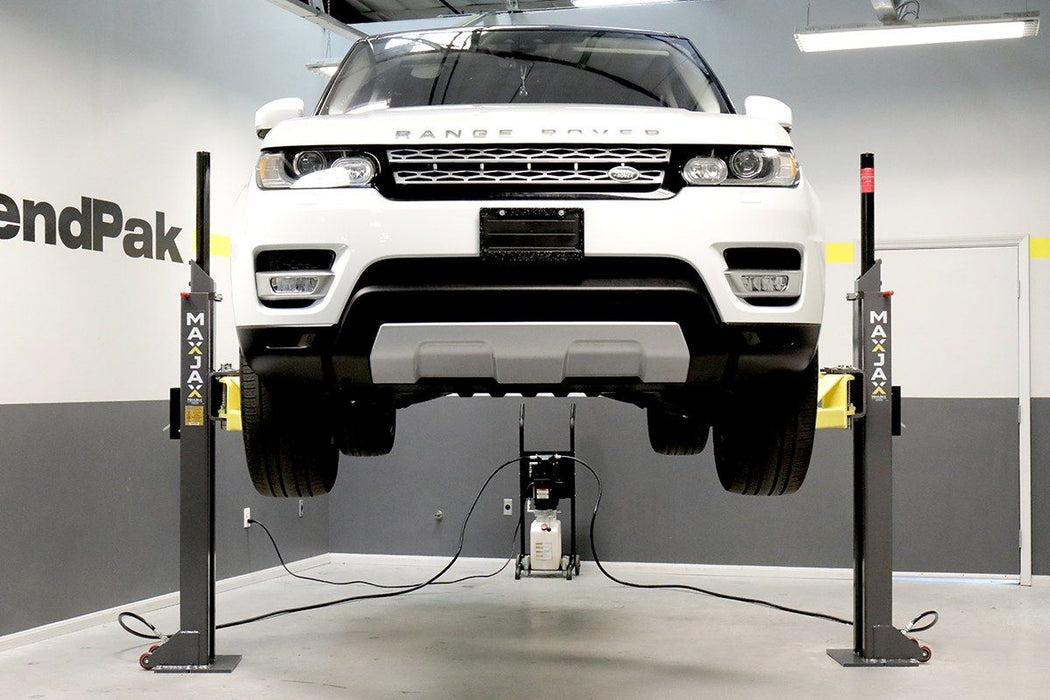

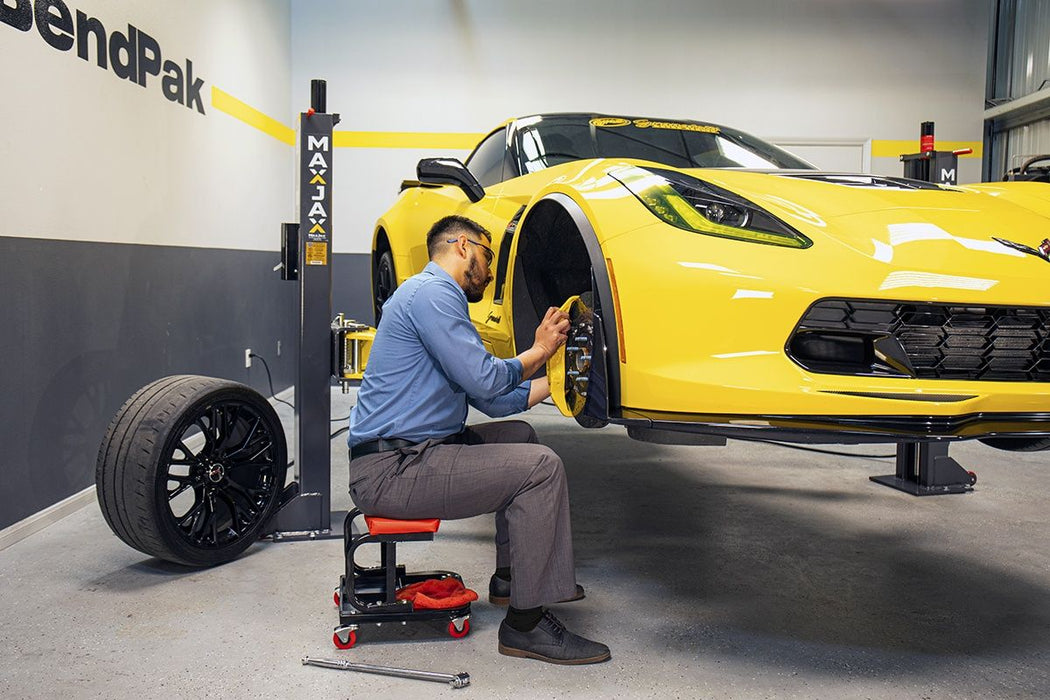

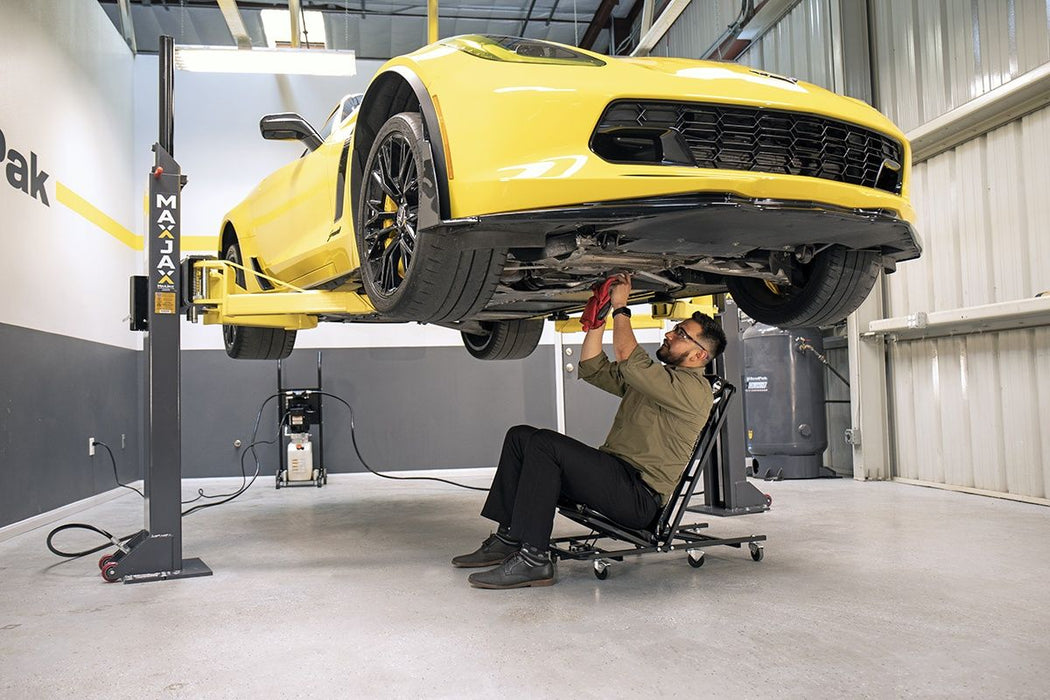

Clear undercar access
No other low-rise or mid-rise lift system provides more under-car clearance and unobstructed floor space than the MaxJax lifting system. Now you can easily access engine undersides, transmissions, drive-shafts, starters, differentials or anything else requiring under-car access.

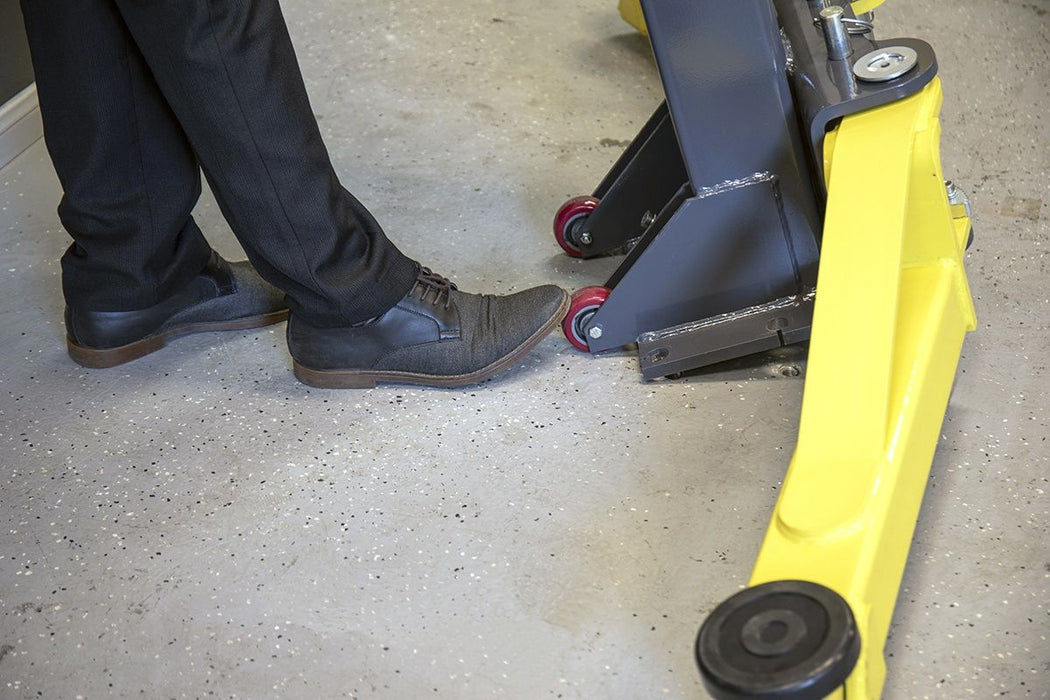

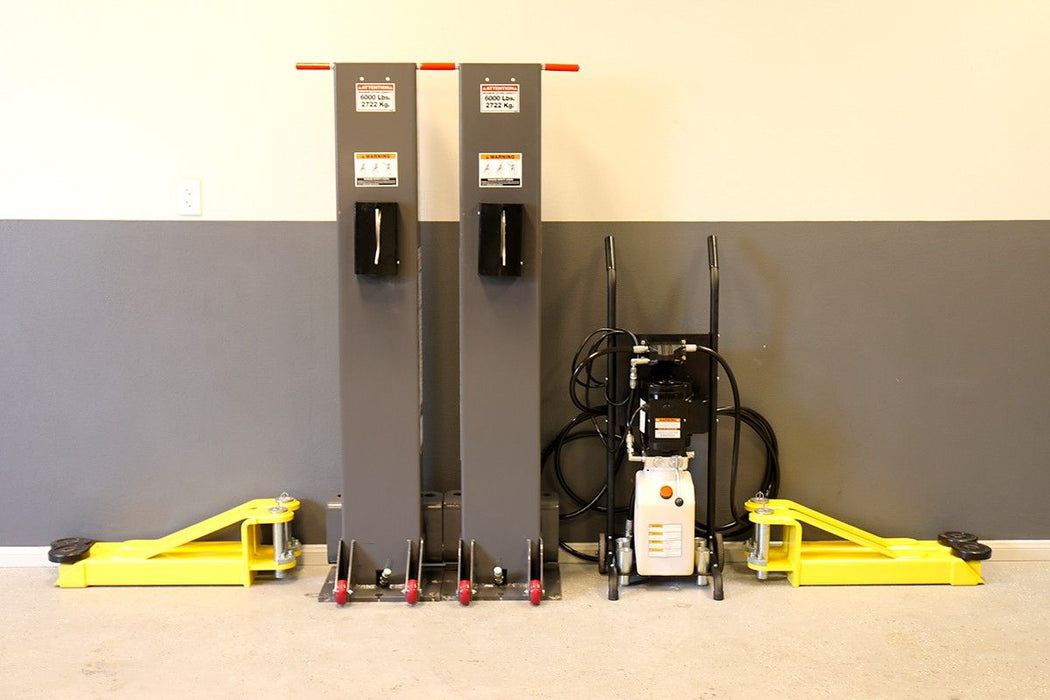

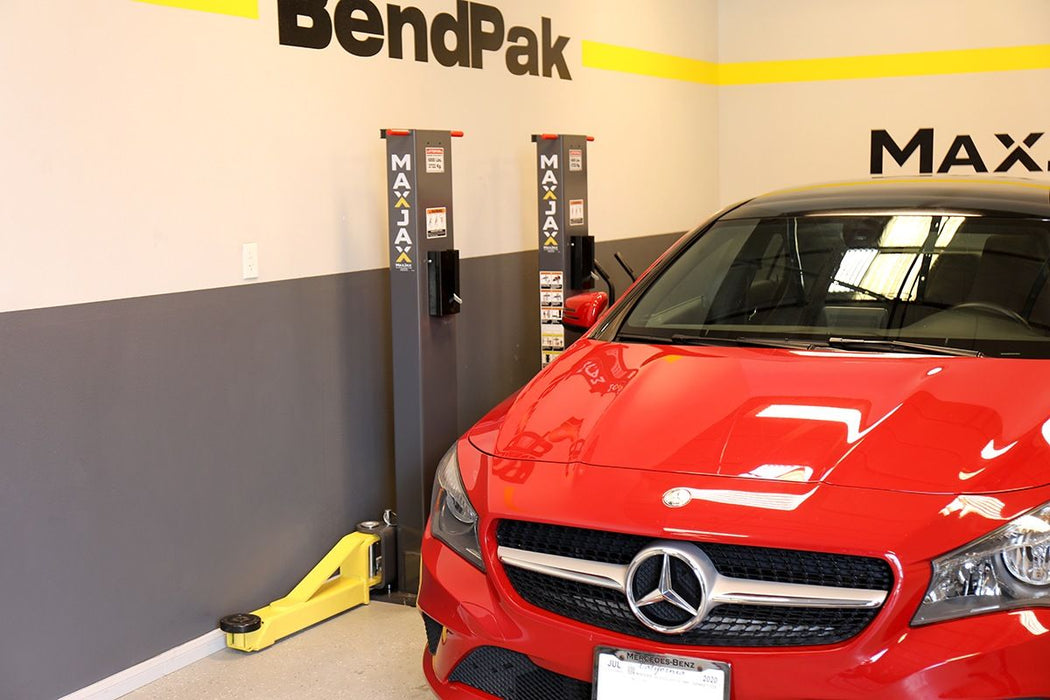

Stow to go in less than 15-minutes

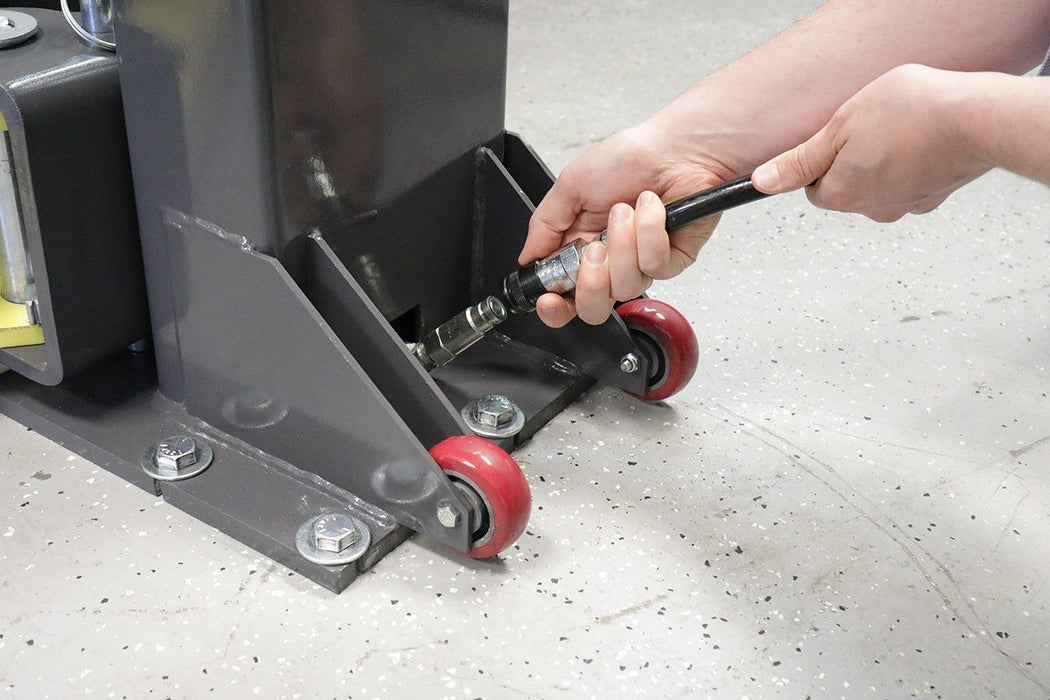

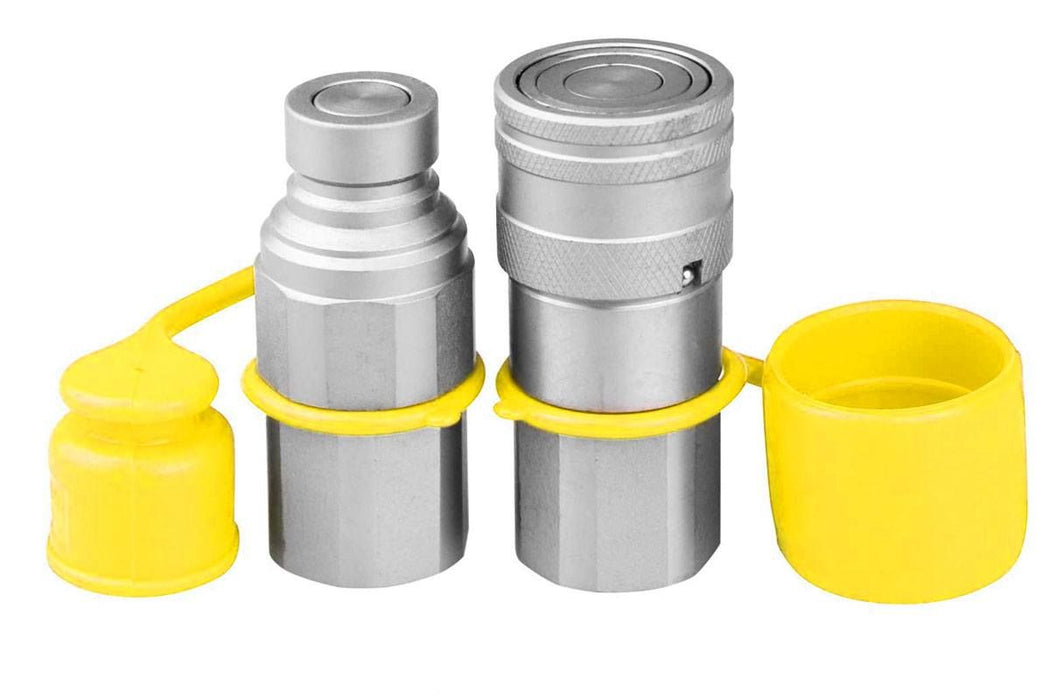

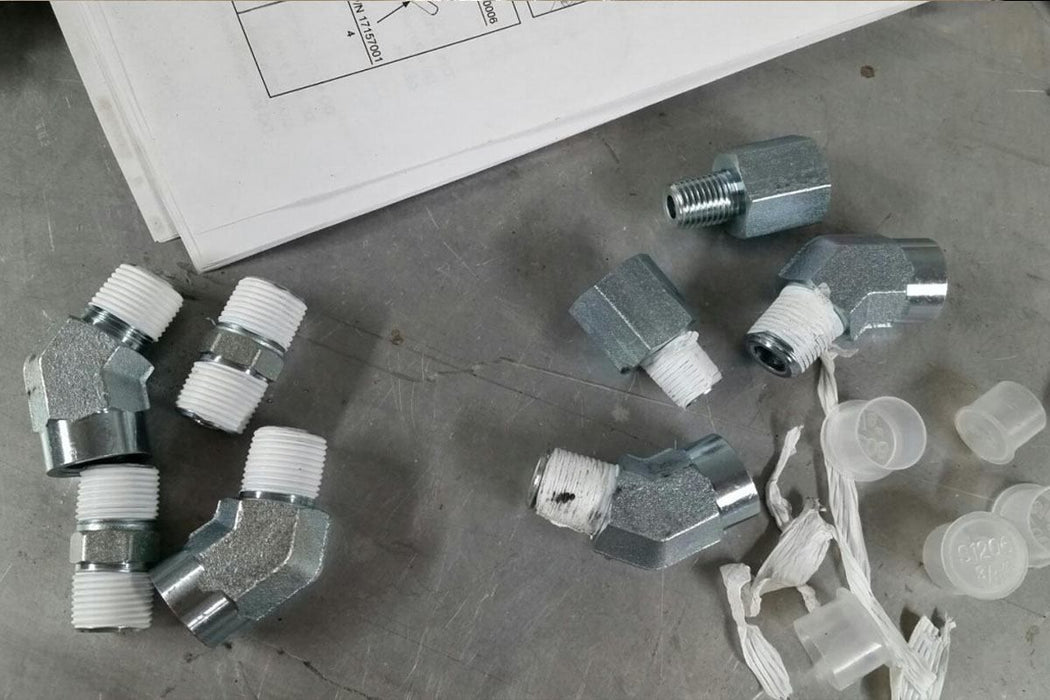

Internally threaded recessed drop-in anchors and quick-connect/disconnect hydraulic couplers provide for fast and simple set-up. NOTICE: Before drilling into post-tension garage floors, always consult a building engineer for determining cable locations and where to avoid drilling.
Works like magic

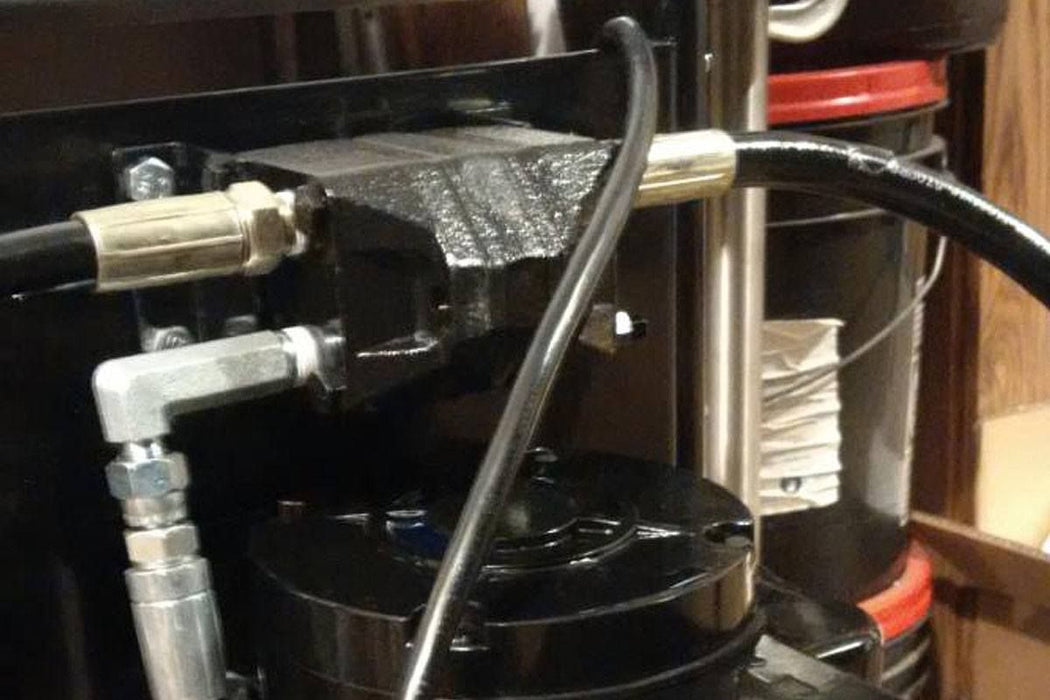

A cast iron gear flow divider is the heart of the MaxJax® system, providing precisely equalized lifting. The specially designed flow divider/combiner is a positive-displacement fluid control device with precise flow division of hydraulic power from one column to the other even if load balance pressures change.

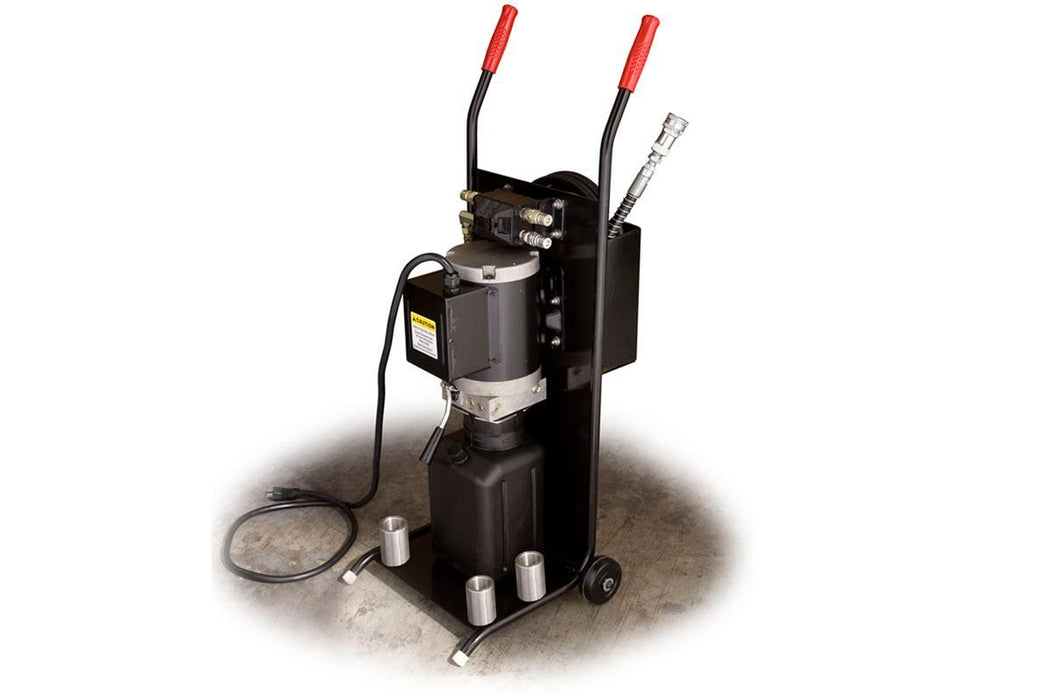

Mobile power unit cart
Our standard mobile power unit cart is small enough to be stored out of the way and features a storage area for the hydraulic hoses. The hydraulic power unit uses a single-phase motor that requires 110-volts AC and a 23 amp breaker. The industrial grade power cord is 6-Ft. long. A simple push-button switch raises the lift and a push lever controls the lowering. Simple quick-disconnect hoses can be positioned easily for single or dual column operation.

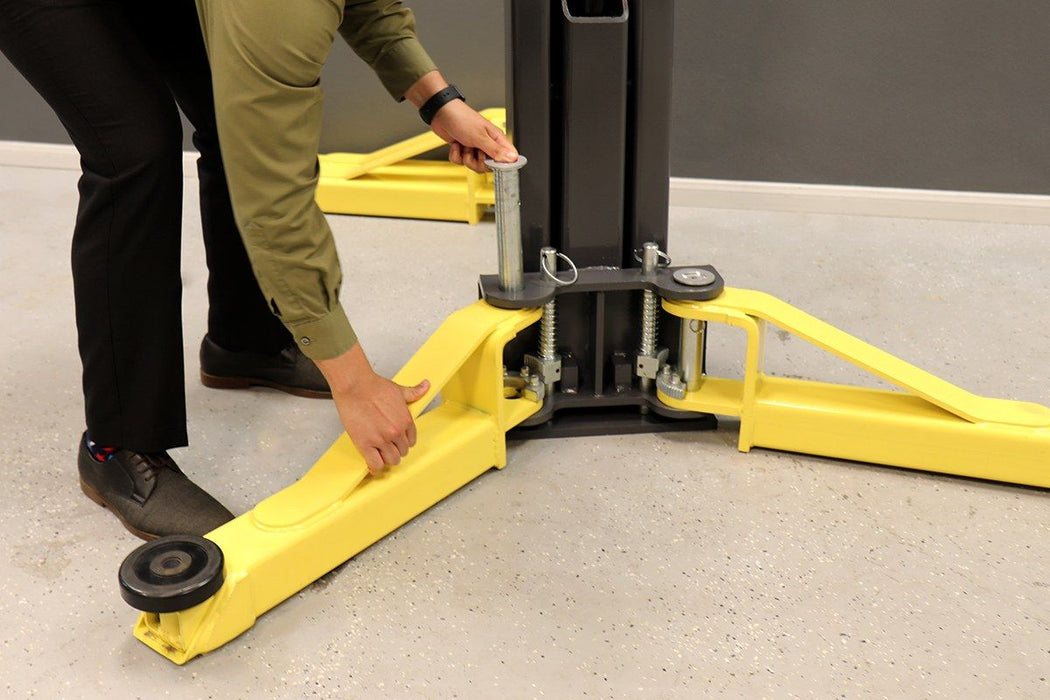

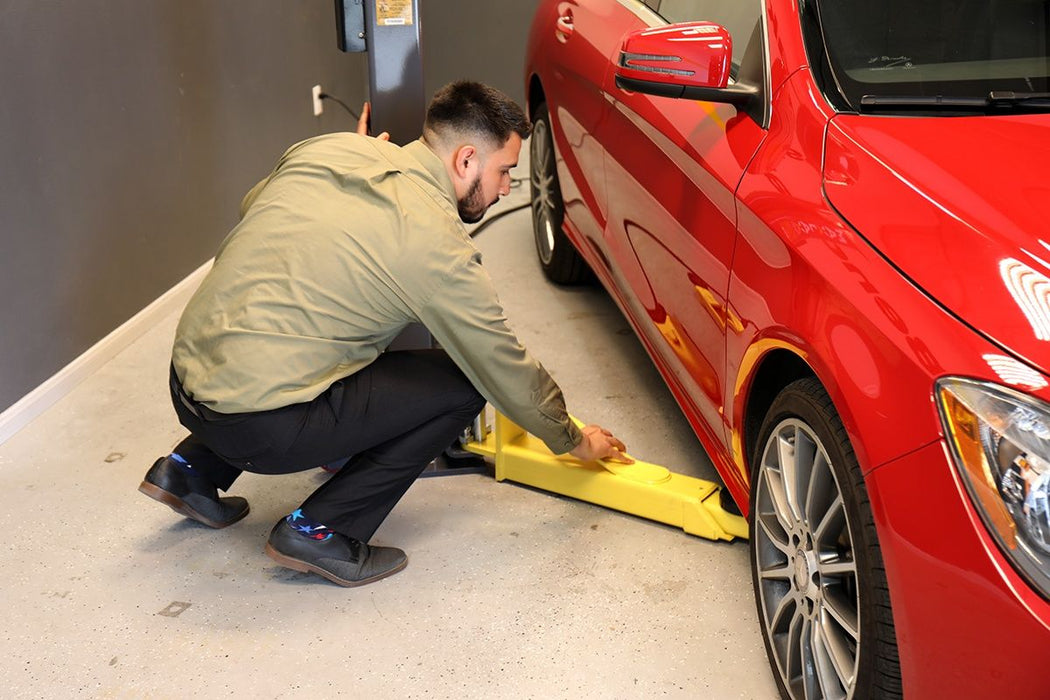

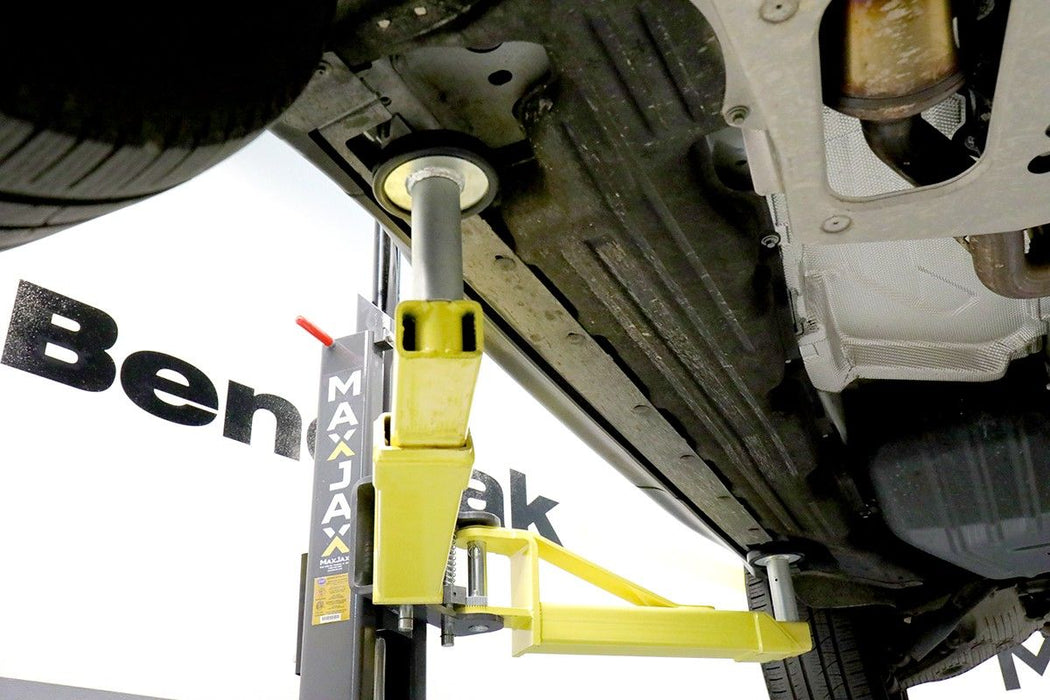

Adjustable lifting arms and stackable adapters

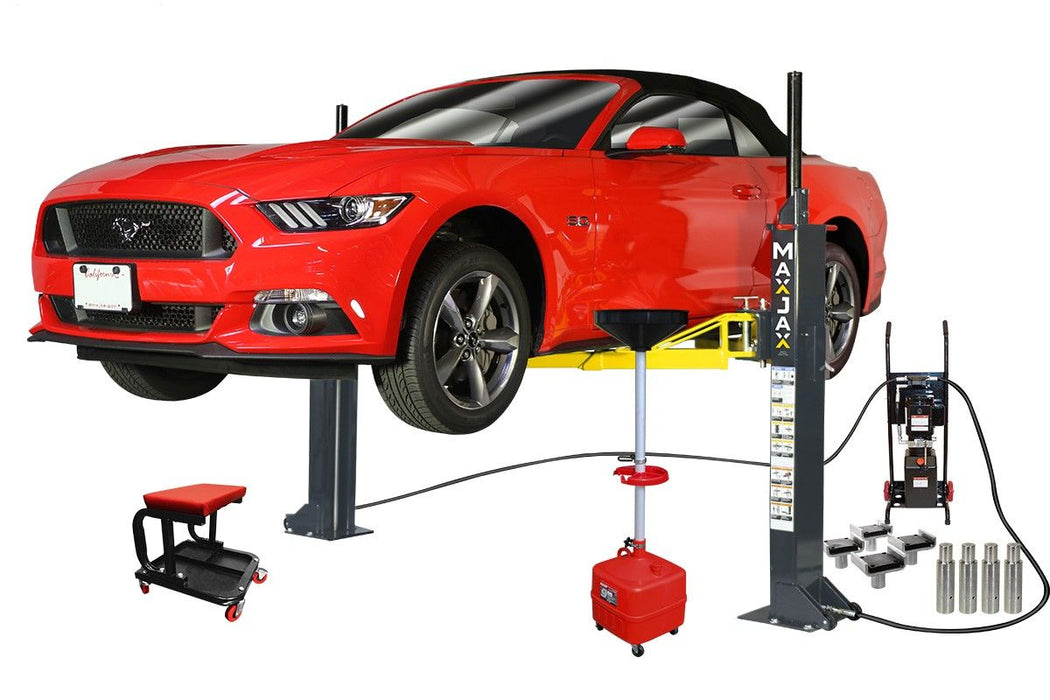

Increases overall arm positioning for lifting a variety of different vehicles that have Uni-body construction, OEM recommended pick-up points, or wide and/or narrow frame configurations. Every MaxJax order includes four (4) medium height adapters and four (4) stackable standard lift pad adapters.

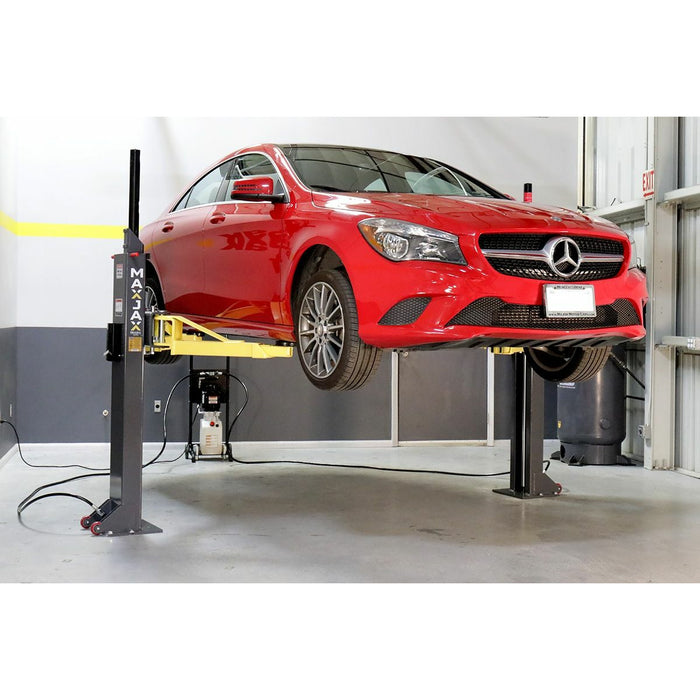

Fit under the lowest compact and sports vehicles or custom motorcycles with lowered frames.

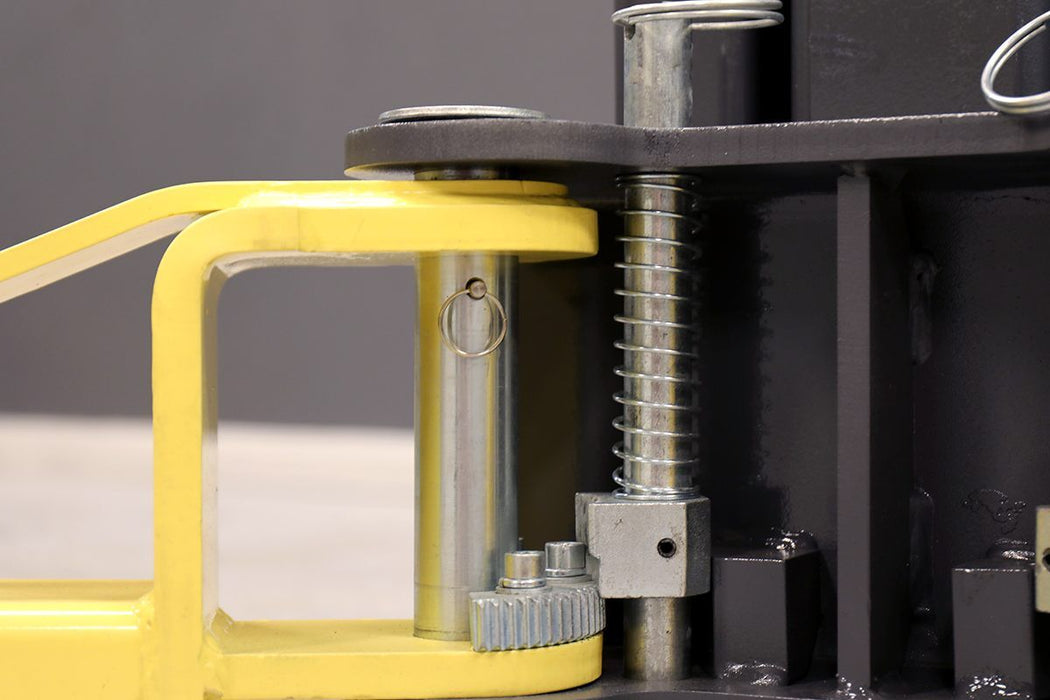

Automatic arm restraints
Each arm is equipped with durable arm restraints that automatically engage each time the lift is raised. When the lift is lowered, the gear type arm restraints automatically disengage to provide easy positioning of the lift arms.
Maintenance-free slide blocks
Rather than using roller bearings that need constant lubrication and maintenance, we use futuristic full-floating UHMW ultra-high molecular weight polyethylene load bearings that never need lubrication and last virtually the life of the lift.

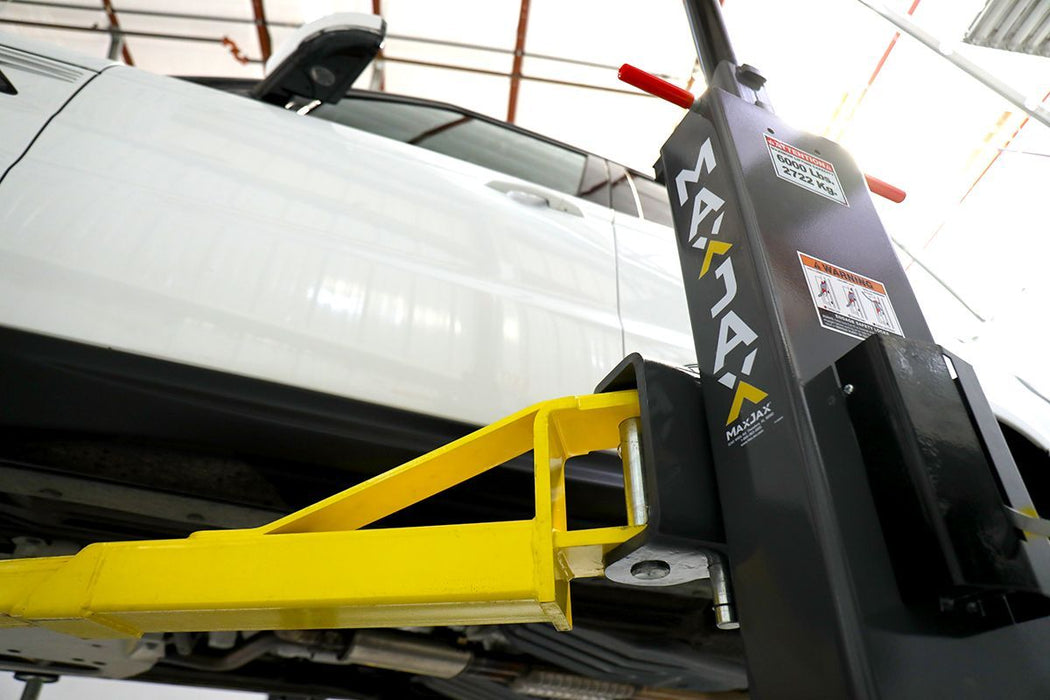

We purposely manufacture the columns using single-piece construction for added strength and less fatigue under heavy load conditions.
By utilizing two low-pressure HVLP Direct-Drive cylinders, we've eliminated the need for lifting chains or screw mechanisms most commonly found on other lift designs. HVLP Direct-Drive technology offers better reliability, smoother operation and less maintenance.
Industrial-grade hydraulic cylinders
Integrated into every MaxJax® hydraulic cylinder is a one-piece, pilot fitted, machined steel piston wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminates any fluid bypass. The micro-smooth chrome-rod is machined from high yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically, to ensure superior cylinder operation and life.
Two lifts in one
Our optional motorcycle adapter kit allows you to safely lift motorcycles, ATV's or other motorized vehicles to a comfortable working height.
