Dannmar DLR-6P 6,000-lbs. Capacity Low-Rise Lift / Portable

by Dannmar
Original price $2,837.00 - Original price $2,837.00
Original price
$2,837.00
$2,837.00 - $2,837.00
Current price $2,837.00

SKU 5175329
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

Dannmar is a company of people passionate about the automotive industry and the community that make it all possible. In this business, success is built on performance. Dannmar started out determined to reinvent the automotive service equipment market by providing quality equipment at a great value with superior after-sale service. They understand the purchase of a new car lift, tire changer, or wheel balancer is a big deal and we like to treat every customer as if they’re the only one.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

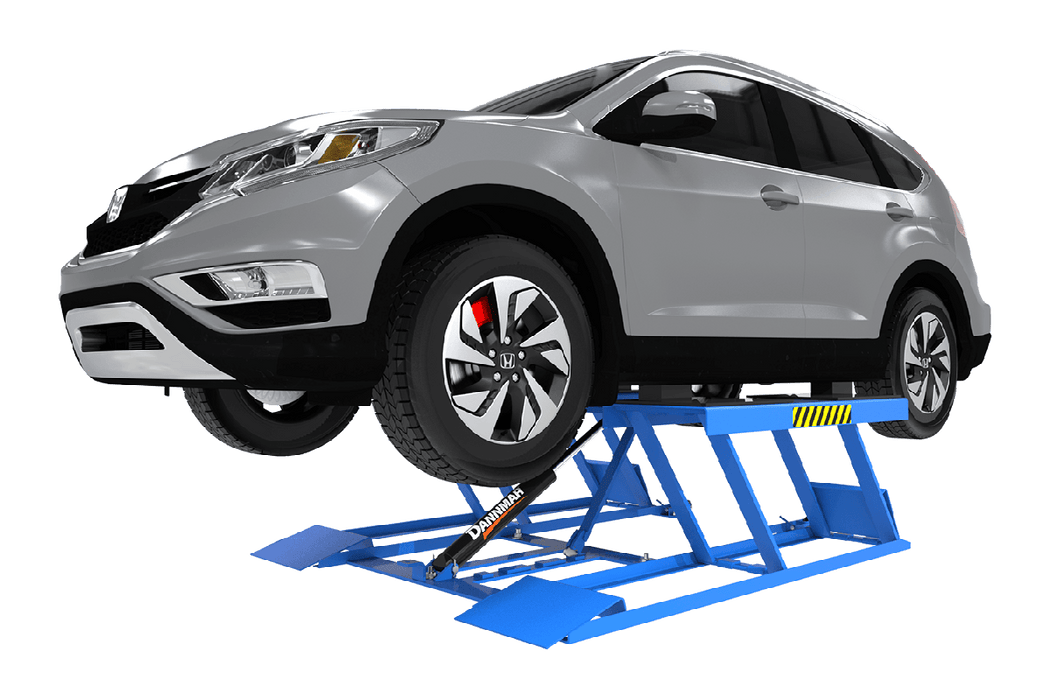

Dannmar DLR-6P 6,000-lbs. Capacity Low-Rise Lift / Portable

Overview

Portable and Low-Profile Height

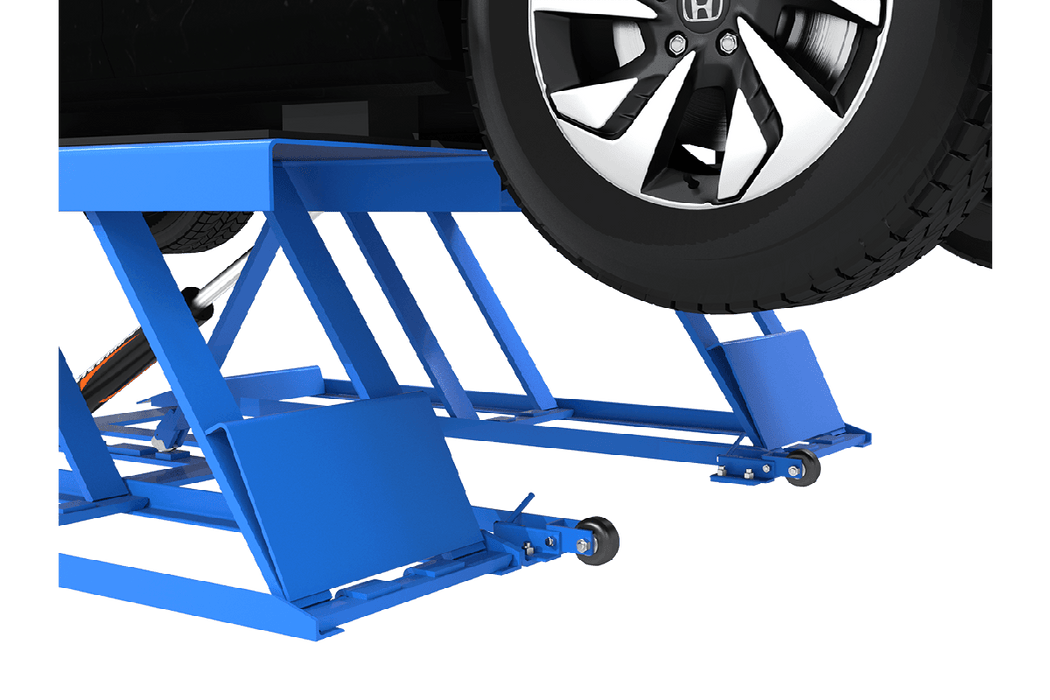

The DLR-6P is portable and smart-sized. With the ability to collapse to just 4" high, most low-stance vehicles find adequate undercarriage clearance. And this small-footprint model is perfect for tight spaces around the shop, or to simply store or move the lift out of the way. The rugged wheels are practically indestructible. One person can easily move the DLR-6P around shops or garages.

Single-point safety release

A single-point release feature on the control panel makes it so both locks can safely release simultaneously.

Dropped crossbar

Right in the center, a dropped crossbar permits additional drive-over clearance for lowered cars, sport sedans, vehicles, or maybe even a car with a low tire that needs repair. And the DLR-6 crossbar strengthens the lift’s structural stability.

Strong steel-channel frame

A steel channel makes up the base support of the DLR-6. It also comes with a five-year warranty.

Industrial-grade hydraulic cylinder

Two of Dannmar’s best hydraulic cylinders are used on each frame of this low-rise lift. They feature zero-leak technology for ultimate durability.

Rugged solid rubber lift blocks

Standard rubber blocks are long-lasting and durable.

Features

  • 6,000-lb. lifting capacity
  • Tow handle makes it easy to move lift from bay to bay or to where the disabled car is
  • Electric/hydraulic power system
  • Multi-position safety locks
  • Rubber lifting blocks included
  • Dropped cross bar for added clearance for low vehicles and low frames
  • Heavy-duty, long lasting steel-channel frame

Specs

SKU# 5175328
Lifting Capacity 6,000 lbs. (2,724 kg)
Lowered Height 4” (102 mm)
Max. Lifting Height (w/o Adapters) 26” (660 mm)
Max. Lifting Height + 1.5" Blocks 27.5” (699 mm)
Max. Lifting Height + Optional 3" Blocks 29” (737 mm)
Pad Length 53” (1,346 mm)
Overall Width 70.5” (1,791 mm)
Overall Length 82” (2,083 mm)
Tow Cart Height 47.5” (1,209 mm)
Tow Cart Width 14.75” (374 mm)
Tow Cart Depth 8.25” (210 mm)
Lifting Time 45 sec
Motor 110-VAC / 50-60 Hz / 1Ph
Shipping Weight 966 lbs. (438 kgs)
Shipping Dimensions 83" x 73" x 21" (2,108 mm x 1,854 mm x 533 mm)
