Dannmar D2-10A 10,000 Lbs Asymmetric Clear-floor 2-Post Lift

by Dannmar
Original price $4,713.00 - Original price $4,713.00
Original price
$4,713.00
$4,713.00 - $4,713.00
Current price $4,713.00

SKU 5175313
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

Dannmar is a company of people passionate about the automotive industry and the community that make it all possible. In this business, success is built on performance. Dannmar started out determined to reinvent the automotive service equipment market by providing quality equipment at a great value with superior after-sale service. They understand the purchase of a new car lift, tire changer, or wheel balancer is a big deal and we like to treat every customer as if they’re the only one.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

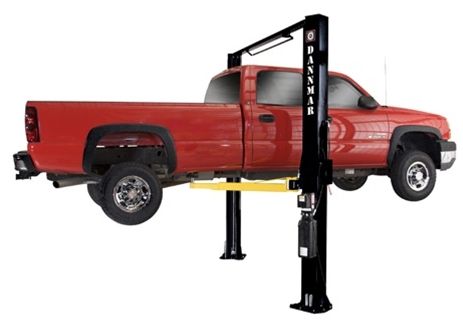

Dannmar D2-10A 10,000 Lbs Asymmetric Clear-floor 2-Post Lift

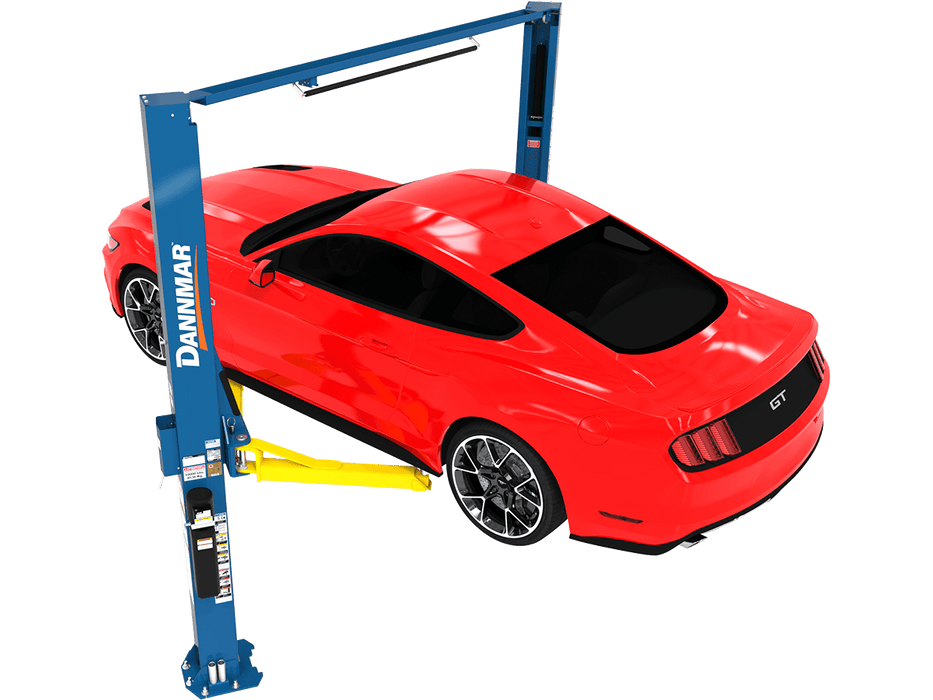

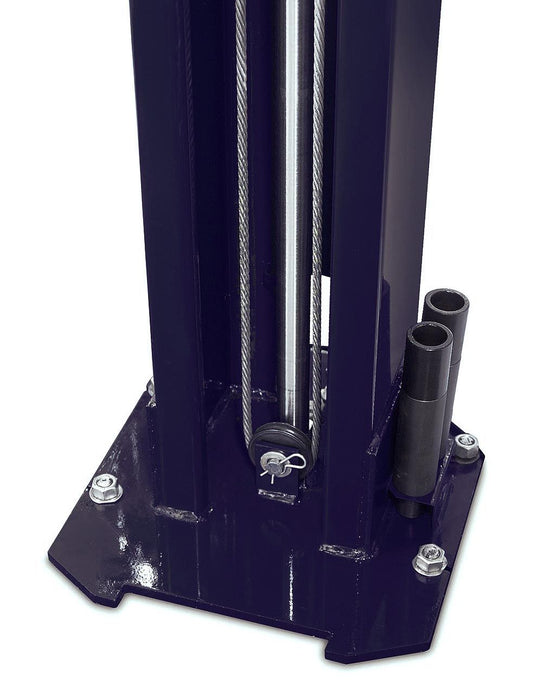

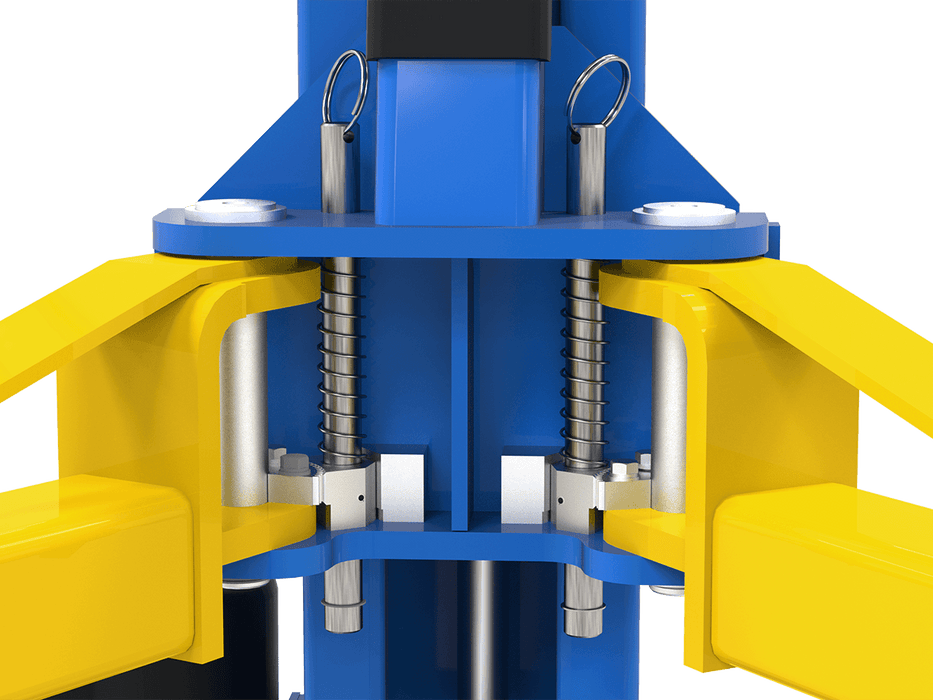

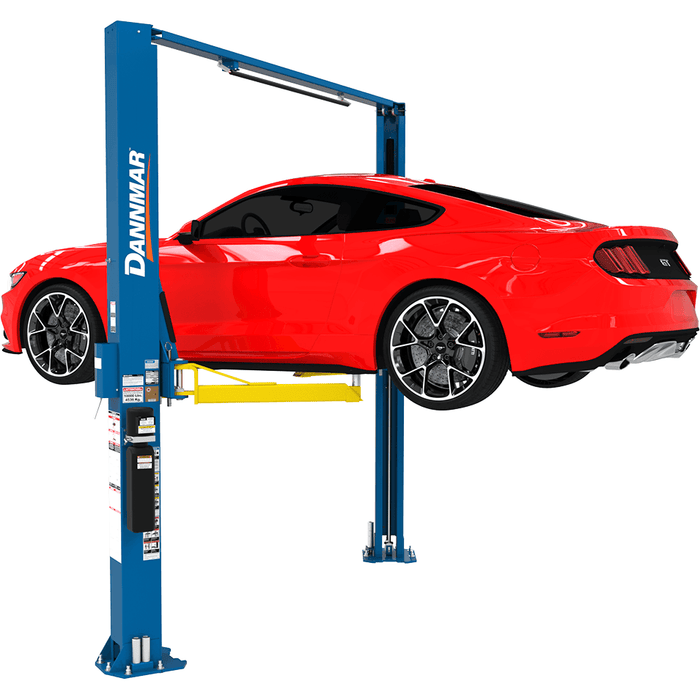

The D2-10A is an asymmetric clearfloor two-post lift that features a 10,000 lb. lifting capacity and accommodates full-size trucks, vans, and standard passenger cars. Single-piece column construction, tubular steel lifting carriage, and direct-drive hydraulic cylinders ensure the best possible performance and reliability. Rotated asymmetric columns allow vehicles to be loaded with doors clear of the columns for convenient entry and exit of vehicles.

Specs

Style Asymmetric
SKU# 5175313
Lifting Capacity 10,000 lbs. (4,536 kg)
Lowered Height + Pad 5" (127 mm)
Max. Lift Height (Top Lock) 78.5" (1,994 mm)
Max. Rise 69" (1,753 mm)
Height Overall 145" (3,683 mm)
Width Overall 143.5" (3,645 mm)
Width Outside Columns 137.25" (3,486 mm)
Width Inside Columns 120.75" (3,067 mm)
Drive-Thru Clearance 100" (2,540 mm)
Floor to Top Switch 141" (3,581 mm)
Front Arm Reach 29.25" (743 mm) - 43.75” (1,111 mm)
Rear Arm Reach 40.25" (1,022 mm) - 58” (1,473 mm)
Max. Load per Arm 2,500 lbs. (1,134 kg)
Time to Full Rise 45 seconds
Noise 45 dB
Motor 220 VAC / 60 Hz / 1 Ph
Shipping Weight 1,682 lbs. (763 kgs)
Shipping Dimensions 151" x 23" x 35" (4,495 mm x 597 mm x 889 mm)
Dannmar D2-10A two-post lift floor diagram
