Bendpak XPR-15CL-192 15,000 Lbs Extra-Tall Clear-floor 2-Post Lift (5175410)

by Bendpak
$14,210.00

SKU 5175410

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

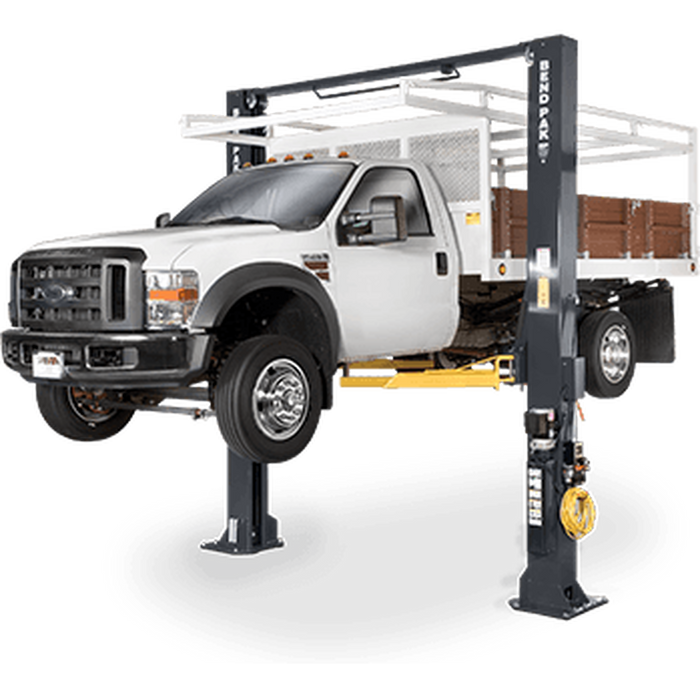

Bendpak XPR-15CL-192 15,000 Lbs Extra-Tall Clear-floor 2-Post Lift (5175410)

BendPak’s XPR-15CL-192 lift puts all the features you need in one high-capacity, efficient package. This lift offers extended height for handling taller commercial vehicles with the flexibility of servicing low-stance sports cars and compact passenger vehicles. With a brute lifting power of 15,000 lbs., the XPR-15CL-192 can handle your heaviest loads.

Direct-drive design reduces maintenance while improving efficiency with rapid lift capability. Clear floor construction provides an unobstructed workspace for ease of movement by service technicians and clearance for positioning of tool chests and service equipment.

XPR-15CL-192 lifts include:

  • Direct-drive technology for rapid ascent/descent and low maintenance
  • Optional column extensions for even higher capacity
  • Maintenance-free UHMW load bearings for long service life
  • Dual-synchro equalization technology for safer, stable working conditions

XPR-15CL-192 Characteristics:

  • Lift Capacity: 15,000 lbs.
  • Height: 193”
  • Width: 155”
  • Lift height: 69”
  • Type: Clear Floor

Features:

  • 15,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Padded overhead safety shutoff bar
  • Taller column height provides greater overhead clearance
  • Single-piece columns / model XPR-15CL

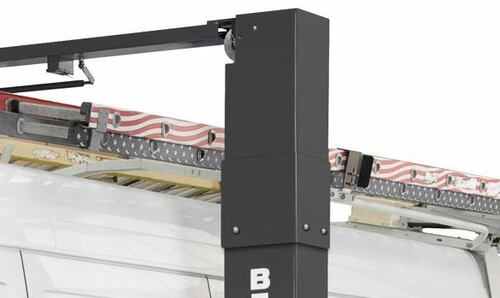

  • Bolt-on column extensions / model XPR-15CL-192
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders

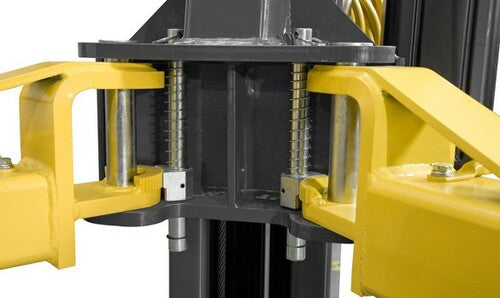

  • Oversized 53" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Oversized A36 steel base plate
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3"

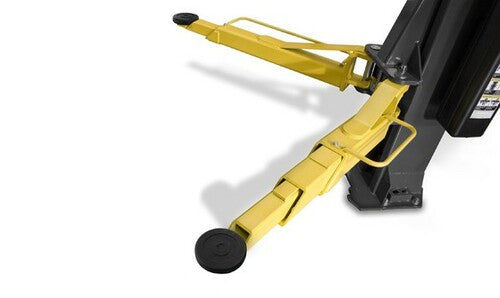

  • Triple-telescoping front and rear arms
  • Automatic arm restraints
  • Heavy-duty 1/2" aircraft-quality equalizer cables

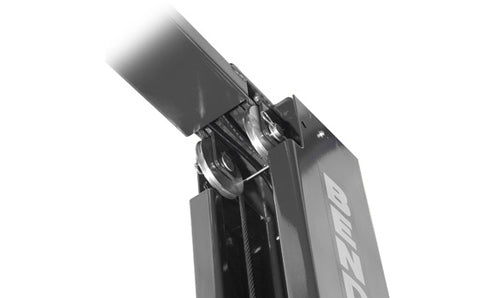

  • 6” diameter machined steel cable sheaves reduces cable fatigue
  • 8-piece truck and van adapter set STANDARD
  • Frame cradle pads STANDARD

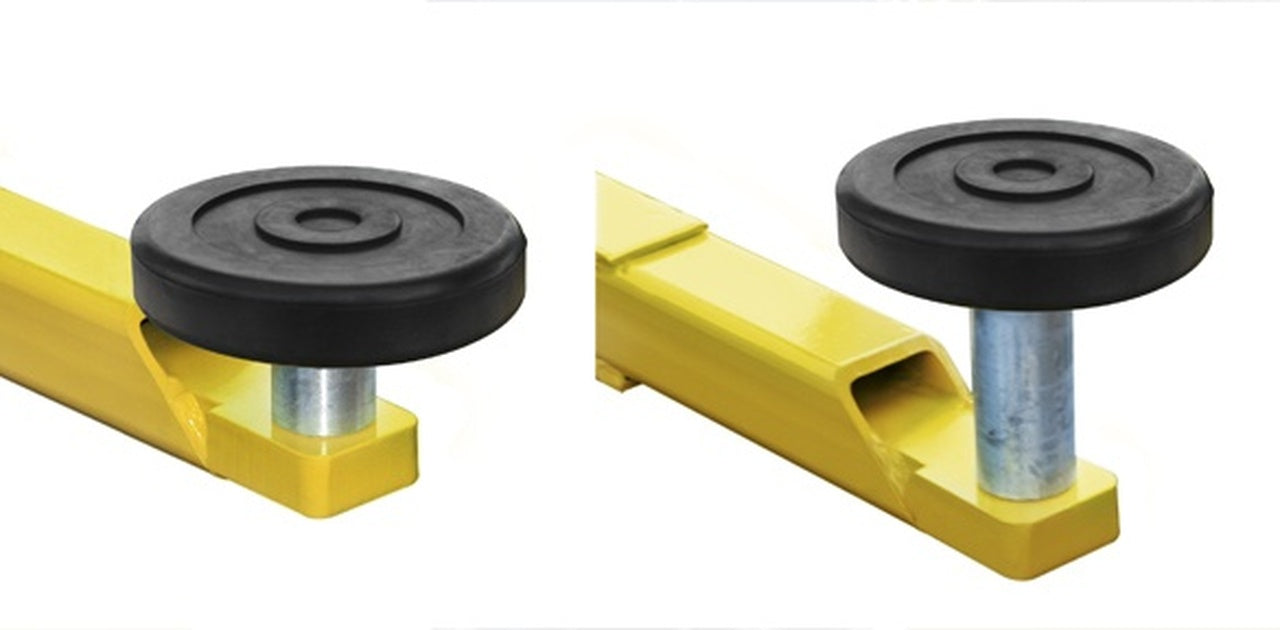

  • Round rubber contact pads STANDARD
  • ALI certified

Specifications:

MODEL XPR-1?5CL-192
Lifting Capacity* 15,000 ?lbs. / 6,804 ?kg.
*Max Capacity / Front Axle 7,500 ?lbs. / 3,402 ?kg.
*Max Capacity / Rear Axle 7,500 ?lbs. / 3,402 ?kg.
A - Height Overall: 192.7" / 4,895 mm*
B - Width Overall (Outside of Base Plate): 155" / 3,937 mm.
C - Width (Outside of Columns): 144" / 3,658 mm.
D - Floor To Overhead Switch: 187.7" / 4,768 mm.*
E - Inside Columns: 120" / 3,048 mm.
F - Reach (Front Arm Min.): 39" / 991 mm.
G - Reach (Front Arm Max.): 60" / 1,524 mm.
H - Reach (Rear Arm Min.): 39" / 991 mm.
I - Reach (Rear Arm Max.): 60" / 1,524 mm.
J - Min. Pad Height: 5" / 127 mm.
K - Rise: 69" / 1,753 mm.
L - Max Lift Height (Pad Only): 74" / 1,880 mm.
M - Max Lift Height (6" Adapter): 80" / 2,032 mm.
N - Drive-Thru Clearance: 106" / 2,692 mm.
Motor (**) 220 VAC / 60 Hz. 1Ph.
Time of full Rise: 45 Seconds
Max Load Per Arm: 3,750? lbs. / 1,701 ?kg.

Manual
