Bendpak PL-6KT 18,000-lb. Independent Platforms Triple Parking Lift (5175154)

by Bendpak
Original price $32,715.00 - Original price $32,715.00
Original price
$32,715.00
$32,715.00 - $32,715.00
Current price $32,715.00

SKU 5175154
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

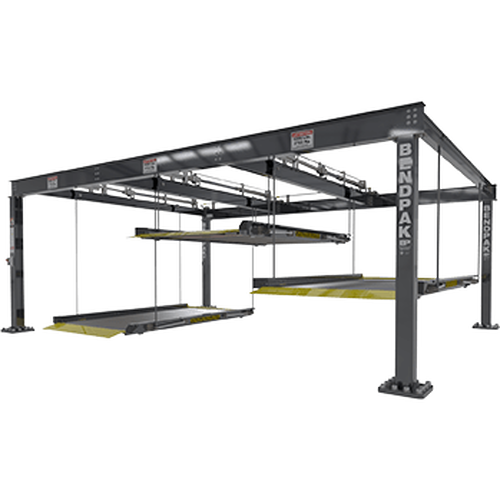

Bendpak PL-6KT 18,000-lb. Independent Platforms Triple Parking Lift  (5175154)

The PL-6KT triple-wide parking lift is one of the most efficient parking units ever designed. The key to its design is a streamlined, four-column structure that leaves all three lifting platforms free from surrounding posts, making it safer and easier to enter and exit parked vehicles.

This parking lift is equally useful in large residential garages and commercial spaces. Municipal parking lots and custom shops looking for extra parking don’t need to waste money buying multiple lifts that may or may not even fit in their space. A triple-wide lift is the most efficient way to turn three parking spots into six.

Bendpak PL-6KT 18,000-lb. Independent Platforms Triple Parking Lift

Features

  • 6,000-lb. capacity per deck (18,000 lbs. total)
  • Perfect for cars, light trucks, motorcycles and ATVs
  • Rugged I-beam and C-channel construction
  • Built-in wheel stops
  • Wide base-plate for maximum stability
  • Front and rear wheel chocks
  • Superstructure features durable powder-coat finish
  • Dual hydraulic cylinders with heavy-duty steel lifting cable
  • Heavy-duty steel construction
  • Reliable electric-hydraulic power system
  • Full-width platform to keep bottom vehicles protected
  • Simple controls
  • Oversized sheave diameter reduces cable fatigue
  • High-speed lifting
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Runways feature non-skid surface
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location

Specifications

Style

  • Style: Multi-Platform Parking Lift

Capacity

  • Lifting Capacity: 6,000 lbs. (2,722 kg)
  • Overall Width: 308” (7,834 mm)
  • Overall Length: 236.5” (6,008 mm)
  • Overall Height: 123.75" (3,140 mm)
  • Min. Runway Height: 9” (230 mm)
  • Max. Rise: 89” (2,261 mm)
  • Width Between Posts: 283" (7,197 mm)
  • Platform Width: 82" (2,086 mm)
  • Platform Length: 152" (3,862 mm)
  • Drive Clearance: 93" (2,374 mm)
  • Locking Positions: 1
  • Lifting Time: 30 seconds
  • Standard Motor: 220 VAC / 60 Hz / 1Ph
