BendPak PCL-18-4 72,000 Lb. Capacity Portable Column Lift (5175292)

by BendPak
Original price $40,195.00 - Original price $40,195.00
Original price
$40,195.00
$40,195.00 - $40,195.00
Current price $40,195.00

SKU 5175292
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

BendPak PCL-18-4 72,000 Lb. Capacity Portable Column Lift (5175292)

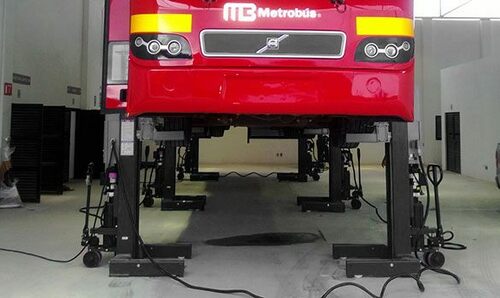

With a full set of mobile column lifts, you'll lift vehicles up to 72,000 lbs. This weight class encompasses most heavy-duty and commercial semi-trucks. If you need more lifting power, upgrade to a set of 6 or double your capability with a set of 8. For a frame-engaging adapter, check out the PCL-18B cross beam. This handy tool allows you to safely remove tires and perform full wheel service on your vehicle.

Features:

  • 18, 000-lb. individual column capacity / 72, 000- system capacity
  • Meets or exceeds the standards prescribed by ANSI/ALIALCTV-2017

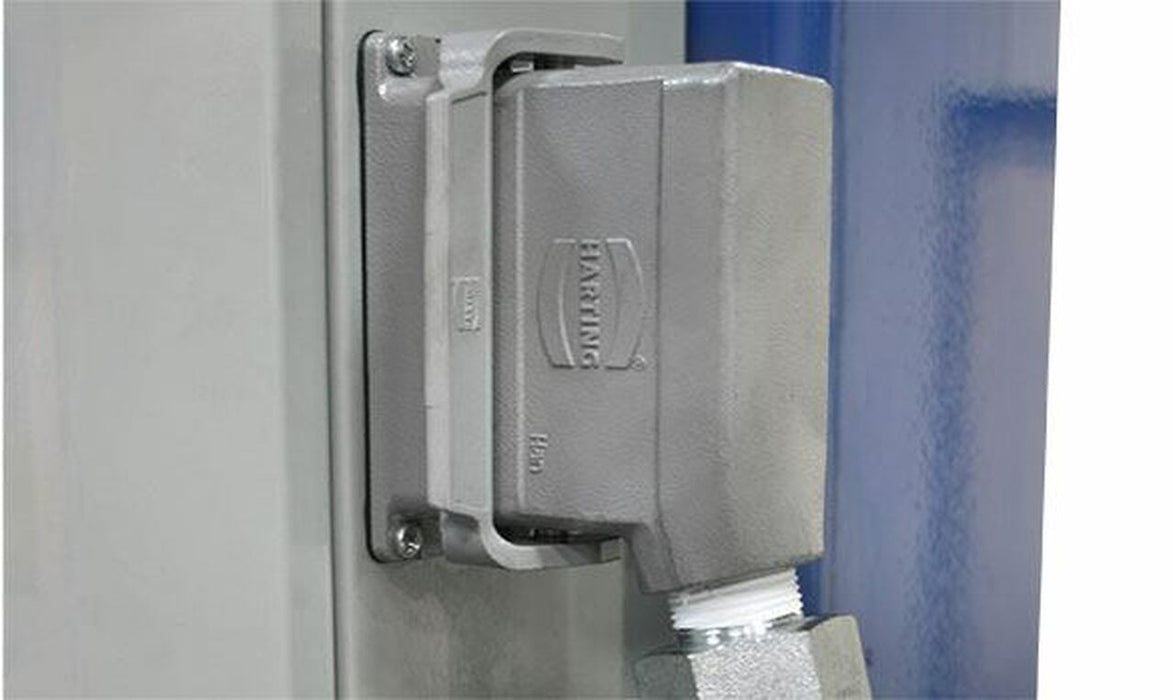

  • Just three 30' cables are used leaving the front or back ofthe lift clear of cable obstructions
  • Intuitive controls allow the lift to be fully programmedand controlled from any column
  • Smart electronics feature self-diagnostics and selfcalibration functions
  • Sealed and enclosed linear potentiometers featureprecision potentiometric output and high-frequencyresponse for precise synchronization and communicationof all columns through all cycles for precise, level lifting
  • Height settings can be programmed for low ceiling shops

Specs

  • Lifting Capacity: 18,000 lbs.
  • A - Overall Height (RAISED) 101”
  • B - Overall Height (LOWERED) 146.5”
  • C - Max. Lifting Height 71.5”
  • D - Overall Depth  48.75”
  • E - Overall Width 45”
  • F - Chassis Length 32.25”
  • G - Min. Lifting Fork Width 9.5”
  • H - Max. Lifting Fork Width 35”
  • I - Lifting Fork Length 11.5”
  • Turning Circle 40”
  • Column Weight 1,450 lbs.
  • Lifting Speed 85 sec
  • Shipping Weight 1,450 lbs

Manual
