Bendpak Hdso-14P 14,000-Lb. Capacity Open Front Car Lift (5175152)

by Bendpak
$9,770.00

SKU 5175152

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

Bendpak Hdso-14P 14,000-Lb. Capacity Open Front Car Lift (5175152)

The HDSO14P is a legendary 14,000-lb. capacity open-front four-post car lift that allows easy entry and exit beneath a vehicle. It is available with optional drive-thru ramps, drip trays and rolling jacks. The HDSO14P is an open-front four post lift that features clear entry upfront, providing easy vehicle access. A generous 14,000-lb. lifting capacity and extended runways allow you to service a wide variety of vehicles, ranging from small cars to full-size trucks.

 Features:

  • 14,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Huge cable sheaves reduce wear and tear
  • Extremely convenient open-front design for easy access
  • Extended runway length for servicing
  • Longer approach ramps for low ground clearance vehicles
  • Electric / hydraulic power system
  • Runways include rail-kit for optional accessories
  • Runways adjust for different tread widths
  • Automatic leveling system with multiple auto-leveling locking positions
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks, and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Features heavy-duty 1/2" aircraft cable

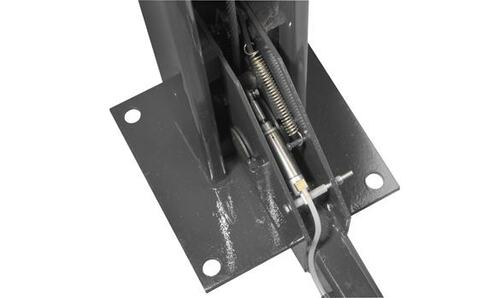

  • Safety locks enclosed in columns minimize pinch points

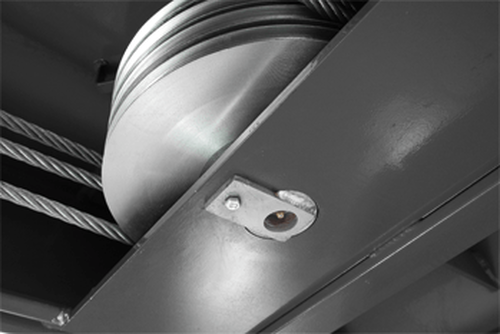

  • Oversized sheave diameter reduces cable fatigue
  • Runways feature non-skid surface
  • Rugged, self-lubricating cable sheaves
  • Features 1-3/8” sheave axles
  • Multi-position safety locks in each column
  • Independent backup slack-cable safety latches
  • Includes fully adjustable lock stops for precise leveling
  • Integrated rolling bridge airline kit option available
  • Roll-back kit options available
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional 7,000-lb. capacity rolling jacks available (Model RJ-7

Specifications:

Capacity

  • Lifting Capacity*: 14,000 lbs. (6,350 kg)
  • *Max Capacity / Front Axle: 7,000 lbs. (3,175 kg)
  • *Max Capacity / Rear Axle: 7,000 lbs. (3,175 kg)

Rise

  • A - Min. Runway Height: 7.625" (194 mm)
  • B - Max. Rise: 70" (1,778 mm)
  • C - Max. Lifting Height: 77.625" (1,972 mm)
  • Time to Full Rise: 60 seconds
  • D - Overall width (FRONT):143” (3,632 mm)
  • E - Overall Width (REAR): 130” (3,301 mm)
  • F - Outside Length: 215.5" (5,473 mm)
  • G - Overall Length: 244" (6,198 mm)
  • H - Height of Columns (FRONT): 105" (2,664 mm)
  • I - Height of Columns (REAR): 103” (2,613 mm)
  • J - Width Between Columns (FRONT): 123” (3,124 mm)
  • K - Width Between Columns (REAR): 120” (3,046 mm)
  • L - Drive-Thru Clearance: 97” (2,464 mm)
  • M - Runway Width: 20" (508 mm)
  • N - Length of Runways: 199" (5,054 mm)
  • O - Width Between Runways: 45" (1,143 mm)
  • P - Runway Centerline: 65" (1,651 mm)
  • Q - Outside Edge of Runways: 85" (2,159 mm)

Minimum Wheelbase

  • Rated Capacity: 140" (3,556 mm)
  • 75% Capacity: 120" (3,048 mm)
  • 50% Capacity: 100" (2,540 mm)
  • 25% Capacity: 80" (2,032 mm)

Locking

  • Locking Positions: 13
  • Lock Spacing: Every 4" (102 mm)

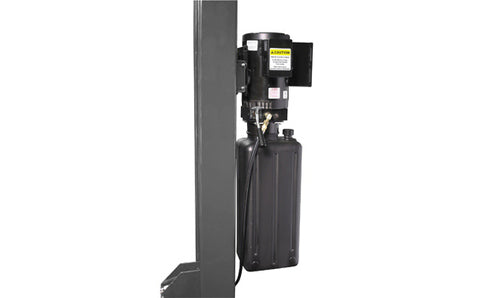

Power Unit

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise: 45 dB

Manual
