Bendpak HDSO-14AX 14,000 Lbs Open-Front Alignment Lift (5175153)

by Bendpak
Original price $13,395.00 - Original price $13,395.00
Original price
$13,395.00
$13,395.00 - $13,395.00
Current price $13,395.00

SKU 5175153
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

Bendpak HDSO-14AX 14,000 Lbs Open-Front Alignment Lift (5175153)

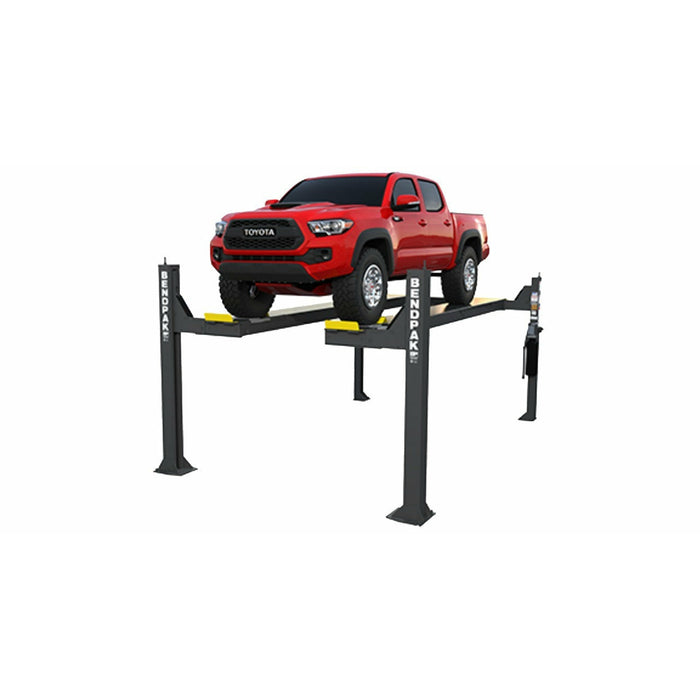

The HDSO14AX is a 14,000-lb. capacity open-front alignment lift. The “open” design makes it easier to access the front turn plates and undercarriage. Our alignment system features front turn plates and rear slip plates built right into the runways. The wheels always respond to your adjustments with no resistance or hassle. This car lift is available with optional drive-thru ramps, drip trays and rolling jacks.

Features:

  • 14,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493

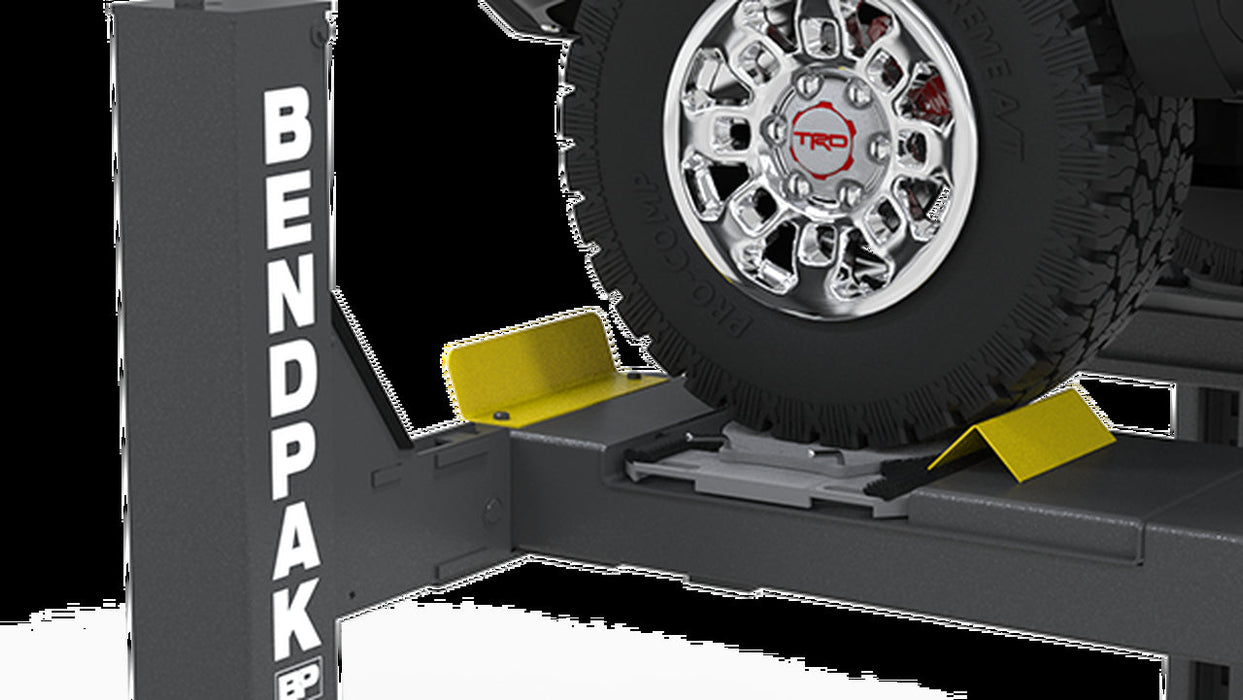

  • Heavy-duty turn plates and integrated rear slip-plates included
  • Multi-position turn plate pockets
  • Automatic leveling system
  • Multiple auto-leveling locking positions
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks, and sheaves
  • Internal “Anti-Sway” UHMW slider blocks in each column
  • Features oversize sheaves and heavy-duty 1/2” aircraft cable
  • Rugged 1?3/8” roller axles and oversize self-lubricating cable sheaves

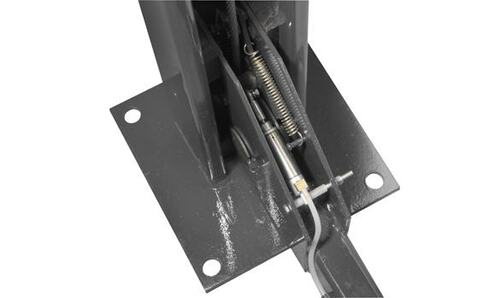

  • Multi-position safety locks in each column with push-button safety release
  • Runways adjust for different tread widths and feature non-skid surface
  • Optional 7,000-lb. capacity bridge jacks available (Model RJ?7) 14,000-lb. lifting capacity


Specifications:

 Capacity

  • Lifting Capacity*:14,000 lbs. (6,350 kg)
  • *Max Capacity / Front Axle: 7,000 lbs. (3,175 kg)
  • *Max Capacity / Rear Axle: 7,000 lbs. (3,175 kg)

 Rise

  • A - Min. Runway Height: 7.625" (194 mm)
  • B - Max. Rise: 70" (1,778 mm)
  • C - Max. Lifting Height: 77.625" (1,972 mm)
  • Time to Full Rise: 60 seconds
  • D - Overall Width (FRONT): 143” (3,632 mm)
  • E - Overall Width (REAR): 130” (3,301 mm)
  • F - Outside Length: 215" (5,472 mm)
  • G - Overall Length: 243" (6,191 mm)
  • H - Height of Columns (FRONT): 105" (2,664 mm)
  • I - Height of Columns (REAR): 103” (2,613 mm)
  • J - Width Between Columns (FRONT): 123” (3,124 mm)
  • K - Width Between Columns (REAR): 120” (3,046 mm)
  • L - Drive-Thru Clearance: 97” (2,464 mm)
  • M - Runway Width: 20.5” (520 mm)
  • N - Length of Runways: 199" (5,054 mm)
  • O - Width Between Runways: 45" (1,143 mm)
  • P - Min. 4-Wheel Alignment: 89" (2,261 mm)
  • Q - Max. 4-Wheel Alignment: 156" (3,962 mm)
  • R - Max. 2-Wheel Alignment: 182" (4,623 mm)

 Minimum Wheelbase

  • Rated Capacity: 140" (3,556 mm)
  • 75% Capacity: 120" (3,048 mm)
  • 50% Capacity: 100" (2,540 mm)
  • 25% Capacity: 80" (2,032 mm)

 Locking

  • Locking Positions: 13
  • Lock Spacing: 4

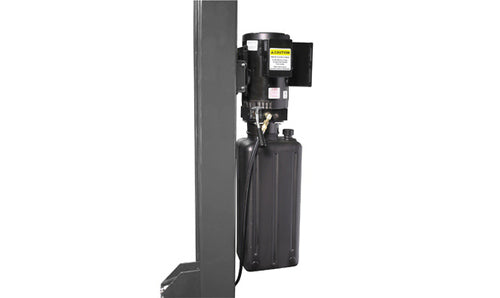

 Power Unit

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise: 45 dB

 Shipping

  • Weight: 3,102 lbs. (1,407 kg)
  • Dimensions: 209" x 22" x 44" (5,309 mm x 559 mm x 1,118 mm)

Manual
