BendPak HDS-27X 27,000-lb. Capacity Extended Length 4 Post Lift (5175164)

by BendPak
Original price $24,420.00 - Original price $24,420.00
Original price
$24,420.00
$24,420.00 - $24,420.00
Current price $24,420.00

SKU 5175164
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

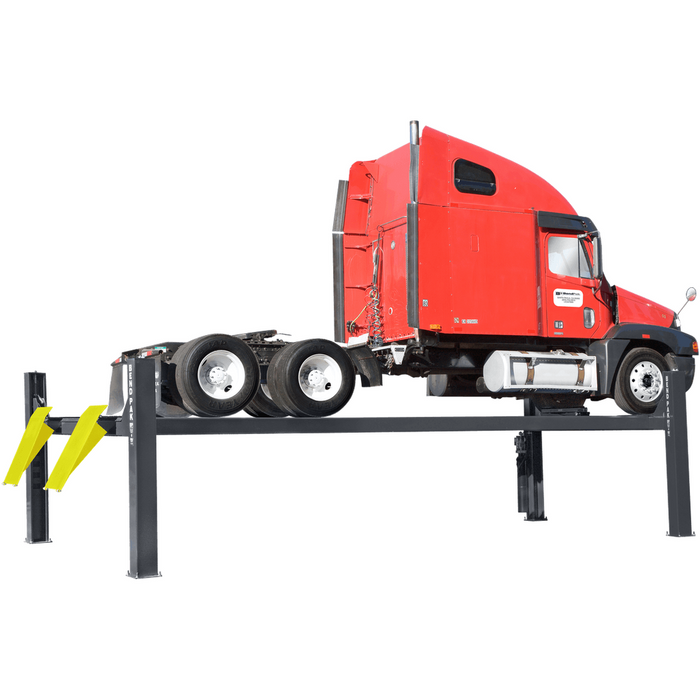

BendPak HDS-27X 27,000-lb. Capacity Extended Length 4 Post Lift (5175164)

With 309" runways, the HDS-27X is the first extended-length model in BendPak's super-duty four-post series. As a super-long lift that holds up to 27,000 lbs., this incredibly versatile lift accommodates massive Class 7 semi-trucks. There isn't much this lift can't handle

Longer Runways for Semi-Trucks and More

Commercial lifting solutions for semi-trucks and other municipal vehicles fall into a category all their own. That's because vehicles reaching the 27,000-lb. lift capacity begin to develop monstrous proportions. The super-long HDS-27X handles stretch limos, semi-trucks, city buses and other super-duty vehicles. In fact, 27,000 lbs. should handle a typical garbage truck without a hitch. The best part of being in the heavy-duty maintenance industry is that your competition is relatively low. Most auto shops veer away from servicing commercial fleets. They require specialized equipment (which BendPak makes easy to obtain) and more shop space, which you probably already have covered! If you want to dominate your industry with a reliable commercial fleet of lifts, you'll absolutely need the incredible HDS-27X.

Extended runways

Our 3​09" runways are absolutely massive. To put it in perspective, that's nearly 27 feet long. Runways are made wide and rise 60" in the air, so operators can work on virtually anything in a comfortable standing position.

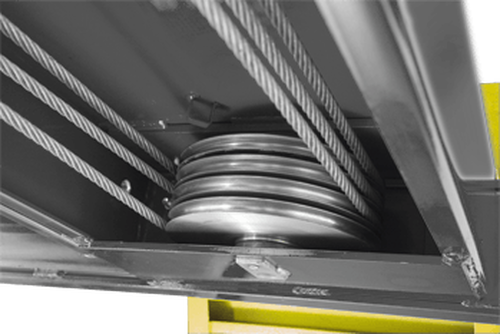

Dual-hub cable sheaves

To protect your investment, each sheave is a massive 12” in diameter. The equally impressive 4" sheave axles greatly extend the lifespan of your car lift by reducing the overall wear on the critical lifting components (cables, sheaves, axles, etc.).

Large base plates

A super-duty lift requires extreme supports. Substantial 12" x 12" base plates hold up the massive columns on this lift for maximum structural integrity.

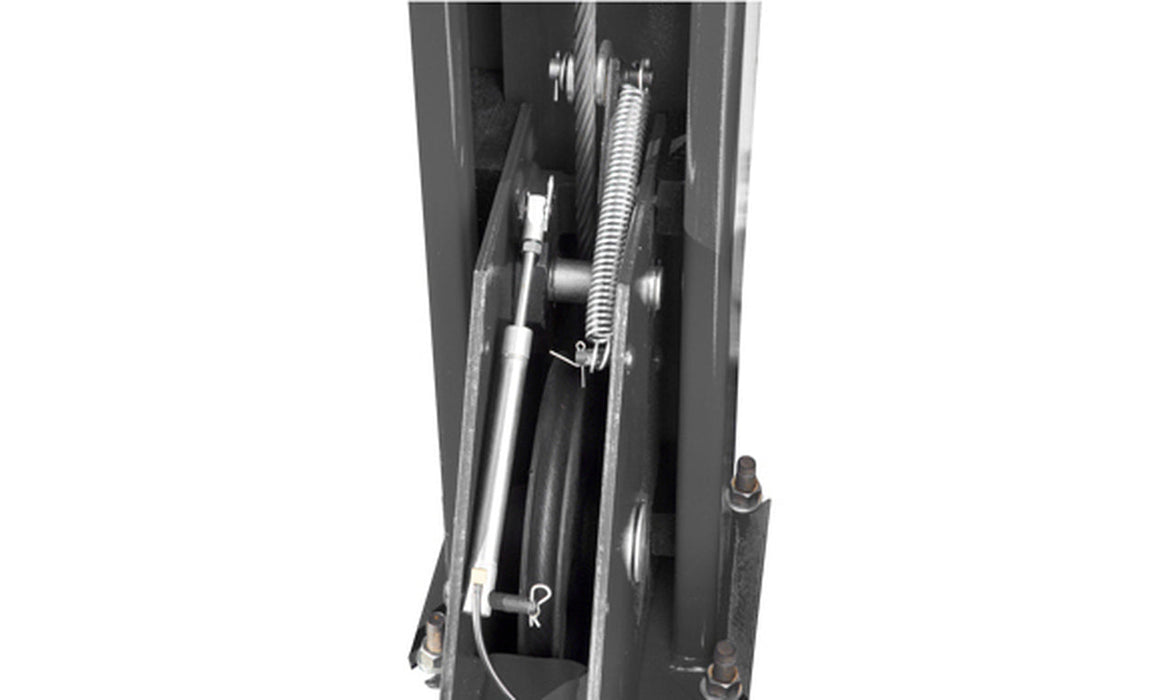

Spring-loaded safety locks

Multiple lock positions engage as the lift rises and instantly release upon descent. Operators need not maneuver around the lift, as is the case with other brands' manual release systems. The runway movement is kept level at all times by a built-in flow divider, so operations in fast-paced shops can go on unimpeded by worry about the lifting equipment.

Secondary lock system

With two safety lock systems built into the lift, it's virtually impossible for a well-maintained and properly used BendPak to fail. In the extremely rare and unlikely event that excess cable slack develops, the runways will be caught by the secondary system, the vehicle will remain level, and you will be able to safely fix the problem.

Features and Specs

  • 27,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Supersized 12" diameter cable sheaves
  • Galvanized lifting cables
  • Grease nipples
  • Single hydraulic under-runway cylinder
  • Integrated flow restrictor
  • Durable powder coat
  • Spring-loaded safety locks
  • Second lock system on constant guard
  • Fully enclosed lifting cables
  • Multiple adjustable height locking positions
  • Maintenance-free electric hydraulic power system
  • Conveniently positioned operator controls
  • 12" x 12" base plates
  • Non-skid runways
  • Optional rolling jacks

Capacity

  • Lifting Capacity*27,000 lbs. (12,247 kg)
  • *Max Capacity / Front Axle3,500 lbs. (6,123 kg)
  • *Max Capacity / Rear Axle13,500 lbs. (6,123 kg)

Rise

  • A - Min. Runway Height:8.5" (216 mm)
  • B - Max. Rise:60" (1,524 mm)
  • C - Max. Lifting Height:68.5" (1,740 mm)
  • Time to Full Rise:75 seconds

Outside Dimensions

  • D - Overall Width:154" (3,912 mm)
  • E - Outside Length:317" (8,052 mm)
  • F - Overall Length:376.75" (9,569 mm)
  • G - Height of Columns:93" (2,362 mm)

Inside Dimensions

  • H - Width Between Columns:134" (3,404 mm)
  • I - Drive-Thru Clearance:109" (2,769 mm)Runways
  • J - Runway Width:22" (559 mm)
  • K - Length of Runways:309" (7,849 mm)
  • L - Width Between Runways:38" (965 mm) or 56" (1,422 mm)
  • M - Runway Centerline:60" (1,524 mm) or 78" (1,981 mm)
  • N - Outside Edge of Runways:82" (2,083 mm) or 100" (2,540 mm)

Minimum Wheelbase

  • Rated Capacity:230" (5,842 mm)
  • 75% Capacity:195" (4,953 mm)
  • 50% Capacity:65" (4,191 mm)
  • 25% Capacity:130" (3,302 mm)

Locking

  • Locking Positions: 9

Lock Spacing:

  • Every 6" (152 mm)

Power Unit

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise: 45 dB

HDS-27X specs diagram
