Bendpak HDS-14LSXE 14,000 Lbs Alignment Extended Length Lift 4-Post Lift (5175172)

by Bendpak
$10,845.00

SKU 5175172

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

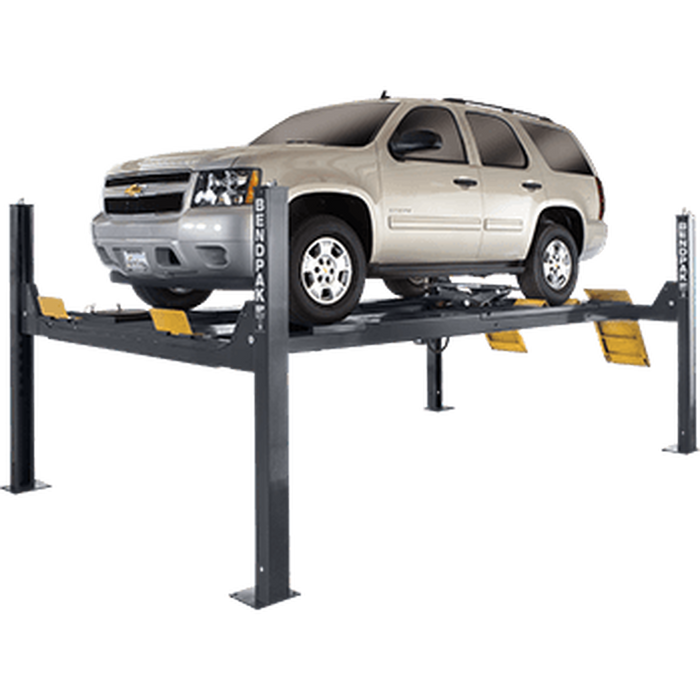

Bendpak HDS-14LSXE 14,000 Lbs Alignment Extended Length Lift 4-Post Lift (5175172)

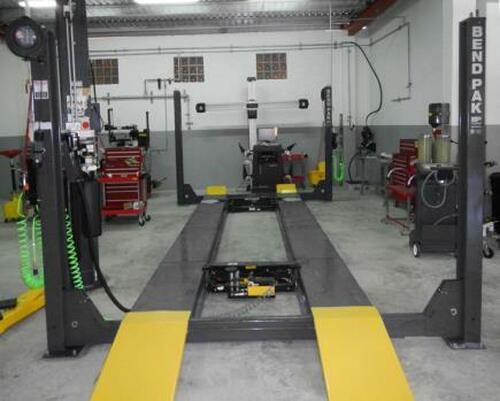

The HDS-14LSXE alignment lift is designed for extendedlength vehicles, such as trucks and vans. The runways and overall length are extended by 30”. With runways now 229” in length, some very long vehicles can fit easily on this alignment lift. If your service bay demands these vehicle types, an extended length alignment lift from BendPak is absolutely necessary to perform long wheelbase alignments.

Features

  • 14,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493.
  • Two runway lengths to choose

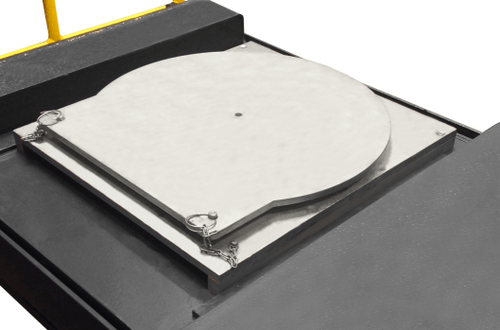

  • Heavy-duty turn plates and integrated rear slip-plates included
  • Multi-position turn plate pockets
  • Automatic leveling system
  • Runways include rail-kit for optional accessories

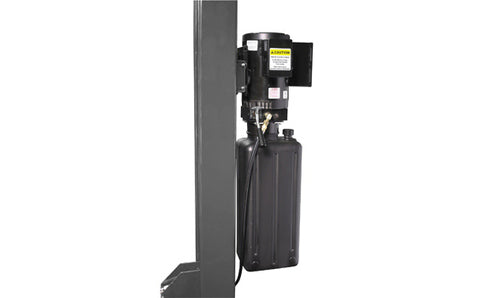

  • Electric/hydraulic power system

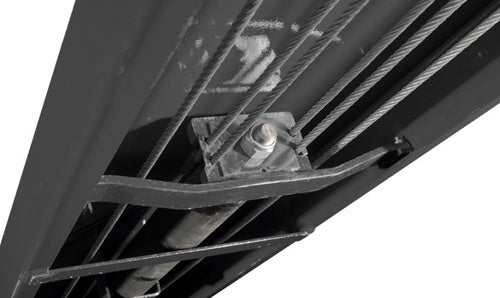

  • Single hydraulic cylinder mounted underneath runway
  • Internal “Anti-Sway” slider blocks in each column
  • Features oversize sheaves and heavy-duty 1/2” aircraft cable

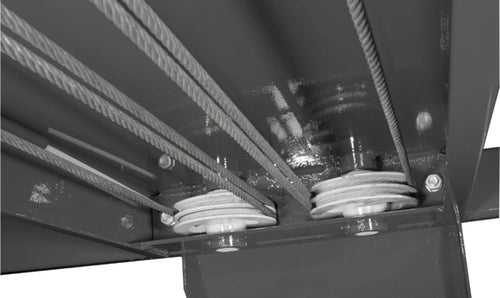

  • Rugged 1?3/8” roller axles and oversize self-lubricating cable sheaves
  • Multi-position safety locks in each column with push-button safety release
  • Runways adjust for different tread widths and feature non-skid surface
  • Optional 7,000 pound capacity bridge jacks available (Model R?BJ7000)


 Specifications

 Capacity

  • Lifting Capacity*: 14,000 lbs. (6,350 kg)
  • *Max Capacity / Front Axle: 7,000 lbs. (3,175 kg)
  • *Max Capacity / Rear Axle: 7,000 lbs. (3,175 kg)

 Rise

  • A - Min. Runway Height: 7-5/8" (192 mm)
  • B - Max. Rise: 70" (1,778 mm)
  • C - Max. Lifting Height: 77.625" (1,972 mm)
  • Time to Full Rise: 60 seconds

 Outside Dimensions

  • D - Overall Width: 130" (3,302 mm)
  • E - Outside Length: 243" (6,172 mm)
  • F - Overall Length: 271" (6,883 mm)
  • G - Height of Columns: 93" (2,362 mm)

 Inside Dimensions

  • H - Width Between Columns: 120" (3,048 mm)
  • I - Drive-Thru Clearance: 98-3/8” (2,499 mm)

 Runways

  • J - Runway Width: 20" (508 mm)
  • K - Length of Runways: 229" (5,817 mm)
  • L - Width Between Runways: 37.5" (953 mm) or 51" (1,295 mm)

 Alignment

  • M - Min. 4-Wheel Alignment: 89" (2,261 mm)
  • N - Max. 4-Wheel Alignment: 156" (3,962 mm)
  • O - Max. 2-Wheel Alignment: 212" (5,385 mm)

 Minimum Wheelbase

  • Rated Capacity: 165" (4,191 mm)
  • 75% Capacity: 140" (3,556 mm)
  • 50% Capacity: 115" (2,921 mm)
  • 25% Capacity: 95" (2,413 mm)

 Locking

  • Locking Positions: 13
  • Lock Spacing: 4

 Power Unit

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise: 45 dB

 Shipping

  • Weight: 3,252 lbs. (1,475 kg)
  • Dimensions: 241" x 23" x 45" (6,121 mm x 584 mm x 1,143 mm)

Manual
