Bendpak HDS-14LSX 14,000 Lbs Extended Alignment Lift (5175171)

by Bendpak
Original price $10,205.00 - Original price $10,205.00
Original price
$10,205.00
$10,205.00 - $10,205.00
Current price $10,205.00

SKU 5175171
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

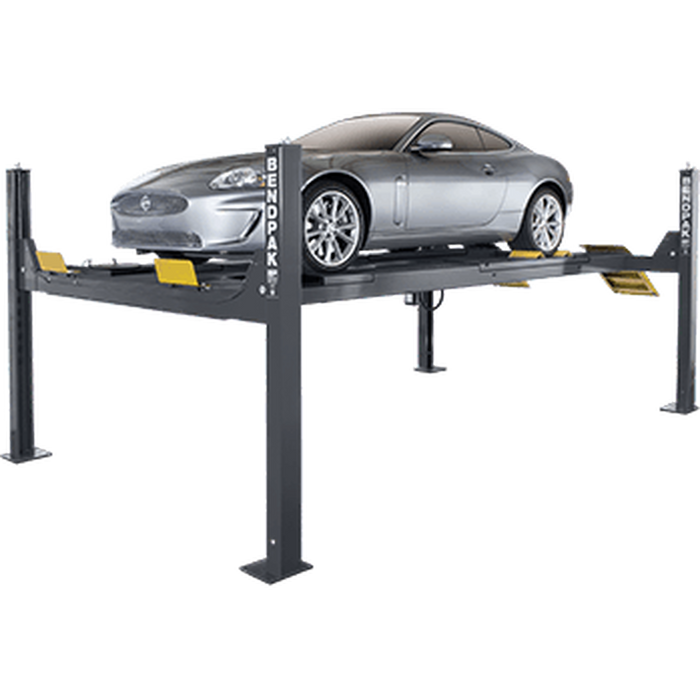

Bendpak HDS-14LSX 14,000 Lbs Extended Alignment Lift (5175171)

The legendary, 14,000-lb. capacity HDS-14LSX alignment lift pulls double duty as both car lift and alignment system. We’ve integrated industrial-strength slip plates and turn plates right into the runways to maximize convenience. Even though the vehicle is completely secure, the wheels respond to your every adjustment with virtually no resistance. Imagine the raw lifting power of BendPak’s best combined with a free-floating, four-wheel alignment system. Your job just got easier. This model is available with optional drive-thru ramps, drip trays and rolling jacks.

Features:

  • 14,000 pound lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Two runway lengths to choose

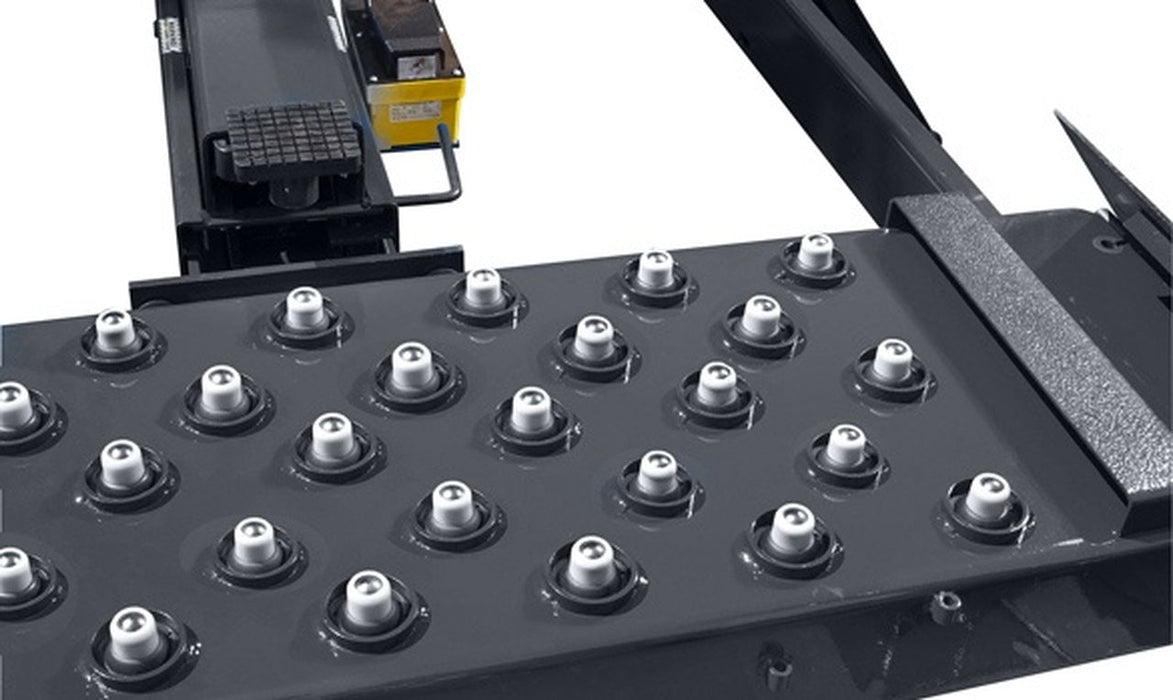

  • Heavy duty turn plates and integrated rear slip plates included
  • Multi-position turn plate pockets
  • Automatic leveling system
  • Multiple auto-leveling locking positions
  • Runways include rail kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks, and sheaves
  • Internal "Anti-Sway" slider blocks in each column

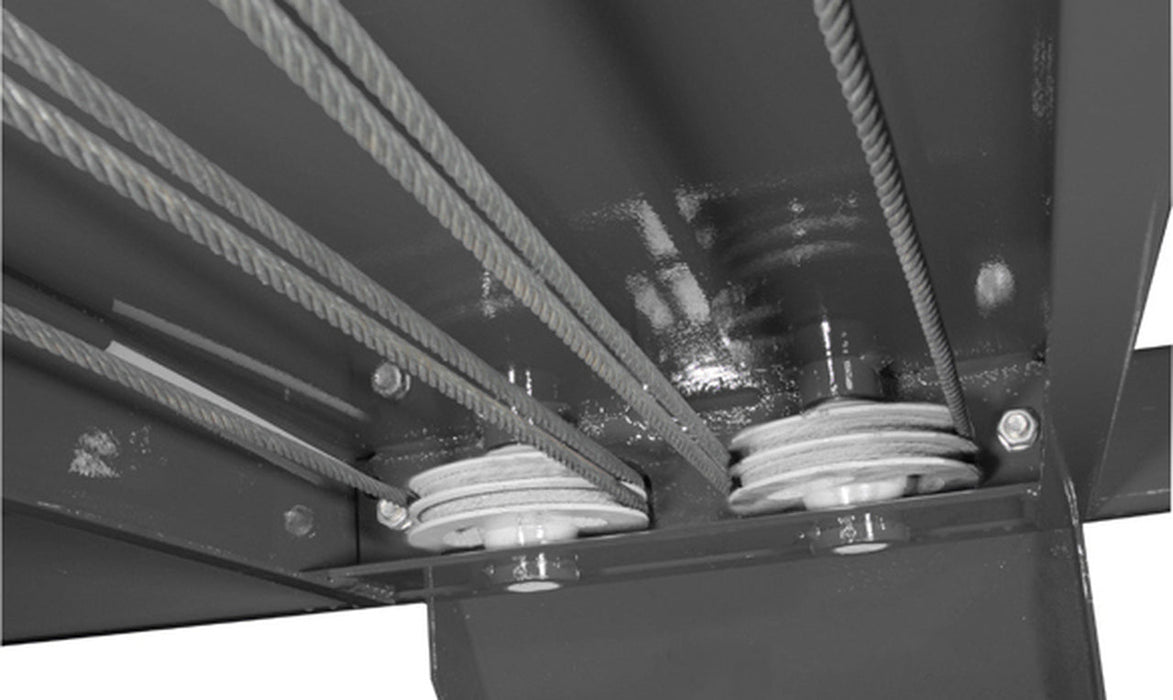

  • Features oversize sheaves and heavy-duty 1/2” aircraft cable
  • Rugged 1?3/8" roller axles and oversize self-lubricating cable sheaves

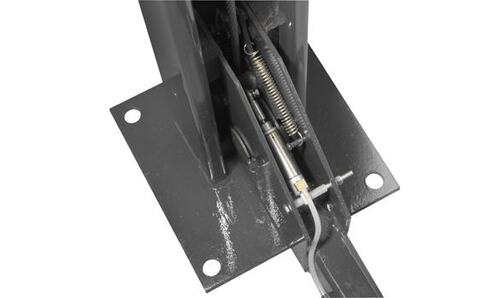

  • Multi-position safety locks in each column with push button safety release
  • Runways adjust for different tread widths and feature non-skid surface
  • Optional 7,000 pound capacity bridge jacks available (Model RBJ7000)


 Specifications:

 Capacity

  • Lifting Capacity*: 14,000 lbs. (6,350 kg)
  • *Max Capacity / Front Axle: 7,000 lbs. (3,175 kg)
  • *Max Capacity / Rear Axle: 7,000 lbs. (3,175 kg)

Rise

  • A - Min. Runway Height: 7.625" (194 mm)
  • B - Max. Rise: 70" (1,778 mm)
  • C - Max. Lifting Height: 77.625" (1,972 mm)
  • Time to Full Rise: 60 seconds

Outside Dimensions

  • D - Overall Width: 130" (3,302 mm)
  • E - Outside Length: 213" (5,410 mm)
  • F - Overall Length: 241" (6,121 mm)
  • G - Height of Columns: 95" (2,413 mm)

Inside Dimensions

  • H - Width Between Columns: 120" (3,048 mm)
  • I - Drive-Thru Clearance: 98" (2,489 mm)

Runways

  • J - Runway Width: 20" (508 mm)
  • K - Length of Runways: 199" (5,055 mm)
  • L - Width Between Runways: 37.5" (953 mm) or 51" (1,295 mm)

Alignment

  • M - Min. 4-Wheel Alignment: 89" (2,261 mm)
  • N - Max. 4-Wheel Alignment: 156" (3,962 mm)
  • O - Max. 2-Wheel Alignment: 182" (4,623 mm)

 Minimum Wheelbase

  • Rated Capacity: 140" (3,556 mm)
  • 75% Capacity: 120" (3,048 mm)
  • 50% Capacity: 100" (2,540 mm)
  • 25% Capacity: 80" (2,032 mm)

 Locking

  • Locking Positions: 13
  • Lock Spacing: 4"

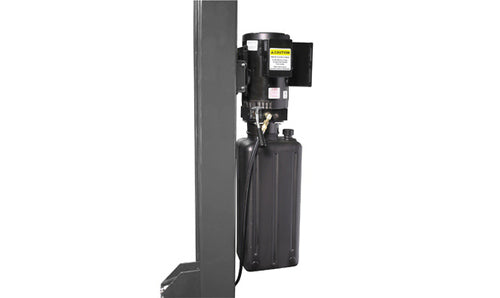

 Power Unit

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise: 45 dB

 Shipping

  • Weight: 3,102 lbs. (1,407 kg)
  • Dimensions: 209" x 22" x 44" (5,309 mm x 559 mm x 1,118 mm)
