Bendpak HD-9SW 9,000-lb. Capacity Super Wide 4 Post Lift (5175023)

by Bendpak
Original price $9,770.00 - Original price $9,770.00
Original price
$9,770.00
$9,770.00 - $9,770.00
Current price $9,770.00

SKU 5175023
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

Bendpak HD-9SW 9,000-lb. Capacity Super Wide 4 Post Lift (5175023)

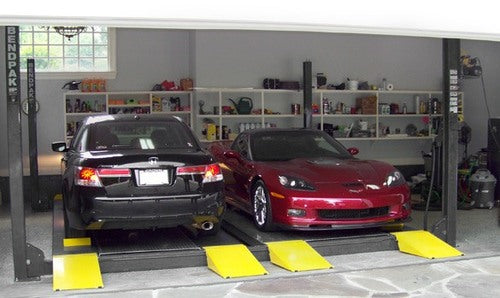

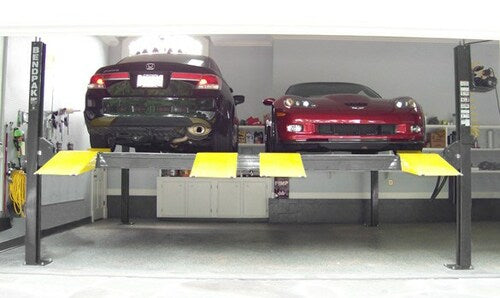

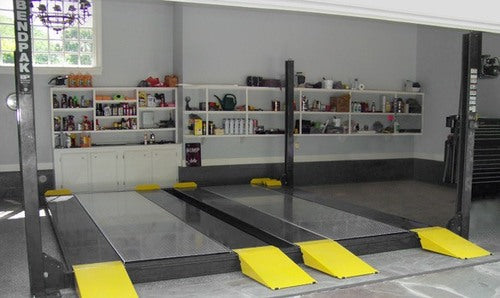

To accommodate extra-wide vehicles on a 9K capacity fourpost lift, choose the HD-9SW. We also offer a variety that offers 82” of overhead clearance: the HD-9SWX. The “SW” stands for super-wide, and it’s the ideal car lift to double your parking and/or service wider vehicle types. The taller “X” model is also idea for taller wrenchers looking for a little more headroom underneath. The extra overhead also makes it possible to park higher-clearance vehicles.

Features

  • Standard rise
  • Shorter runway for smaller spaces
  • Runways accommodate wide or narrow vehicles
  • Runways include rail kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Oversized sheave diameter reduces cable fatigue
  • High-speed lifting
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature non-skid surface
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Inside runways adjust for different tread widths
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available

Specifications

Capacity

  • Lifting Capacity*:9,000 lbs. (4,082 kg)
  • *Max Capacity / Front Axle: 4,500 lbs. (2,041 kg)
  • *Max Capacity / Rear Axle: 4,500 lbs. (2,041 kg)

Rise

  • A - Min. Runway Height: 7" (178 mm)
  • B - Max. Rise: 70" (1,778 mm)
  • C - Max. Lifting Height: 77" (1,956 mm)
  • Time to Full Rise: 55 seconds

Outside Dimensions

  • D - Overall Width: 202" (5,131 mm)
  • E - Outside Length: 174" (4,420 mm)
  • F - Overall Length: 200" (5,080 mm)
  • G - Height of Columns: 90" (2,286 mm)

Inside Dimensions

  • H - Width Between Columns: 192" (4,877 mm)
  • I - Drive-Thru Clearance: 178" (4,521 mm)

Runways

  • J - Runway Width: 19" (483 mm)
  • K - Length of Runways: 164" (4,166 mm)
  • L - Width Between Runways: 37" (940 mm) or 42" (1,067 mm)
  • M - Runway Centerline: 56" (1,422 mm) or 61" (1,549 mm)
  • N - Outside Edge of Runways: 75" (1,905 mm) or 80" (2,032 mm)

Minimum Wheelbase

  • Rated Capacity: 115" (2,921 mm)
  • 75% Capacity: 100" (2,540 mm)
  • 50% Capacity: 85" (2,159 mm)
  • 25% Capacity: 70" (1,778 mm)

Locking

  • Locking Positions: 14
  • Lock Spacing: Every 4" (102 mm)

Power Unit

  • Motor: 220 VAC / 60 Hz /1 Ph
  • Noise: 45 dB
