Bendpak HD-9AE 9,000-lb. Capacity Alignment Car Lift (5175820)

Bendpak HD-9AE 9,000-lb. Capacity Alignment Car Lift  (5175820)

The HD-9AE alignment lift features adjustable multiposition leveling, integrated front radius plates and rear slip plates. This makes it compatible with all leading alignment instrumentation, including 3D and camera wheel alignment systems. Multi-caster slip plates in the back and radius plates upfront allow for extremely precise, free-floating alignment. Wheel service is where many shops make the big bucks, so we’re conscious of the fact that these lifts need to be dependable and efficient to keep you satisfied.

Features:

• 9,000-lb. maximum lifting capacity
• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493

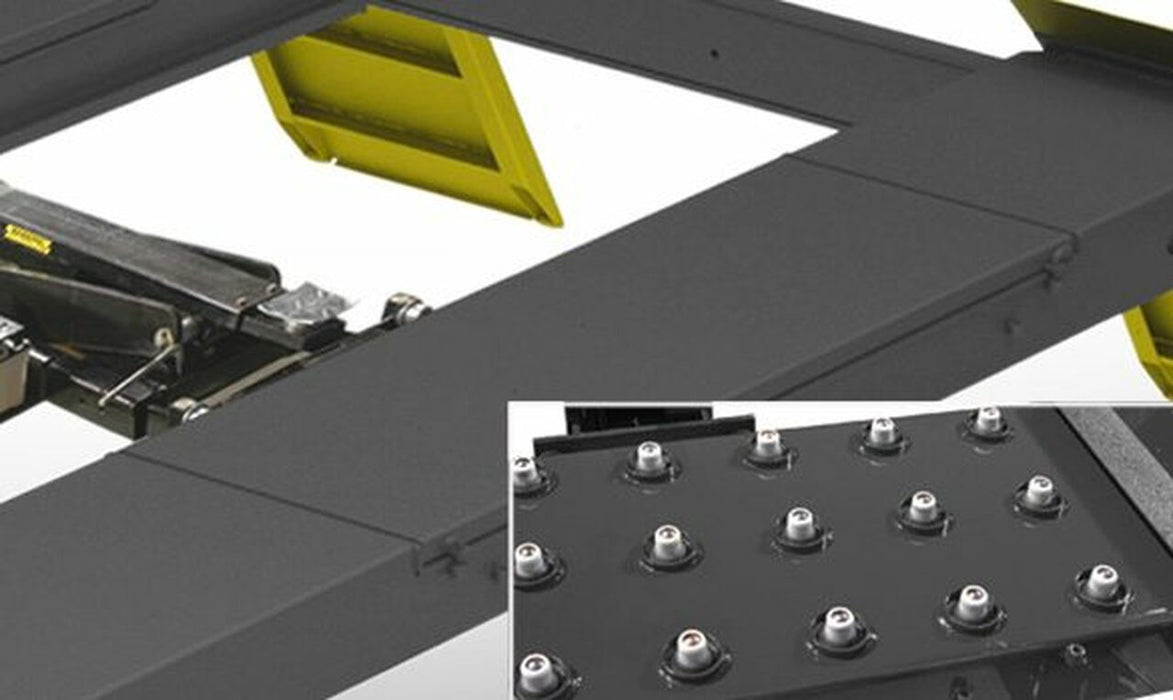

• Multi-caster slip plates
• Dual radius plate positions
• Heavy-duty stainless steel lifting cables
• Dual-hub cable sheaves
• Grease nipples on every sheave and sheave axle
• Single hydraulic cylinder
• Integrated hydraulic flow restrictor
• Durable powder-coat finish
• Spring-loaded safety locks
• Simple push-button lock release
• Aircraft-quality stainless steel and aluminum pneumatic cylinders
• Secondary lock system
• Fully enclosed cables, airlines, safety latches and sheaves
• Multiple adjustable height locking positions
• Maintenance-free power system
• Easy-to-reach operator controls
• Non-skid runways

 Specifications:

Capacity

• Lifting Capacity*: 9,000 lbs. (4,082 kg)
• *Max Capacity / Front Axle: 4,500 lbs. (2,041 kg)
• *Max Capacity / Rear Axle: 4,500 lbs. (2,041 kg)

Rise

• A - Min. Runway Height: 6.5" (165 mm)
• B - Max. Rise: 70" (1,778 mm)
• C - Max. Lifting Height: 76.5" (1,943 mm)
• Time to Full Rise: 60 seconds

Outside Dimensions

• D - Overall Width: 127" (3,226 mm)
• E - Outside Length: 198" (5,029 mm)
• F - Overall Length: 224" (5,690 mm)
• G - Height of Columns: 88" (2,235 mm)

Inside Dimensions

• H - Width Between Columns: 177" (4,496 mm)
• I - Drive-Thru Clearance: 103.5" (2,629 mm)

Runways

• J - Runway Width: 19" (483 mm)
• K - Length of Runways: 188" (4,775 mm)
• L - Width Between Runways: 40" (1,016 mm)

Alignment

• M - Min. 4-Wheel Alignment: 71" (1,803 mm)
• N - Max. 4-Wheel Alignment: 145" (3,683 mm)
• O - Max. 2-Wheel Alignment: 160" (4,064 mm)

Minimum Wheelbase

• Rated Capacity: 135" (3,429 mm)
• 75% Capacity: 115" (2,921 mm)
• 50% Capacity: 95" (2,413 mm)
• 25% Capacity: 80" (2,032 mm)

Locking

• Locking Positions: 12
• Lock Spacing: 4

Power Unit

• Motor: 220 VAC / 60 Hz / 1 Ph
• Noise: 45 dB

Manual

• Download1
