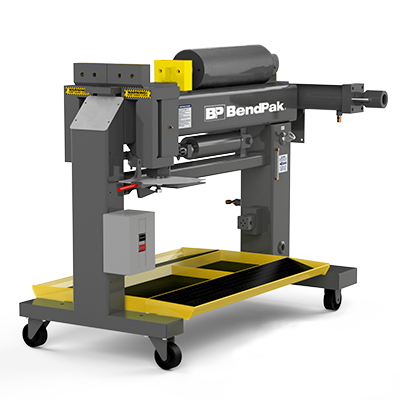

BendPak BB-2-MET-503 Manual Bender With Deluxe Metric Tooling Package / 208-460v, 50 Hz 3-Phase (5115120)
The BendPak Manual Bender delivers quick and precise results. It comes with a die package and a dual-function end-finishing unit for accurate OE expansions and flares. This equipment is updated with a knee valve and degree plate combination for a robust design. Thanks to the knee-operated valve, you will get superior control and hands-free bending flexibility. Push the lever left to advance the bending die and right to retract it. Cast iron construction ensures prolonged durability and excellent performance.
Features
- Two separate rear end-finishing units for all necessary flaring and expanding
- Knee control and depth-of-bend degree plate enables manual bending capabilities
- Includes BB-1 Tooling Package, high-speed clampless swager and internal expander
- Comes complete with quick release bending and finishing dies
- Easy-to-use drop-in collar makes swaging operations quick and efficient
- Built-in power-relief control valve
- Pass-through cylinder stem passes completely through the primary frame
- 6"x6" x 3/8" welded-steel tube frame
- Professional-grade hydraulic cylinders
- All cylinders feature chrome-molly shafts to meet the ANSI 92.2 standards
- Quick-release bending dies minimize set-up times
- Bending heads precision grounded to within .002"
- Enclosed controls keep your bending area free from clutter
- 2.5" oversized barrel shafts promise high reliability and low maintenance
- Standard grease fittings enable simple lubrication
- NEMA-rated on/off switch box with overload relays automatically disrupt power supply in case of unforeseen over-current situation
- Precise pressure gauges
- Industrial grade casters to move the bender around with ease
- Adjustable pressure valve at right up front
- One-piece barrel makes sure that the bending gates stay exactly aligned with the ram
- Heat-treated tooling for prolonged durability
- Convenient tool trays to keep your tooling organized
- 5HP Baldor energy efficient motor for maximum performance
- Direct-drive, high-speed, 4 gpm pump
- Single enclosed bottom cylinder applies pressure evenly to the back gates without interfering with the tubing
- Large capacity fluid reservoir keeps the hydraulic oil running cooler and prevents contamination
- Canister oil filter in the hydraulic system ensures that the oil stays nice and clean
- Oil sight-gauges for visually inspecting oil levels
- Oversized 1/2" high-pressure hose provides excellent speed and cooling
- Open-sided swager box allows for easier access and reduces the chance of "crashing" tools and damaging the cylinder
- 180-degree bending die is available
