BendPak 4,500 Lb. Capacity, Easy-Roll Wheels, LOW-PROFILE Rolling Bridge Jack (5175579)

by BendPak
Original price $1,975.00 - Original price $1,975.00
Original price
$1,975.00 - $1,975.00
Current price $1,975.00

SKU 5175579
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

BendPak 4,500 Lb. Capacity, Easy-Roll Wheels, LOW-PROFILE Rolling Bridge Jack  (5175579)

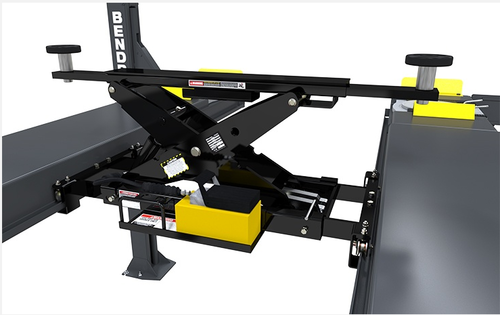

The RJ45LP rolling bridge jack is ideal for any shop with the HD-7 series or HD-9 series four-post lift model, arguably the most popular and versatile four-post car lifts on the market. Featuring an impressive low-profile design, the RJ45LP lift pads sit just 4.25" from the runway surface and is equipped with easy-to-roll wheels for effortless gliding down the runway track. For those with an HD-7 or HD-9 four-post lift that are in need of wheel service capability, the RJ45LP offers extreme versatility and convenience, in a low-profile package.

What is the difference between the RJ45LP and RJ45W?

The RJ45LP and RJ45W rolling bridge jacks are essentially the same except for two specifications: First, the RJ45LP minimum drive-over height is 4.25" and the RJ45W minimum drive-over height is 4.5". Second, the RJ45LP maximum arm reach is 61" wide and the RJ45W maximum arm reach is 57" wide.

Low-Profile Bridge Jack

The RJ45LP bridge jack has a minimum drive-over height of just 4.25" when fully lowered. This provides ample clearance for low-stance sports cars and other modified vehicles.

Easy-Roll Wheels Come Standard

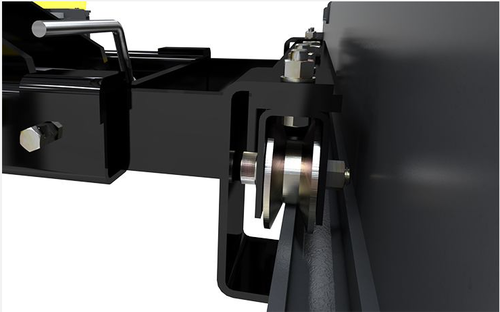

Completely redesigned, the RJ45LP rolling bridge comes standard with easy-roll wheels that fit onto the runway channels on standard four-post lift models ​7,000-lbs lifting capacity or greater and provide effortless gliding along the runways for easy positioning and adjustability. BendPak rolling bridge jack rollers are made of hardened stainless-steel and zinc plated for maximum durability.

Rubber contact pads

BendPak protects your vehicles by providing a non-marring rubber contact pad on the popular ​RJ45LP rolling bridge jack. The durable design will hold up for many years of heavy use. We highly recommended purchasing the optional frame cradle set for use on trucks and SUVs.

Stackable adapters

Once your rubber contact pads are positioned under the manufacturer-recommended lift points, you may find that high-clearance vehicles are hard to reach. The stackable adapter set comes in handy to bridge that gap and make lifting easier.

High-pressure hydraulic power unit

Attached to the rolling bridge jack is a hydraulic power unit that also features an airline with 125 psi and 10 – 20 CFM. This independent power unit is ergonomically controlled with a foot pedal attached directly to the jack.

Three lock levels

With three lock positions to choose from, it’s easy to find the perfect height to perform wheel and brake service. For additional height, raise the car lift to its max height, add the stackable adapters and raise the rolling bridge jack as high as it will go. Now you have more access to the undercarriage than ever before.

Features & Specs

  • 4,500-lb. lifting capacity
  • Easy-Roll Wheels
  • Low-profile minimum drive-over height, wider reach lifting points
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit

RJ45LP Specifications

  • Lifting Capacity: 4,500 lbs. (2,041 kg)
  • Suitable Lift Model(s): HD-7 Series, HD-9 Series, GP-9 series

Min. Drive-Over Height*

  • Pad Only: 4.25" (108 mm)
  • Pad + 2.75" Adapter: 7" (178 mm)
  • Pad + 5.5" Adapter: 9.75" (248 mm)

Max. Lifting Height*

  • Pad Only: 15.25" (387 mm) Pad + 2.75"
  • Adapter: 18" (457 mm) Pad + 5.5"
  • Adapter: 21" (533 mm)


  • Support Base Width: 35.5" (902 mm) - 46.5" (1,181 mm)
  • Max. Arm Reach: 61" (1,549 mm)
  • Min. Arm Reach: 42" (1,067 mm)
  • Time to Full Rise: 55 seconds
  • Pump: Air/Hydraulic
  • Air Pressure: 125 PSI (10-25 CFM)
  • Max. Operating Hydraulic Pressure: 2,490 PSI
  • Power Requirement: None
  • Shipping Weight: 306 lbs. (139 kg)
  • Shipping Dimensions: 41.25" x 25" x 13" (1,048 mm x 635 mm x 330 mm)
