Bendpak 1302BAS-302 Semi-Automatic Pipe Bender With 302 Die Package (5115180)

by Bendpak
Original price $10,000.00 - Original price $10,000.00
Original price
$10,000.00
$10,000.00 - $10,000.00
Current price $10,000.00

SKU 5115180
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

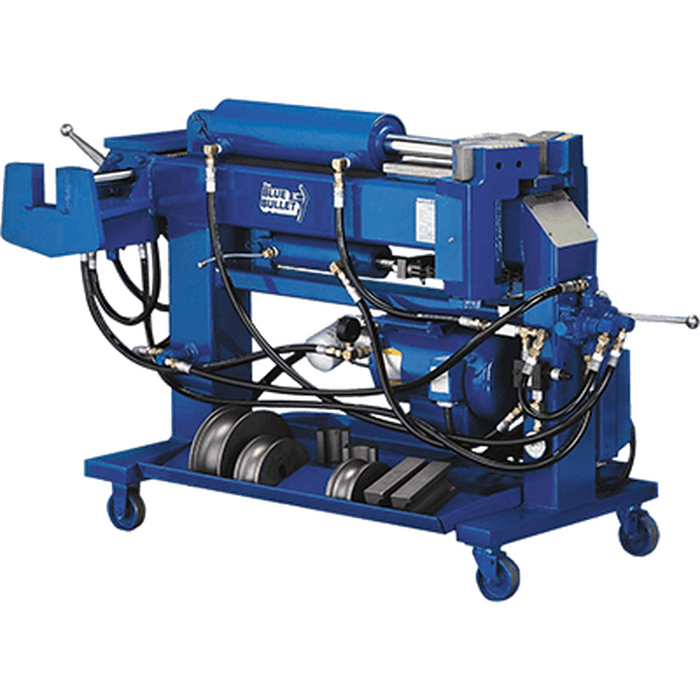

Bendpak 1302BAS-302 Semi-Automatic Pipe Bender With 302 Die Package (5115180)

The BendPak 1302BAS series is comprised of powerful automatic exhaust pipes benders designed to expedite any bending process and bring an extra level of precision to your workshop. Convenient, space-saving, side-loading swager lets you load longer pipe, even when your back is against the wall. Includes a die package and dual-function, end-finishing unit for extremely precise OE expansions and flares.

 Features

  • 2 separate end-finishing units at rear for all necessary flaring and expanding

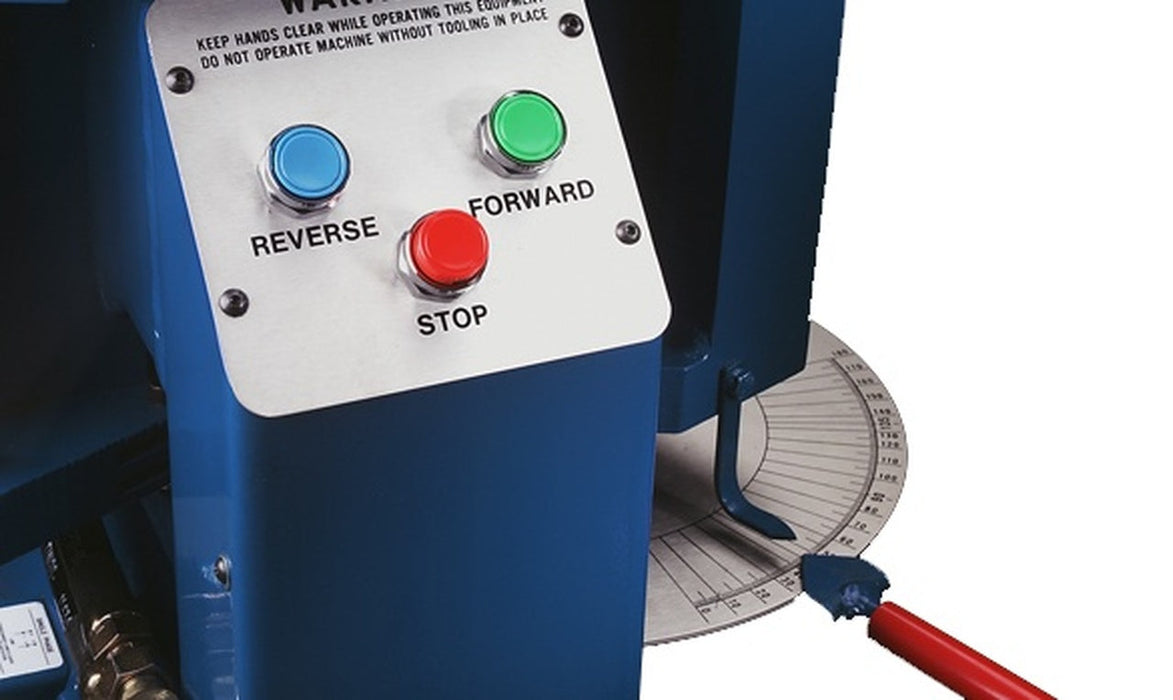

  • 3-button control for automatic or manual bending operations
  • Comes complete with quick release bending and finishing dies

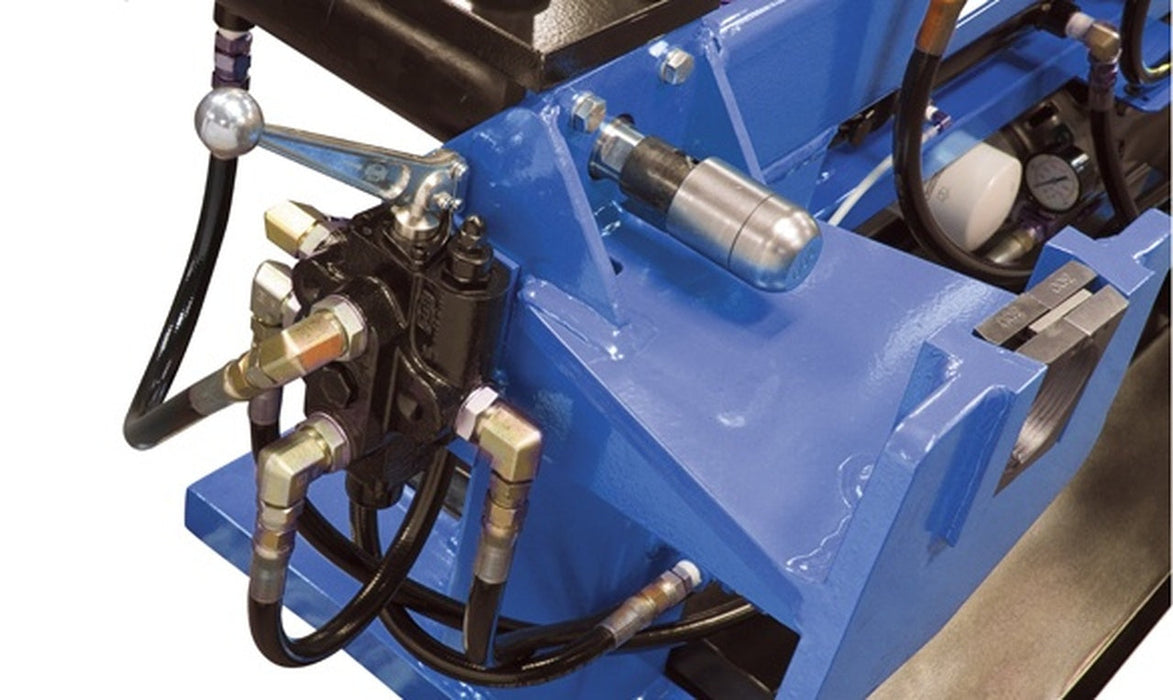

  • Includes high-speed clampless swager and internal expander
  • Easy-to-use drop-in collar makes swaging operations quick and efficient
  • Twist-lock tooling
  • Integrated power-relief control valve
  • Pass-through cylinder stem passes completely through the primary frame
  • Rigid 6" x 6" x 3/8" welded-steel tube frame
  • Commercial-grade hydraulic cylinders
  • All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards

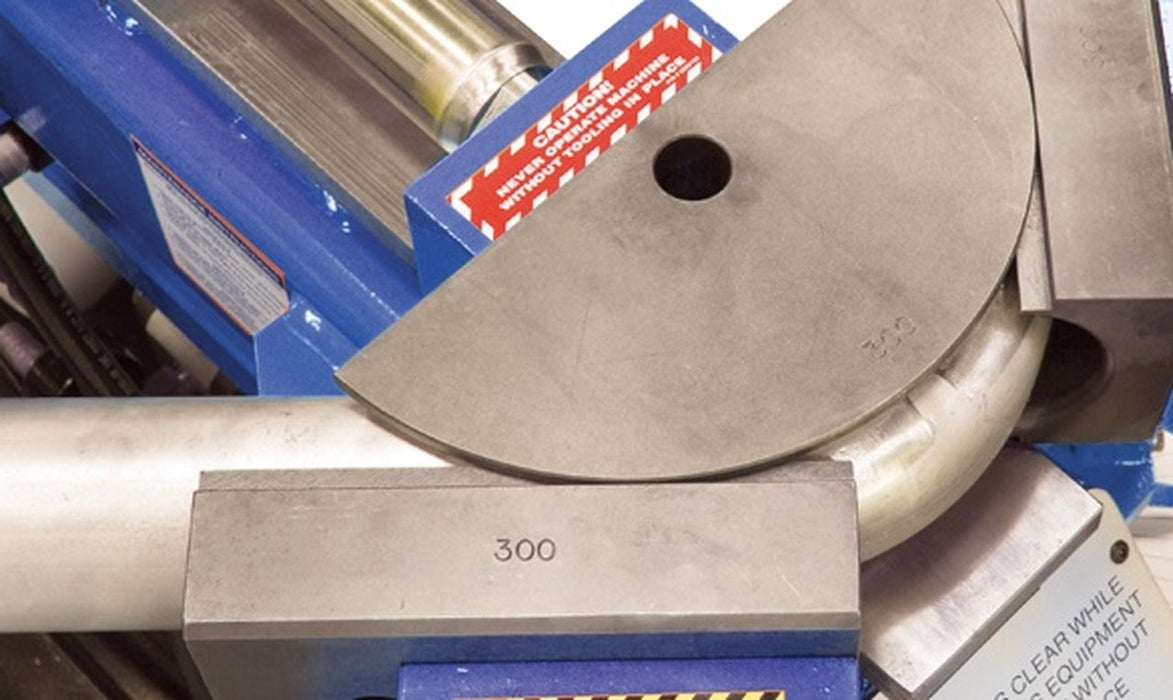

  • Quick-release bending dies for reduced set-up times
  • Bending heads precision grounded to within .002"
  • Enclosed controls keep your bending area clutter-free
  • 2.5" oversized barrel shafts for maximum dependability and minimum maintenance
  • Standard grease fittings allow for simple lubrication
  • NEMA rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur
  • Pressure gauges let you know exactly what the system pressures are at all times
  • Industrial grade casters help you easily move the bender around your shop
  • Remote foot operated controls for added long-distance control
  • Adjustable pressure valve located right up front
  • One piece barrel ensures that the bending gates stay perfectly aligned with the ram
  • Heat-treated tooling for greater service life
  • Convenient tool trays keep your tooling organized
  • Strong, 5 HP Baldor energy efficient motor delivers maximum performance
  • Direct-drive, high-speed, 4 gpm pump
  • Single enclosed bottom cylinder applies pressure evenly to the back gates and, because it is hidden, does not interfere with the tubing
  • Large capacity fluid reservoir keeps the hydraulic oil running cooler and prevents contamination
  • Canister oil filter in the hydraulic system keeps the oil nice and clean
  • Oil sight-gauges allow you to visually inspect oil levels

Specifications

OVERVIEW

  • Bending Controls:Semi-Automatic / 3-Button
  • Expander Controls:Manual / Knee Lever
  • Frame Style:Double-Ended Expander
  • Max. Tube Capacity:3" (76 mm) .095 wall

BENDING

  • Max. Bending Radius:5" (127 mm)
  • Min. Bending Radius:3.3" (89 mm)

HYDRAULICS

  • Top Cylinder Force:60,000 lbs. (27,216 kg)
  • Hydraulic Filter:Canister
  • Motor:5 HP / 208-230 VAC / 60 Hz / 1 PH

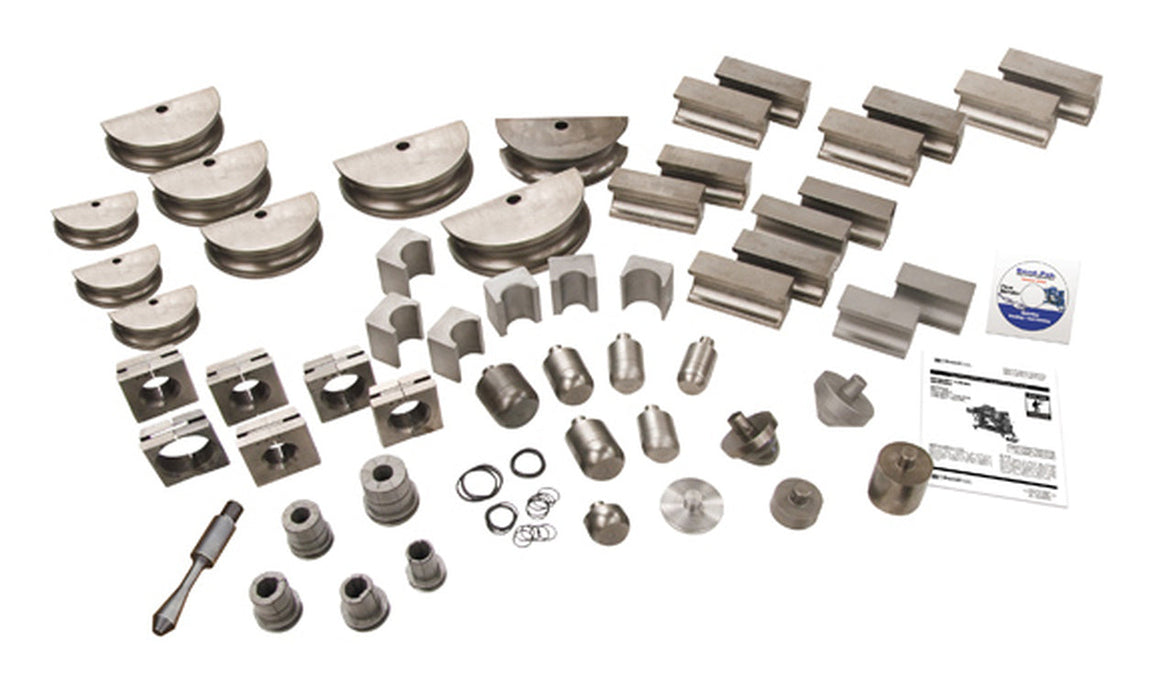

DIE PACK

  • Standard:1.5", 1.75", 2", 2.25", 2.5" (202)

DIMENSIONS

  • Width:41" (1,041 mm)
  • Depth:64" (1,626 mm)
  • Height:26" (660 mm)

SHIPPING

  • Weight:1282
  • Dimensions:48" x 70" x 30" (1,219 mm x 1,778 mm x 762 mm)
