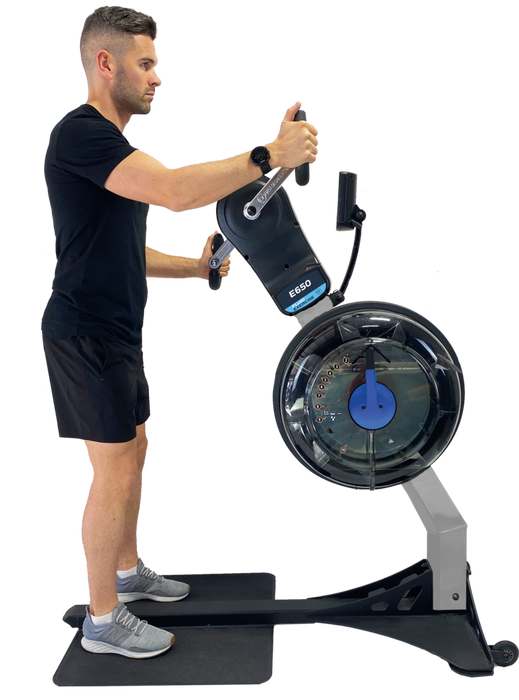

FDF E650 UBE Arm Cycle
ENABLES RECIPROCAL MUSCLE GROUP BALANCE & SUPPORT OF MAJOR JOINTS
Whether you are a veteran, athlete or somewhere in between, the E650 is designed to target strength, endurance, intensity, agility, stability, flexibility and balance. The E650 upper body ergometer has been constructed for high intensity, powerful workouts. Commercial-grade and CrossFit ready, this standing upper body ergo offers heavy duty performance that can withstand even the most demanding fitness levels.
This ergo’s slimline footplates allow for wheelchair access and its bi-directional function offers huge advantage for rehabilitation purposes, enabling reciprocal muscle group balance and support of major joints. An eye-catching unit this standing upper body ergometer will quickly become a focal point of any facility, producing competitive results at an affordable price point. The E650 upper body ergometer features FDF’s famous fluid innovation technology with 10 levels of intense fluid resistance and continuous catch on the arm pedal. The Predator Challenge is taking the world by storm.
- 10 levels of patented Variable Fluid Resistance to sustain any challenge
- Stainless steel marine grade impeller blades housed in a tough polycarbonate tank deliver unprecedented resistance levels and a sensory workout experience to sustain your interest
- Bi-directional (clockwise or counterclockwise) movement for complete muscle engagement

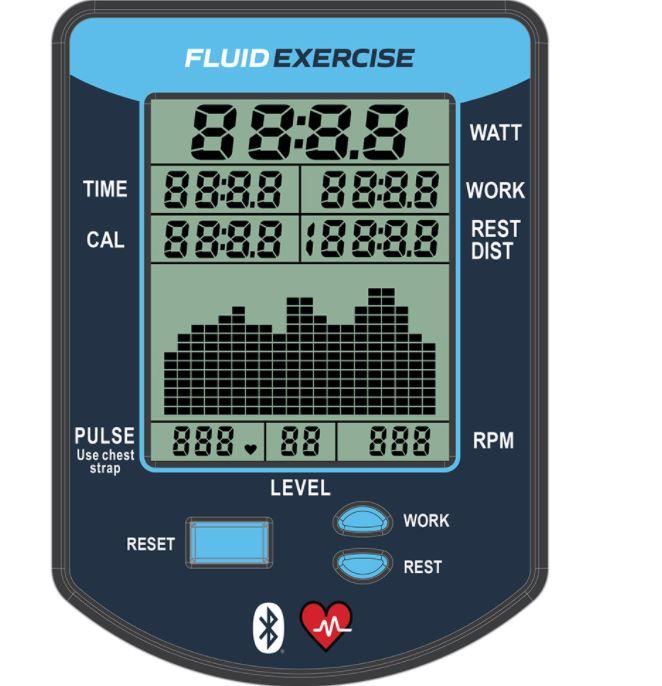

- Multi-level computer on an adjustable arm
- Quick start feature and interval training options
- Wide foot supports maintain total stability and enable wheelchair access

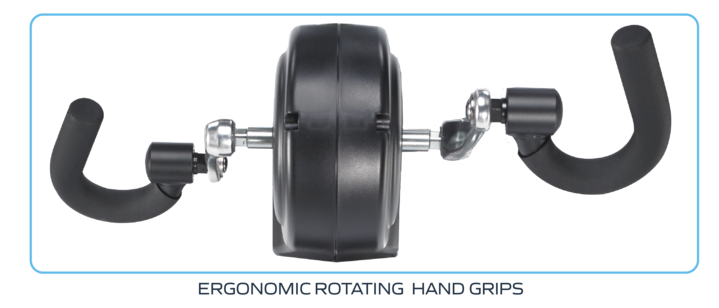

- Self-levelling, comfortable, rotating, ergonomic handgrips reduce wrist torque
- Environmentally friendly, rustproof e-coating to complete frame
- Step on design for instant access Great for rehab patients
- Fixed crank arm length design for maximum comfort and dependability
- Built to withstand heavy usage in the toughest environments – perfect for CrossFit
- Bluetooth Connectivity +
- Auto start +
- Time - Elapsed time +
- Level - Auto to selected resistance level +
- Watt - Unit of power +
- RPM – Revolutions per minute +
- Power Graphs - 2 Options +
- Heart rate – Polar compatible +
- Calories burned per hour
INTERNATIONAL WARRANTY – FULL COMMERCIAL USE
This product is designed and constructed for use in any Health Club / Fitness Studio application.
FIRST DEGREE FITNESS Limited warrants that the E650 Arm Cycle UBE, purchased from an authorized agent and in its undamaged original packaging, is free from defects in materials and workmanship. FIRST DEGREE FITNESS Limited or its agent will, at their discretion, repair or replace parts that become defective within the warranty period, subject to the specific inclusions and exclusions below.
|Metal Frame – 10 Year Limited Warranty
FIRST DEGREE FITNESS will repair or replace the Metal Main Frame of the Rower should it fail due to any defect in materials or workmanship within 10 years of the original purchase. Warranty does not apply to frame coating.
|Polycarbonate Tank & Seals – 5 Year Limited Warranty
FIRST DEGREE FITNESS will repair or replace the polycarbonate tank or seals should they fail due to any defect in materials or workmanship within 5 years of the original purchase.
|Mechanical Components (of a non-wearing nature) – 2 Year Limited Warranty
FIRST DEGREE FITNESS will repair or replace any mechanical component should it fail due to any defect in materials or workmanship within 2 years of the original purchase.
|All Other Components (of a wearing nature) – 1 Year Limited Warranty
||FIRST DEGREE FITNESS will repair or replace any component should it fail due to any defect in materials or workmanship within 1 year of the original purchase.
- Hand Grip Assemblies
- All Rubber Components
- Computer & Speed Sensor (excluding replaceable batteries)
- All Drive Belts & Chains
- Crank Arms
- All Pulleys, Rollers & Bearings
- Damage to the finish of any part of the machine
- Damage due to neglect, abuse, incorrect assembly or use of the machine
- Any charges for freight or customs clearance associated with the return or dispatch of parts
- Any damage to or loss of goods during transport of any kind
- Any labour cost associated with a warranty claim
- The serial number of the machine must be correctly registered with FIRST DEGREE FITNESS Limited or one of its appointed distributors
- FIRST DEGREE FITNESS Limited reserve the right to examine any part where replacement is claimed under warranty
- Warranty period applies only to the original purchaser from the date of purchase and is not transferable
- The product must be returned to your place of purchase in original packaging with transportation, insurance and associated charges paid for by you and risk of loss or damage assumed by you
- FIRST DEGREE FITNESS makes no other warranties except as stated here and expressly disclaims all warranties not stated in this warranty. Neither FIRST DEGREE FITNESS nor its associates shall be responsible for incidental or consequential damages
- Manufacturer's warranty automatically commences upon sale of the product to end user or upon the expiration of one (1) year from month of manufacture, whichever occurs first
Click this Video
HOW DOES FLUID ROWER TWIN TANK TECHNOLOGY WORK?
If you are accustomed to the natural catch and feel of actual on-water rowing, you will immediately appreciate FDF’s adjustable Fluid Resistance technology with its unrivalled emulation of propelling a boat through the water. The sight, sound and feel of the water churning through the rowing machine’s fluid resistance tanks are almost cathartic; your senses will make you think could be rowing down the river.
Similar to rowing a boat, FDF’s rowing machine’s patented adjustable fluid resistance tanks generate a smooth and uniform stroke unrivalled in its precise replication, including no lag of resistance at the catch, and continued resistance all the way to the finish. This is just one of the many reasons FDF’s adjustable Fluid Resistance rowers are the most comparable to an on-water rowing experience.
The water in our active resistance tank (outer tank) acts as a brake to hold back the multi-bladed impeller, the more water in the active resistance tank the higher the braking effect. The water in the active tank isn’t all staying in the active tank during the exercise (at any level), some of it is always being cycled through the passive holding tank (inner tank). As you attempt to generate more power by increasing your speed, the water cycles faster between the Twin Tanks at a greater and greater rate to maintain a consistent amount of water in the tanks. This creates such a unique smooth action and at virtually any speed.
Air resistance works in a similar way, however the variation in the load that is possible by restricting air flow to an impeller does not create distinctly different levels of resistance, this is very obvious at low speeds.
At high speeds, the two mediums, water and air, start to feel similar except for one very crucial difference that makes adjustable Fluid Resistance so unique. When rowing, the drive phase is followed by a recovery phase, during the recovery phase air does not provide the braking force that the water in our tanks does. At the catch or beginning of the next drive phase, the air machine impeller has higher momentum and that creates the soft or no load pick up that you feel at the catch.
Essentially the resistance on an air machine can not be felt again until your speed catches up to the flywheel and you start to apply a greater force against which the air will resist. These differences are so easy for you to test for yourself, compare an FDF FluidRower against any air or water based rowing machine and you will quickly see why our patented Twin Tank Fluid Resistance system is so different; the firm catch, the smooth stroke and the consistent load, that all come together in the FluidROWER.
FLUID RESISTANCE SELECTOR DIAL
Other indoor water rowers don’t allow for controlled or adjustable resistance, limiting progression in fitness development. Being able to change resistance mid-workout is a unique benefit of FDF’s patented adjustable Fluid resistance technology, allowing resistance changes at the turn of a dial. This unique, patented feature suits all fitness levels and applications suitable for general fitness through to professional athlete and medical rehabilitation. Being able to adjust the resistance level make it perfect for group training, where multiple users of differing fitness levels can be catered for, and for interval training.
FLUID RESISTANCE IMPELLERS – STAINLESS STEEL OF MOULDED POLYCARBONATE
FDF’s precision engineered, marine grade stainless steel impeller and internal tank baffles maintain resistance throughout the entirety of the rowing action.
The combination of a multi-bladed impeller and internal baffles within the rowing machine’s water tank, delivers a smooth uniform stroke unrivalled in its precise replication of actual on-water rowing. There is no lack of resistance at the catch, which is experienced on all other water resistance rowers; meaning that consistent resistance is delivered all the way to the finish, just like in a boat.
This smoother stroke resistance profile ensures the whole body works more throughout each stroke, without the intimidating high peak resistance experienced by other water based indoor rowing machines.
PATENTED TWIN TANK TECHNOLOGY
FDF’s patented Twin Tank allows variable volumes of water to move between tanks as the user makes resistance adjustments, ranging from feather light to Olympic sprint. This is what we call adjustable Fluid Resistance.
With FDF’s patented twin tanks, you can adjust Fluid Resistance while maintaining a steady stroke rate. Other rowing machines and water ergometers are less flexible, with their single chamber water tank requiring the user to row much faster or slower to change resistance.
DESIGNED BY ENGINEERS WHO WORKOUT
Designed by professionals, engineered by craftsmen, manufactured and constructed to last long after the workout has finished. FDF FluidRowers, FluidExercise Upper Body Ergometers and FluidPowerZone machines are built to endure the hardest workout.
Compare the manufacturing quality, form and function, side by side with any other brands, and the choice is obvious. Value for money products, that represents an investment in your fitness future, is the FDF hallmark. Learn more about the First Degree Fitness quality guarantee.
