Dannmar DJ-6000, 6,000-lbs. Capacity Rolling Bridge Jack

by Dannmar
$1,914.37

SKU DJ-6000

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

Dannmar is a company of people passionate about the automotive industry and the community that make it all possible. In this business, success is built on performance. Dannmar started out determined to reinvent the automotive service equipment market by providing quality equipment at a great value with superior after-sale service. They understand the purchase of a new car lift, tire changer, or wheel balancer is a big deal and we like to treat every customer as if they’re the only one.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

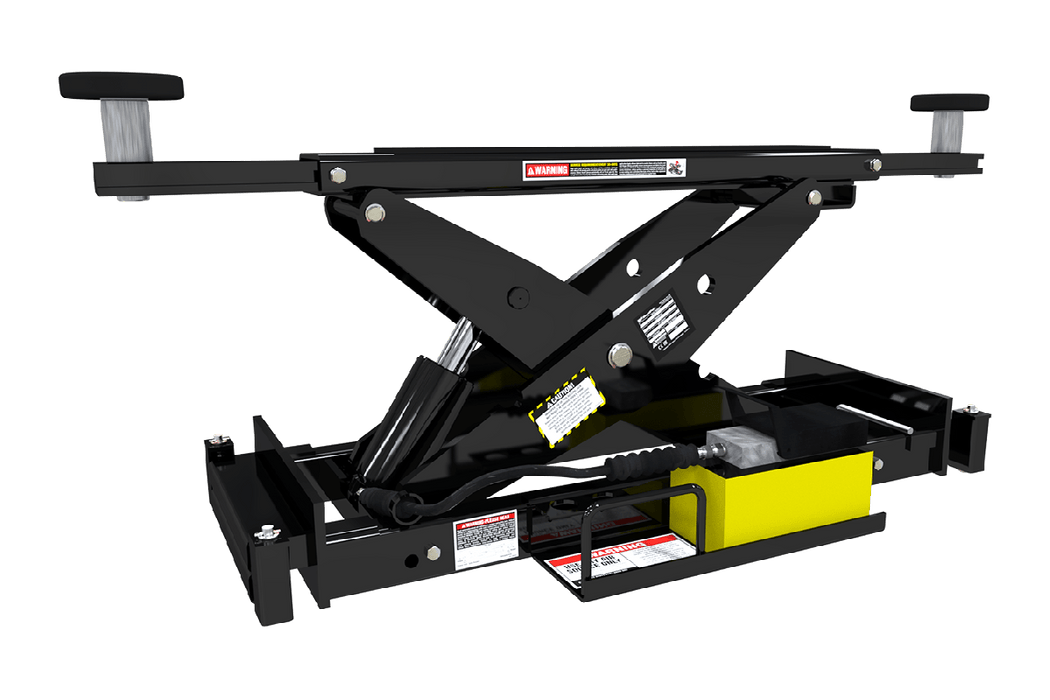

Dannmar DJ-6000 6,000-lbs. Capacity Rolling Bridge Jack

Overview

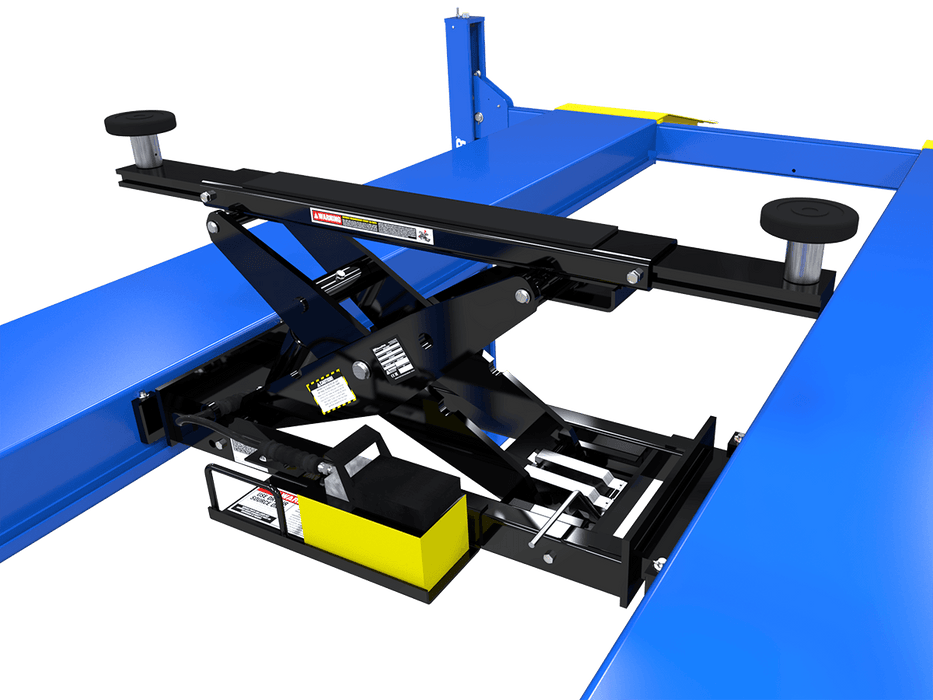

Dannmar’s DJ-6000 Rolling Bridge Jack is the simple and safe way to turn your lift into a full-service car lift. With this Rolling Bridge Jack’s 6,000-lb. lifting capacity, you can take on even more types of vehicle repairs. Simply position the jack under the appropriate front or rear chassis area, and lift the vehicle up and off of the runways. Each chassis-engaging jack raises one-half of the vehicle, and two will raise all four wheels above the runways. Each four-post rolling bridge jack can be raised to three different heights. Locks engage automatically as the jack scissor arms raise, and they release simultaneously as the arms are lowered. Welded to the side of the rolling bridge jack, is a high-pressure, air-hydraulic pump that requires 125 psi and 10-20 CFM. It’s activated when you press a foot pedal attached to the unit.

Features

  • 6,000-lb. lifting capacity
  • Rubber contact pads
  • Stackable adapters to maximize arm reach
  • High-pressure commercial air-hydraulic power unit; foot operated
  • Optional air-line kit

Specs

SKU# 5175326
Lifting Capacity 6,000 lbs. (2,722 kg)
Max. Height + Pad Only 16.5” (419 mm)
Max. Height + Pad + Adapter 20” (508 mm)
Min. Height + Pad Only 6.5” (165 mm)
Min. Height + Pad + Adapter 10” (254 mm)
Support Arm Width 35” (889 mm) - 45.5” (1,156 mm)
Max. Arm Reach 56” (1,422 mm)
Min. Arm Reach 42” (1,067 mm)
Motor Air-Hydraulic Pump
Noise 45 dB
Lifting Time 45 seconds
Shipping Weight 338 lbs. (153 kgs)
Shipping Dimensions 24" x 42" x 14" (609 mm x 1,066 mm x 355 mm)
