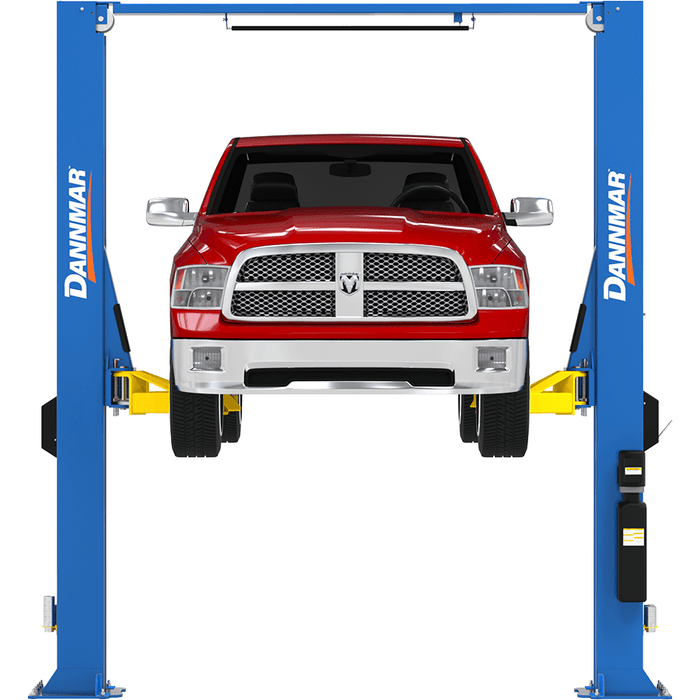

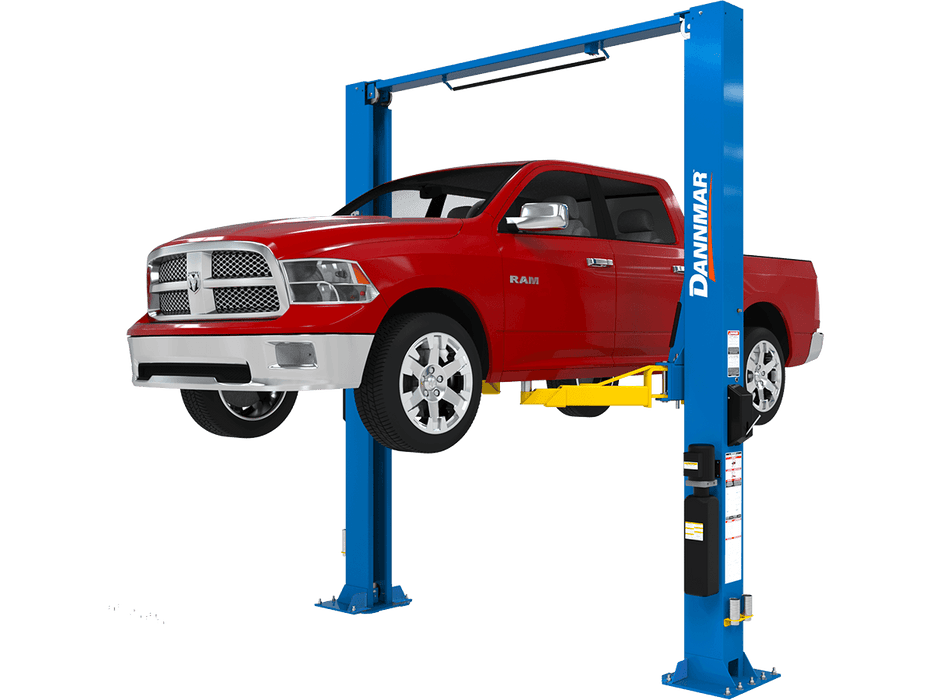

Dannmar D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post Lift / Symmetric Clearfloor / Triple-Telescoping Arms
The D2-12C is Dannmar’s closed-top model, thus providing clear floor convenience. The closed-top/clear floor two-post lift allows uninterrupted floors so that you can roll floor jacks, toolboxes, and other equipment underneath the elevated vehicle without having to travel over and bang through a floor-mounted hydraulic line panel. This lift has a big 12,000 lb. lifting capacity. This lift routes the operating hydraulic lines up and across, 14 feet height hose routing above the floor.
Dannmar’s D2-12C is loaded with features to make your lift work better. With triple-telescoping arm sets, three-stage front and three-stage rear arms this Dannmar provides greater maximum reach with minimum retraction. This strong lift system will raise just about all passenger vehicles and many heavy-duty pickup trucks. The high-speed hydraulics, free-flow, high-pressure 3/8” hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speeds. The safe and rugged D2-12C two-post lift features extended height columns for added overhead clearance, as well as an adjustable top beam to accommodate wide or narrow installation setups.
- Dual direct-drive hydraulic cylinders
- Heavy-duty 1/2” aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- Durable, rubber lift pads with stackable adapters
- Dual-synchro equalization system for equal lifting
- Padded overhead safety shutoff bar - Extended height top-beam provides greater clearance
- Single-point safety release
- Oversized 53” tall carriage for superior strength
- Electric/hydraulic power system
- Oversized A36 steel base plates
- Self-lubricating Dura-glide UHMW polyethylene bearings
- Safety locks in each column spaced every 3”
- Automatic arm restraints
- 16-piece specialty adapter set includes four 6” stackable adapters, four 3” stackable adapters, four polyurethane contact pads and four frame cradle pads - Convenient storage is included for truck and van adapters
- Triple-telescoping arms provide increased range
Specs
| Style |
Symmetric |
| SKU# |
5175312 |
| Lifting Capacity |
12,000 lbs. (5,443 kg) |
| Lowered Height + Pad |
4.25" (108 mm) |
| Max. Lift Height (Top Lock) |
80" (2,032 mm) |
| Max. Rise |
69" (1,753 mm) |
| Height Overall |
168.75" (4,286 mm) |
| Width Overall |
155.25" (3,943 mm) |
| Width Outside Columns |
142.5" (3,620 mm) |
| Width Inside Columns |
119.5" (3,035 mm) |
| Drive-Thru Clearance |
105” (2,663 mm) |
| Floor to Top Switch |
162.75” (4,131 mm) |
| Arm Reach |
31.5" (800 mm) - 58” (1,473 mm) |
| Max. Load per Arm |
3,000 lbs. (1,361 kg) |
| Time to Full Rise |
55 seconds |
| Noise |
45 dB |
| Motor |
220 VAC / 60 Hz / 1 Ph |
| Shipping Weight |
2,618 lbs. (1,187.5 kgs) |
| Shipping Dimensions |
177" x 29" x 40" (4,495 mm x 736 mm x 1,016 mm) |
