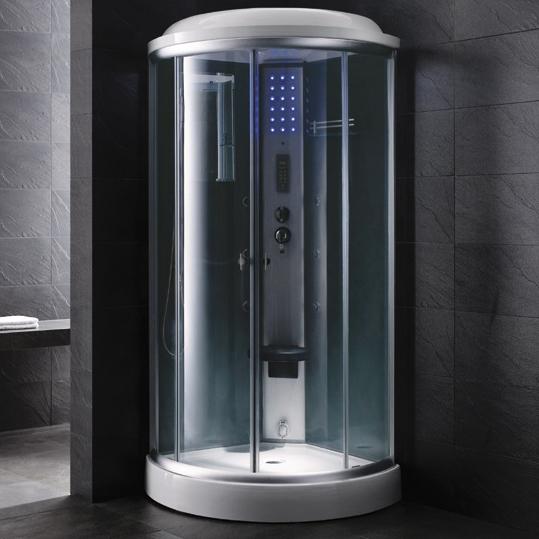

Mesa 9090K Steam Shower With Clear Glass 36"L x 36"W x 87"H
The Mesa 9090K corner steam shower features tinted glass and a nickel interior control panel. The 9090K is the perfect one-person steam shower for any corner or free-standing application. A favorite of both commercial and residential customers, it features sliding glass doors, chrome trim, and a fold-up seat for additional space. The sleek design and curved tinted blue glass are both stylish and appealing.
- Includes A Flexible Drain Hose. This means putting your drain anywhere you want!!
- 36"L x 36"W x 87"H
- 220V (110V Optional) ETL Certified
- 3KW High Output Steam Generator
- 6 Acupuncture Water Body Jets
- Adjustable Handheld Shower Head
- Rainfall Shower Head
- FM Radio Built-In
- Tempered Clear Glass
- Overhead LED Lighting
- Ventilation Fan

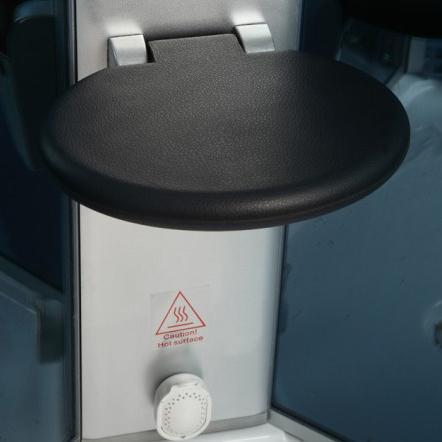

- Fold-up Center Seat
- Digital Timer and Temperature Control
- Storage Shelves
- Fluorescent Blue Mood Lighting
- Ozone Sterilization System
DATA SHEET AND INSTALLATION/USER GUIDE
Each item we sell comes with the original Manufacturer's Warranty.
All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include the acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.
Mesa Steam Showers carries most replacement parts in stock and will arrange for a spare part to be delivered to you.
Frequently Asked Questions
Does the unit come in one piece or in panels?
All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
What's a Flexible Drain Hose?
Mesa Steam Showers, bathtubs, and whirlpools include a flexible drain hose for fast easy installation. The flexible drain hose has professional-grade durability and more versatility than the traditional corrugated pipe. Flexible and expandable, it easily bends around any obstacle, holds its shape during installation and with a simple snap, its integrated soil-tight fittings lock securely and stay connected during backfilling.
The units come with a pre-cut drain and flexible hose. This means you are now able to put your drain or steam shower anywhere you want.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What voltage does the unit run on?
UNLESS OTHERWISE SPECIFIED, 110v
What type of Electrical Connection and Breaker will I need?
UNLESS OTHERWISE SPECIFIED, One 30 AMP GFCI Breaker.
What can I use to clean the shower and tub?
Non-Abrasive cleaners will work great on this surface. There are no special ways to treat this type of acrylic surface, so continue to clean the unit just as you would your normal fiberglass or acrylic shower. A good maintenance tip is to spray a non-abrasive cleaner onto the surface and wipe down or wash away weekly.
I would like to place on the second floor, will there be a weight problem?
The unit is about 500 lbs.+ water and your weight, and that is definitely a case by case type question. Jetted tub units will hold water like a bathtub and will have more weight.
Please consult your contractor based on the weights we have provided.
Can I use aromatherapy with these steam showers?
Yes, aromatherapy can easily be used inside the steam emitting cup.
What does the inline heat pump do?
The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
How many Gallons per Minute do these steam showers use?
1.5 - 2 Gallons Per Minute (GPM)
How many HOT/COLD Connections are required?
Regardless of the number of showerheads, all units have one hot/cold connection.
Where is the HOT/COLD Connection located?
The connection is located behind the shower hot/cold controls which differ per unit. Normally the hot/cold is about 30" from the floor on the back of the unit. Flex hoses are included for easy hookups no matter where your current hot/cold is located.
Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.
How is the warranty handled, and what will I have to do to get parts in the future?
If a part is defective, reach out to us and send a photo of the part you need. Please do not discard the defective part, until you get a replacement.
Where is the steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit.
All generators are mounted to the frame or screwed to the back of the unit so that they do not take up a room beyond the dimensions of the shower.
All of the steam showers will sit flush against the wall.
Do I need an access panel?
The steam showers are designed to be free-standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access.
The plumbing and the electrical connections are flexible so that you can easily make this happen.
If at all possible, an access panel is a terrific option in case of any future issues.
Manufacturer Warranty applies to purchases of any product at Ambient Home
