Bendpak XPR-9S-LP 9,000 Lbs Low-Profile Floor-Plate Short 2-Post Lift (5175391)

by Bendpak
Original price $5,170.00 - Original price $5,170.00
Original price
$5,170.00
$5,170.00 - $5,170.00
Current price $5,170.00

SKU 5175391
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

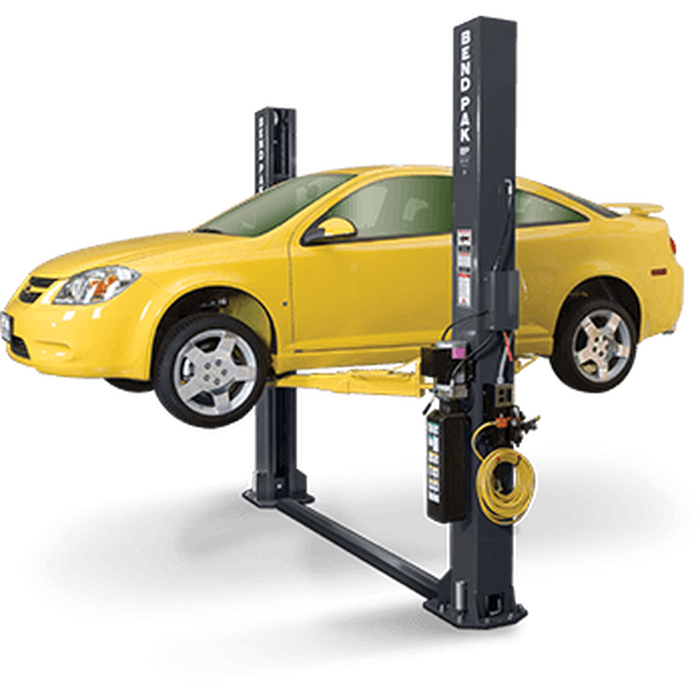

Bendpak XPR-9S-LP 9,000 Lbs Low-Profile Floor-Plate Short 2-Post Lift (5175391)

XPR-9S-LP short column lifts meet the specialized needs of automotive service technicians working with lowered vehicles or those with exclusive lift points. As with all XPR series lifts, XPR-9S-LP models are constructed of the highest-quality materials and include technology that assures ease of use and long service life.

XPR-9S-LP lifts include:

  • Lowered arm tube supports to minimize the chance of vehicle damage from low-hanging doors or other potential clearance conditions

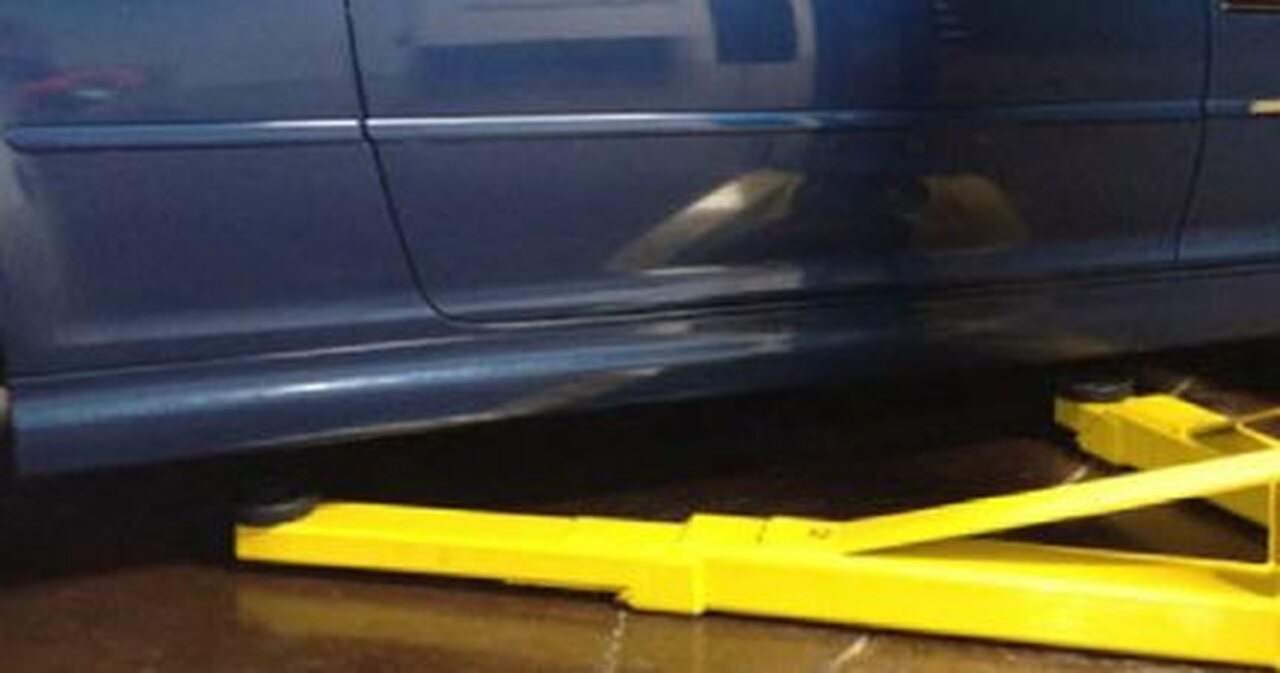

  • BendPak-exclusive telescoping Low-Pro Arms
  • XPR-9S-LP lifts are especially suited for lifting lowered vehicles like sports cars and others with specialized lift points positioned on the extreme outer edges of the vehicle chassis. A set of 63 mm stacking adapters is provided with every XPR-9S-LP lift as standard accessories.

XPR-9S-LP Characteristics:

  • Lift Capacity: 9,000 lbs.
  • Height: 113”
  • Width: 132” (narrow config), 145” (wide config)
  • Lift height: 69”
  • Type: Floor Plate

Features:

  • Shorter column for low-ceiling installations
  • Telescoping Low-Pro™ arms accommodate lowered sports cars and those vehicles with lift points located on outer edges of the chassis
  • Adjust able wide or narrow drive-thru configurations
  • Extended rise gives you over 6-feet of under clearance
  • Single-piece columns

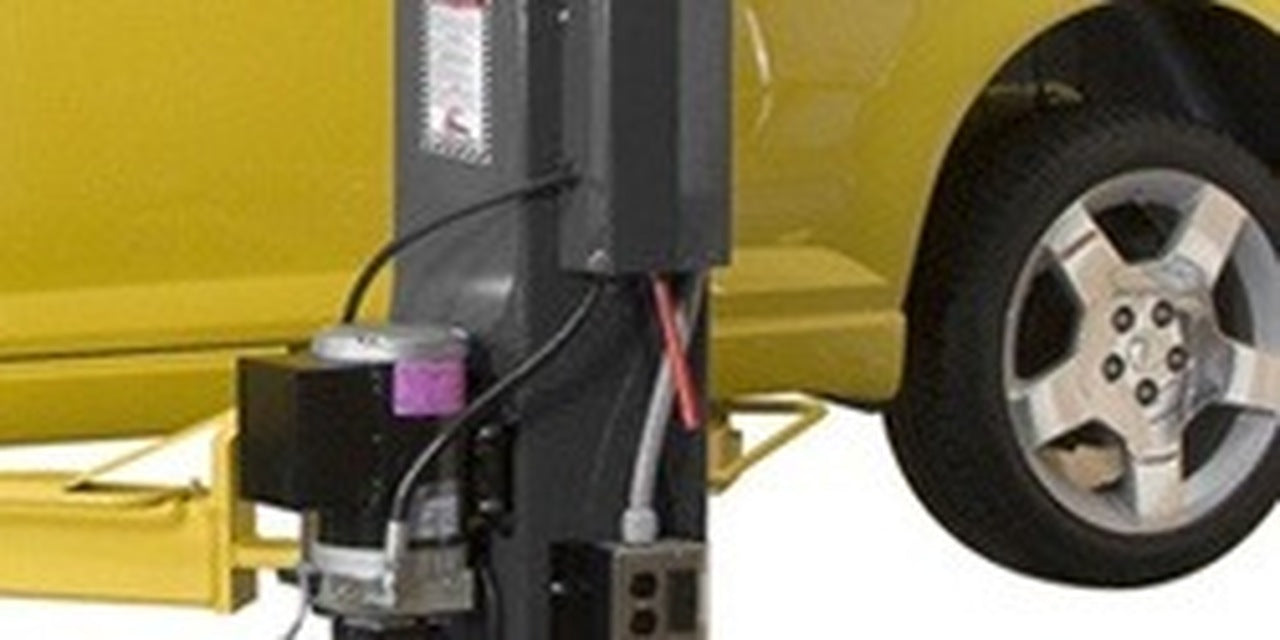

  • Single-point safety release
  • Chain lifting system combined with dual hydraulic cylinders
  • Electric / hydraulic power system
  • Large 20" x 19" steel base plates
  • Self-lubricating dura-glide polyethylene bearing system
  • Safety locks in each column spaced every 3-inches

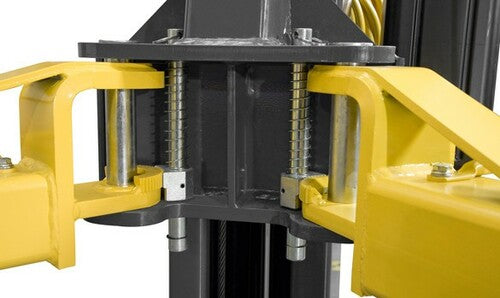

  • Automatic arm restraints
  • Heavy-duty dual 3/8" equalizer cables with oversize cable sheaves
  • 4-piece 63 mm stackable adapter set comes standard

Specifications:


Capacity

  • Lifting Capacity*: 9,000 lbs. (4,082 kg)
  • *Max Capacity / Front Axle: 4,500 lbs. (2,041 kg)
  • *Max Capacity / Rear Axle: 4,500 lbs. (2,041 kg)

Rise

  • A - Rise: 72" (1,829 mm)
  • B - Rise + Pad Only: 78" (1,981 mm)
  • C - Rise + Pad + 63 mm Adapter: 80.5" (2,045 mm)
  • D - Min. Height + Pad: 4.25" (108 mm)
  • Time to Full Rise: 45 seconds

Outside Dimensions

  • E - Height Overall: 113" (2,870 mm)
  • F - Width Overall: 132" (3,353 mm) or 145" (3,683 mm)
  • G - Outside Columns: 126.75" (3,219 mm) or 139.75" (3,550 mm)

Inside Dimensions

  • H - Inside Columns: 105" (2,667 mm) or 118" (2,997 mm)
  • I - Drive-Thru Clearance: 93" (2,362 mm) or 106" (2,692 mm)

Arms & Pads

  • K - Front Arm Reach: (MIN) 28.5" (699 mm)
  • K - Front Arm Reach: (MAX) 47.5" (1,308 mm)
  • L - Rear Arm Reach: (MIN) 28" (864 mm)
  • L - Rear Arm Reach: (MAX) 47.5" (1,384 mm)

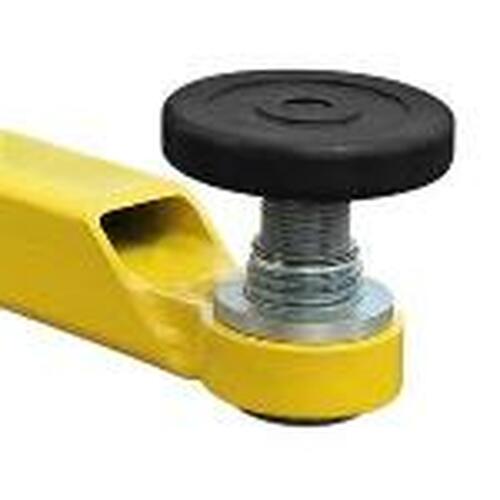

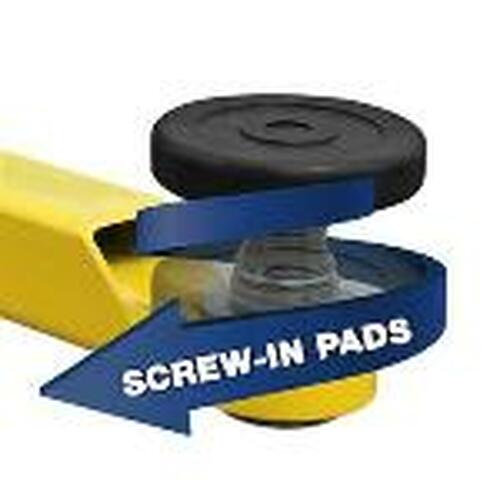

  • Screw Pad Adjustment: 1.75" (44 mm)
  • Max Load Per Arm: 2,250 lbs. (1,021 kg)

Floorplate

  • L - Height: 1.75" (44 mm)
  • M - Width: 8.5" (216 mm)

Power Unit

  • Motor: 220 VAC / 60 Hz. 1Ph.
  • Noise: 45 dB
