BendPak XPR-10XLS-LP 10,000 Lbs Low-Profile Arms 2-Post Lift (5175156) - BendPak - Ambient Home

BendPak XPR-10XLS-LP 10,000 Lbs Low-Profile Arms 2-Post Lift (5175156)

by BendPak
$5,625.00 - $5,625.00
$5,625.00
$5,625.00 - $5,625.00
$5,625.00

SKU 5175156
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

  • Description
  • Warranty

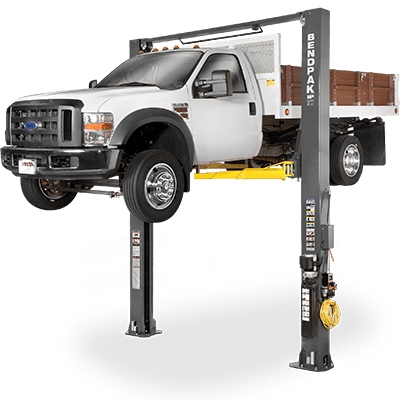

BendPak XPR-10XLS-LP 10,000 Lbs Low-Profile Arms 2-Post Lift (5175156)

Tall techs no longer have to strain themselves while they work. The XPR-10XLS is a high-reach symmetrical two-post lift that can be customized with an optional extension kit and/or Low-Pro™ arms. Perfect for vehicles of all sizes. A must-have tool to help taller techs stand upright while they work.

FEATURES & SPECS

  • Lift arms shown with optional foot guards
  • 10,000‐lb. lifting capacity
  • Expandable top beam accommodates wide or narrow configuration
  • Double‐telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar
  • Single‐piece columns
  • Dual hydraulic direct‐drive cylinders
  • Automatic arm restraints
  • Lowered arm tube supports
  • Maintenance-free UHMW load bearings
  • Oversized 59" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Large, 17" x 19" A36 steel base plate
  • Self‐lubricating dura‐glide UHMW polyethylene bearing system
  • Single‐point safety release
  • Safety locks in each column spaced every 3"
  • Automatic overhead shutoff
  • Plated arm restraints and arm pins for rust prevention
  • Heavy‐duty 1/2" aircraft‐quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4‐piece 63 mm stackable adapter set comes standard
  • ALI ​Certified

CAPACITY

Lifting Capacity* 10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle 5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle 5,000 lbs. (2,268 kg)

RISE

A - Rise: 75" (1,905 mm)
B - Rise + Pad Only: 79.75" (2,026 mm)
C - Rise + Pad + 63 mm Adapter: 82.25" (2,089 mm)
D - Min. Height + Pad: 4.75" (121 mm)
Time to Full Rise: 50 seconds

OUTSIDE DIMENSIONS

E - Height Overall: 157" (3,988 mm)
F - Width Overall: 132" (3,353 mm) or 145" (3,683 mm)
G - Outside Columns: 126.75" (3,219 mm) or 139.75" (3,550 mm)

INSIDE DIMENSIONS

H - Inside Columns: 105.5" (2,680 mm) or 118.5" (3,010 mm)
I - Drive-Thru Clearance: 93" (2,362 mm) or 106" (2,692 mm)
J - Floor To Overhead Switch: 147" (3,734 mm)

ARMS & PADS

K - Front Arm Reach: (MIN) 25.5" (648 mm)
K - Front Arm Reach: (MAX) 49.5" (1,257 mm)
L - Rear Arm Reach: (MIN) 32.25" (819 mm)
L - Rear Arm Reach: (MAX) 52.5" (1,334 mm)
Screw Pad Adjustment: 2" (51 mm)
Max Load Per Arm 2,500 lbs. (1,134 kg)

POWER UNIT

Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB

BendPak XPR-10XLS-LP Low-Profile Arms 2-Post Lift Specifications LegendManual
