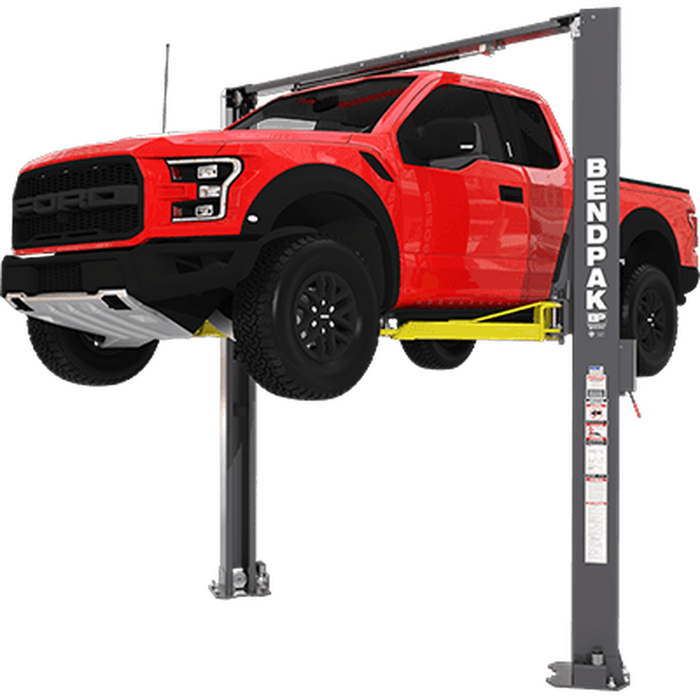

Bendpak XPR-10AXLS 10,000 Lbs Extra-Tall 2-Post Lift (5175991)
10K car lifts don’t offer taller lift carriages or get easier to work under than this. If you need maximum security and an extended working height that’s ideal for taller individuals, you need the BendPak XPR-10AXLS. This particular two-post lift features an absolutely massive 75″ cylinder stroke, which means we did more than just extend the columns for the sake of overhead clearance. We actually lift the bottom of the vehicle 6"" higher than our standard 10K lift height. True safety requires taller carriages. Higher carriages eliminate balance issues that come into play when lifting trucks and SUVs.
This model is truly something to get excited about. If your shop has the overhead clearance—at least 13’—the XPR-10AXLS might be the best lift you ever purchase. The big n’ tall techs in your shop won’t forget it!
XPR-10AXLS lifts include:
- Direct-drive power and performance for efficiency and reduced maintenance
- Two-stage telescoping screw pad assembly
- Adjustable top beam for wide or narrow installation
- User-friendly controls
- Automatic arm restraints for quick operation and safety
- Triple-telescoping front arms and two-stage rear arms
XPR-10AXLS Characteristics:
-
Lift Capacity: 10,000 lbs.
-
Height: 157”
-
Width: 137" (3,480 mm), 145” (wide config)
-
Lift height: 75”
-
Type: Asymmetric Clear Floor
Features:
- Lift arms shown with optional foot guards
- 10,000 lbs lifting capacity
- Expandable top beam accommodates wide or narrow configuration

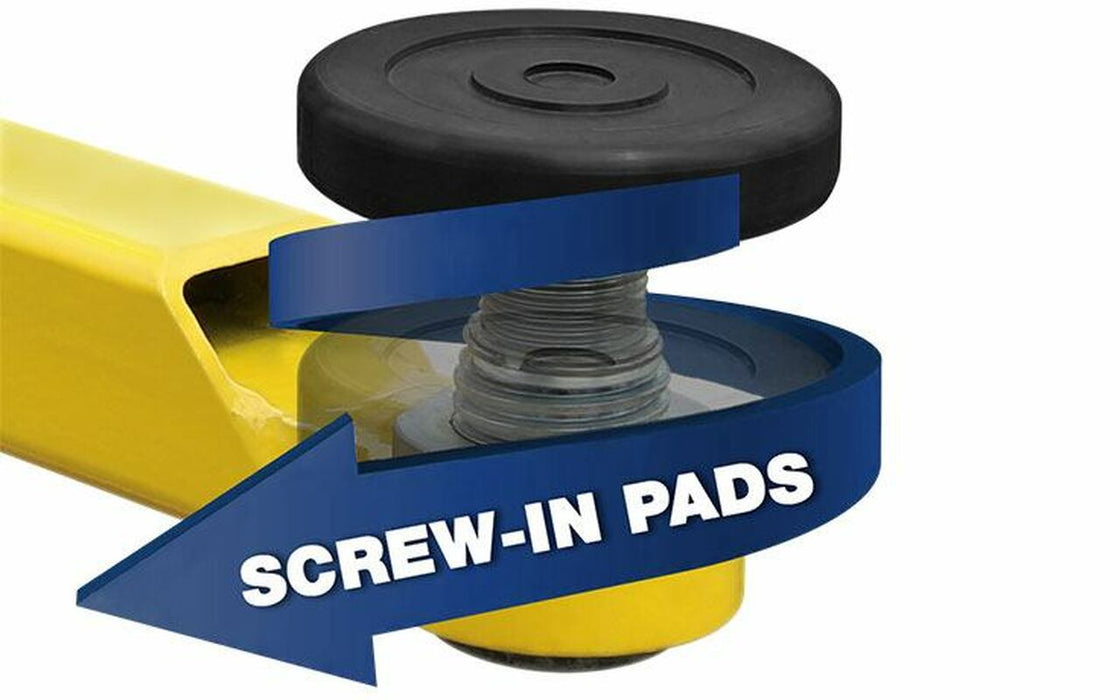

- Double-telescoping screw pads offer increased versatility
- Padded overhead safety shutoff bar
- Single-piece columns
- Dual hydraulic direct-drive cylinders
- Automatic arm restraints
- Lowered arm tube supports
- Maintenance-free UHMW load bearings
- Oversized 59" tall carriage for superior strength and durability
- Electric / hydraulic power system
- Large, 17" x 19" A36 steel base plate
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Single-point safety release
- Safety locks in each column spaced every 3"
- Automatic overhead shutoff
- Plated arm restraints and arm pins for rust prevention
- Heavy-duty 1/2" aircraft-quality equalizer cables

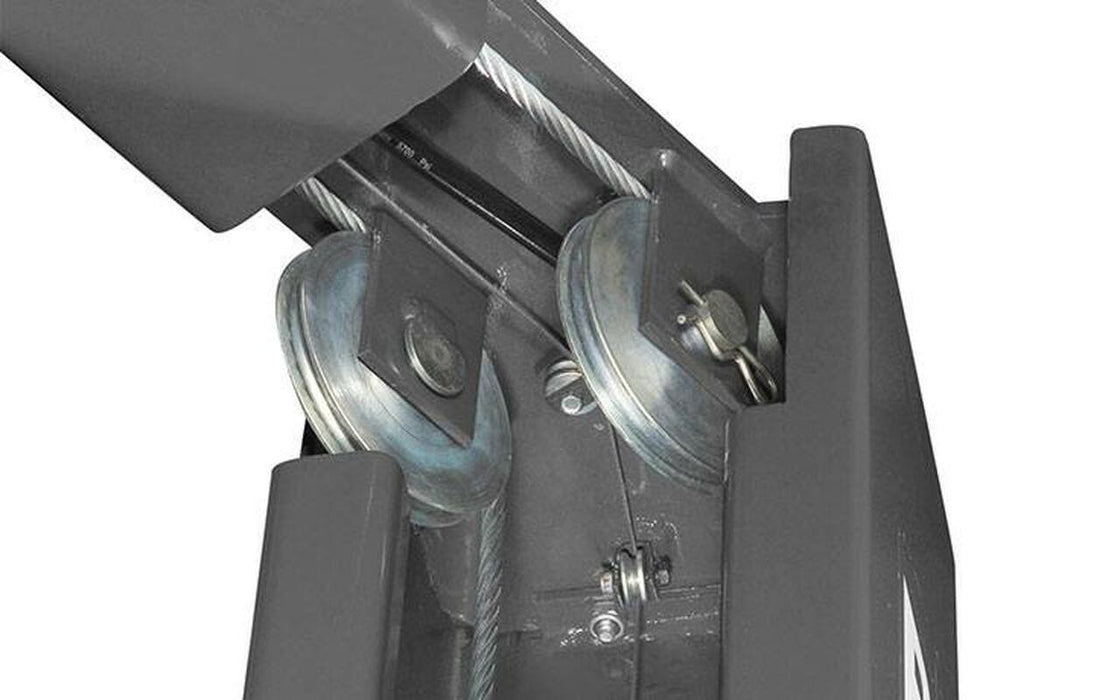

- Oversized cable sheave diameter reduces cable fatigue
- 4-piece 63 mm stackable adapter set comes standard
- ALI Certified
Specifications
Capacity
-
Lifting Capacity* 10,000 lbs. (4,536 kg)
-
*Max Capacity / Front Axle 5,000 lbs. (2,268 kg)
-
*Max Capacity / Rear Axle 5,000 lbs. (2,268 kg)
Rise
-
A - Rise: 75" (1,905 mm)
-
B - Rise + Pad Only: 79.75" (2,025 mm)
-
C - Rise + Pad + 63 mm Adapter: 82.25" (2,088 mm)
-
D - Min. Height + Pad: 4.75" (120 mm)
-
Time to Full Rise: 50 seconds
Outside Dimensions
-
E - Height Overall: 157" (3,983 mm)
-
F - Width Overall: 137" (3,480 mm) or 145" (3,684 mm)
-
G - Outside Columns: 133.25" (3,219 mm) or 141.25" (3,550 mm)
Inside Dimensions
-
H - Inside Columns: 106.25" (2,700 mm) or 114.25" (2,903 mm)
-
I - Drive-Thru Clearance: 93.75" (2,382 mm) or 101.75" (2,585 mm)
-
J - Floor To Overhead Switch: 147" (3,734 mm)
Arms & Pads
-
K - Front Arm Reach: (MIN) 23.5" (595 mm)
-
K - Front Arm Reach: (MAX) 43.75" (1,110 mm)
-
L - Rear Arm Reach: (MIN) 40.25" (1,024 mm)
-
L - Rear Arm Reach: (MAX) 58" (1,474 mm)
-
Screw Pad Adjustment: 2" (51 mm)
-
Max Load Per Arm 2,500 lbs. (1,134 kg)
Power Unit
-
Motor: 220 VAC / 60 Hz / 1 Ph
-
Noise: 45 dB
