Bendpak LR-10000 Low-Rise Car Lift (5175232)

by Bendpak
$4,405.00

SKU 5175232

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

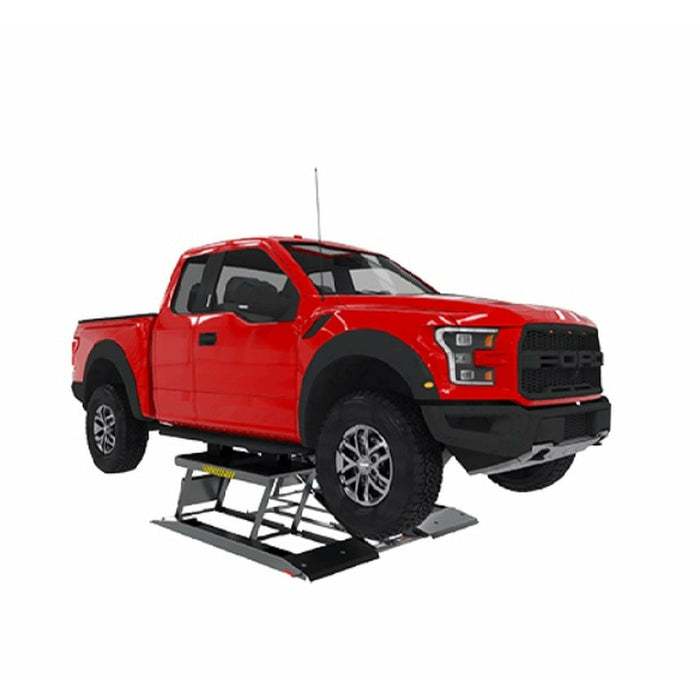

Bendpak LR-10000 Low-Rise Car Lift (5175232)

When you need to get wheel service done quickly, there’s no substitute for the LR-10000 car lift. This amazingly efficient low-rise lift holds up to 10,000 lbs. It’s perfect for trucks and SUVs that many other lifts can’t handle.

Lug nuts and other small parts are always within reach with the convenient built-in storage trays. A small footprint, easy installation and adaptable 110V/220V power-unit make the LR-10000 the perfect lift that fits any shop. The lift platform and auxiliary adapters allow lifting of most unibody and frame contact undercarriages at recommended manufacturer pick-up points on most vehicles.

Be sure to compare your vehicle specifications, including ground clearance and overall height with the specification shown before you purchase.

Features

  • Each lift platform features four parallelogram frame support bars making it the strongest 10,000-pound lowrise lift in its class
  • Drive-over ramps and side rails provide an increased width to support wider vehicles during approach
  • Comes standard with a durable full length rubber-topped lifting platform and eight multi-height rubber topped adapters for increased vehicle contact versatility
  • Storage trays are conveniently placed on each side of the lift platform to prevent wheel lug nuts and other small parts from being misplaced
  • Dual hydraulic cylinders provide a stable 10,000-pound lifting capacity to accommodate a wide range of vehicles
  • Diamond plated approach ramps help to prevent slipping
  • Three locking positions allow technicians to work at different working heights to increase productivity
  • Powder coat finish provides a long lasting durable finish
  • Included with every lift are detailed installation and maintenance instructions, graphic safety decals, maintenance decals, vehicle lifting point guide and a safety instruction placard to train personnel on proper safety procedures and maintenance guidelines

Specifications

Lifting Capacity  10,000 lbs. (4,545 kg)
Lifting Cap. (Front)  5,000 lbs. (2,273 kg)
Lifting Cap. (Rear)  5,000 lbs. (2,273 kg)
Lift Height  23” (584 mm)
Lift Height + Blocks  32” (813 mm)
1st Lock Position  14” (356 mm)
2nd Lock Position  18” (457 mm)
3rd Lock Position  20.75” (527 mm)
4th Lock position  22.75” (578 mm)
Overall Pad Length  53” (1,346 mm)
Overall Length  82.65” (2,094 mm)
Overall Pad Width  24” (610 mm)
Overall Width  85” (2,159 mm)
Lowered Height  4.5” (114 mm)
Lifting Time  35 sec
Motor (*)  115/208-230 VAC / 50/60 Hz / 1 Ph
Shipping Weight  1,346-lbs. (610 kg)
Shipping Dimensions  88'' x 85'' x 24'' (2,235 mm x 2,159 mm x 609 mm)
