Bendpak HDS-40 40,000-lb. Capacity Standard 4 Post Truck Lift (5175176)

by Bendpak
Original price $31,020.00 - Original price $31,020.00
Original price
$31,020.00
$31,020.00 - $31,020.00
Current price $31,020.00

SKU 5175176
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

Bendpak HDS-40 40,000-lb. Capacity Standard 4 Post Truck Lift (5175176)

BendPak’s newest line of heavy-duty four-post truck lifts are here. Bigger sheaves, beefier components and a legacy of dependability--get your hands on these massive machines and bring a higher level of service to your garage or shop. BendPak’s HDS-Truck Series four-post lifts are a whole new breed of rugged. They’re newly engineered super-duty truck lifts that make light work out of heavy lifting. They are built to last and feature increased safety, durability and productivity.

Features:

  • 40,000-lb. lifting capacity

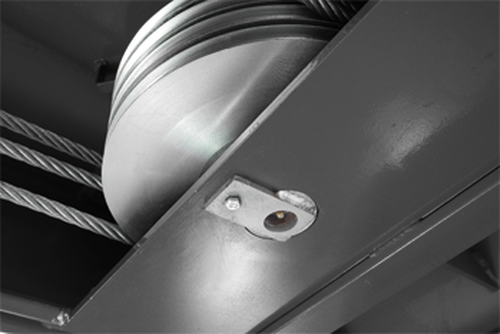

  • Supersized 12" diameter cable sheaves
  • Galvanized lifting cables
  • Grease nipples

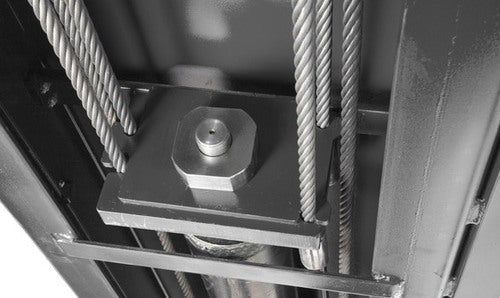

  • Single hydraulic under-runway cylinder
  • Integrated flow restrictor
  • Durable powder coat

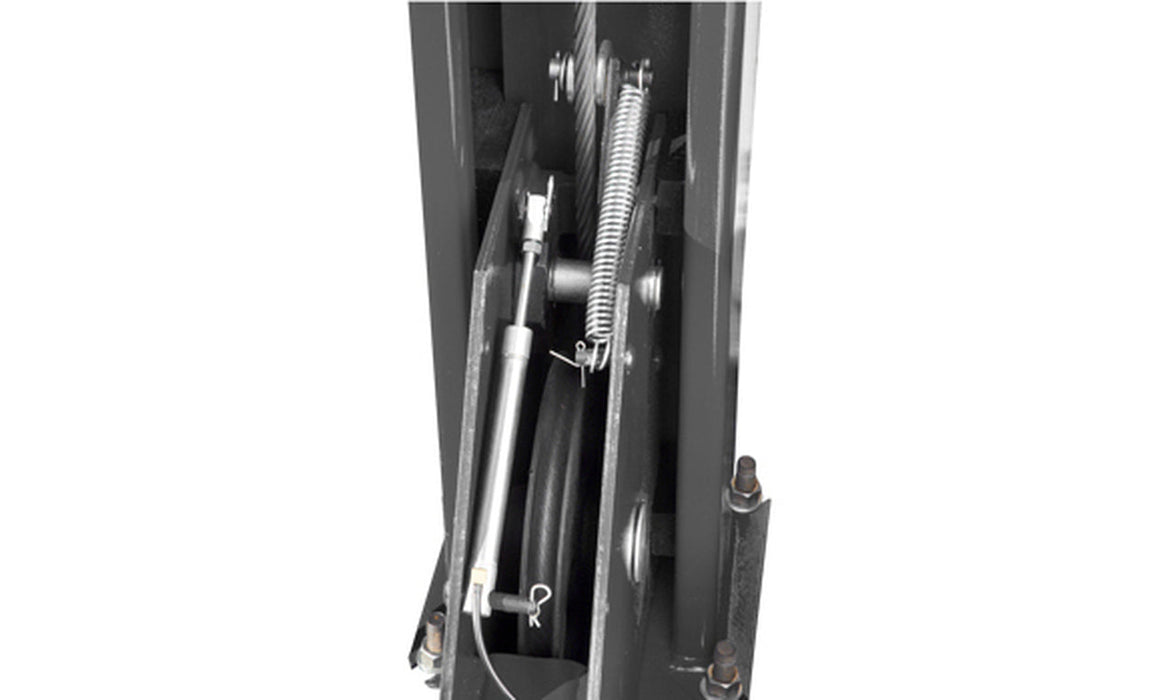

  • Spring-loaded safety locks
  • Second lock system on constant guard
  • Fully enclosed lifting cables
  • Multiple adjustable height locking positions
  • Maintenance-free electric hydraulic power system
  • Conveniently positioned operator controls
  • 12" x 12" base plates
  • Non-skid runways
  • Optional rolling jacks

Specifications:

Capacity

  • Lifting Capacity* 40,000 lbs. (18,144 kg)
  • *Max Capacity / Front Axle 20,000 lbs. (9,072 kg)
  • *Max Capacity / Rear Axle 20,000 lbs. (9,072 kg)

Rise

  • A - Min. Runway Height: 8.5" (216 mm)
  • B - Max. Rise: 60" (1,524 mm)
  • C - Max. Lifting Height: 68.5" (1,740 mm)
  • Time to Full Rise: 75 seconds

Outside Dimensions

  • D - Overall Width: 154" (3,912 mm)
  • E - Outside Length: 257" (6,528 mm)
  • F - Overall Length: 297" (7,544 mm)
  • G - Height of Columns: 93" (2,362 mm)

Inside Dimensions

  • H - Width Between Columns: 134" (3,404 mm)
  • I - Drive-Thru Clearance: 109" (2,769 mm)

Runways

  • J - Runway Width: 28" (711 mm)
  • K - Length of Runways: 263" (6,680 mm)
  • L - Width Between Runways: 36" (914 mm) or 47" (1,194 mm)
  • M - Runway Centerline: 64" (1,626 mm) or 75" (1,905 mm)
  • N - Outside Edge of Runways: 92" (2,337 mm) or 103" (2,616 mm)

Minimum Wheelbase

  • Rated Capacity: 185" (4,699 mm)
  • 75% Capacity: 160" (4,064 mm)
  • 50% Capacity: 135" (3,429 mm)
  • 25% Capacity: 110" (2,794 mm)

Locking

  • Locking Positions: 9
  • Lock Spacing: Every 6" / 152 mm

Power Unit

  • Motor: 220 VAC / 60 Hz. 1Ph.
  • Noise: 45 dB


Manual
