Bendpak HDS-27 27,000-Lb. Capacity Standard Length 4 Post Car Lift (5175162)

by Bendpak
Original price $22,370.00 - Original price $22,370.00
Original price
$22,370.00
$22,370.00 - $22,370.00
Current price $22,370.00

SKU 5175162
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

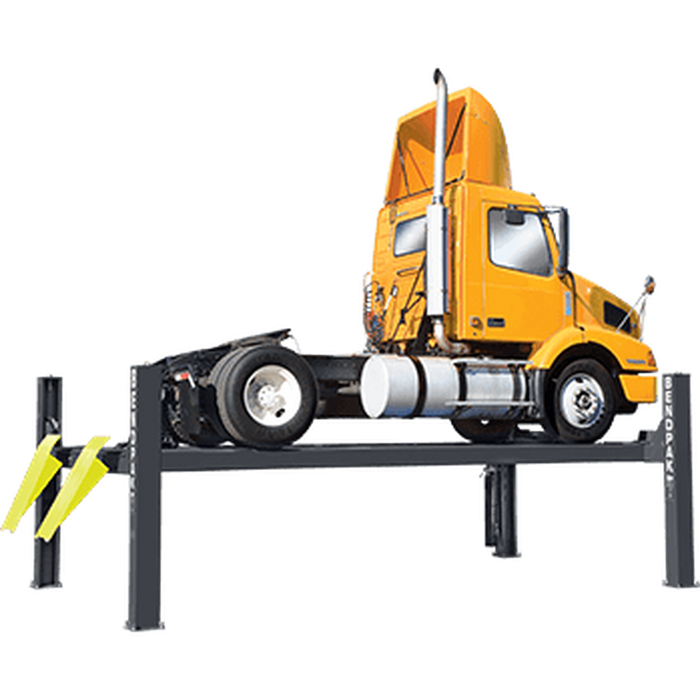

Bendpak HDS-27 27,000-Lb. Capacity Standard Length 4 Post Car Lift (5175162)

This is where our car lifts really step into the next level of lifting. While the HDS-18E is an entry-level lift in the medium-duty truck category, the HDS-27 is well-suited to take your business well beyond the needs of most private drivers. This garage lift brings you into the realm of construction equipment, commercial flatbed trucks, concrete mixers, garbage trucks, buses, etc.

Extended runways
Longer runways accommodate a wide variety of vehicle wheelbases, allowing you to steer massive trucks and buses onto our ramps without damaging your vehicle chassis.

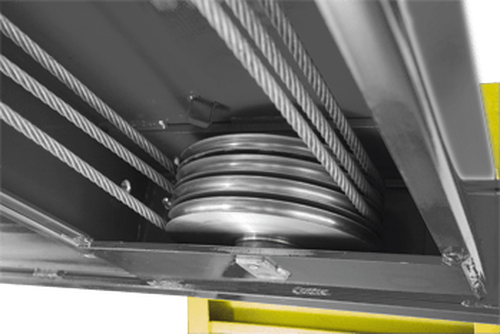

Dual-hub cable sheaves
We take the time, cost and effort to bring you the best. Each sheave contained within the runway and cross tubes is a massive 12” in diameter, and the sheave axles, at 4” in diameter, greatly extend the lifespan of your lift by reducing the overall wear put on these parts. Manufacturing sheave components are even bigger than ones offered by our competition, which ensures superior quality in our product. Additionally, BendPak parts always meet or exceed ALI standards for load bearing and safety.

Heavy-duty aircraft cable
Each of the four, 1/2” diameter, 6 x 25 galvanized lifting cables has a 14,000-lb. breaking strength, so a four-post lift as massive as this has the engineering to keep your vehicles safe at all times, especially during periods of heavy use. They won’t rust out or break apart due to bad weather, chemicals or random, floating garage particulate.

Built-in lubrication
The sheaves and sheave axles are fitted with grease nipples to lubricate the parts as they move. This is an essential feature that is also a form of auto-maintenance, so you have little to do during your periodic service checks.

Flow restrictor
This truck lift provides the best that modern hydraulic technology has to offer. Integrated into the hydraulic cylinder is a flow restrictor that provides a safe, slow descent. This is true even in the extremely rare occurrence of a burst or ruptured hydraulic hose.

Large base plates
Substantial 12" x 12" base plates support the massive columns.

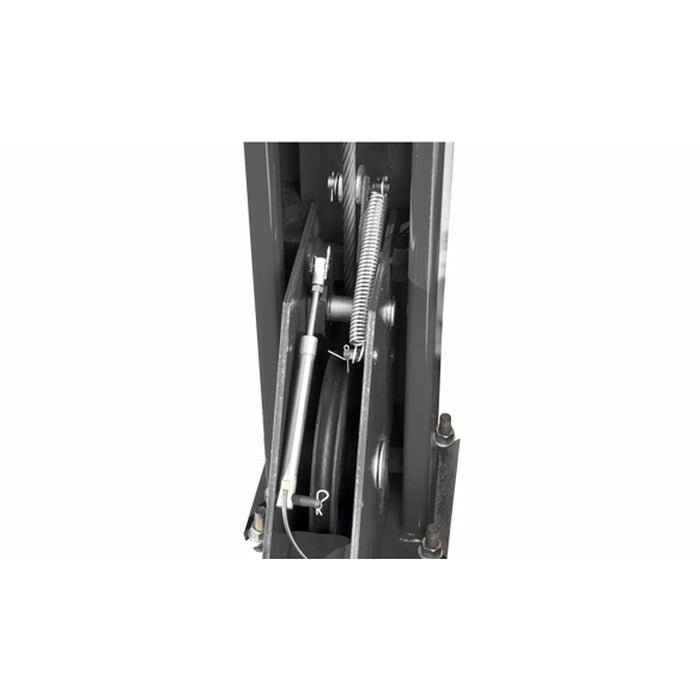

Spring-loaded safety locks
When the HDS-27 truck lift rises, spring-loaded safety locks engage the moving platforms. Safety ladders are standard and can be adjusted to keep the runways level, which is especially useful for sloped floors.

Push-button pneumatic lock release
The steel and aluminum pneumatic cylinders are aircraft-quality and certified to last for years without service. Lowering the lift release off the locks is done with one push against the pneumatic lock release. Just another simple way we put you in total control of your lift operations.

Features:

  • 27,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Supersized 12" diameter cable sheaves
  • Galvanized lifting cables
  • Grease nipples
  • Single hydraulic under-runway cylinder
  • Integrated flow restrictor
  • Durable powder coat
  • Spring-loaded safety locks
  • Second lock system on constant guard
  • Fully enclosed lifting cables
  • Multiple adjustable height locking positions
  • Maintenance-free electric hydraulic power system
  • Conveniently positioned operator controls
  • 12" x 12" base plates
  • Non-skid runways
  • Optional rolling jack

Specifications:

Capacity

  • Lifting Capacity* 27,000 lbs. (12,247 kg)
  • *Max Capacity / Front Axle 13,500 lbs. (6,123 kg)
  • *Max Capacity / Rear Axle 13,500 lbs. (6,123 kg)

Rise

  • A - Min. Runway Height: 8.5" (216 mm)
  • B - Max. Rise: 60" (1,524 mm)
  • C - Max. Lifting Height: 68.5" (1,740 mm)
  • Time to Full Rise: 75 seconds

Outside Dimensions

  • D - Overall Width: 154" (3,912 mm)
  • E - Outside Length: 257" (6,528 mm)
  • F - Overall Length: 297" (7,544 mm)
  • G - Height of Columns: 93" (2,362 mm)

Inside Dimensions

  • H - Width Between Columns: 134" (3,404 mm)
  • I - Drive-Thru Clearance: 109" (2,769 mm)

Runways

  • J - Runway Width: 22" (559 mm)
  • K - Length of Runways: 263" (6,680 mm)
  • L - Width Between Runways: 38" (965 mm) or 56" (1,422 mm)
  • M - Runway Centerline: 60" (1,524 mm) or 78" (1,981 mm)
  • N - Outside Edge of Runways: 82" (2,083 mm) or 100" (2,540 mm)

Minimum Wheelbase

  • Rated Capacity: 185" (4,699 mm)
  • 75% Capacity: 160" (4,064 mm)
  • 50% Capacity: 135" (3,429 mm)
  • 25% Capacity: 110" (2,794 mm)

Locking

  • Locking Positions: 9
  • Lock Spacing: Every 6" / 152 mm

Power Unit

  • Motor: 220 VAC / 60 Hz. 1Ph.
  • Noise: 45 dB


Manual
