BendPak HDS-14LSXE 4-Post Limo Extended Alignment Lift Package
Package Deal: (1) HD-14LSXE + (2) RBJ7000 + (1) Airline Kit
BendPak's HD-Series alignment lifts are engineered to meet the strenuous demands of even your toughest professional lifting jobs. Designed into every HD-Series lift is a laundry list of key features as long as your arm to ensure that BendPak is the absolute best you can buy.

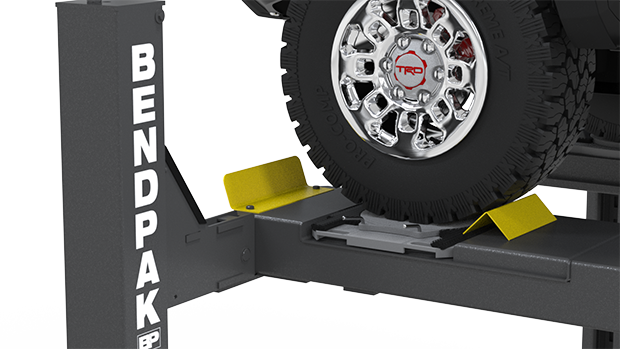

The HDS-14LSX is the sturdy beast you want as the backbone of your shop; especially if you specialize in servicing larger, low ground clearance vehicles. Our alignment system features front turn plates and rear slip plates built right into the runways. The wheels always respond to your adjustments with no resistance or hassle
BendPak calls it free floating. You'll call it unbelievably easy.
The HDS-14LSXE features aircraft-quality stainless steel and aluminum pneumatic cylinders that release all four locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously when raising the lift. For added safety, a second lock system acts as an automatic slack-cable device, automatically engaging in the event of an unexpected cable failure. Lifting cables, airlines, safety latches and sheaves are all fully enclosed within the lift structure.

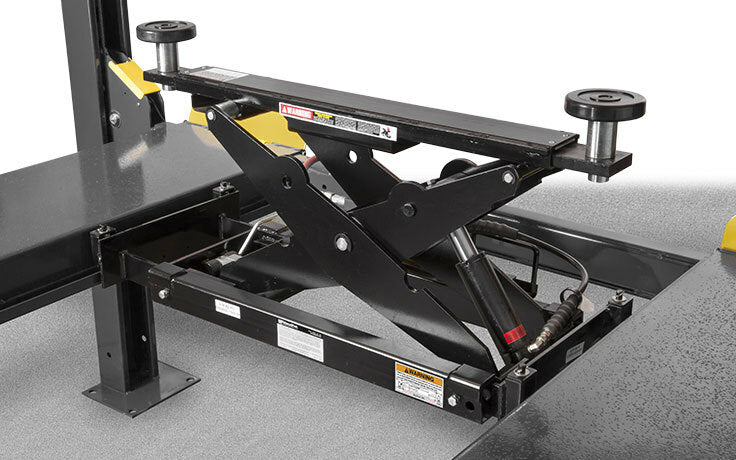

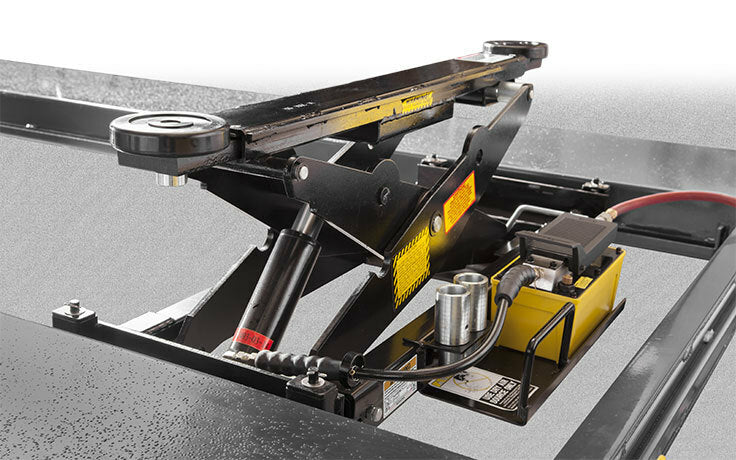

Rolling Bridge Jack (Set of 2)
The 7,000Lb. capacity rolling bridge jacks offer the ultimate in jacking speed and convenience. Their exclusive telescoping roller design allows the runways to be adjusted for different tread widths. Precision rollers enable you to position them anywhere under the vehicle. Perfect for wheel and suspension work. Each jack comes complete with stackable pad adapters and axle support plates.
- 14,000-lb. lifting capacity
- Two runway lengths to choose

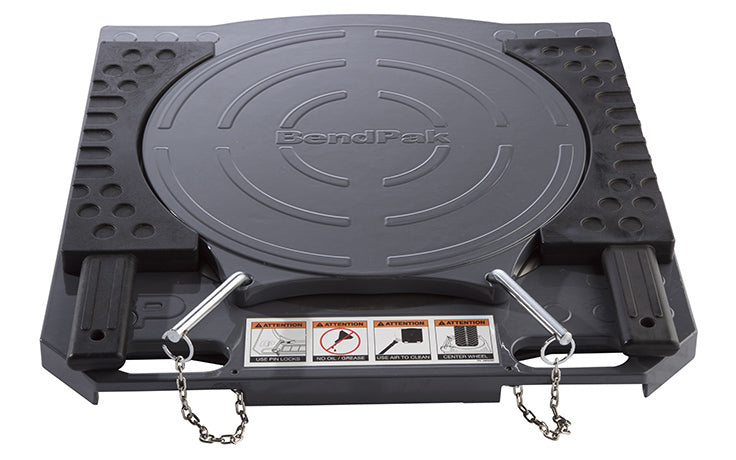

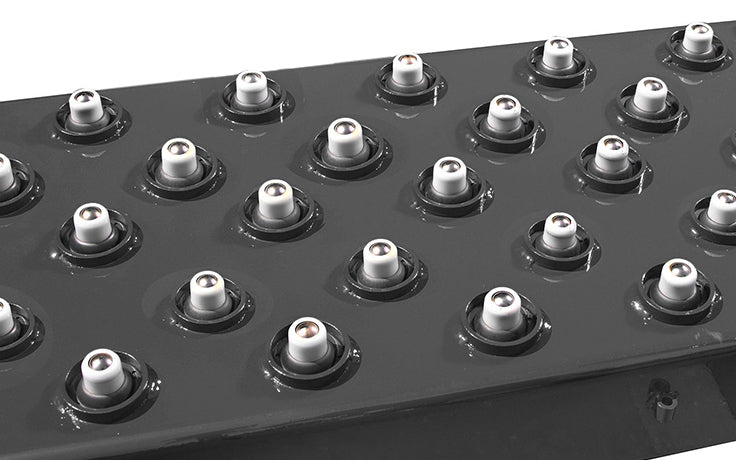

- Heavy‐duty turn plates and integrated rear slip‐plates included
- Multi‐position turn plate pockets
- Automatic leveling system
- Runways include rail‐kit for optional accessories
- Electric/hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal “Anti-Sway” slider blocks in each column
- Features oversize sheaves and heavy‐duty ½” aircraft cable
- Rugged 1‐3/8” roller axles and oversize self‐lubricating cable sheaves
- Multi‐position safety locks in each column with push‐button safety release
- Runways adjust for different tread widths and feature non‐skid surface
- Optional 7,000 pound capacity bridge jacks available (Model RJ‐7)

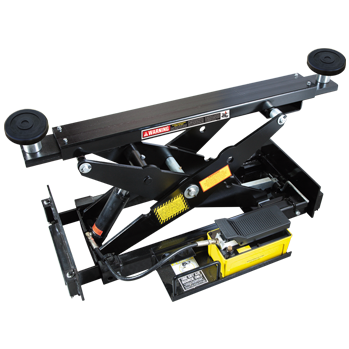

BendPak RJ-7 Set of 2
- 7,000 LBS Automotive Lift with open center.
- Works with BendPak HD-14 series alignment lifts
- Scissor mechanism allows for level lifting
- Weight: 300 lbs
