Bendpak HDS-14 14,000 Lbs Standard Length 4-Post Lift (5175170)

by Bendpak
$7,550.00

SKU 5175170

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

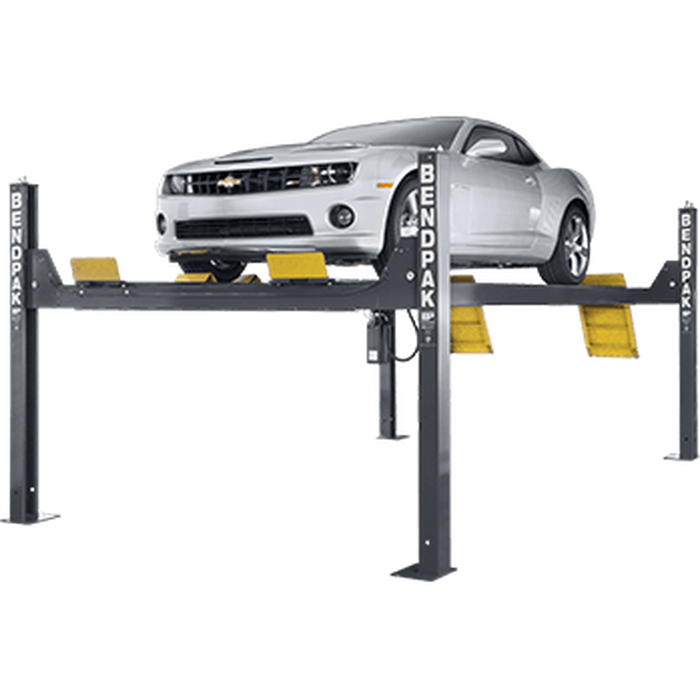

Bendpak HDS-14 14,000 Lbs Standard Length 4-Post Lift (5175170)

BendPak's HDS-14 four-post lift is a whole new breed of rugged. It features superior components that work better, are built to last and increase operator safety. If your service bay needs to get under heavy-duty, oversized vehicles on a daily basis, our 14,000-lb. capacity lift is exactly what you need.

Features:

  • 14,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Mid to long-style approach ramps for low ground clearance vehicles
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Features heavy-duty 1/2" aircraft cable
  • Safety locks enclosed in columns minimize pinch points

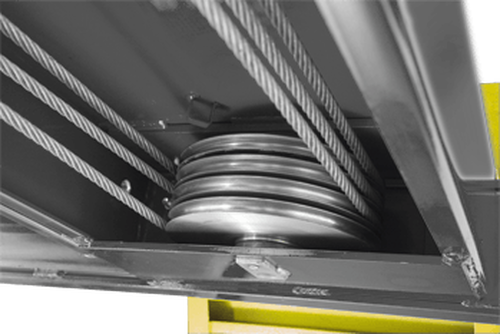

  • Oversized sheave diameter reduces cable fatigue
  • Oversized self-lubricating cable rollers
  • Rugged 1.75" roller axles
  • Multi-position safety locks in each column
  • Customizable power unit location
  • Approach ramps incorporate built-in rear-wheel chocks
  • Independent backup slack-cable safety latches
  • Runways feature non-skid surface
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional 7,000-lb. capacity rolling jacks available (Model RJ-7)
  • ETL approved

Specifications:

Capacity

  • Lifting Capacity*: 14,000 lbs. (6,350 kg)
  • *Max Capacity / Front Axle: 7,000 lbs. (3,175 kg)
  • *Max Capacity / Rear Axle: 7,000 lbs. (3,175 kg)

Rise

  • A - Min. Runway Height: 7.625" (194 mm)
  • B - Max. Rise: 70" (1,778 mm)
  • C - Max. Lifting Height: 77.625" (1,972 mm)
  • Time to Full Rise: 60 seconds

Outside Dimensions

  • D - Overall Width: 130" (3,302 mm)
  • E - Outside Length: 213" (5,410 mm)
  • F - Overall Length: 241" (6,121 mm)
  • G - Height of Columns: 93" (2,362 mm)

Inside Dimensions

  • H - Width Between Columns: 120" (3,048 mm)
  • I - Drive-Thru Clearance: 98" (2,489 mm)

Runways

  • J - Runway Width: 20" (508 mm)
  • K - Length of Runways: 199" (5,055 mm)
  • L - Width Between Runways: 37.5" (953 mm) or 51" (1,295 mm)
  • M - Runway Centerline: 57.5" (1,461 mm) or 71" (1,803 mm)
  • N - Outside Edge of Runways: 77.5" (1,969 mm) or 91" (2,311 mm)

Minimum Wheelbase

  • Rated Capacity: 140" (3,556 mm)
  • 75% Capacity: 120" (3,048 mm)
  • 50% Capacity: 100" (2,540 mm)
  • 25% Capacity: 80" (2,032 mm)

Locking

  • Locking Positions: 13
  • Lock Spacing: Every 4" (102 mm)

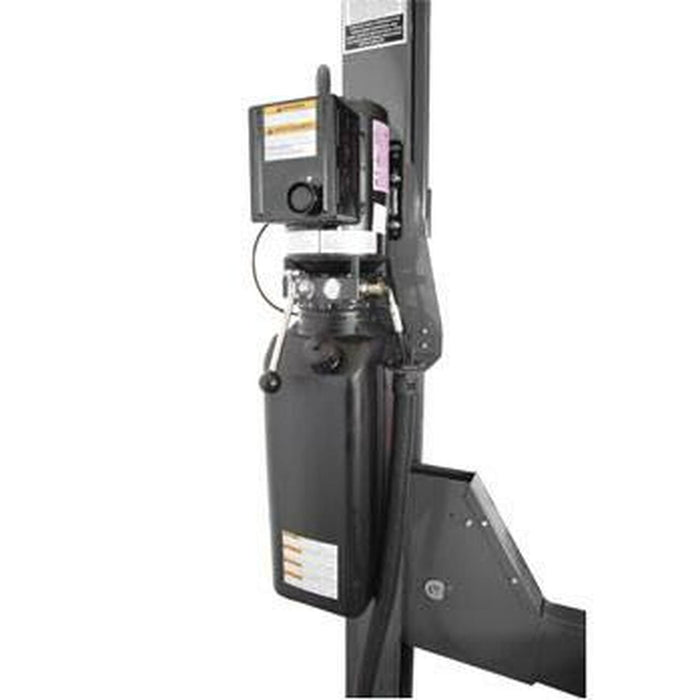

Power Unit

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise: 45 dB

Manual
