Bendpak HD-9SWX 9,000 Lbs Super-Wide 4-Post Lift (5175024)

by Bendpak
$10,580.00

SKU 5175024

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

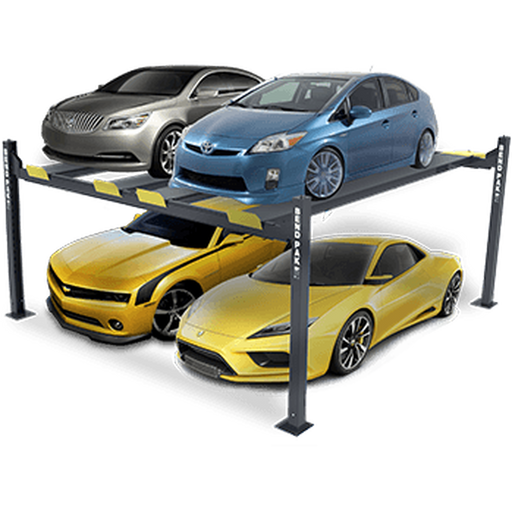

Bendpak HD-9SWX 9,000 Lbs Super-Wide 4-Post Lift (5175024)

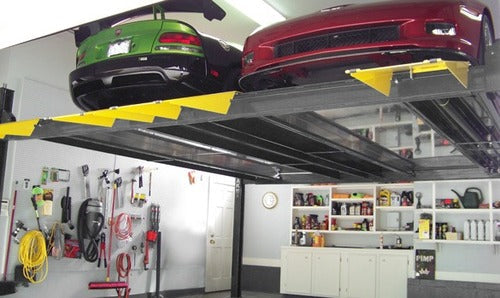

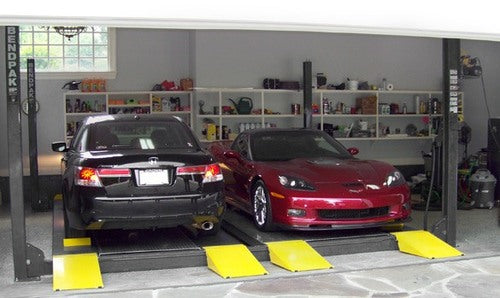

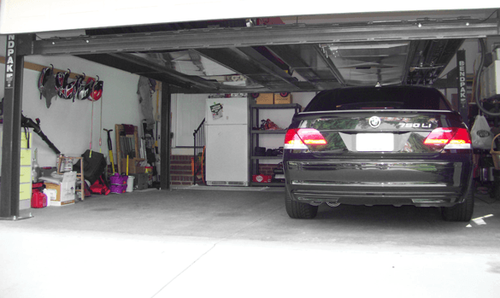

THD-9SWX is ideal for anyone who wants a little extra standing room under their lift. Plus, the runways are 24" longer than our standard-length HD-SW. Park up to four cars, trucks and SUVs, and enjoy servicing two raised vehicles in a single lift.

FEATURES:

  • 9,000-lb. maximum lifting capacity
  • Freestanding design
  • Perfect for parking, storage and service
  • Double-wide configuration for quad-vehicle storage
  • Four runways
  • Super-tall rise
  • Extra-long ramp
  • Runways accommodate wide or narrow vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Oversized sheave diameter reduces cable fatigue
  • High-speed lifting
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders

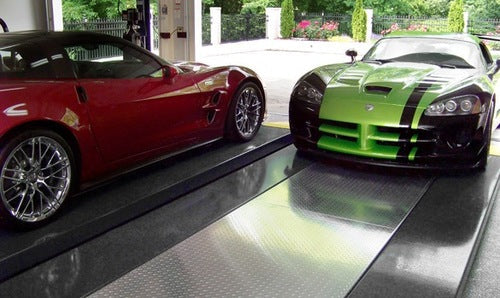

  • Runways feature non-skid surface
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Inside runways adjust for different tread widths
  • Customizable power unit location

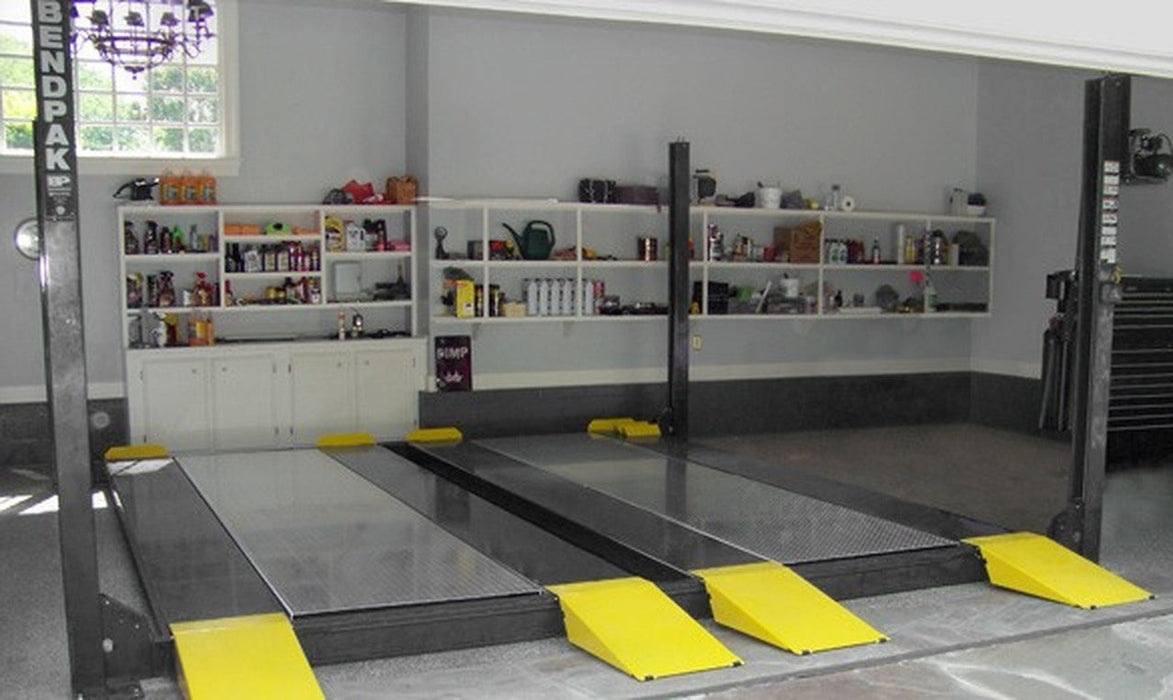

  • Removable approach ramps for additional drive-under clearance
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available

Capacity

Lifting Capacity 9.000 lbs. (4.082 kg)
Max Capacity / Front Axle 4.500 lbs. (2.041 kg)
Max Capacity / Rear Axle 4.500 lbs. (2.041 kg)

Rise

Min. Runway Heigh 7" (178 mm)
Max. Rise:
 82" (2.083 mm)
Max. Lifting Height 89" (2.261 mm)

Time to Full Rise:

65 seconds

Outside Dimensions

Overall Width
202" (5.131 mm)
Outside Length 198" (5.029 mm)
Overall Length: 224" (5.690 mm)
Height of Columns: 102" (2.591 mm)

Inside Dimensions

Width Between Columns: 192" (4.877 mm)
Drive-Thru Clearance: 178" (4.521 mm)

Runways

Runway Width: 19" (483 mm)
Length of Runways: 188" (4.775 mm)
Width Between Runways: 37" (940 mm) or 42" (1.067 mm)
M - Runway Centerline: 56" (1.422 mm) or 61" (1.549 mm)
Outside Edge of Runways: 75" (1.905 mm) or 80" (2.032 mm)

Minimum Wheelbase

Rated Capacity 135" (3.429 mm)
75% Capacity 115" (2.921 mm)
50% Capacity 95" (2.413 mm)
25% Capacity 80" (2.032 mm)

Locking

Locking Positions 16
Lock Spacing Every 4" (102 mm)

Power Unit

Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB

Manual
