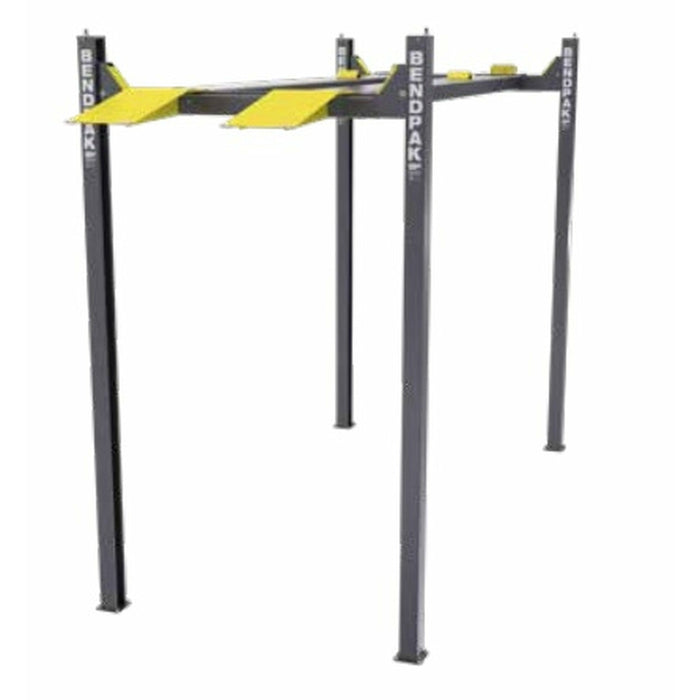

BendPak HD-7PXW 4-Post Car Lift 7,000 Lb. Capacity, Super-Tall Rise, Wide - 5175516

by Bendpak
Original price $7,460.00 - Original price $7,460.00
Original price
$7,460.00
$7,460.00 - $7,460.00
Current price $7,460.00

SKU 5175516
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

BendPak HD-7PXW 4-Post Car Lift 7,000 Lb. Capacity, Super-Tall Rise, Wide - 5175516

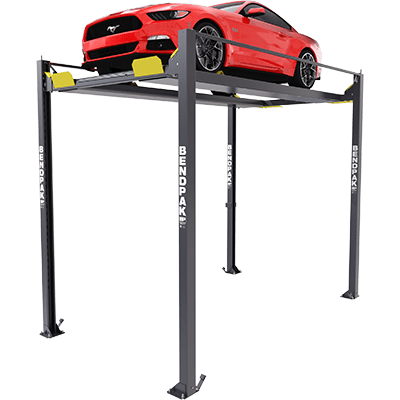

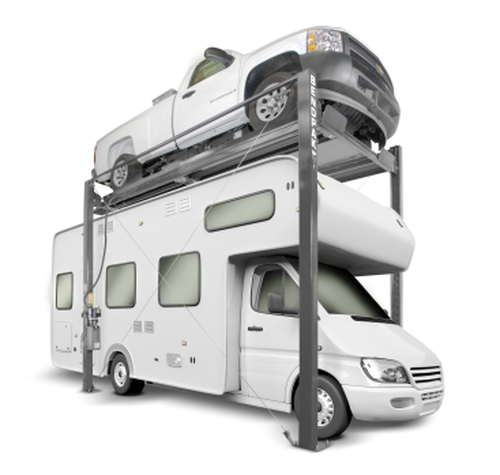

The HD-7PXW is a literal giant. This four-post lift is also a magnificent display platform and will effortlessly lift up to 7,000 lbs. over 12 feet into the air! Specially made for dealers, it's perfect for stacking taller vehicles and getting them seen!

Amazingly Tall ​Four-Post Lift

The HD-7PXW four-post lift has a 7,000-lb. lift capacity and 188” long runways to accommodate a variety of vehicle types and wheelbases.

Same great benefits as other lifts

The HD-7PXW has all the same safety and convenience features as other BendPak four-post lifts. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the lift's lone hydraulic cylinder is neatly tucked under the power-side runway. There's simply no better-looking and higher-reaching ​car lift on the market than the HD-7PXW.

Amazingly Tall Four-Post Car Lift

The HD-7PXW four-post lift has a 7,000-lb. lift capacity and 188” long runways to accommodate a variety of vehicle types and wheelbases. The HD-7PXW has all the same safety and convenience features as other BendPak four-post lifts. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the lift’s lone hydraulic cylinder is neatly tucked under the power-side runway. There’s simply no better-looking and higher-reaching car lift on the market than the HD-7PXW.

Features

  • 7,000-lb. maximum lifting capacity
  • Super tall rise of delivers 12-feet of lifting height

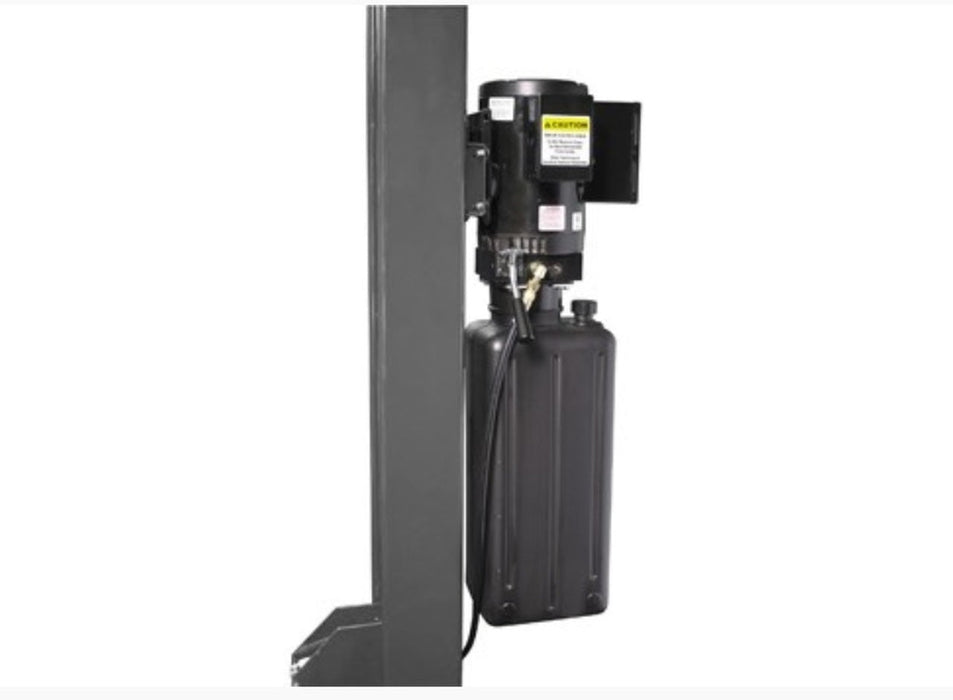

  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers

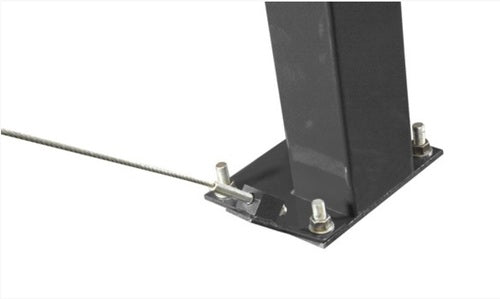

  • Features heavy-duty 3/8” aircraft cable
  • Rugged 1.25” roller axles

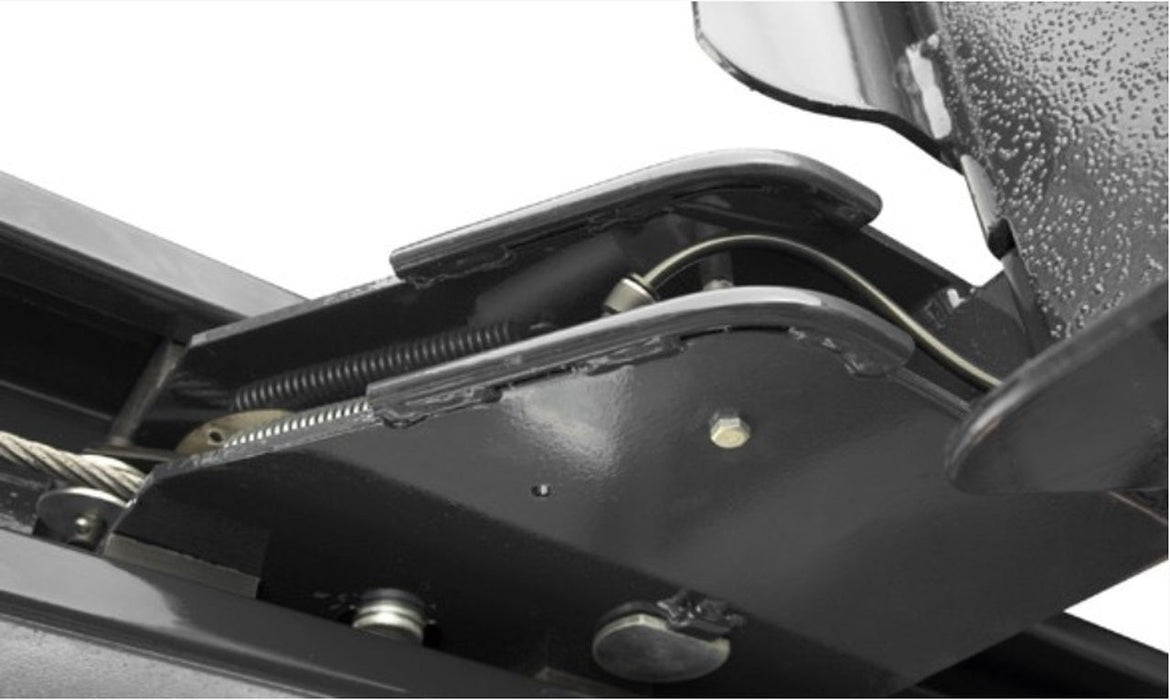

  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Ramps feature non-skid surface
  • Push-button pneumatic safety release.


Specifications

Model  HD-7PXW
Style  Wide Width / Super Tall Lift
Lifting Capacity  7,000 lbs. (3,175 kg)
A - Min. Runway Height  4.5” (114 mm)
B - Max. Rise  140” (3,556 mm)
C - Max. Lifting Height  145” (3,683 mm)
D - Overall Width  110.25” (2,800 mm)
E - Outside Length  198” (5,029 mm)
F - Overall Length  224.5” (5,702 mm)
G - Height of Columns  158” (4,013 mm)
H - Width Between Columns  100” (2,540 mm)
I - Drive-Thru Clearance  86.5" (2,197 mm)
J - Runway Width  19" (483 mm)
K - Length of Runways  188" (4,775 mm)
L - Width Between Runways  37.5" (952 mm) - 44-5" (1,130 mm)
M - Runway Centerline  56.5" (1,435 mm) - 63.5" (1,613 mm)
N - Outside Edge of Runways  75.5" (1,918 mm) - 82.5" (2,096 mm)
Min Wheelbase @ Capacity  135” (3,429 mm)
Min Wheelbase @ 75% Capacity  115” (2,921 mm)
Min Wheelbase @ 50% Capacity  95” (2,413 mm)
Min Wheelbase @ 25% Capacity  80” (2,032 mm)
Time to Full Rise  60 sec
Locking Positions  30
Lock Spacing  every 4” (102 mm)
Motor  208-230 VAC / 50-60 Hz / 1 Ph
