Bendpak Blue-Bullet Manual Pipe Bender with B-2 Die Package (5175439)

by Bendpak
Original price $9,495.00 - Original price $9,495.00
Original price
$9,495.00
$9,495.00 - $9,495.00
Current price $9,495.00

SKU 5115150
Guarantee safe checkout

Questions? Call us today:

(800) 438-5591

No Sales Tax. 4% Shipping Fee

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

Bendpak Blue-Bullet Manual Pipe Bender with B-2 Die Package (5175439)

Meet the heavy-duty BendPak “Blue-Bullet” exhaust pipe bender. It takes off like a shot and helps you reach your production target every time. Includes a die package and a dual-function end-finishing unit for precision OE expansions and flares.

Go Manual and Control Your Bends
Meet the heavy-duty BendPak “Blue-Bullet” exhaust pipe bender. It takes off like a shot and helps you reach your production target every time. Includes a die package and a dual-function end-finishing unit for precision OE expansions and flares.

With its superior performance and simple operation, the Blue Bullet BB-2 exhaust pipe benders will hold a special place in your shop. We took our standard bender and equipped it with a knee valve and degree plate combination for a straightforward, rugged design that will never let you down. The knee operated valve gives you precise control and hands-free bending capabilities. Simply push the lever to the left to advance the bending die and then to the right to retract it. Heavy-duty cast iron construction guarantees that the valve will stand up to years of heavy use.

Quick-change bending dies
Who has time to waste? Not you. Especially when you have a car in the air and others lined up. Our competitors tried for years to come up with an effective way to swiftly switch out the bending dies, but BendPak actually did it. Our twist-lock tooling and quick-change bending dies are so effective that they are copied across the entire industry. We choose to think of imitation as the best form of flattery, but you should make sure that you get your innovative equipment from the originator and not a knock-off.

180° bending capacity
You told us you needed a bender with an extremely deep bending capability. Is a U-shape deep enough? Thought so. Be sure to ask for our 180° dies if you're planning to bend more than 170°. You'll get perfect, deep bends on a 5" radius, without pipe sticking or hang-ups. That's because we use an exclusive relief cut design on our bending dies to help maintain the pipe's uniformity throughout the bend cycle and eliminate excessive crimping or deformation.

3" bending capacity with die kit
We built a convenient 3" bending capacity into every BendPak bender. In fact, our 3" bending dies perfectly exemplify our commitment to quality. Take a close look at the design. They might look like ordinary bending dies, but these heavy handfuls are anything but. No other manufacturer uses our exclusive step-cut process for the die rails. Our dies feature better-contained, larger-sized tubing for a more uniform bend. Despite the title of "bender," this unit is actually capable of expanding and flaring, too! Choose from a full range of exclusive dies.

Long-stroke bending cylinder
Because every BendPak bender is equipped with an extended-top cylinder, you no longer need to use pusher block extensions when bending with small-radius dies. Also, the 14" top-cylinder can be retracted further, providing additional clearance for changing dies or removing bent tubing.

Clampless swager
All BendPak benders are equipped with our exclusive clampless swager, which puts out an incredible force of over 30,000 lbs. for quick and precise end forming. The clampless swager provides rapid set-up time and a high degree of accuracy for I.D. expansions, O.D. expansions, slip-fits, flares, ball-joints, reductions and manifold flanges. All tooling is quick-release. Take a close look at the clamp assembly. You won't see a cumbersome, antiquated vise in our clamp assembly. What you will find is modern ingenuity at its finest—the narrow-hinged collars simply drop into position and allow for flare tubing ends as close as 3" from a bend. Don't worry about troublesome slipp

Features

  • 2 separate end-finishing units at rear for all necessary flaring and expanding
  • Knee control and depth-of-bend degree plate for manual bending operations
  • BB-1 Tooling Package included (Standard)
  • BB-2 Tooling Package available (Optional)
  • Complete with quick release bending and finishing dies
  • Includes clampless swager and internal expander
  • Easy-to-use drop-in collar makes swaging operations quick and efficient
  • Twist-lock tooling
  • Integrated power-relief control valve
  • Pass-through cylinder stem passes completely through the primary frame
  • Rigid 6” x 6” x 3/8” welded-steel tube frame
  • Commercial-grade hydraulic cylinders
  • All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards
  • Quick-release bending dies for reduced set-up times
  • Bending heads precision grounded to within .002”
  • Enclosed controls keep your bending area clutter-free
  • 2.5” oversized barrel shafts for maximum dependability and minimum maintenance
  • Standard grease fittings allow for simple lubrication
  • NEMA-rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur - Pressure gauges let you know exactly what the system pressures      are at all times
  • Adjustable pressure valve located right up front

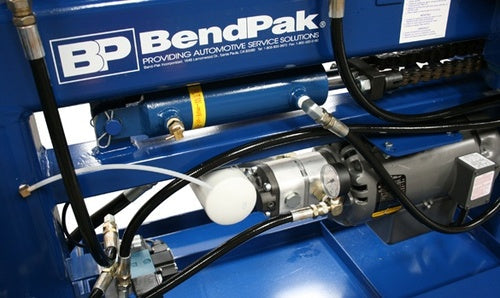

  • Strong, 5 HP Baldor energy efficient motor delivers maximum performance
  • Oil sight-gauges allow you to visually inspect oil levels

Specifications:

  • Bending controls: manual / knee lever
  • Expander controls: manual / knee lever
  • Frame style: 1302 / double-ended expander
  • Maximum bending radius: 5" / 127 mm
  • Minimum bending radius: 3-1/3" / 89 mm
  • Maximum tube capacity: 3" / 76 mm / .095 wall
  • Standard die pack (BB-2): 1-1/2", 1-3/4", 1-7/8", 2", 2-1/4", 2-1/2"
  • Top cylinder working force: 60,000 lbs. / 27,216 kg
  • Hydraulic filter: canister
  • Die Pack: 1.5", 1.75", 1.625", 2", 2.25", 2.5" (BB-2)
  • Dimensions: 42" x 62" x 31" / 1,067 mm x 1,575 mm x 787 mm
  • Standard motor: 5 Hp / 208 - 230 VAC / 60 Hz / 1 pH
  • Shipping weight: 1,264 lbs. / 573 kg
  • Shipping dimensions: 48" x 70" x 30" / 1,219 mm x 1,778 mm x 762 mm
