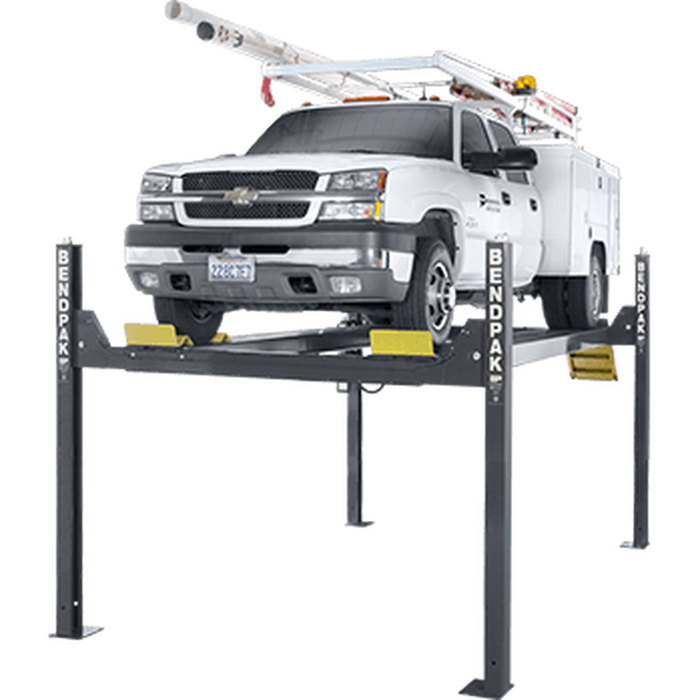

Bendpak HD-14TL 14,000 Capacity Tall Lift/ 82" Rise 4 Post Lift (5175004)

Bendpak HD-14TL 14,000 Capacity Tall Lift/ 82" Rise 4 Post Lift (5175004)

The industrial-quality HD-14T is a high four-post lift solution that provides 82” of rise – that’s more headroom under and around the lift work area for tall technicians looking to reduce painful head knocks. Not only is the HD-14T great for service work, it doubles as a high-clearance parking solution as well when you need store vehicles underneath. It’s just another way that BendPak tailors our lifts to suit your needs. With this four-post lift, you can push 14,000 pounds worth of rolling stock into the air without breaking a sweat. Be sure to consider BendPak’s RJ-7 air-hydraulic bridge jacks and our convenient rolling oil drain pan to increase the service capability even more.

Features:

• 14,000-lb. lifting capacity
• Extra lift height

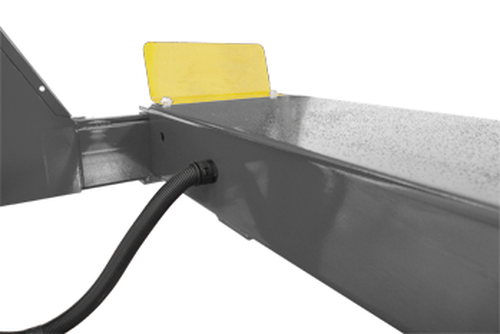

• Long-style approach ramps for low ground clearance vehicles
• Runways include rail-kit for optional accessories

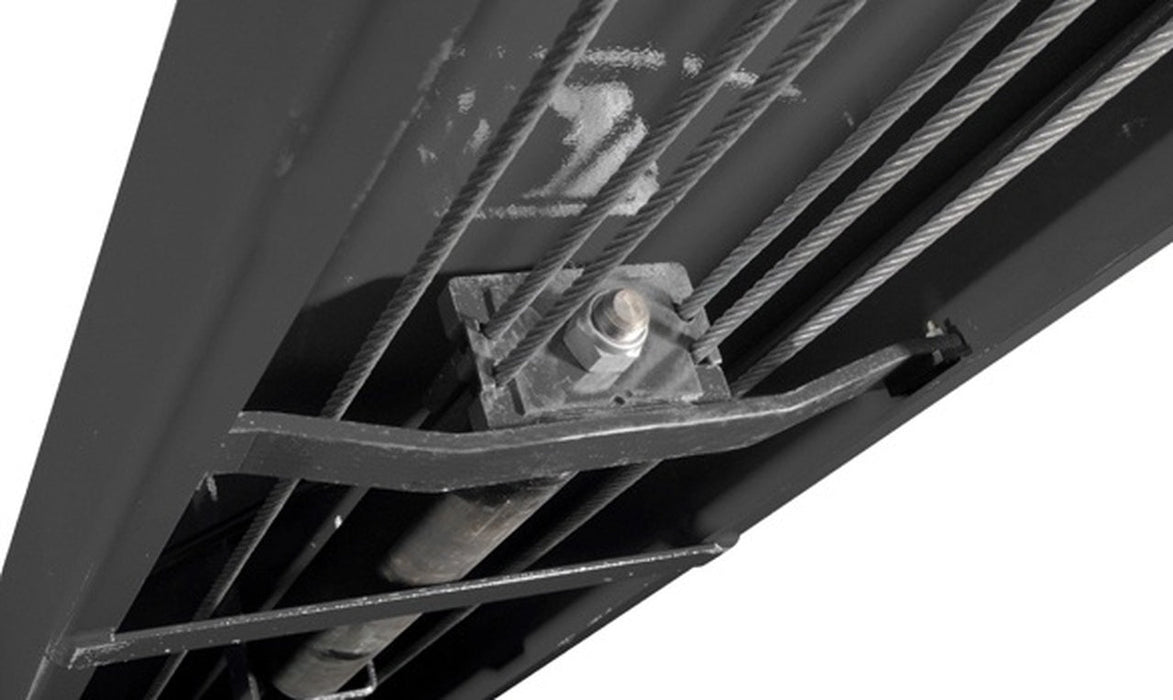

• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks, and sheaves
• Internal anti-sway slider blocks in each column
• Pneumatic push-button safety release
• Features heavy-duty 1/2" aircraft cable
• Safety locks enclosed in columns minimize pinch points
• Hardened-steel sheaves with self-lubricating bearings
• Multi-position safety locks in each column
• Customizable power unit location
• Approach ramps incorporate built-in rear-wheel chocks
• Independent backup slack-cable safety latches
• Runways feature non-skid surface

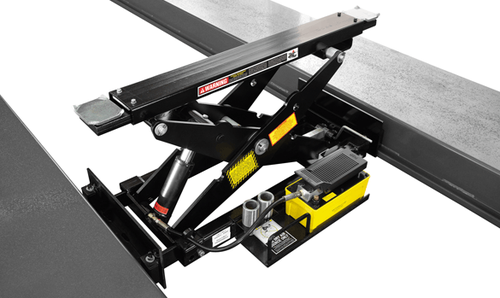

• Optional RJ-7 air-hydraulic bridge jacks increase service capability

Specifications:

Capacity

• Lifting Capacity*: 14,000 lbs. (6,350 kg)
• *Max Capacity / Front Axle: 7,000 lbs. (3,175 kg)
• *Max Capacity / Rear Axle: 7,000 lbs. (3,175 kg)

Rise

• A - Min. Runway Height: 7.625" (194 mm)
• B - Max. Rise: 82" (2,083 mm)
• C - Max. Lifting Height: 86.5" (2,197 mm)
• Time to Full Rise: 65 seconds

Outside Dimensions

• D - Overall Width: 126" (3,200 mm)
• E - Outside Length: 205" (5,207 mm)
• F - Overall Length: 234" (5,944 mm)
• G - Height of Columns: 101" (2,565 mm)

Inside Dimensions

• H - Width Between Columns: 115.5" (2,934 mm)
• I - Drive-Thru Clearance: 98" (2,489 mm)

Runways

• J - Runway Width: 20" (508 mm)
• K - Length of Runways: 191" (4,851 mm)
• L - Width Between Runways: 37.5" (953 mm) or 51" (1,295 mm)
• M - Runway Centerline: 57.5" (1,461 mm) or 71" (1,803 mm)
• N - Outside Edge of Runways: 77.5" (1,969 mm) or 91" (2,311 mm)

Minimum Wheelbase

• Rated Capacity: 140" (3,556 mm)
• 75% Capacity: 120" (3,048 mm)
• 50% Capacity: 100" (2,540 mm)
• 25% Capacity: 80" (2,032 mm)

Locking

• Locking Positions: 16
• Lock Spacing: Every 4" (102 mm)

Power Unit

• Motor: 220 VAC / 60 Hz / 1 Ph
• Noise: 45 dB

Manual

• Download1
