Bendpak XPR-18CL-192 18,000 Lbs Extra-Tall Clear-floor 2-Post Lift(5175411)

by Bendpak
$15,240.00

SKU 5175411

Questions? Call us today:

(800) 438-5591

No Sales Tax. Free Shipping

BendPak is the world's most accessible car lift and automotive service equipment manufacturer. They offer the highest quality products, best service after the sale and most impressive delivery speeds, all while holding fast to the strongest company culture in the industry. They are the world’s leading automotive service equipment provider for the last 50 years.

Lead time: Please allow 2-4 business days for order handling and 3-8 business days for shipping.

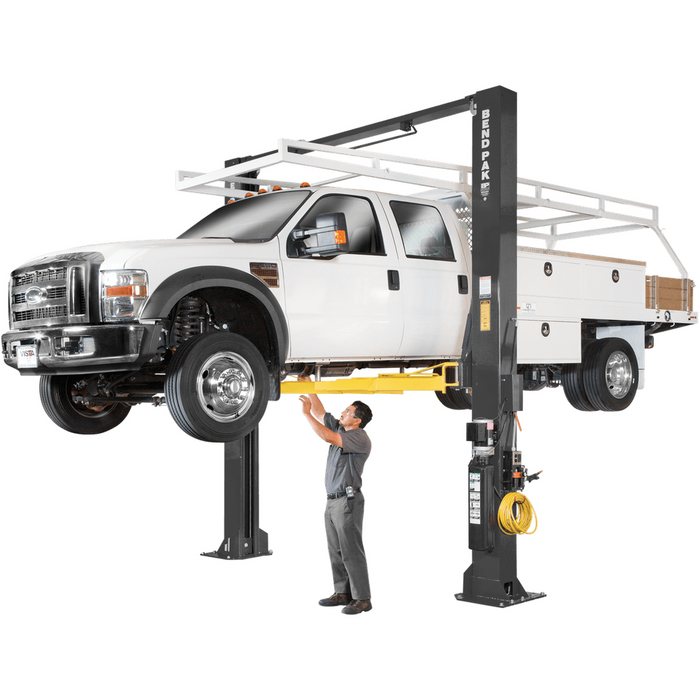

Bendpak XPR-18CL-192 18,000 Lbs Extra-Tall Clear-floor 2-Post Lift(5175411)

Shops that work on massive fleets and vehicles need a powerful car lift with a small footprint, so only BendPak’s 18,000-lb. capacity XPR-18CL will get the job done safely and efficiently. It offers the most lifting capacity of any two-post lift we make, which means you get the best column, carriage and frame component construction we offer.

With an XPR-18CL two-post car lift, you will service an incredibly diverse array of vehicles. High-capacity twopost lifts are commonly known as “all-service” lifts. Given their versatility, they’re the most common lift type found in professional shops. And, because they’re going to be in so many shops, it’s important that the XPR-18CL can lift any vehicle that falls well under the max weight capacity.

XPR-18CL-192 lifts include:

  • Direct-drive technology for rapid ascent/descent and low maintenance

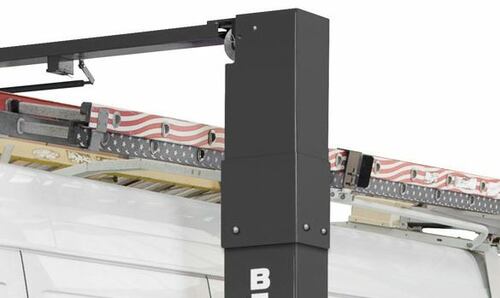

  • Optional column extensions for even higher capacity
  • Lowered arm tube supports for better clearance to minimize the chance of vehicle damage
  • Maintenance-free UHMW load bearings for long service life
  • Dual-synchro equalization technology for safer, stable working conditions

XPR-18CL-192 Characteristics:

  • Lift Capacity: 18,000 lbs.
  • Height: 193”
  • Width: 155”
  • Lift height: 69”
  • Type: Clear Floor

Features:

  • 18,000-lb. lifting capacity
  • Padded overhead safety shutoff bar
  • Extended height top-beam provides greater overhead clearance
  • Single-point safety release
  • Dual direct-drive hydraulic cylinders
  • Dual-synchro equalization system for equal lifting

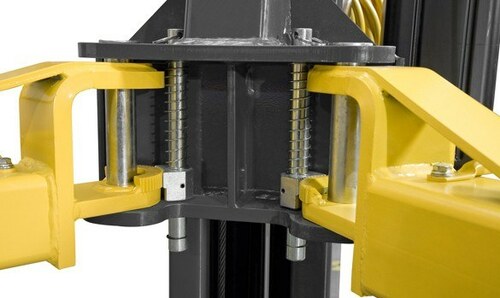

  • Oversized 53" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Oversized A36 steel base plates
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3"
  • Plated arm restraints and arm pins for rust prevention
  • Heavy-duty 1/2" aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue

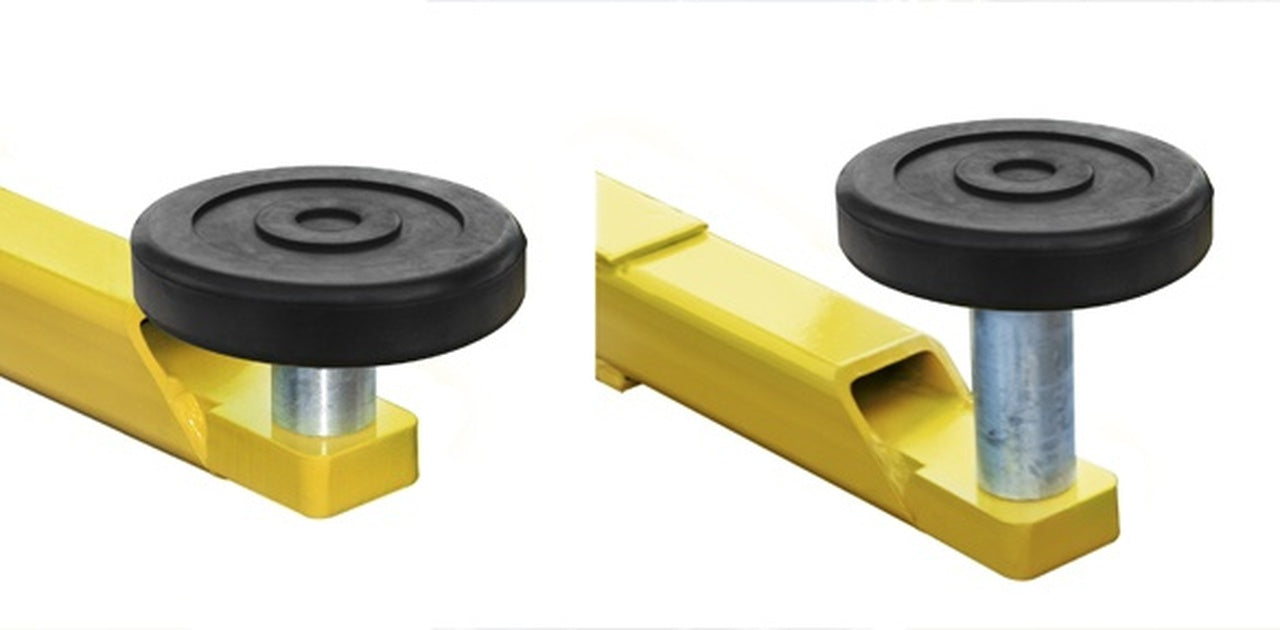

  • Durable, rubber lift pads with stackable adapters

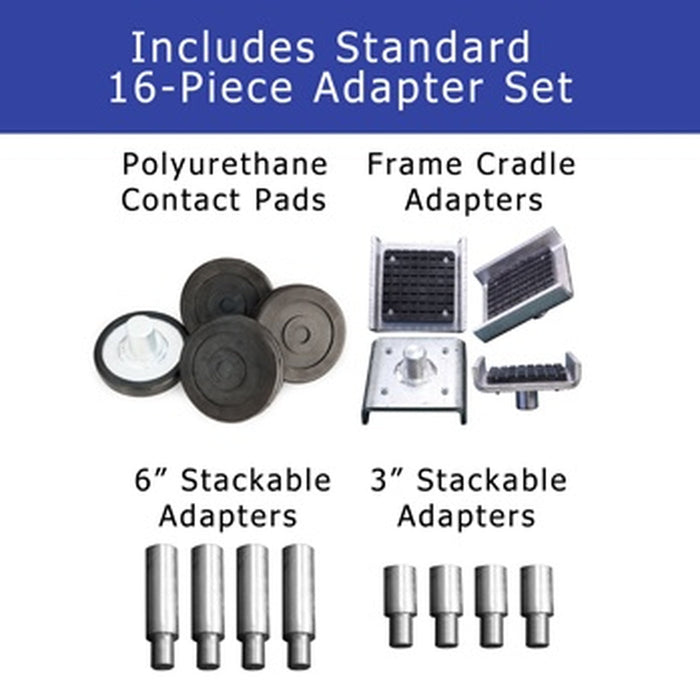

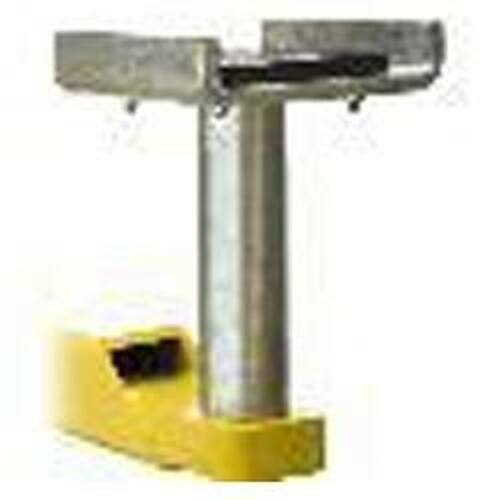

  • Multi-piece adapter set includes four 6" stackable adapters, four 3" stackable adapters, four polyurethane contact pads and four frame cradle pads. Ideal for trucks and vans with running boards or auxiliary fuel tanks.
  • Convenient storage is included for truck and van adapters
  • Versatile drop-in contact pads with stackable adapters

Specifications:


Capacity

  • Lifting Capacity* 18,000 lbs. (8,165 kg)
  • *Max Capacity / Front Axle 9,000 lbs. (4,082 kg)
  • *Max Capacity / Rear Axle 9,000 lbs. (4,082 kg)

Rise

  • A - Rise: 69" (1,753 mm)
  • B - Rise + Pad Only: 74" (1,880 mm)
  • C - Rise + Pad + 63 mm Adapter: 80" (2,032 mm)
  • D - Min. Height + Pad: 5" (127 mm)
  • Time to Full Rise: 45 seconds

Outside Dimensions

  • E - Height Overall: 170" (4,318 mm)
  • F - Width Overall: 155" (3,937 mm)
  • G - Outside Columns: 144" (3,658 mm)

Inside Dimensions

  • H - Inside Columns: 120" (3,048 mm)
  • I - Drive-Thru Clearance: 106" (2,692 mm)
  • J - Floor To Overhead Switch: 165" (4,191 mm)

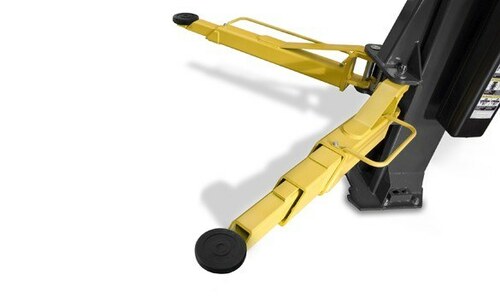

Arms & Pads

  • K - Front Arm Reach: (MIN) 39" (991 mm)
  • K - Front Arm Reach: (MAX) 60" (1,524 mm)
  • L - Rear Arm Reach: (MIN) 39" (991 mm)
  • L - Rear Arm Reach: (MAX) 60" (1,524 mm)
  • Max Load Per Arm 4,500 lbs. (2,041 kg)

Power Unit

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise: 45 dB
